Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
SAFT163IOC SAFT 163 IOC |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
SAFT163IOC SAFT 163 IOC |
|
Product Type |
PC I/O Connection Board |
|
Operating Voltage |
12–48 V DC |
|
Input Voltage |
24 V DC |
|
Number of Channels |
16 Input / 16 Output |
|
Data Transfer Rate |
Up to 1 Mbps |
|
Communication Protocol |
Modbus RTU |
|
I/O Channels |
Multi-channel digital/analog signal processing |
|
Operating Temperature Range |
-20°C to +70°C |
|
Protection Rating |
IP20 |
Description

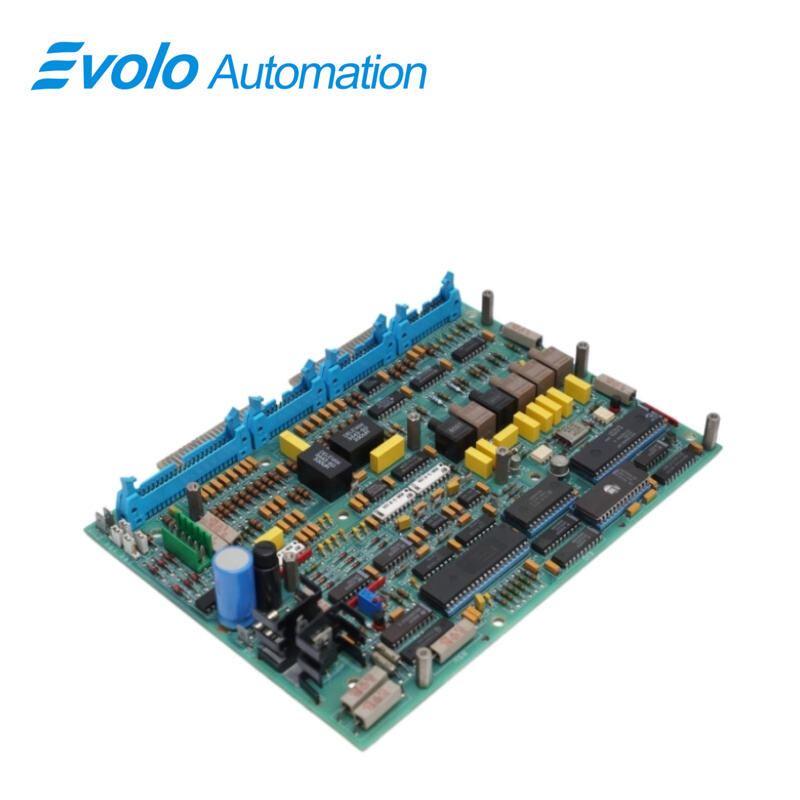

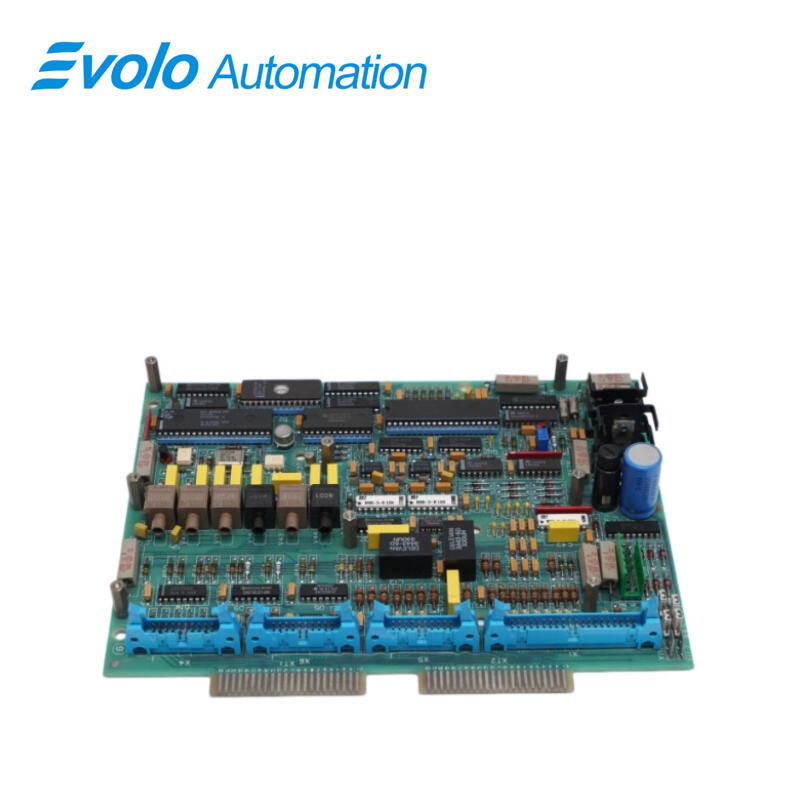

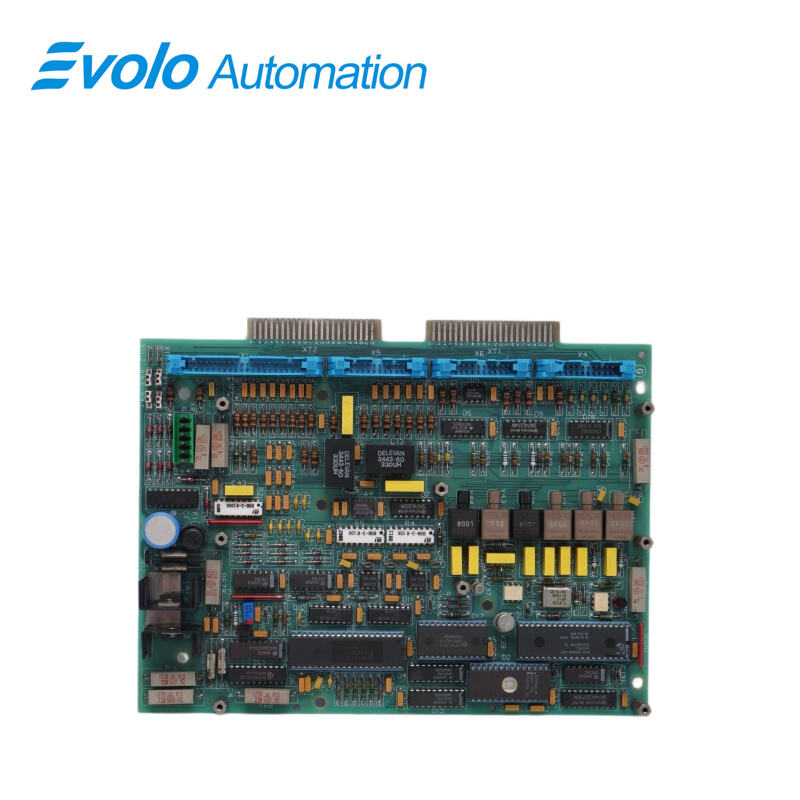

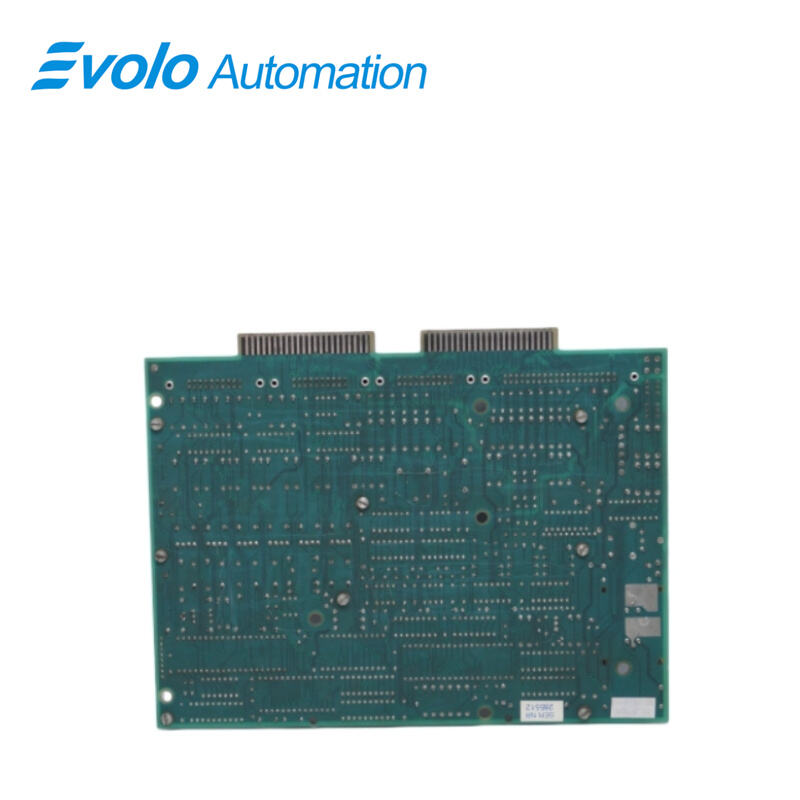

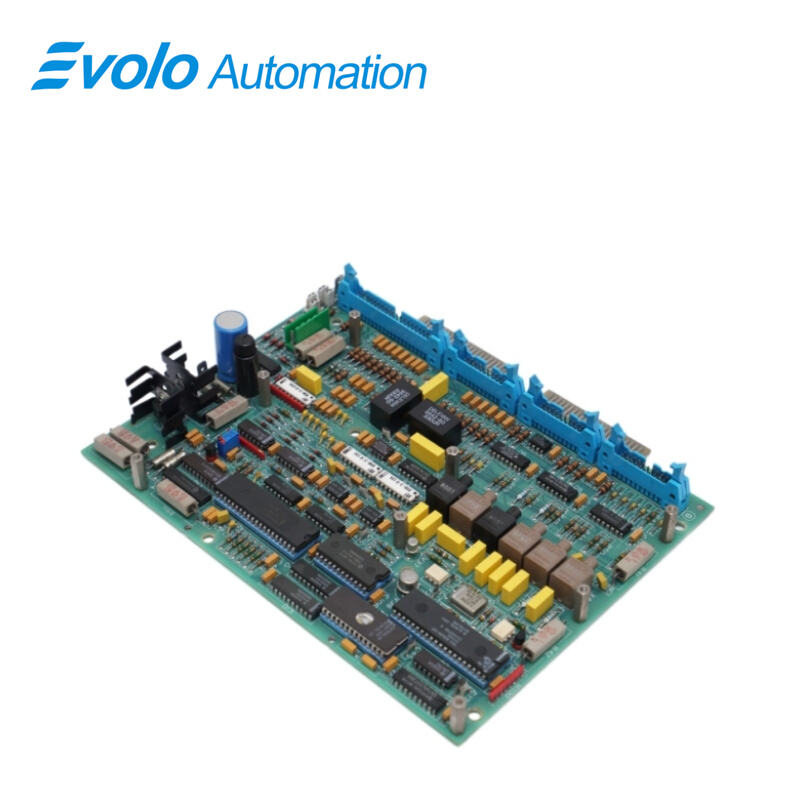

The ABB SAFT163IOC SAFT 163 IOC PC I/O Connection Board is a high-performance interface module designed for seamless integration into industrial control systems, ensuring reliable data exchange and enhanced operational efficiency. This board is responsible for acquiring data from field sensors and distributing processed control commands to actuators. Its compact design and rapid response make it a core hardware component ensuring the accuracy and real-time performance of production line logic control.
Applications
Oil refineries (for pump monitoring and valve feedback control)
Paper machinery plants (position signal acquisition for paper machine drive systems)
Iron continuous casting plants (logic interlocking and emergency stop signal management for rolling lines)
Cement processing plants (I/O interface units for rotary kiln speed control systems)
Chemical automation plants (signal conversion within explosion-proof control frames)
Troubleshooting and Maintenance Recommendations
Troubleshooting:
Signal Delay/Packet Loss: Check for loose I/O terminal blocks or electromagnetic interference (shielded twisted-pair cable recommended).
Channel Damage: If a single channel is unresponsive, check for breakdown of the onboard optocoupler isolation components.
Maintenance Recommendations:
Regular Tightening: Industrial vibrations can easily cause connectors to loosen; a wiring check is recommended quarterly.
Dust Removal Maintenance: Ensure the board surface is free of conductive dust to prevent short circuits under high humidity conditions.
FAQ
Q: What is the SAFT163IOC SAFT 163 IOC?
A: It is a high-performance PC I/O connection board.
Q: Does the SAFT163IOC SAFT 163 IOC 1 Mbps speed require special cabling?
A: Yes. Use shielded twisted-pair cable and keep length within standard limits to reduce attenuation.
Q: Can the SAFT163IOC SAFT 163 IOC operate with 12V or 48V systems?
A: Yes. It supports a 12–48V DC wide input range with automatic adaptation.
Q: Does Modbus RTU on the SAFT163IOC SAFT 163 IOC support other PLC brands?
A: Yes. It is a standard protocol and supports cross-brand communication.
Q: Does IP20 protection on the SAFT163IOC SAFT 163 IOC allow humid environment use?
A: No. IP20 only protects against solid objects; humid use requires an IP54 or higher enclosure.
