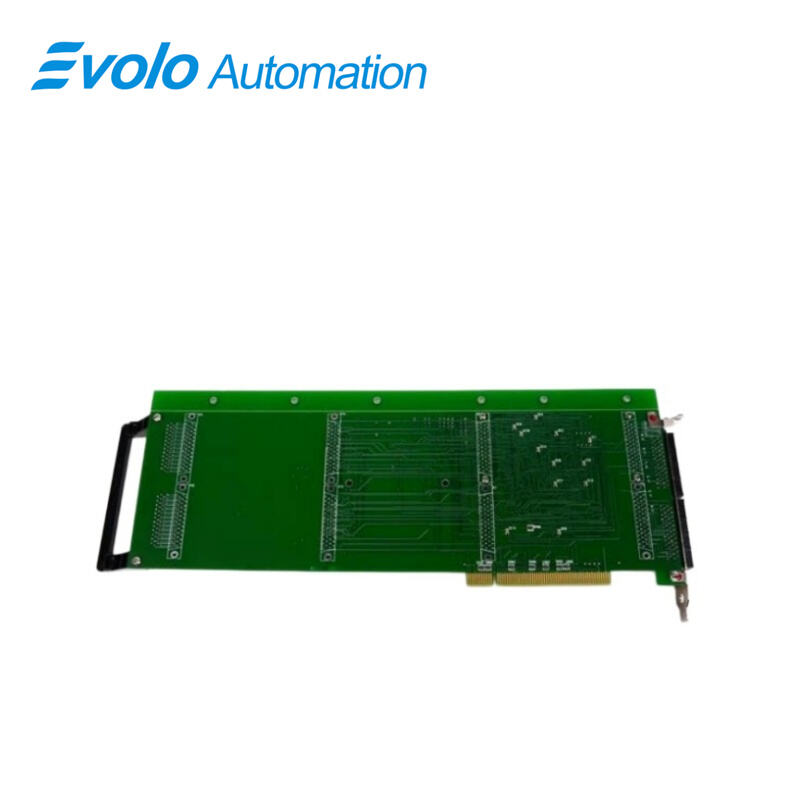

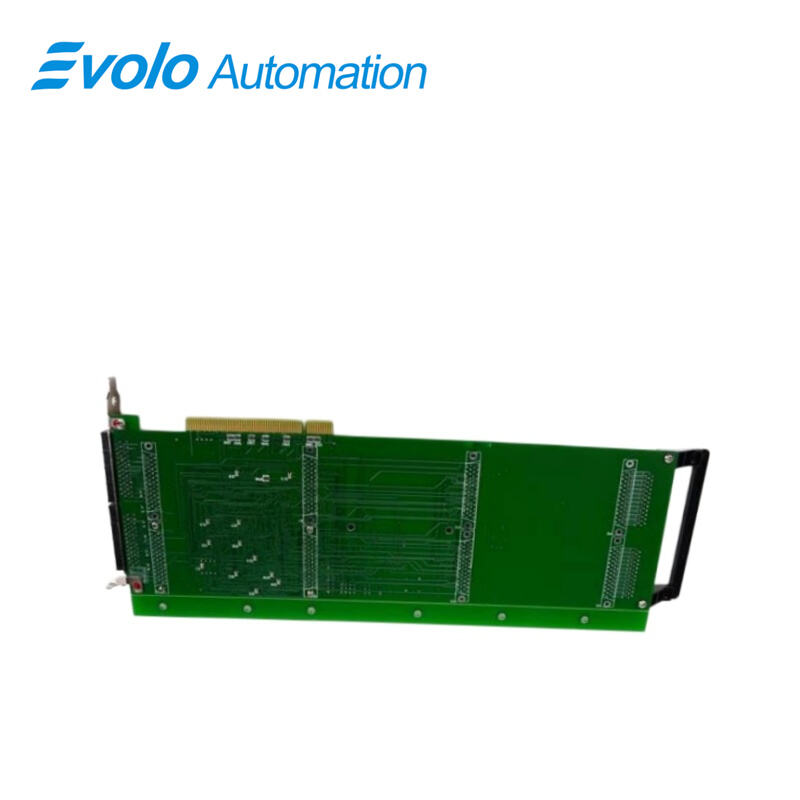

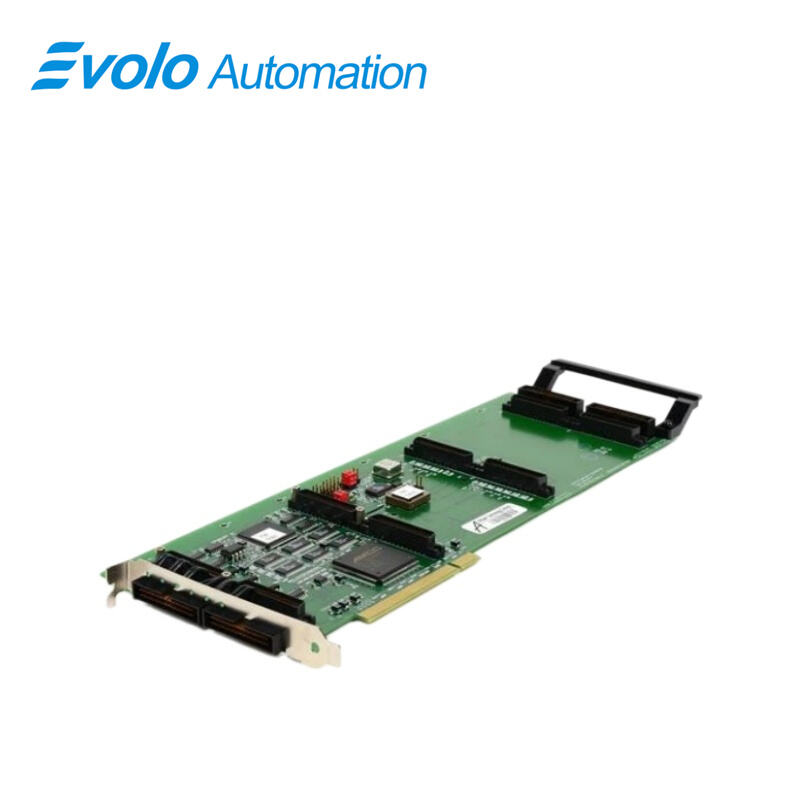

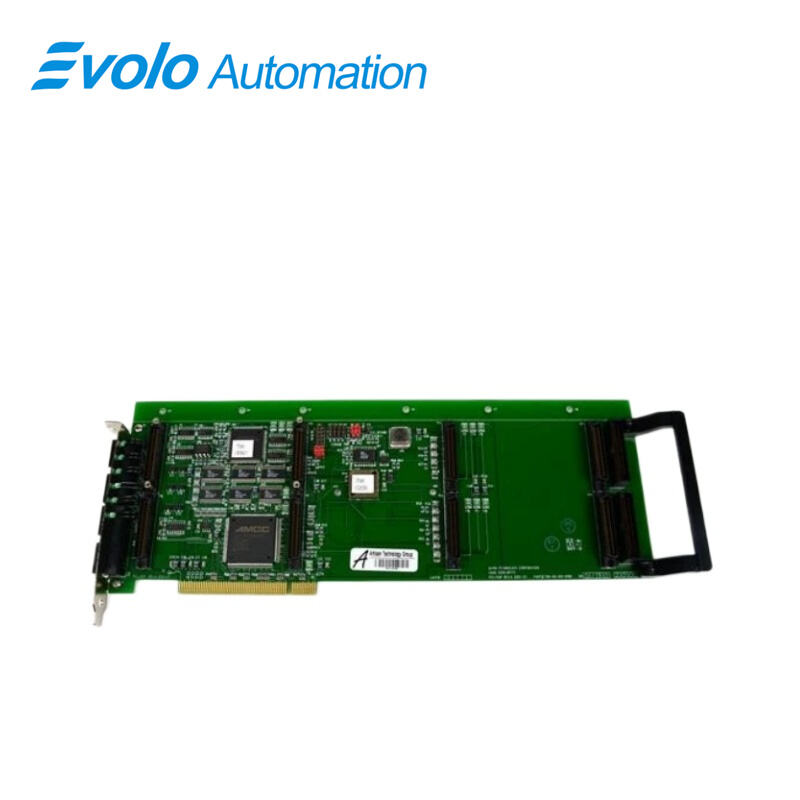

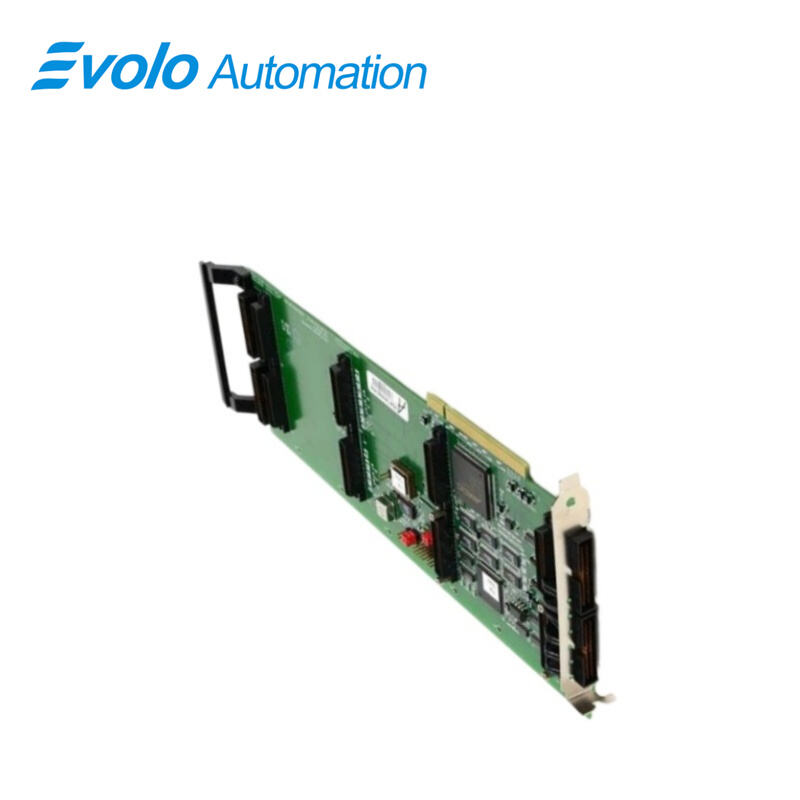

PCI-4PACK 736-5-001 PCI Module

Overview

Place of Origin:	USA
Brand Name:	ALPHI
Model Number:	PCI-4PACK 736-5-001
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The PCI-4pack module provides a high performance flexible I/O scheme, that supports industry standard Industry PacksÔ. For application requiring low cost, high density I/O or unique combinations, the PCI-4pack is the perfect solution. The Local DSP can be used to simply move data to and from the CPCI bus or provide pre processing functions such as local PID controls, FFT’s, digital filtering, etc. Custom application software can be downloaded to the DSP via the PCI bus. Windows 95 and WinNT drivers are standard.

Applications

Aerospace & Military: Used for flight control simulation, avionics test platforms, and high-reliability airborne embedded systems. Its wide temperature range (-40°C to +85°C) enables stable operation in extreme environments.

Semiconductor Equipment: Used for real-time control of wafer handling robots and precision measuring instruments on automated chip manufacturing production lines.

Industrial Automation & Process Control: Integrated as a core communication unit in distributed control systems of large factories, handling preprocessing functions such as PID control, FFT (Fast Fourier Transform), or digital filtering.

Traffic & Rail Control: Used for signal monitoring in rail transit, as the underlying hardware interface for automated fare collection systems, and for traffic flow management hardware.

Medical Technology: Provides low-latency data acquisition interfaces in high-precision medical imaging equipment or automated laboratory testing equipment.

FEATURE SUMMARY

· QUAD Industry Pack carrier

· Supports 8 and 32 Mhz Industry Packs

· TMS320C31 DSP control engine

· 512K bytes of zero wait state SRAM

· 4 Mbytes of dual ported SRAM

· Application firmware can be downloaded via the PCI bus

· Choose from over 150 different Industry Packs

· Front panel I/O

· Full PCI form factor

Industry Packs

· ADA-08 ADC & DAC

· ADC-08 12 bit ADC

· ADC-16 12 bit ADC

· CIO-32 32 ttl I/O

· CSI-10 SCSI

· DAC-08 14 bit DAC

· FPGA-IO User I/O

· INP-16 Isolated input

· LAN-10 10 baseT

· LAN-100 10/ 100 base T

· LAN-12 Arcnet

· MFI-IP Multi function

· OUT-16 Isolated output

· RTD-20 Resolver

· SCC-04 4 232/422/485

· SCC-08 Octal serial

· UCC-08 Hi-perf Serial

· 1553B-IP Mil-Std-1553

FAQ

Is PCI-4PACK 736-5-001 brand new or refurbished?

It is brand new and comes with a one-year warranty.

How long will it take for the PCI-4PACK 736-5-001 to arrive after I place an order?

Once payment is confirmed, we ship immediately. Delivery typically takes 3–5 days from China to your location.

Do you offer any discounts?

Yes! For discounts on PCI-4PACK 736-5-001, please contact John for the best offer.

Do you have it in stock?

Yes, right now we have PCI-4PACK 736-5-001 in stock ready for shipment. We can support video inspection.

Do you provide warranty as standard?

We provide a full 12-month warranty for the PCI-4PACK 736-5-001. So, if you have any problems within 12 months from the date of delivery, you can contact our team, who will be happy to help and explain what your next steps should be.
