Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MU-TLPA02 51309204-125 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
MU-TLPA02 51309204-125 |
|
Product Type |
Power Adapter Board |
|
Dimensions |
15.1 × 12 × 5 cm |
|
Weight |
0.3 kg |
|
Input Voltage Range |
85–265 VAC |
|
Output Voltage |
24 VDC |
|
Output Current |
25 A |
|
Type of Tension |
AC |
|
Circuits |
2 |
|
Terminals |
Compression |
|
Size A |
6 inches (152 mm) |
|
Coating |
Non-Conformal Coated |
|
Compliance |
CE compliant |
Description

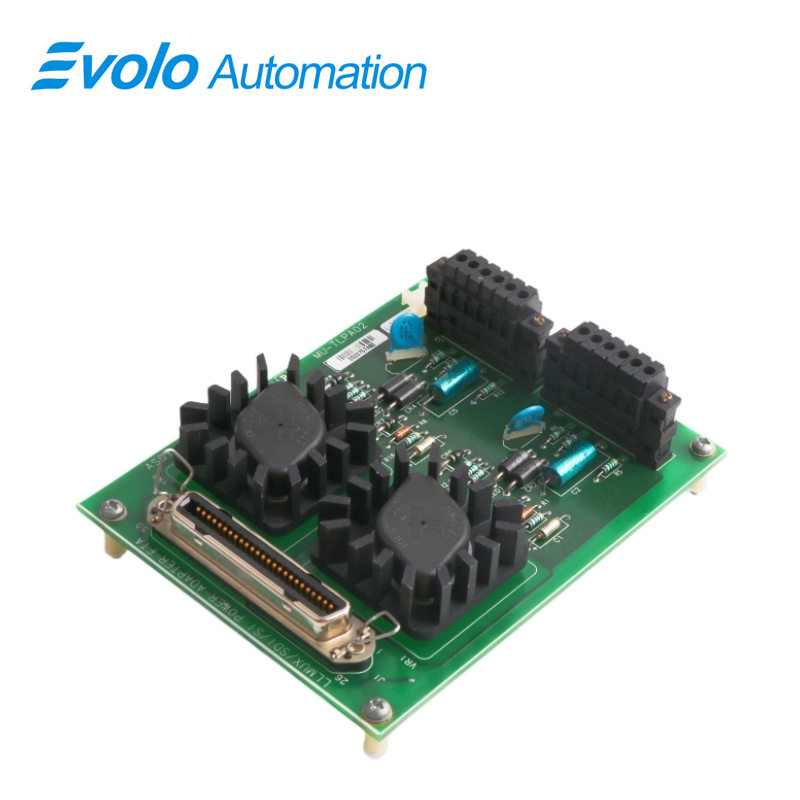

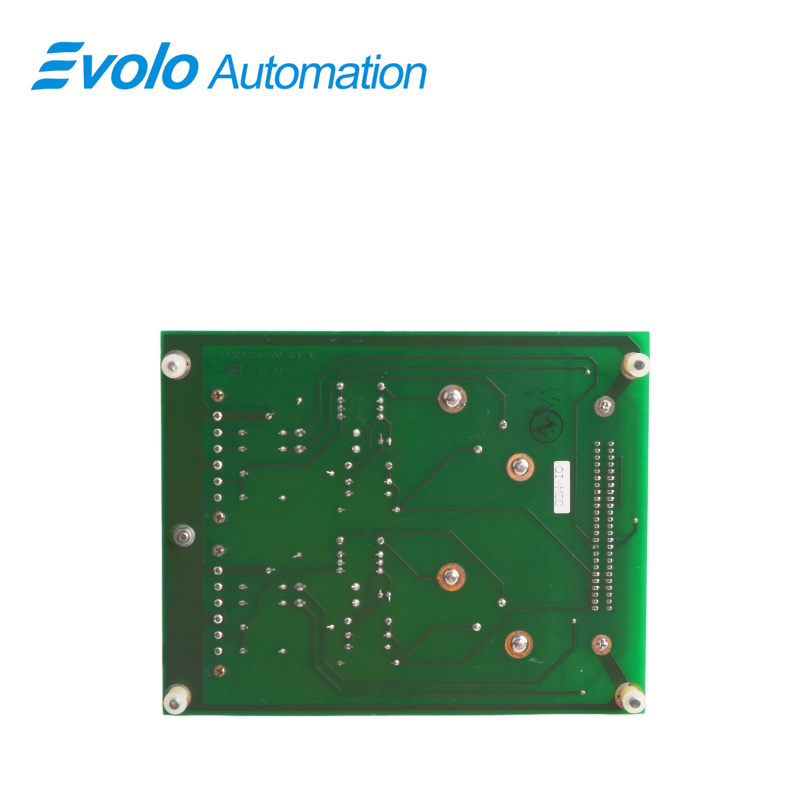

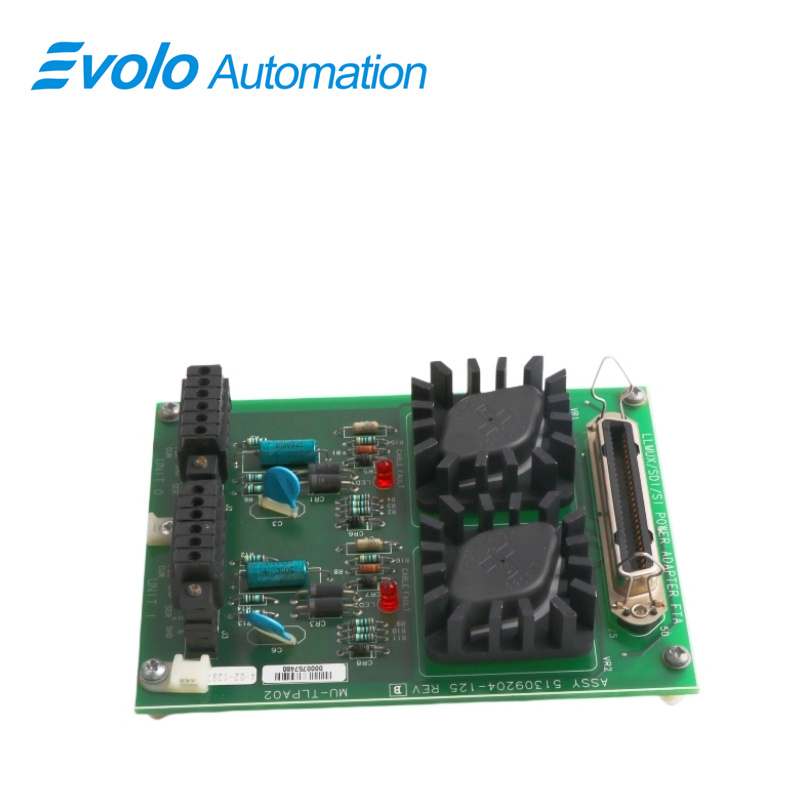

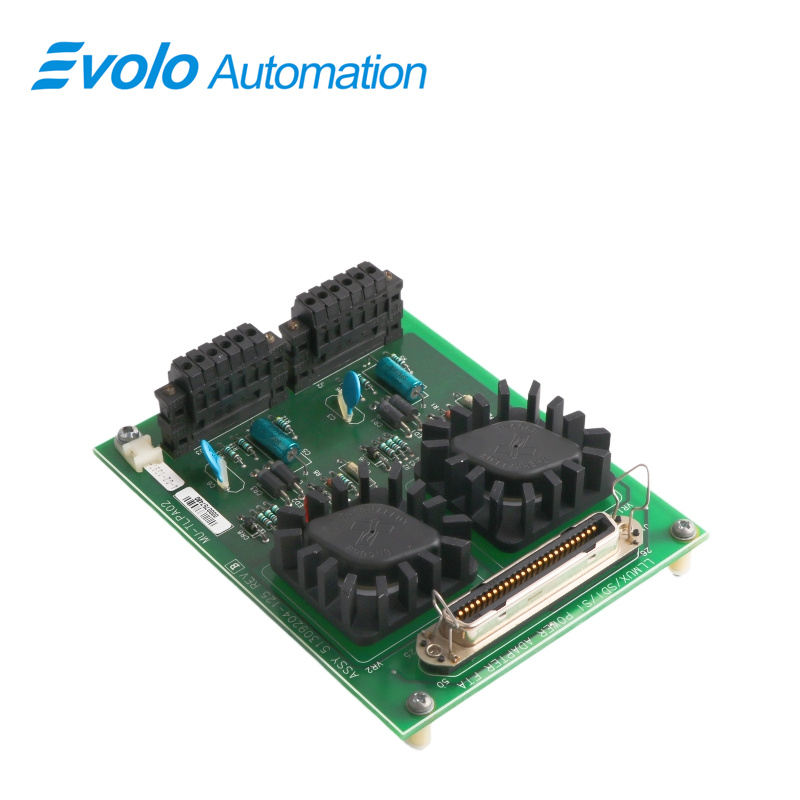

Honeywell MU-TLPA02 51309204-125 is a Power Adapter Board for the Honeywell TDC 3000 / TPS Distributed Control System (DCS). Mounted in the FTA tray of the control cabinet, it provides critical interface connectivity and power conversion between the Input/Output Processor (IOP) and two remote field terminal blocks.
Applications
Oil Refineries: High-current DC supply for DCS controllers and isolated I/O modules in control cabinets.
Chemical Plants: Wide-range AC input handles voltage dips from large reactors and mixers.
Thermal Power Plants: Dual independent circuits provide redundant 24 VDC distribution for boiler and turbine control systems.
Natural Gas Plants: Rugged compression terminals resist vibration from compressor stations and valve fields.
Water Treatment Plants: Compact 6-inch design enables efficient integration into aeration and sludge control cabinets.
Features
Versatile Connectivity: Offers screw and compression terminal options for flexible installation.
Compliance: CE compliant and available with conformal coating options.
Reliability: Ensures stable power supply and connectivity for critical industrial processes.
FAQ
Q: What is the input voltage range of MU-TLPA02 51309204-125?
A: Its input voltage range is 85–265 VAC.
Q: What is the output voltage of MU-TLPA02 51309204-125?
A: Its output voltage is 24 VDC.
Q: What is the output current of MU-TLPA02 51309204-125?
A: This model provides an output current of 25 A.
Q: How many circuits does MU-TLPA02 51309204-125 have?
A: It has 2 circuits.
Q: What type of terminal does MU-TLPA02 51309204-125 use?
A: It uses compression terminals.
