Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MU-TDOR22 51309150-125 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
MU-TDOR22 51309150-125 |
|
Product Type |
Digital Output Module |
|
Dimensions |
35.6 × 12 × 5.5 cm |
|
Weight |
0.72 kg |
|
Outputs |
16 isolated Form A (SPST/NO) or Form B (SPST/NC) contacts (jumper selectable per output) |
|
Contact Type |
Silver alloy |
|
Maximum Load Voltage |
140 Vac (rms) / 140 Vdc |
|
Maximum Steady-State Load Current (AC) |
5 A rms @ 120 Vac (resistive) per output |
|
Maximum Steady-State Load Current (DC 30V) |
2 A @ 30 Vdc (resistive) per output |
|
Maximum Steady-State Load Current (DC 125V) |
0.5 A @ 125 Vdc (resistive) per output |
|
Horsepower Rating |
1/8 HP per output |
|
Minimum Load Current |
100 mA |
|
Isolation |
1500 Vac rms or ±1500 Vdc (channel-to-channel and channel-to-system common) |
|
Turn-on Time |
10 ms typical / 15 ms maximum |
|
Turn-off Time |
10 ms typical / 15 ms maximum |
|
Maximum Repetition Rate |
360 cycles per hour at rated load |
|
Contact Life (100% load) |
350,000 operations |
|
Contact Life (80% load) |
450,000 operations |
|
Contact Life (60% load) |
750,000 operations |
|
Contact Life (40% load) |
1,000,000 operations |
|
Contact Life (20% load) |
1,300,000 operations |
|
Mechanical Life |
20,000,000 operations |
|
Contact Suppression |
22 Ω / 0.1 µF resistor-capacitor snubber per contact |
|
Load Fusing on Termination Assembly |
6 A 125 V slow-blow fuse (5×20 mm) per output |
|
Surge Withstand Capability |
ANSI/IEEE C37.90.1-1978 |
Description

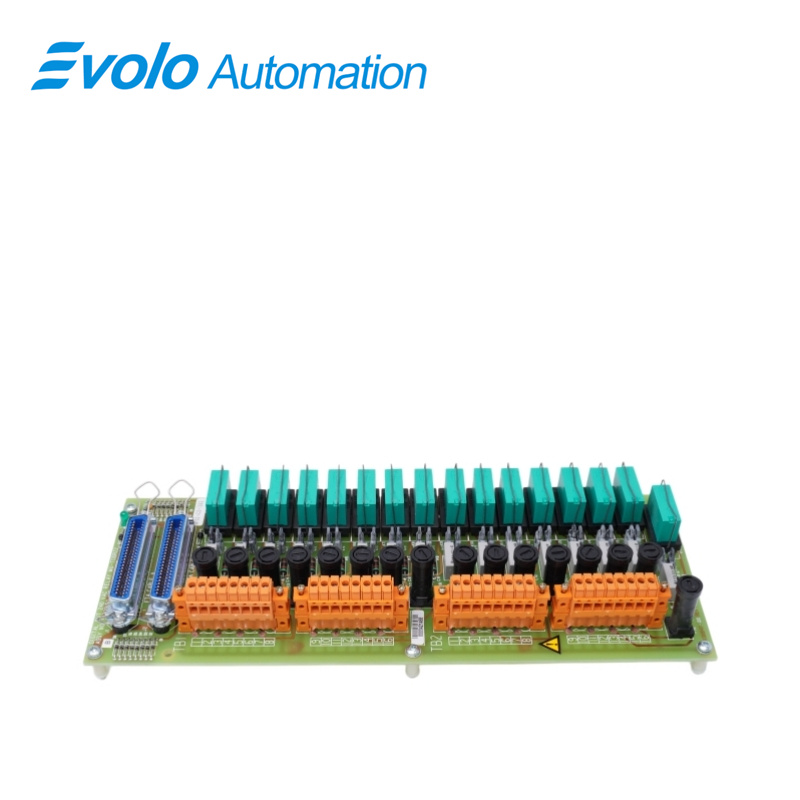

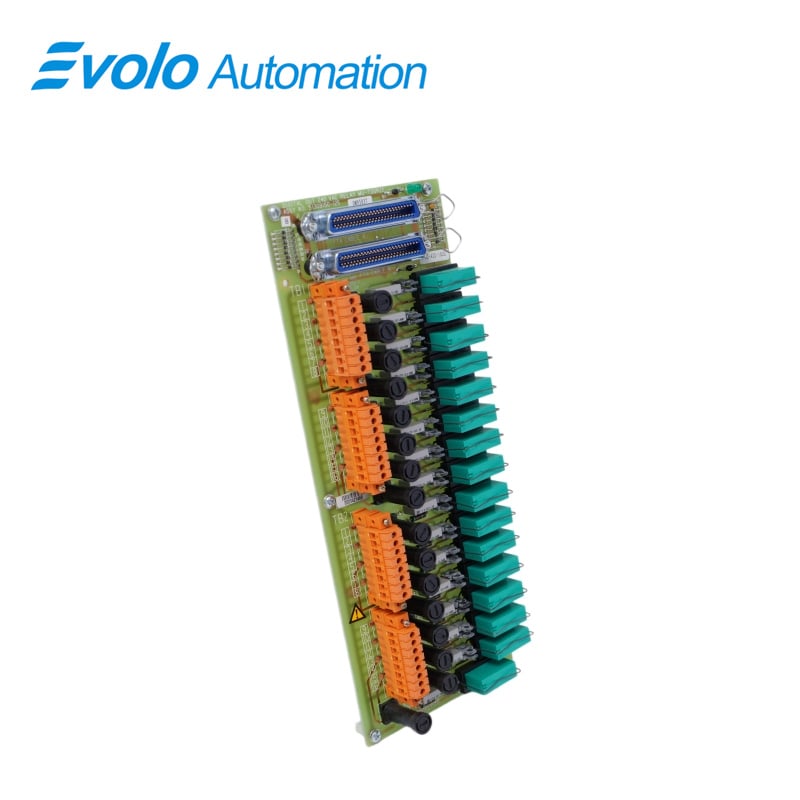

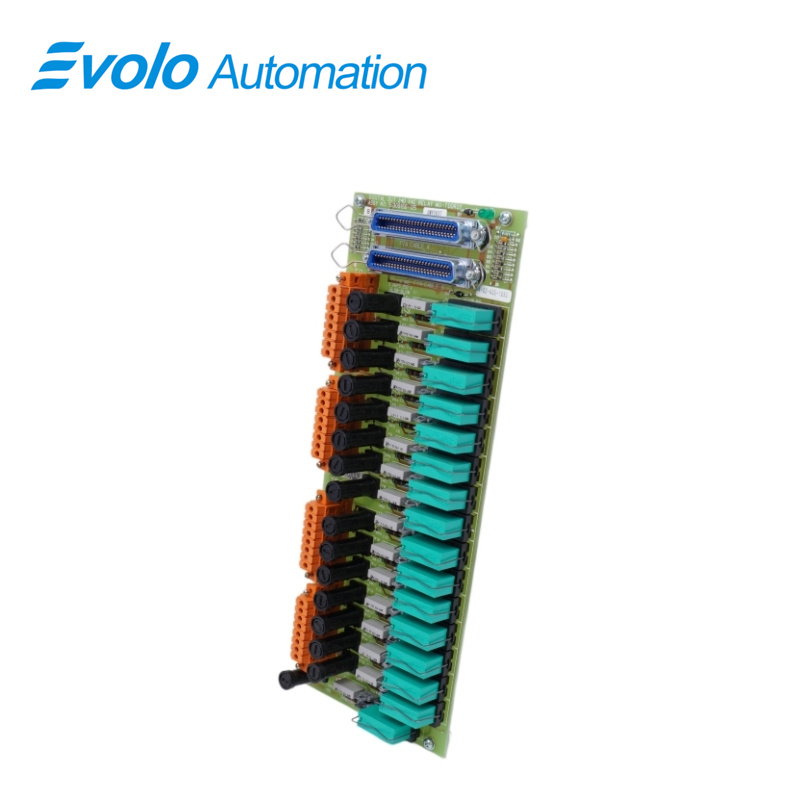

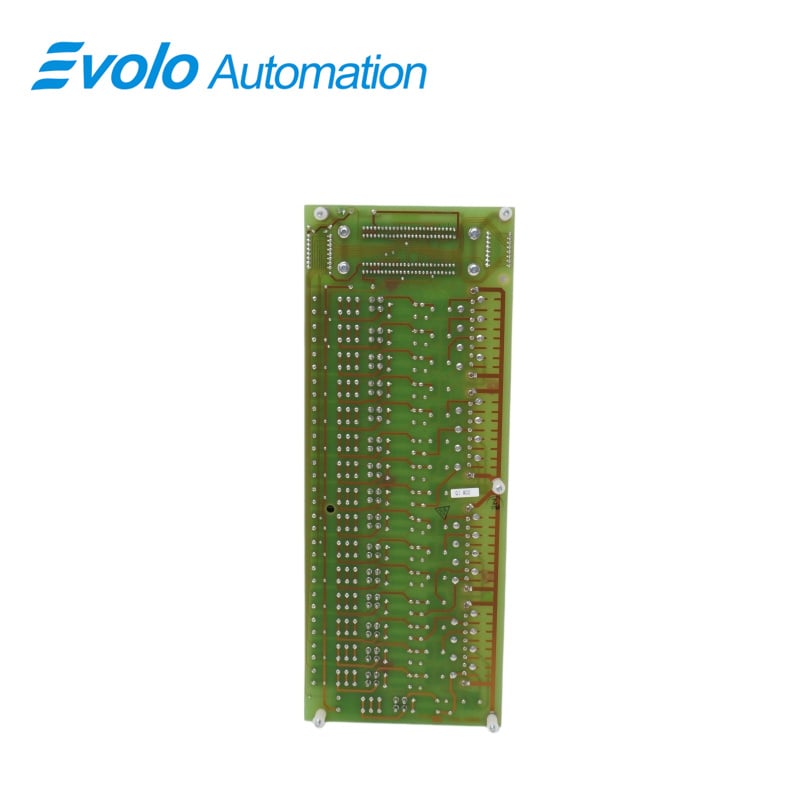

The Honeywell MU-TDOR22 51304427-100 is a Digital Output Module used for Honeywell Distributed Control Systems. It provides secure and redundant termination for digital output signals, ensuring reliable actuation of field devices in critical process environments.
Applications
Oil Refineries: Jumper configurable Form A/B for fail-safe ESD and emergency shutdown valve control.
Chemical Plants: Full-channel isolation prevents grounding loops and electrical noise interference in hazardous zones.
Thermal Power Plants: High load driving capability for contactor coils and trip circuits in heavy equipment control.
Natural Gas Plants: RC snubber protection reduces back EMF from inductive loads on pipeline systems.
Metallurgy Plants: Surge-resistant and vibration-proof terminals ensure stable operation in high-temperature production lines.
Features
Redundant Design: Provides dual-path redundancy for enhanced reliability in safety-critical applications.
Reliable Control: Ensures secure actuation of valves, relays, and other field devices.
Industrial Durability: Built to withstand harsh operating environments.
System Integration: Seamlessly connects with Honeywell Dcs controllers
Compact Format: Lightweight and easy to install in racks or panels.
FAQ
Q: How many output points does MU-TDOR22 51309150-125 have?
A: This model has 16 isolated output contacts.
Q: What contact material does MU-TDOR22 51309150-125 use?
A: Its contact material is silver alloy.
Q: What is the maximum load voltage of MU-TDOR22 51309150-125?
A: Its maximum load voltage is 140 Vac (rms) / 140 Vdc.
Q: What is the horsepower rating of MU-TDOR22 51309150-125?
A: The horsepower rating is 1/8 HP per output channel.
Q: What is the minimum load current of MU-TDOR22 51309150-125?
A: Its minimum load current is 100 mA.
