Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MU-TAOX02 51304476-125 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MU-TAOX02 51304476-125 |
|
Product Type: |
Analog Output Termination Board |
|
Output Channels: |
8 |
|
Output Type: |
4–20 mA |
|
Output Current Range: |
0.1–21.4 mA |
|
Maximum Output Current: |
26 mA |
|
Maximum Resistive Load: |
750 Ω @ 22 mA |
|
Output Ripple: |
100 mV p-p (at power line frequency, across 250 Ω load) |
|
Output Temperature Stability: |
0.02% FS / °C |
|
Resolution: |
±0.05% |
|
Calibrated Accuracy (25°C): |
±0.35% (incl. linearity) |
|
Readback Accuracy: |
±4% |
|
Output Settling Time: |
≤4 ms (to 98% final value) |
|
Surge Withstand Capability: |
ANSI/IEEE C37.90.1-1978 |
|
Humidity Range: |
10–90% non-condensing |
|
Dimensions: |
15.2 × 12.8 × 5.5 cm |
|
Weight: |
0.22 kg |
Description

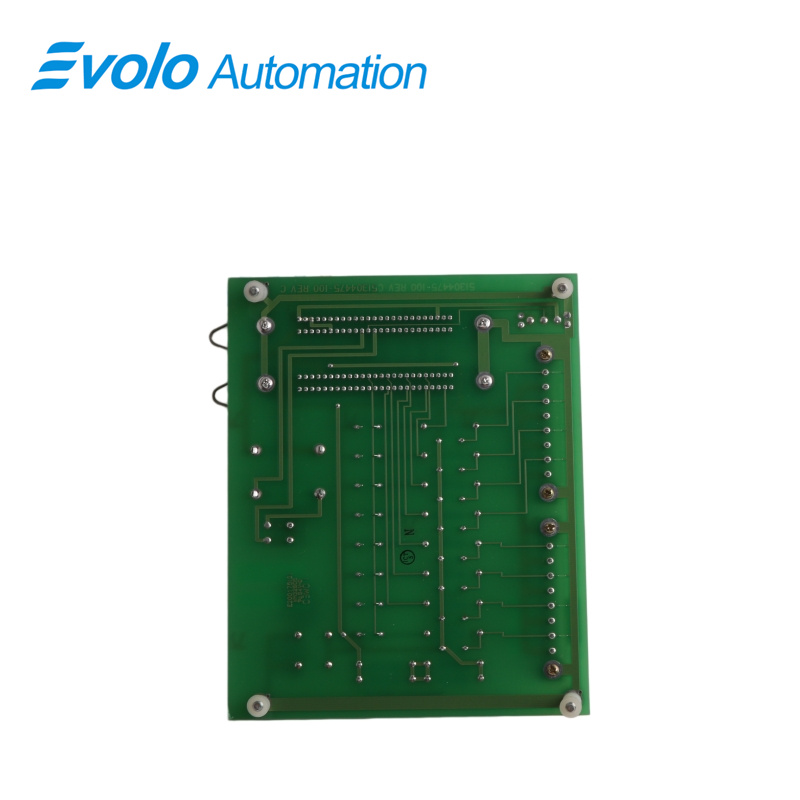

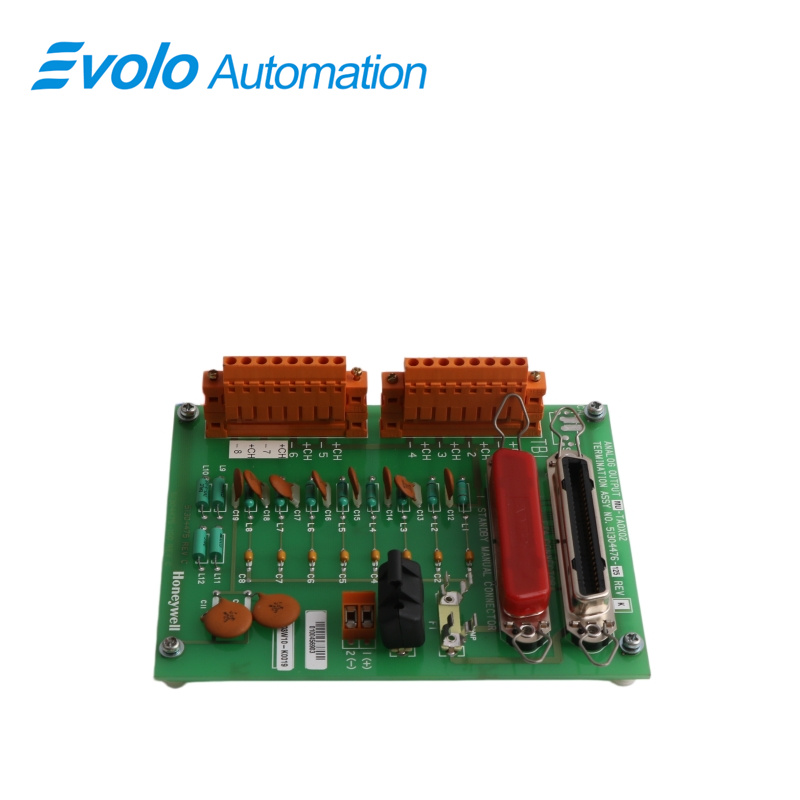

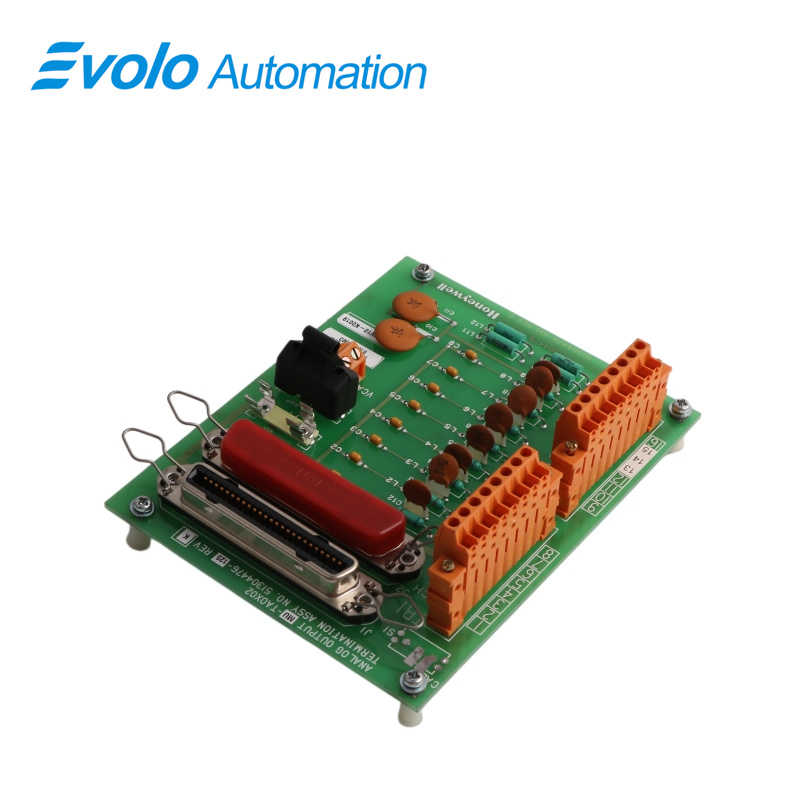

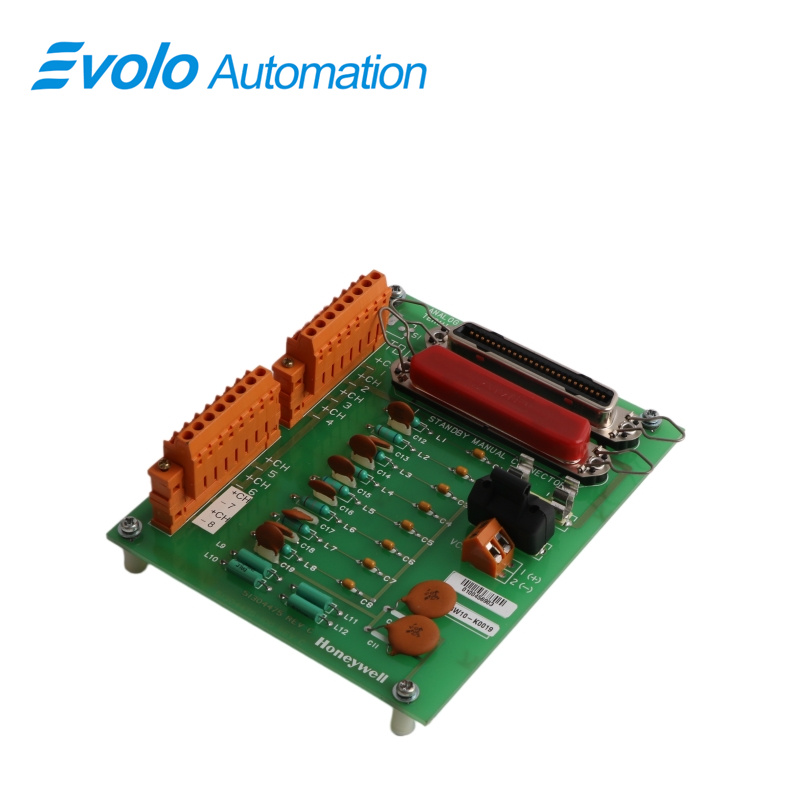

The Honeywell MU-TAOX02 51304476-125 is an Analog Output Termination Board within Honeywell's Experion Process Knowledge System (PKS). This board is essential for managing and controlling various industrial processes by providing precise analog output signals to field devices. It typically includes multiple output channels, allowing users to send signals to various actuators, valves, and other control devices, facilitating automated process control.
Applications
Oil refinery: Controls pneumatic valves and positioners in distillation and cracking units for flow and pressure regulation.
Large fertilizer plant: Drives high-pressure control valves and pump VFDs in ammonia synthesis for accurate batching.
Thermal power plant: Provides fast control for boiler feedwater, turbine speed, and coal feeder actuators.
Paper mill: Regulates pulp flow, steam valves, and multi-section drive speeds to reduce sheet breaks.
Wastewater treatment plant: Controls dosing pumps, aeration fans, and outlet gates with strong noise immunity over long cables.
Features
Supports 8 analog output channels
Uses compression-type terminals
Compatible with Division 2 hazardous locations
FAQ
Q: How many output channels does MU-TAOX02 51304476-125 have?
A: This model has 8 output channels.
Q: What is the output current range of MU-TAOX02 51304476-125?
A: Its output current range is 0.1–21.4 mA.
Q: What is the maximum output current of MU-TAOX02 51304476-125?
A: Its maximum output current is 26 mA.
Q: What is the resolution of MU-TAOX02 51304476-125?
A: Its resolution is ±0.05%.
Q: What is the calibration accuracy of MU-TAOX02 51304476-125 at 25°C?
A: Its calibration accuracy is ±0.35% (including linearity).
