Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MRP200XV31 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MRP200XV31 |
|
Product Type: |
Control Panel |
|
Dimensions: |
29.8 × 22.5 × 4.2 cm |
|
Weight: |
0.6 kg |
|
Communication Protocol: |
MODBUS RTU |
|
Operating Temperature Range: |
0°C to +49°C |
|
Recommended Storage Temperature: |
15°C to 27°C |
|
Operating Humidity: |
93% ± 2% RH at 32°C (non-condensing) |
|
Response Time: |
≤ 2 seconds |
|
Power Supply: |
24 VDC (max 500 mA) |
|
Indicator Outputs: |
4 built-in indicators / alarm / buzzer output circuits |
|
Input Circuits: |
6 standard fire detector input circuits |
Description

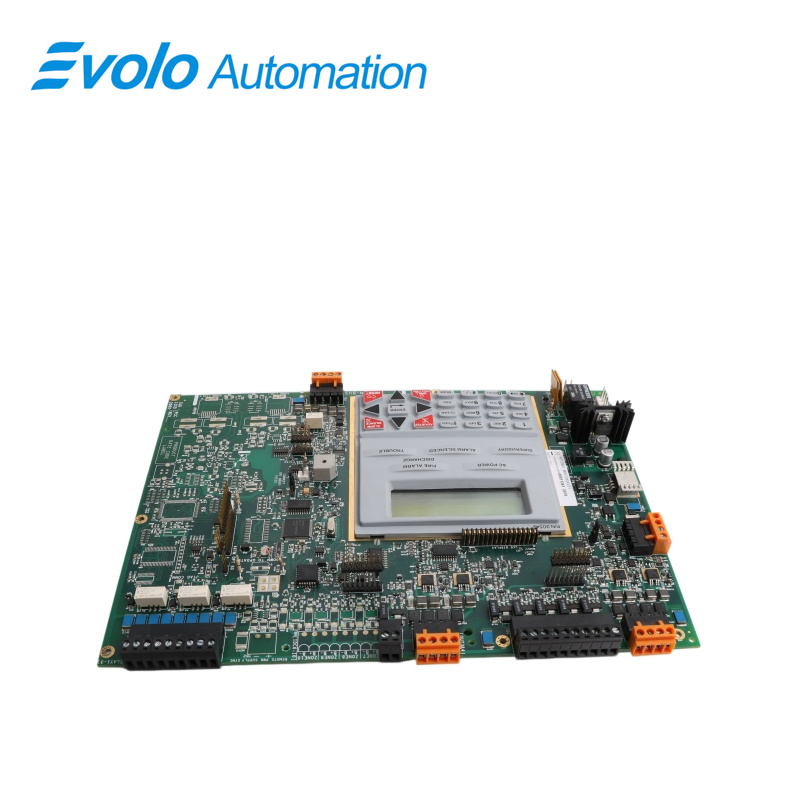

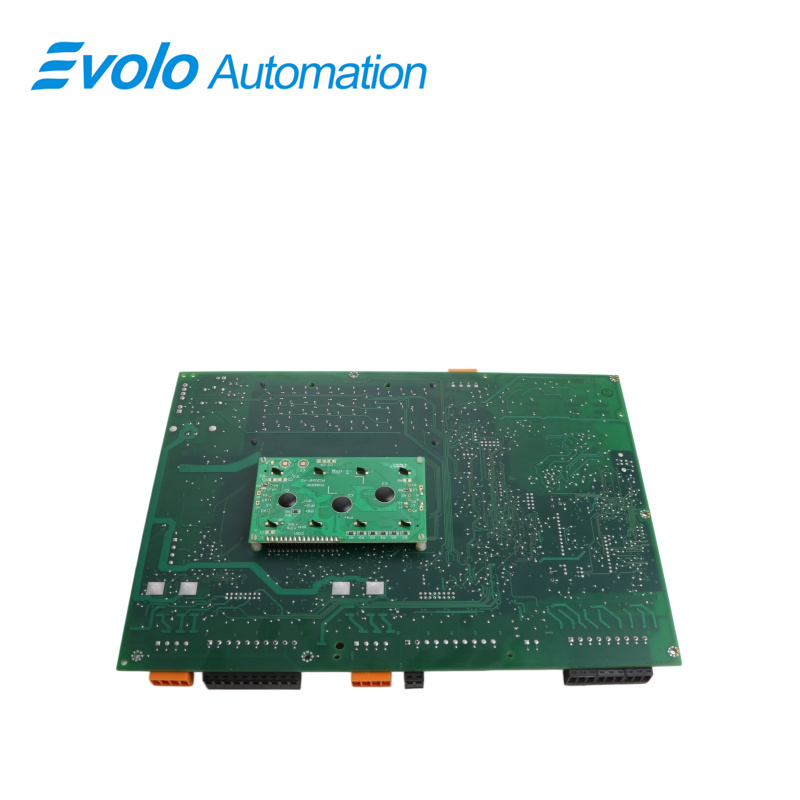

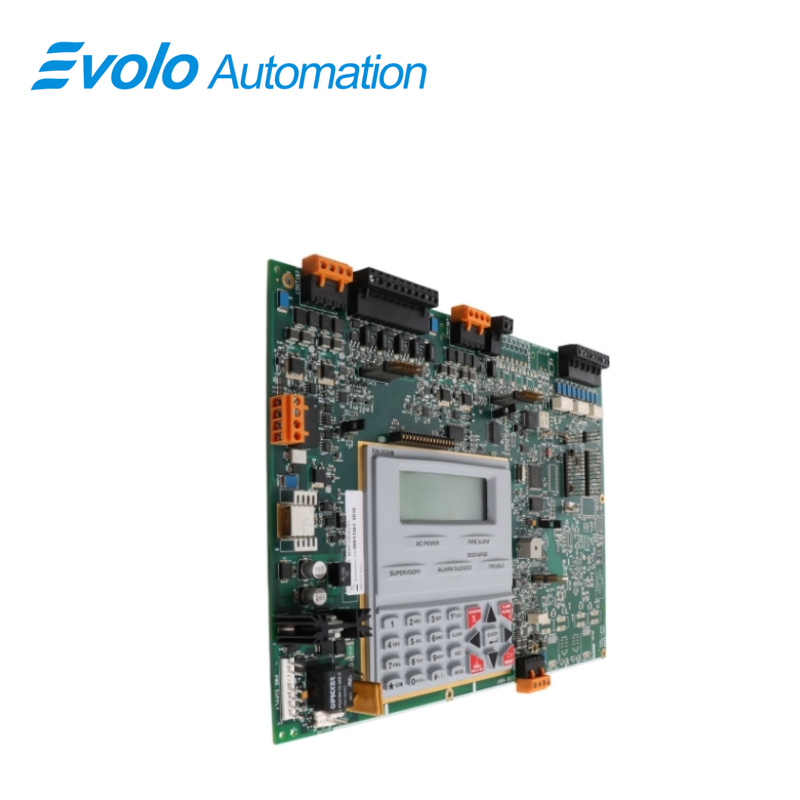

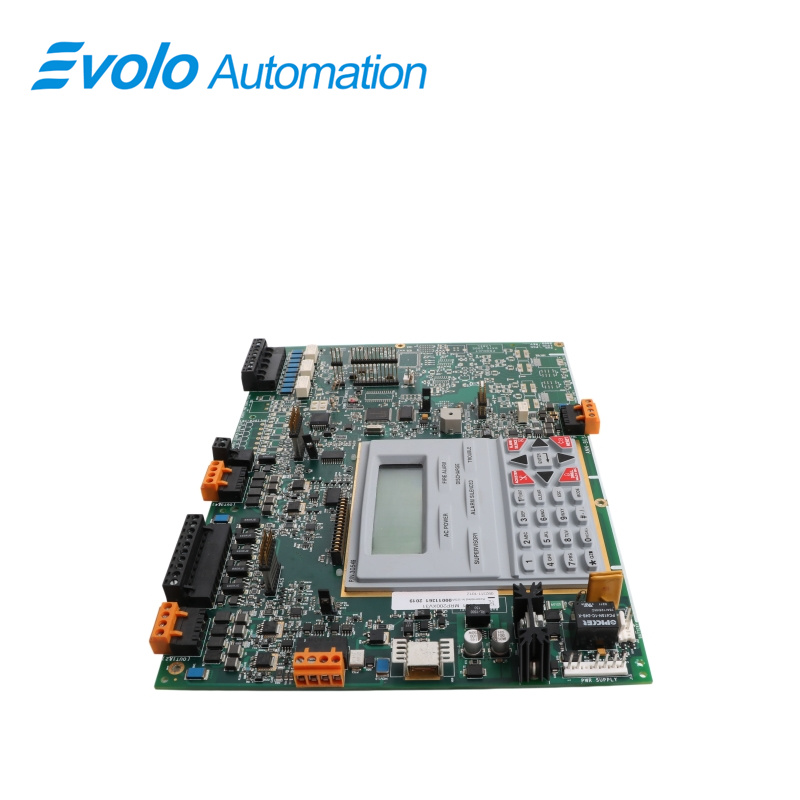

The Honeywell MRP200XV31 is a control panel. This panel receives these signals and activates audible and visual alarms such as bells and flashing lights, while simultaneously controlling pipe valves to release water for fire suppression. In this way, it can automatically provide water-based fire protection for critical areas in the early stages of a fire. Furthermore, it supports connection to external remote display panels and printers
Applications
Automotive plant: Fire loops monitor smoke in paint and battery lines for early fire prevention.
Textile plant: Stable fire monitoring in high-humidity, dusty workshop environments.
Warehouse logistics: Centralized smoke and heat signals via MODBUS RTU integration.
Data center power: Fast alarm response for electrical and generator rooms.
Electronics plant: Safety monitoring for cleanrooms and hazardous storage areas with low power.
Troubleshooting Common Problems
MODBUS Communication Loss: Check for loose connections in the shielded twisted-pair bus. Confirm that the station address, baud rate, and parity bit on the control panel match those of the master station.
Circuit False Alarms or Faults: If any of the six standard input circuits report an anomaly, use a multimeter to measure the resistance at the end of the circuit to check for drift. Also, confirm that the field probes are not short-circuited due to condensation.
FAQ
Q: What communication protocol does MRP200XV31 use?
A: This model uses the MODBUS RTU communication protocol.
Q: What is the operating temperature range of MRP200XV31?
A: Its operating temperature range is 0°C to +49°C.
Q: What is the response time of MRP200XV31?
A: Its response time is less than or equal to 2 seconds.
Q: How many indicator output circuits does MRP200XV31 have?
A: It has 4 built-in indicator/alarm/buzzer output circuits.
Q: How many fire detector input circuits are included in MRP200XV31?
A: This model includes 6 standard fire detector input circuits.
