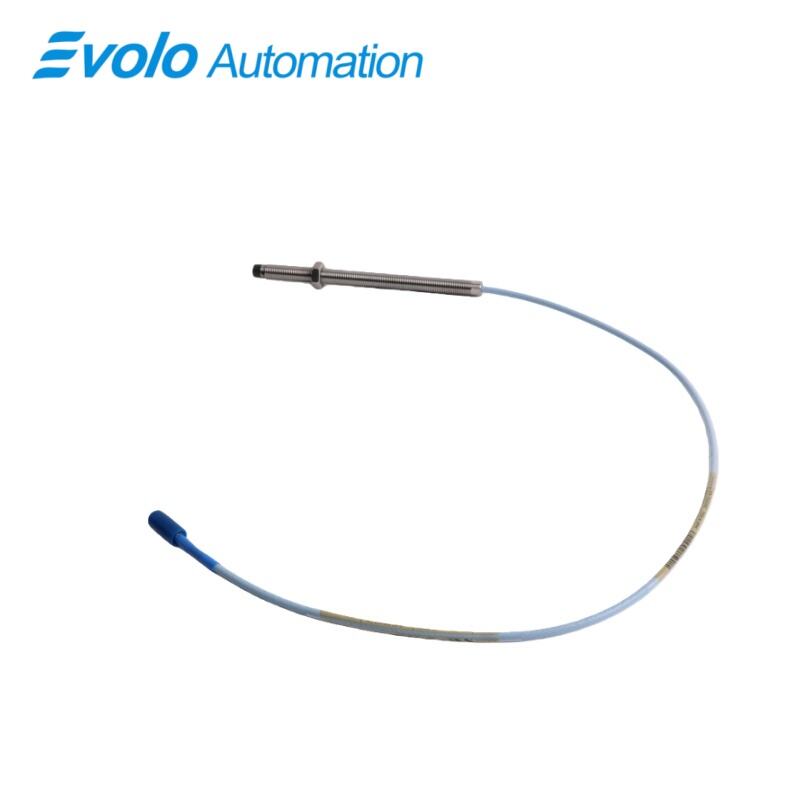

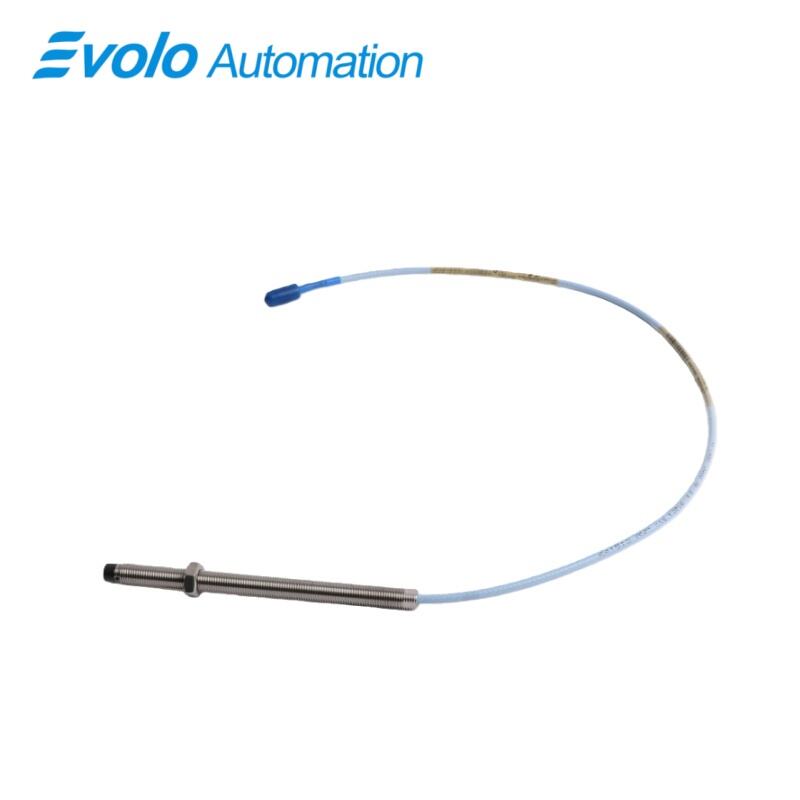

330101-00-58-10-02-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-58-10-02-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-58-10-02-CN is a high-performance 3300 XL 8 mm Proximity Probes transducer, precision-engineered by Bently Nevada for the most demanding industrial environments. As a cornerstone of the 3300 XL ecosystem, this 3300 XL 8 mm Proximity Probes model serves as a non-contacting displacement sensor, converting the gap between the probe tip and a conductive target into a precise voltage signal. This specific 3300 XL 8 mm Proximity Probes configuration is designed with a 5.8-inch overall case length and a 0-inch unthreaded length, making it an ideal solution for flush-mount installations or applications requiring deep reach through machine casings. The 330101-00-58-10-02-CN provides critical data for radial vibration, axial position, and Keyphasor signals, ensuring the operational integrity of high-speed rotating machinery.

A primary advantage of the 3300 XL 8 mm Proximity Probes is its strict compliance with the API 670 standard. This ensures that the 330101-00-58-10-02-CN meets rigorous mechanical design specifications and maintains exceptional linearity across a 2 mm (80 mils) linear range. The probe tip is manufactured from high-temperature Polyphenylene Sulfide (PPS), while the case is crafted from AISI 303 or 304 stainless steel. This robust material selection allows the 3300 XL 8 mm Proximity Probes to withstand extreme temperatures ranging from -52°C to +175°C, providing reliable performance in environments saturated with corrosive oils and process gases.

Applications

The 330101-00-58-10-02-CN 3300 XL 8 mm Proximity Probes are primarily utilized for the continuous monitoring of radial shaft vibration in fluid-film bearing machinery. With its precise 2 mm linear range, the probe captures minute dynamic displacements caused by unbalance, misalignment, or bearing degradation. It provides a real-time 200 mV/mil (7.87 V/mm) output signal to the monitoring system, enabling early fault detection in critical rotating equipment such as centrifugal compressors, steam turbines, and large industrial motors.

This 3300 XL 8 mm Proximity Probes configuration is also essential for axial thrust position monitoring. The 5.8-inch case length allows the probe to be mounted through bearing housings to monitor the movement of the shaft relative to the thrust bearing collar. This application is vital for preventing rotor-to-stator contact during load changes or surge events. The probe's wide temperature tolerance (-52°C to +175°C) ensures stable DC gap measurements even in the high-heat zones near turbine exhaust stages or hot-gas compressors.

In complex machinery protection systems, the 330101-00-58-10-02-CN serves as a reliable Keyphasor reference and speed sensor. By detecting a timing notch or keyway on the shaft, it provides a once-per-revolution pulse essential for phase angle measurement and balancing diagnostics. The miniature coaxial ClickLoc connector ensures a vibration-resistant electrical path, delivering clean pulses for electronic overspeed protection systems in petrochemical refineries and power generation plants where signal integrity is paramount for safety.

Specifications

Competitive Advantage

1. Robust Material Engineering for Extreme Environments

The 330101-00-58-10-02-CN features a probe tip molded from Polyphenylene Sulfide (PPS) and a 300-series stainless steel body. This material combination provides superior chemical resistance and mechanical strength. Unlike standard industrial sensors, this probe maintains its calibration and structural integrity even when exposed to synthetic lubricants and extreme thermal cycling, significantly extending the service life of the monitoring system in harsh conditions.

2. Global Safety Certification and Compliance

Equipped with CSA, ATEX, and IECEx approvals, this 3300 XL 8 mm Proximity Probes model is fully certified for deployment in Zone 0, 1, and 2 hazardous areas. This global compliance reduces project risks and procurement complexity for international operators, ensuring that the sensor meets the highest safety standards for explosive or flammable atmospheres commonly found in the oil and gas and petrochemical sectors.

3. Seamless Interchangeability and API 670 Alignment

Designed as a direct-replacement solution, the 330101-00-58-10-02-CN follows the API 670 standard for total interchangeability. Maintenance teams can replace the probe or extension cable without requiring a specialized calibration of the entire loop. The patented ClickLoc connector technology ensures a secure, low-loss electrical connection that is faster to install and more reliable than traditional threaded connectors, directly translating to lower total cost of ownership and reduced maintenance labor.
