Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MC-TDIA12 51304439-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MC-TDIA12 51304439-175 |
|
Product Type: |
Digital Input Board |
|
Dimensions: |
46.2 × 12 × 5 cm |
|
Weight: |
1.14 kg |
|
Input Channels: |
32 |
|
Input Voltage: |
120 VAC |
|
Redundancy Support: |
Supported |
|
Terminal Type: |
Compression terminals |
|
Mounting Type: |
DIN rail mountable |
|
Conformal Coating: |
Yes |
|
CE Compliance: |
Yes |
|
Size Class: |
C (18 in / 462 mm) |
Description

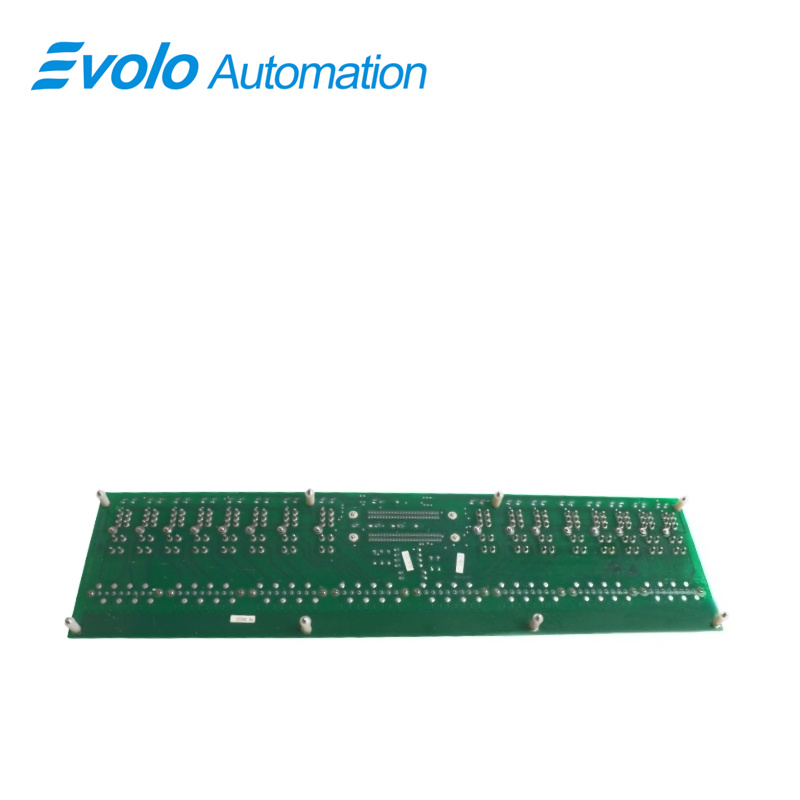

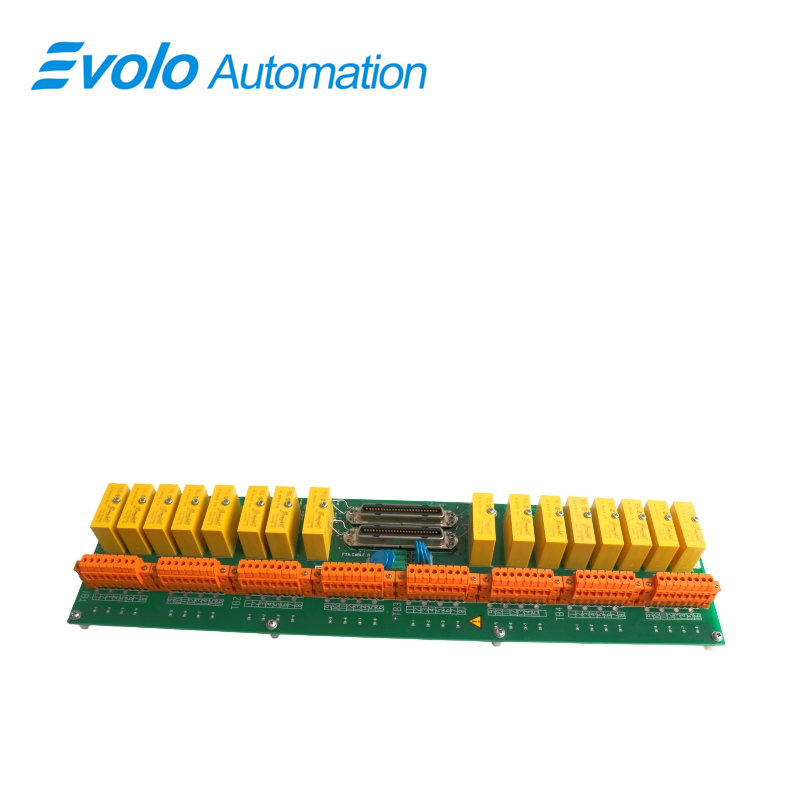

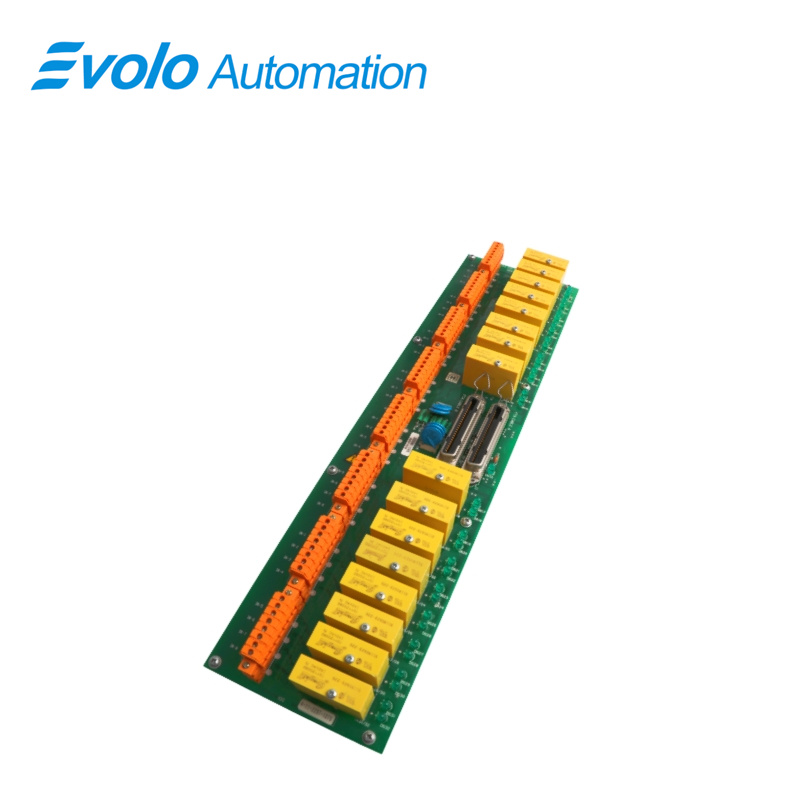

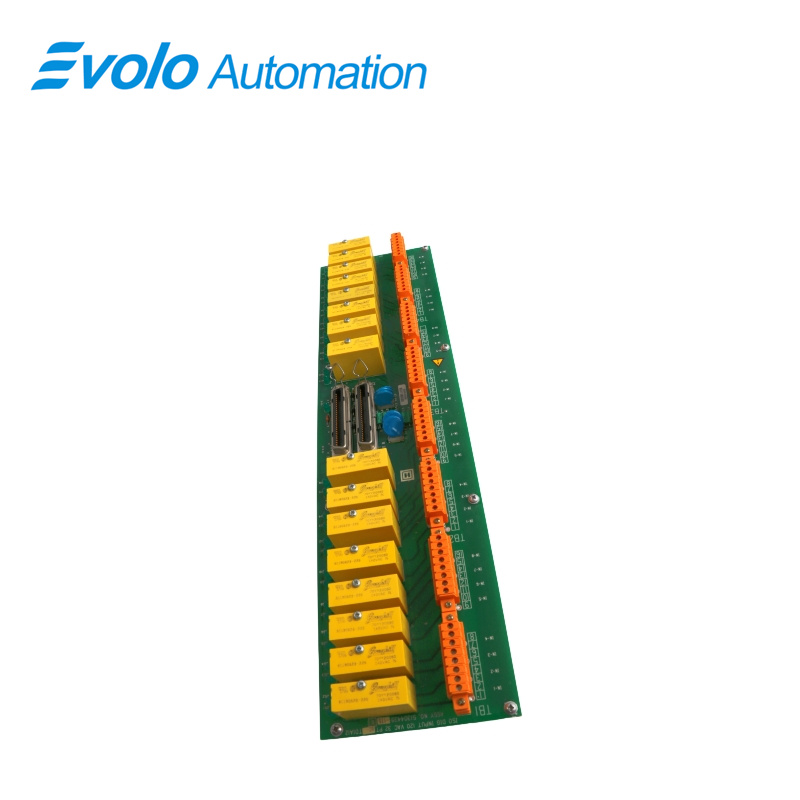

The Honeywell MC-TDIA12 51304439-175 Isolated Digital Input Board is a robust module used for interfacing 120 VAC digital input signals within Honeywell's TDC 3000 and Experion Process Knowledge System (PKS) environments.
Applications
Power Plants: Monitors breaker auxiliary contacts and valve limit switches across the plant, with strong AC noise immunity and no need for external relays.
Combined Cycle Power Plants: Interfaces with turbine hall alarm buttons, high channel density with redundant configuration reduces control cabinet space.
Fine Chemical Plants: Collects bin level switches and explosion-door status signals, with full protective coating against corrosive gases.
Coal Washing Plants: Installed on long conveyor pull-cord and deviation switch systems, DIN rail mounting ensures stable cabinet integration.
Steel & Metallurgy Plants: Centralizes blast furnace charging and crane safety limit logic, using vibration-resistant compression terminals for stability.
Features
Isolated Digital Inputs: Ensures accurate and reliable signal processing
High Input Channels: Supports up to 32 input channels for extensive system integration.
Durable Construction: Built to withstand harsh industrial environments.
Compression Terminals: Provides easy and secure connection options.
Seamless Integration: Compatible with various Honeywell control systems.
FAQ
Q: How many input channels does MC-TDIA12 51304439-175 have?
A: 32 input channels.
Q: What is the input voltage of MC-TDIA12 51304439-175?
A: Rated input voltage 120 VAC.
Q: Does MC-TDIA12 51304439-175 support redundancy?
A: Yes, redundancy configuration is supported.
Q: What is the mounting method of MC-TDIA12 51304439-175?
A: DIN rail mounting.
Q: What type of terminal blocks are used in MC-TDIA12 51304439-175?
A: Compression terminals are used for wiring connections.
