Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MC-PAOY22 80363969-150 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MC-PAOY22 80363969-150 |
|
Product Type: |
Analog Output Module |
|
Dimensions: |
3 × 31.8 × 27.7 cm |
|
Weight: |
0.58 kg |
|
Output Channels: |
16 analog outputs |
|
Output Range: |
4–20 mA |
|
Accuracy: |
±0.2% |
|
Linearity: |
±0.02% |
|
Output Impedance: |
200 Ω |
|
Response Time: |
0.5 s |
|
Isolation Voltage: |
2500 V RMS (channels to power supply) |
|
Power Supply: |
24 VDC |
|
Power Consumption: |
10 W |
|
Operating Temperature Range: |
-40°C to +70°C |
|
Storage Temperature Range: |
-55°C to +85°C |
|
Humidity: |
0–95% (non-condensing) |
|
Vibration: |
0.05 g RMS (5–500 Hz) |
|
Shock: |
5 g, 20 ms |
Description

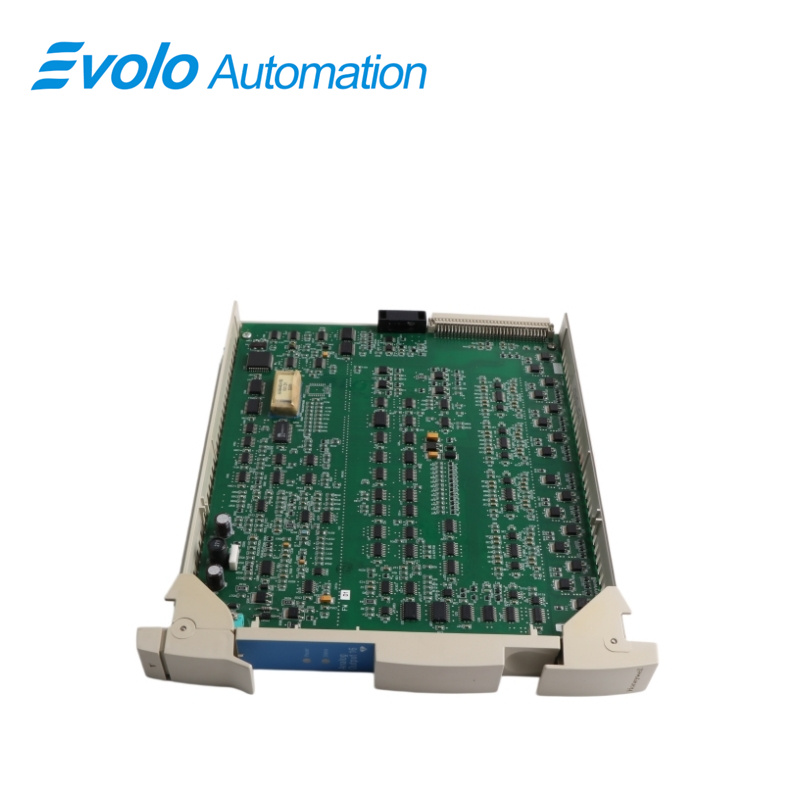

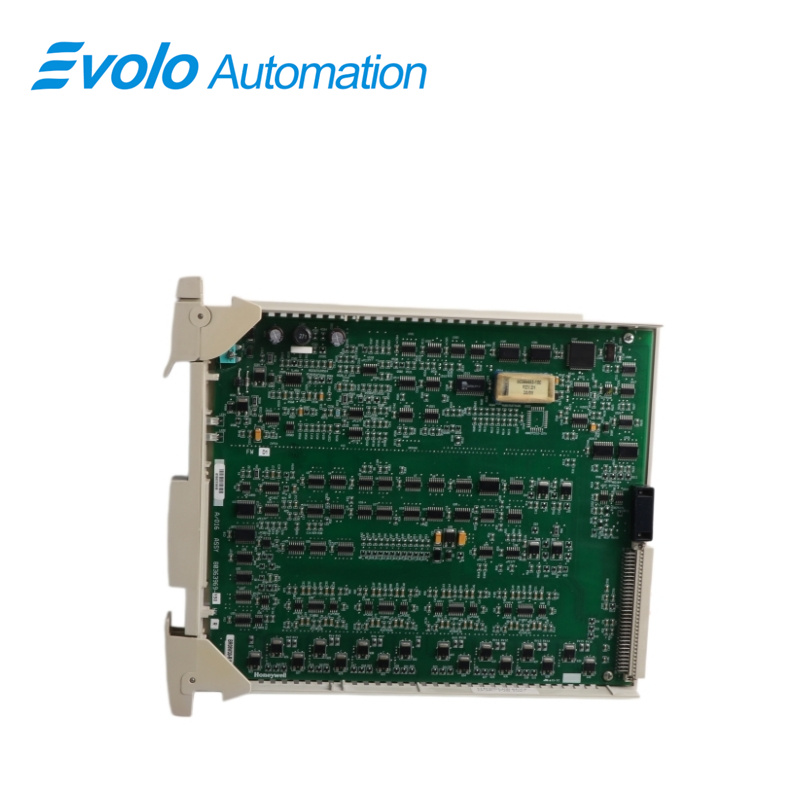

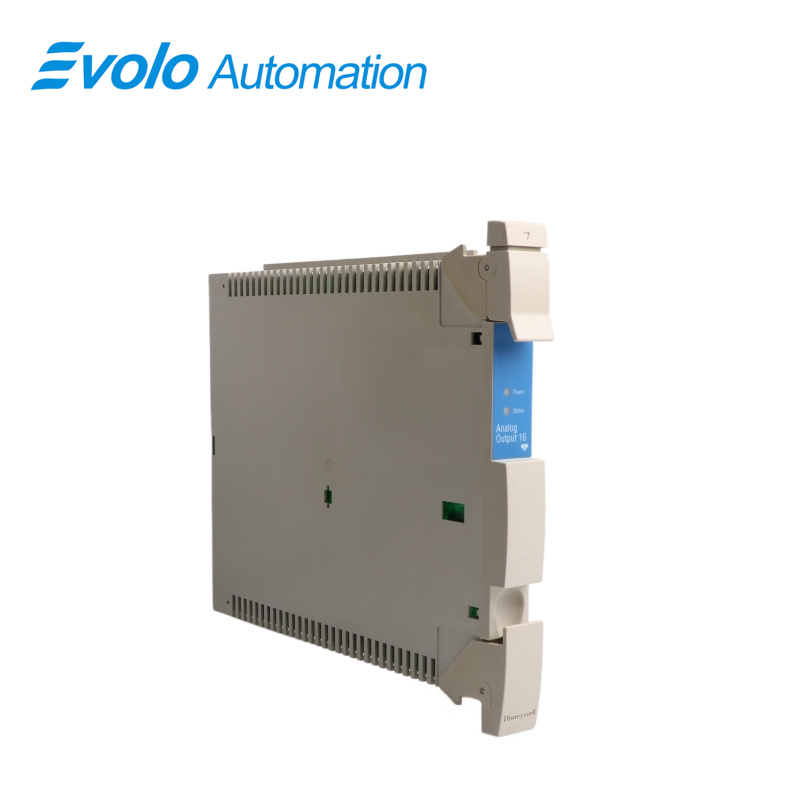

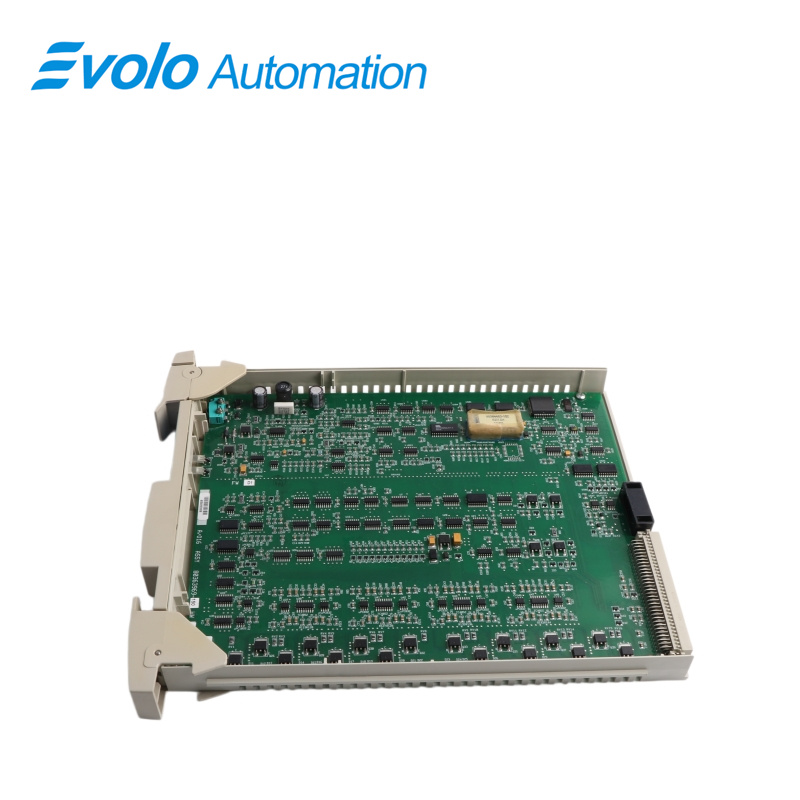

The MC-PAOY22 80363969-150 is an analog output module manufactured by Honeywell. Installed in a control room rack, this module converts digital signals from the upper control unit into multiple continuously varying currents to drive field devices such as control valves, motor speed controllers, or heating power distributors. It is primarily used in production environments requiring continuous valve adjustment, precise control of power equipment speed, or fine-tuning of industrial heating power.
Applications
Heavy Chemical Plants: Manages multiple control valves with strong electrical isolation to prevent channel interference.
Combined Cycle Power Plants: Controls turbine dampers and servo actuators with high channel density for compact cabinet design.
Paper and Fiber Plants: Regulates coating and drying heating valves for stable process control.
Non-Ferrous Smelting Plants: Supports furnace electrode power control with strong resistance to vibration and shock.
Offshore Oil Extraction Plants: Provides reliable analog control for pump speed regulation in extreme temperature environments.
Common Troubleshooting
Multiple channels with no output: Check the 24VDC power supply and ensure sufficient bus current for the 10W load requirement.
Output distortion: Verify loop impedance and match actuator input with the 200Ω output impedance to avoid overload.
Signal dropouts or communication issues: Check grounding, especially near large motors; poor shielding may still cause interference despite 2500V isolation.
FAQ
Q: What are the channel count and output range of MC-PAOY22 80363969-150?
A: 16 channels, 4–20 mA.
Q: What are the accuracy and linearity of MC-PAOY22 80363969-150?
A: Accuracy ±0.2%, linearity ±0.02%.
Q: What are the supply voltage and power consumption of MC-PAOY22 80363969-150?
A: 24 VDC, 10 W.
Q: What are the operating temperature range and isolation voltage of MC-PAOY22 80363969-150?
A: -40°C to +70°C, isolation voltage 2500 V RMS.
Q: What are the response time and output impedance of MC-PAOY22 80363969-150?
A: 0.5 s, impedance 200 Ω.
