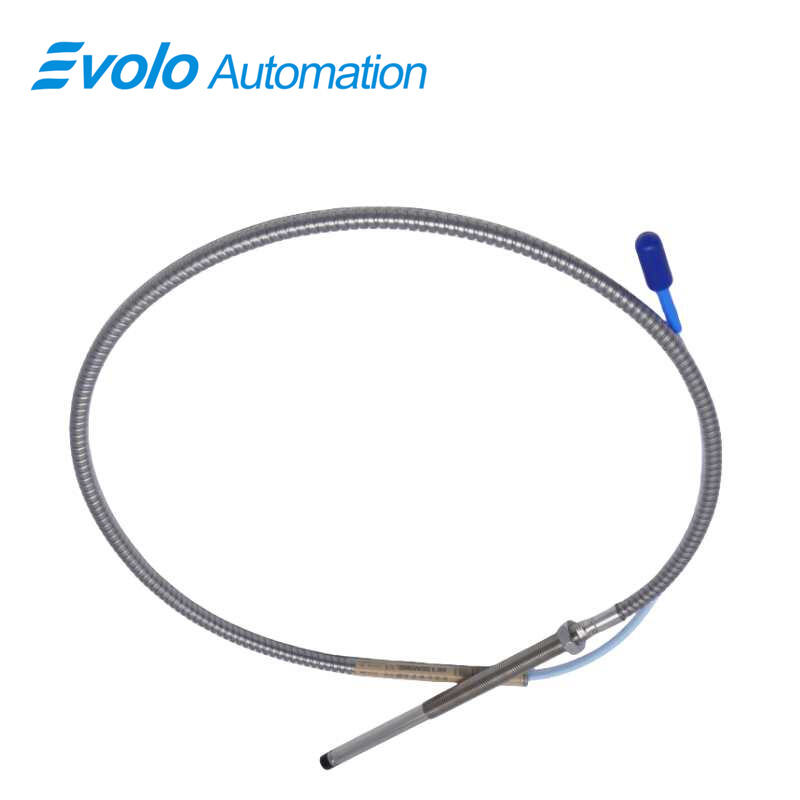

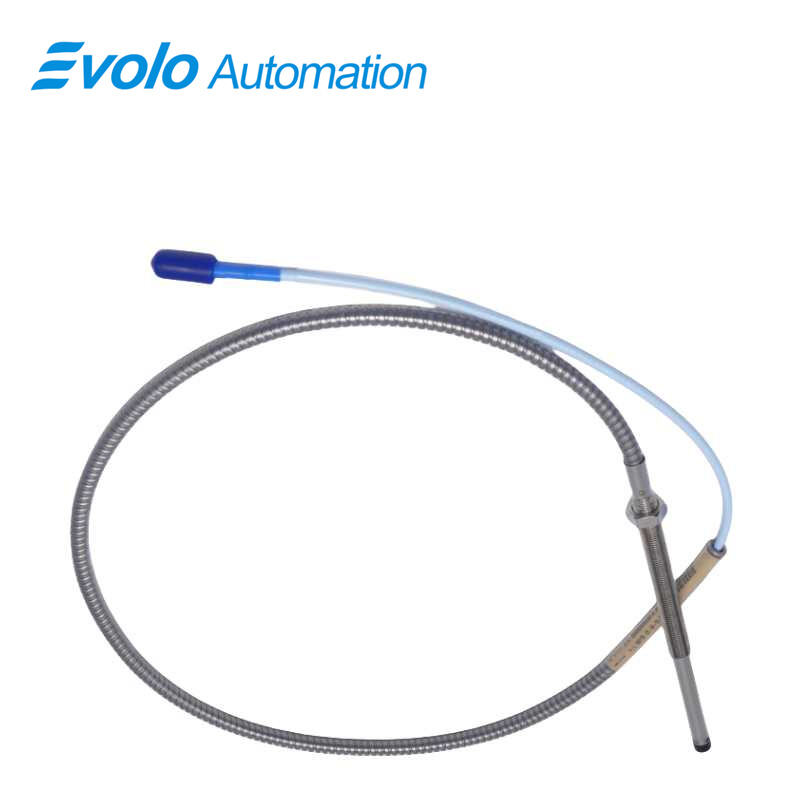

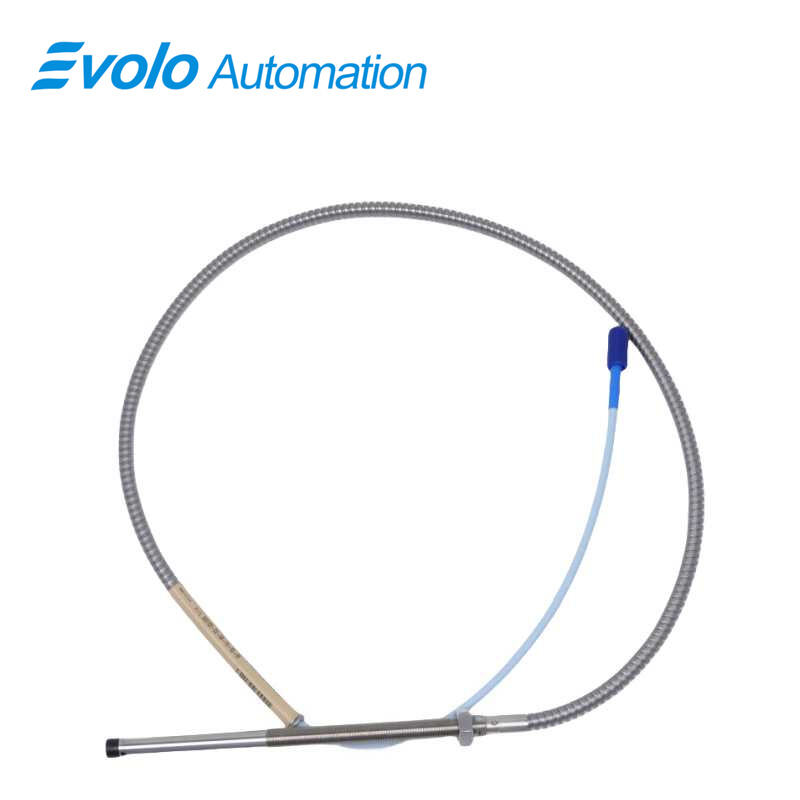

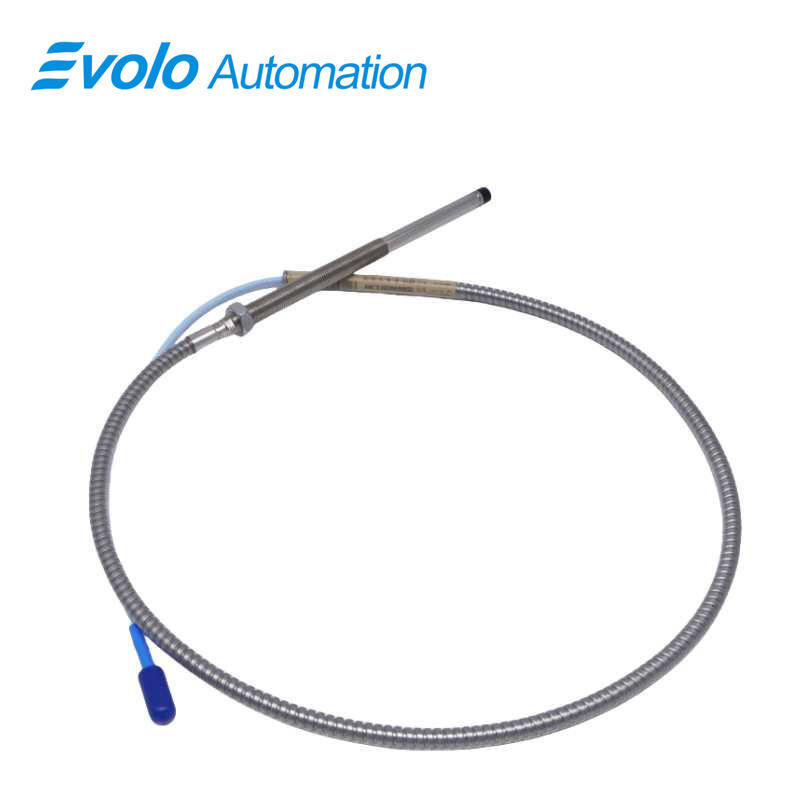

330102-27-46-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-27-46-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-27-46-10-02-05 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer designed for advanced industrial automation and condition monitoring applications. It provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, enabling precise measurements of both static positions and dynamic vibrations on fluid-film bearing machinery. Featuring a linear range of 2 mm (80 mils) and operating reliably across -52°C to +177°C (-62°F to +350°F), the probe supports API 670-compliant vibration and Keyphasor speed measurements. The probe incorporates a patented TipLoc molding method for a robust probe tip bond and a CableLoc design providing 330 N (75 lbf) pull strength for secure attachment of the cable. Available with a miniature coaxial ClickLoc connector and optional FluidLoc cable to prevent fluid leakage, the 3300 XL 8 mm probe is fully compatible and interchangeable with other 3300 series 5 mm and 8 mm components, supporting flexible automated monitoring system design in industrial machinery.

Applications

Application 1: Fluid-Film Bearing Vibration Monitoring
Provides precise vibration measurement on fluid-film bearing machines, allowing automated detection of imbalance, misalignment, and wear in real-time, supporting predictive maintenance.

Application 2: Rotating Machinery Position Sensing
Measures static shaft position for Keyphasor reference in speed monitoring and phase analysis, enhancing automated control of turbine and compressor systems.

Application 3: Automated Condition-Based Maintenance
Integrates with PLC or DCS systems to provide real-time feedback for automated machinery health monitoring, reducing unplanned downtime and maintenance costs.

Application 4: High-Temperature Industrial Applications
Operates reliably from -52°C to +177°C (-62°F to +350°F), suitable for high-temperature environments such as gas turbines and industrial pumps, enabling consistent automated data collection.

Application 5: Compact Installation in Restricted Spaces
Backward compatibility with 3300 5 mm probes allows installation in confined areas without sacrificing measurement accuracy, supporting automated retrofitting of existing machinery.

Specifications

Competitive Advantage

TipLoc Molding for Enhanced Durability
Reinforces the mechanical connection between probe tip and body, reducing the risk of failure under high-vibration or high-stress industrial conditions.

CableLoc Secure Cable Attachment
Provides 330 N (75 lbf) pull strength, ensuring reliable signal transmission and preventing accidental disconnection in dynamic environments.

Optional FluidLoc Cable
Prevents oil or other fluid ingress, maintaining system integrity and reducing maintenance needs in fluid-lubricated machinery.

Wide Operating Temperature Range
Maintains measurement stability in temperatures from -52°C to +177°C, ensuring applicability in extreme heat or cold.

Compact and Lightweight Design
With a total weight of 0.14 kg and dimensions of 1.5x113x1.4 cm, it allows installation in tight or space-constrained industrial equipment while maintaining robust performance.
