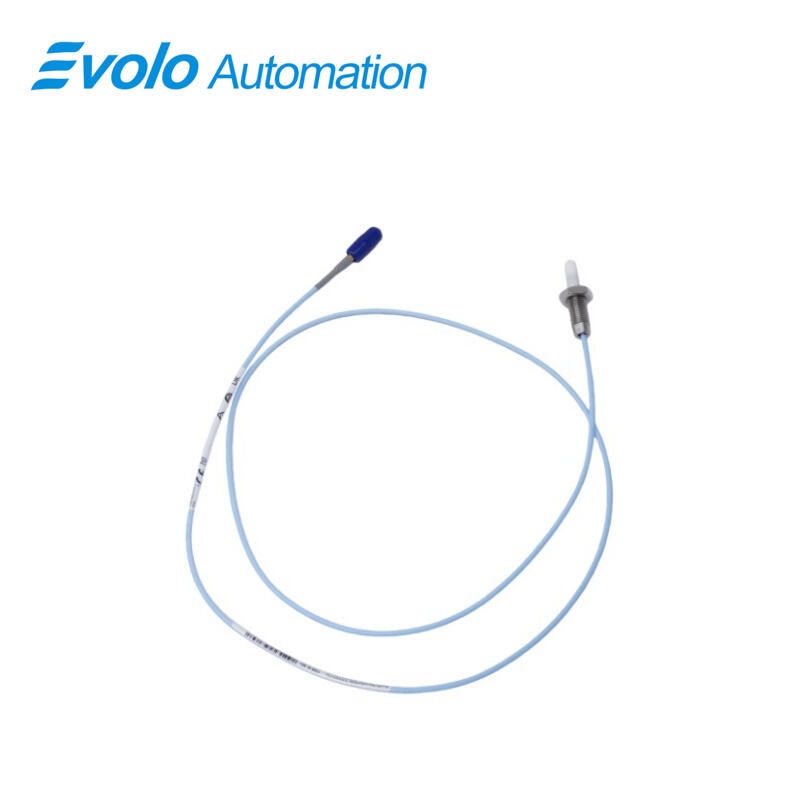

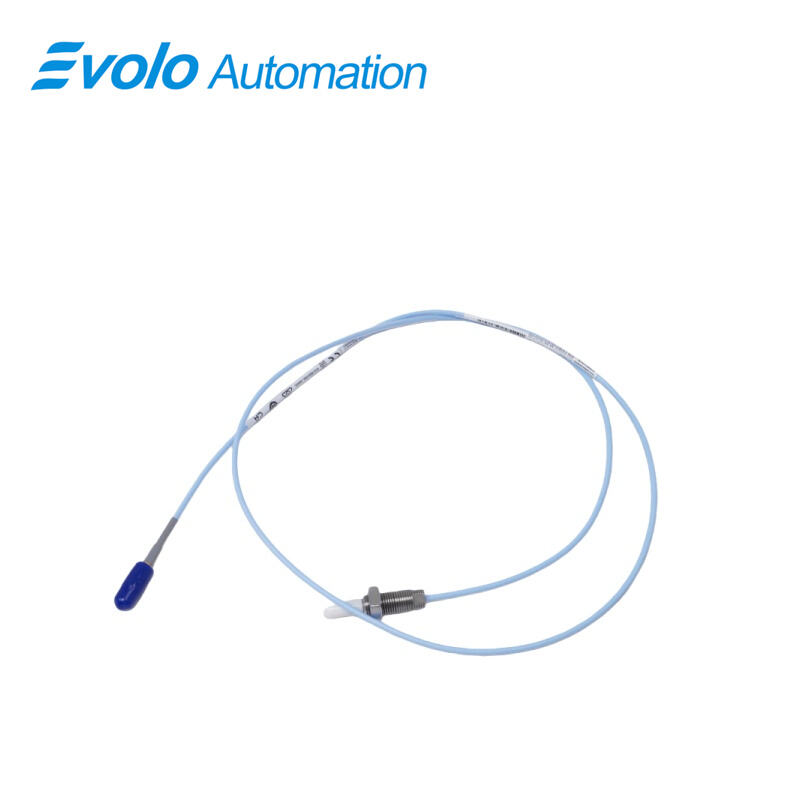

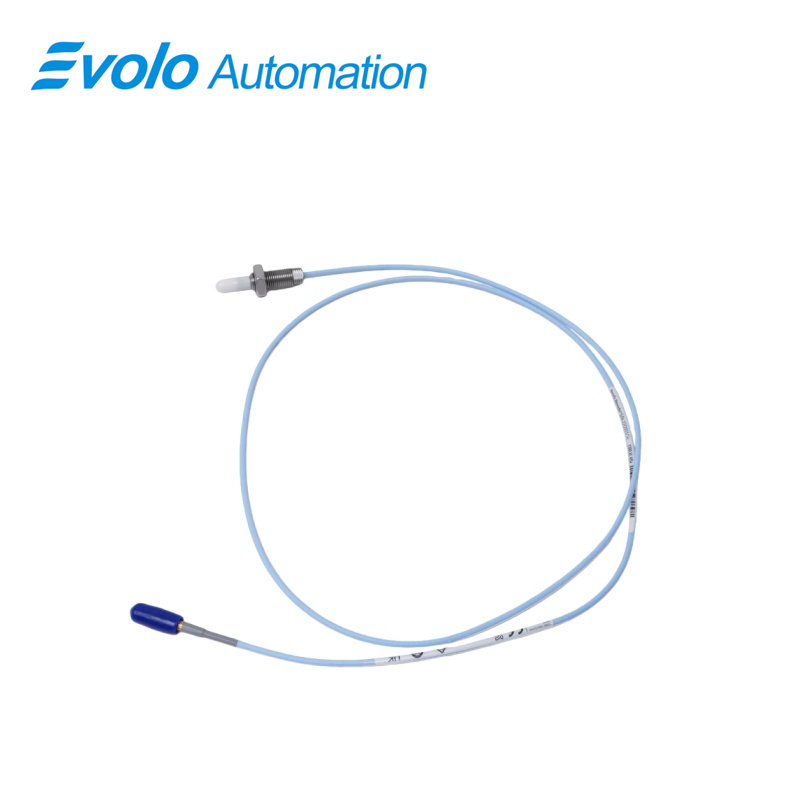

330905-00-03-10-01-00 3300 NSv Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330905-00-03-10-01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330905-00-03-10-01-00 3300 NSv Proximity Probe is a cutting-edge sensor designed to provide accurate vibration and displacement measurements in a wide range of industrial applications. It is part of the Bently Nevada 3300 series, offering an advanced solution for upgrading from older systems like the 3300 RAM Transducer Systems or the 3000-series/7000-series 190 Transducer Systems. When upgrading from the 3300 RAM system, users can retain their existing probe, extension cable, and monitoring system, and simply replace it with the 3300 NSv Proximitor Sensor. However, when transitioning from the 3000-series or 7000-series, a complete replacement of the probe, extension cable, and Proximitor Sensor with the NSv components is necessary to fully capitalize on the system's enhanced features.

The 3300 NSv Proximity Probe boasts an average scale factor of 7.87 V/mm (200 mV/mil), which is considered the standard output for eddy current transducers. This level of precision ensures reliable and consistent measurements in demanding environments. The probe also benefits from enhanced sideview capabilities and a small target characteristic, which give it a shorter linear range compared to other Bently Nevada probes, such as the 3300 XL-series 5 mm and 8 mm models. With a linear range of 1.5 mm (60 mils), it surpasses the 3000-series 190 Transducer System's range, making it a more accurate option for critical displacement measurements.

Ideal for industries like power generation, oil and gas, aerospace, and manufacturing, the 3300 NSv Proximity Probe excels in environments where precise condition monitoring is crucial for preventing costly failures. The probe's durable construction, featuring AISI 304 stainless steel (SST) and polyphenylene sulfide (PPS) materials, allows it to perform reliably in harsh conditions, including exposure to high temperatures, chemicals, and corrosive elements.

Applications

The 330905-00-03-10-01-00 3300 NSv Proximity Probe is a high-performance sensor engineered to deliver precise condition monitoring and vibration displacement measurements across diverse industrial sectors. It proves ideal for power generation, oil and gas, aerospace, marine, and manufacturing applications—fields where dependable, real-time data is a must to avert equipment breakdowns and uphold operational efficiency.Boasting an operating temperature span of -52°C to +177°C, the 3300 NSv thrives in extreme settings, from sweltering machinery rooms to frigid outdoor installations. Its 1.5 mm linear range enables accurate displacement measurements, making it perfect for keeping tabs on rotating equipment like turbines, generators, pumps, and motors. This level of precision is key to spotting misalignments, imbalances, and wear early, before they trigger costly unplanned downtime.Constructed for ruggedness, the probe features an AISI 304 stainless steel case and a polyphenylene sulfide (PPS) tip, ensuring long-term performance in harsh, corrosive environments. This makes it especially well-suited for the oil and gas industry, where exposure to chemicals and corrosive substances is routine. Its corrosion-resistant build also renders it an excellent pick for marine applications, which often involve exposure to saltwater and high humidity.With a compact footprint (20.5x22.4x3.5 cm) and lightweight design (0.15 kg), the 3300 NSv fits easily into tight installation spaces.

Specifications

Competitive Advantage

1. Exceptional Temperature Range

The 3300 NSv Proximity Probe stands out with its wide operating and storage temperature range of -52°C to +177°C (-62°F to +351°F), making it highly versatile for extreme conditions. Whether exposed to high-heat machinery or cold outdoor environments, this probe performs reliably where many others might fail, ensuring stable operation in a variety of demanding industrial settings.

2. Space-Saving and Lightweight Design

Weighing just 0.15 kg and with compact dimensions of 20.5x22.4x3.5 cm, the 3300 NSv is significantly smaller and lighter than many competing models. Its reduced size makes it perfect for installation in tight spaces where larger probes might not fit, without sacrificing measurement accuracy or overall performance. The 1.0-meter total length and flexible installation options further enhance its adaptability for diverse environments.

3. High Precision and Reliable Signal Output

The 3300 NSv provides superior accuracy with a linear range of 1.5 mm (60 mils) and a 50 Ω output resistance, making it ideal for monitoring critical machinery like turbines and pumps. It also offers low supply sensitivity (less than 2 mV change in output voltage per volt change in input voltage), ensuring stable, consistent signal output, even in challenging environments with fluctuating power or electromagnetic interference. This makes it a reliable tool for effective predictive maintenance and early fault detection.
