Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
LS-5 8440-1946 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
LS-5 8440-1946 |
|
Product Type |
Synchronizer Controller |
|
Dimensions |
19 × 16.7 × 4.7 cm |
|
Weight |
0.82 kg |
|
Power Supply |
12/24 VDC (8 to 40 VDC) |
|
Self-Consumption |
Max. 5 W (LS-511); Max. 6 W (LS-521) |
|
Operating Temperature |
-20°C to +70°C (-4°F to +158°F) |
|
Storage Temperature |
-30°C to +85°C (-22°F to +185°F) |
|
Humidity |
95% non-condensing |
|
Voltage Range |
69/120 VAC and 277/480 VAC |
|
Maximum Voltage |
150 VAC / 600 VAC |
|
Nominal Voltage to Ground |
150 VAC / 300 VAC |
|
Surge Voltage |
2.5 kV / 4.0 kV |
|
Accuracy |
Class 1 |
|
Linear Measuring Range |
1.25 × Vrated |
|
Measuring Frequency |
50/60 Hz (40 to 85 Hz) |
|
Input Impedance |
0.498 MΩ / 2.0 MΩ |
|
Power Consumption per Track |
<0.15 W |
|
Rated Current |
1 A or 5 A |
|
Current Measuring Range |
1.5 × Irated |
|
Loading |
<0.15 VA |
|
Rated Short-Time Current |
50 × Irated (1A); 10 × Irated (5A) |
|
Digital Inputs |
Isolated |
|
Digital Input Range |
12/24 VDC (8 to 40 VDC) |
|
Digital Input Resistance |
Approx. 20 kΩ |
|
Relay Outputs |
Potential-free |
|
Contact Material |
AgCdO |
|
Relay Load Rating |
2.00 AAC at 250 VAC |
|
DC Relay Rating |
2.00 ADC at 24 VDC; 0.36 ADC at 125 VDC; 0.18 ADC at 250 VDC |
|
Pilot Duty Rating |
1.00 ADC at 24 VDC; 0.22 ADC at 125 VDC; 0.10 ADC at 250 VDC |
|
Housing Material |
Plastic housing (LS-521); Sheet metal housing (LS-511) |
|
Mounting |
Front door mounting / Rear wall cabinet mounting |
|
Terminal Type |
2.5 mm² screw/plug-in terminals |
|
Front Protection Class |
IP65 (screw mounted); IP54 (terminal mounted) |
|
Rear Protection Class |
IP20 |
|
Certificates |
UL/cUL, GOST-R |
|
Maritime Approvals |
LR (homologation), ABS (design assessment) |
|
EMC Compliance |
In accordance with applicable EU guidelines |
Description

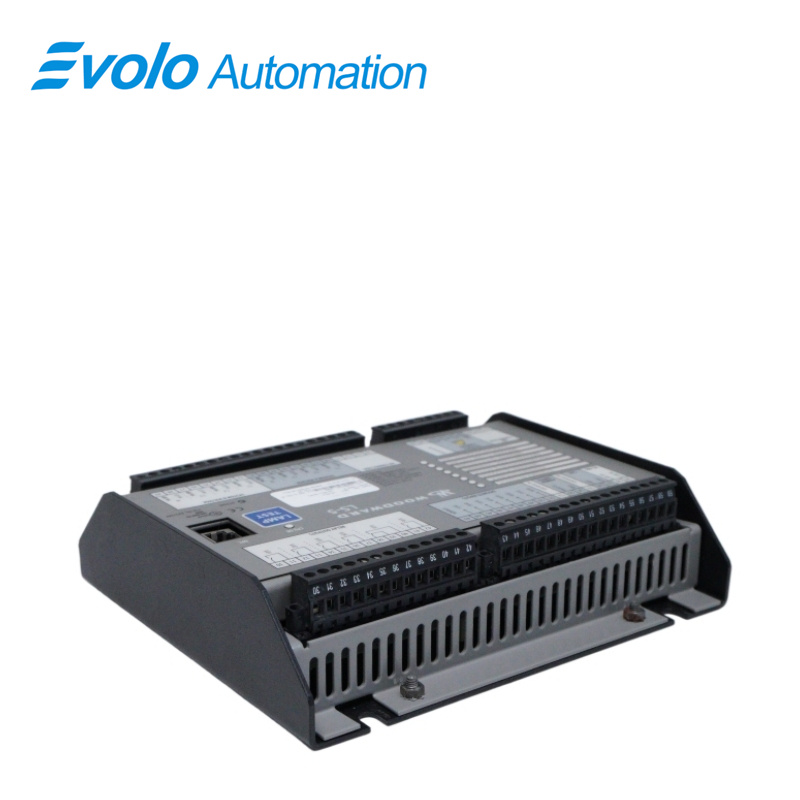

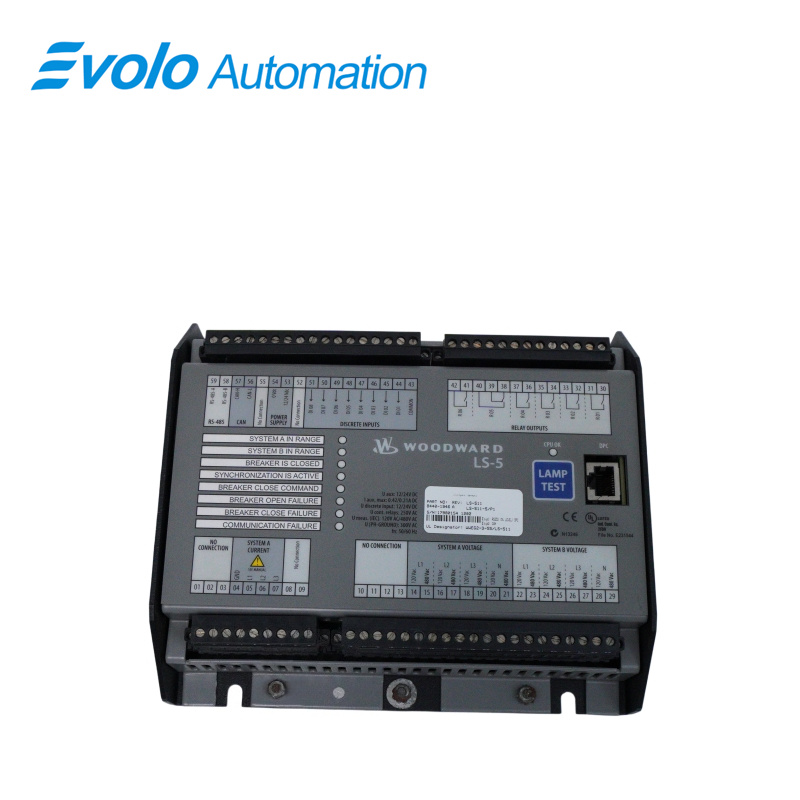

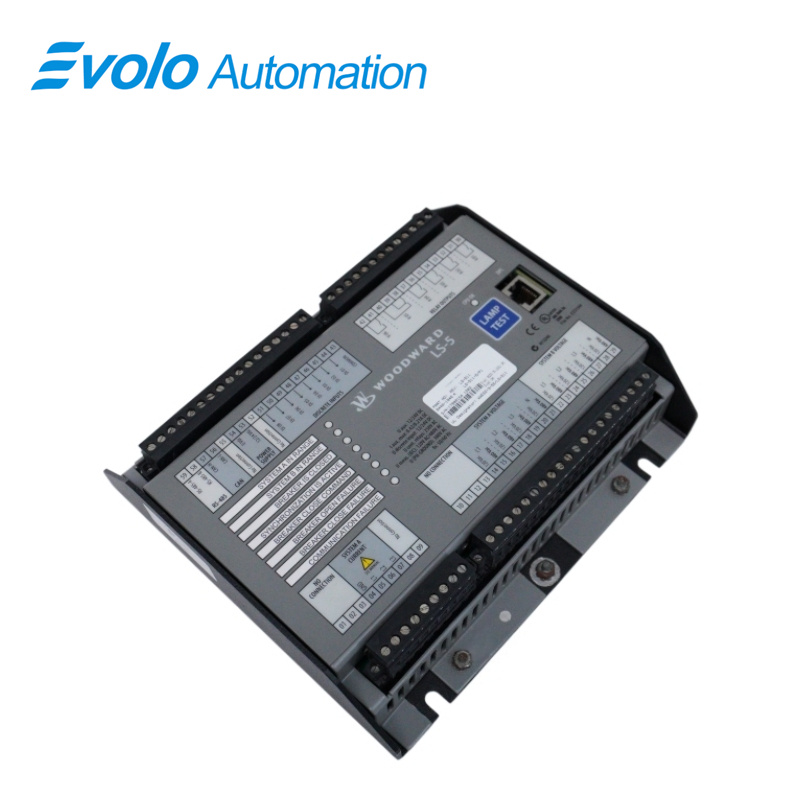

The LS-5 8440-1946 is a synchronizer controller in the LS-5 series. The LS-5 series devices are synchronizer controllers with integrated protection functions. They are designed to enable complex power management applications with multiple breakers on incoming lines and buses, and in conjunction with generator controllers equipped with the easYgen-3400/3500 system.
Applications
Shipbuilding Plants: Manages generator paralleling under marine classification standards.
Thermal Power Plants: Synchronizes turbine generators under high-voltage conditions.
Petrochemical Plants: Protects control paths using isolated relay and input systems.
Emergency Power Plants: Enables fast breaker closure for critical backup systems.
Industrial Power Plants: Withstands moisture in washdown control panels.
Function
Up to 16 LS-5 devices and up to 32 easYgen-3400/3500 devices can operate in a single network.
Synchronization of phase or slip frequency matching with voltage matching.
Full protection package (including df/dt (ROCOF) protection, phase shift protection, and supply voltage surge protection, compliant with the requirements of the new German VDE-0126-1-1 network operating and maintenance manual).
Segment control for load distribution.
FAQ
Q: What is the power supply of LS-5 8440-1946?
A: The power supply is 12/24 VDC (permitted range 8–40 VDC).
Q: What is the operating temperature range of LS-5 8440-1946?
A: The operating temperature range is -20°C to +70°C (-4°F to +158°F).
Q: What is the measurement accuracy class of LS-5 8440-1946?
A: The measurement accuracy is Class 1.
Q: What marine certifications does LS-5 8440-1946 have?
A: It has LR and ABS marine certifications.
Q: What type of terminal connection does LS-5 8440-1946 use?
A: It uses 2.5 mm² screw / plug-in terminals.
