Emerson KJ3001X1-BB1 12P0550X132 VE4001S2T2 8-Channel 24 VDC Dry-Contact Digital Input Card
Manufacturer: Emerson
Condition: Brand New
Lead Time: In Stock
Origin: United States
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview

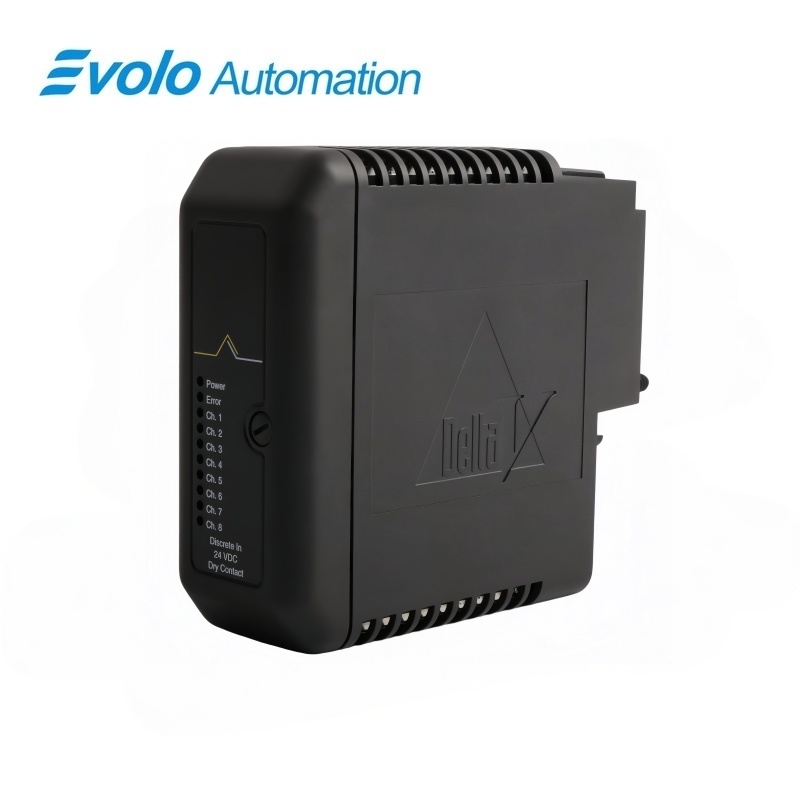

KJ3001X1-BB1 12P0550X132 VE4001S2T2 8-Channel 24 VDC Dry-Contact Digital Input Card
Official-source product identification, application guidance and ordering checks for KJ3001X1-BB1 12P0550X132 VE4001S2T2.
At a Glance
| Brand | Emerson |
|---|---|
| Model | KJ3001X1-BB1 12P0550X132 VE4001S2T2 |
| Product Type | 8-Channel 24 VDC Dry-Contact Digital Input Card |
| Core Function | Reading dry-contact and discrete-state field signals. |
| Application / Compatible Series | DeltaV DCS |
Verified identification

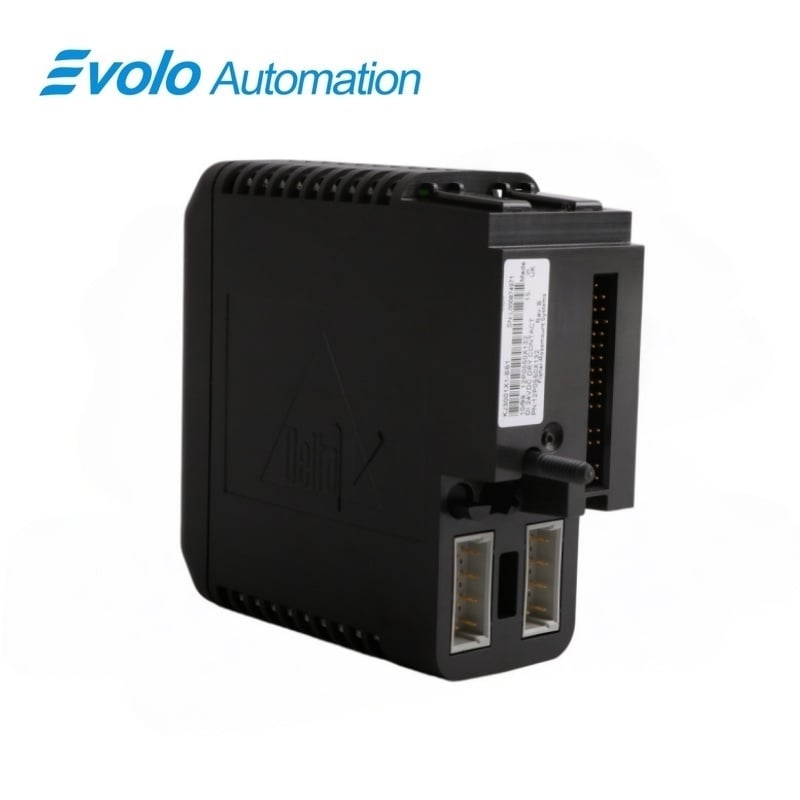

KJ3001X1-BB1 12P0550X132 VE4001S2T2 is identified by the complete manufacturer model and the photographed unit.
Application focus
KJ3001X1-BB1 12P0550X132 VE4001S2T2 is intended for reading dry-contact and discrete-state field signals.
Ordering control
KJ3001X1-BB1 12P0550X132 VE4001S2T2 should be matched by the full nameplate, hardware revision and installed configuration.
Product Overview
The combined markings KJ3001X1-BB1 12P0550X132 VE4001S2T2 identify an Emerson DeltaV M-series 8-channel, 24 V DC dry-contact discrete input assembly. The exact KJ, 12P and VE identifiers should be checked together when matching the installed hardware.
Emerson specifies configurable discrete-input or pulse-count channel operation for this card type. Dry-contact or discrete-state signals may change below 2 Hz, while pulse trains are specified below 75 Hz; the card is optically isolated from the system and factory tested to 1500 V DC.
Key Functions
Discrete or Pulse-Count Channels
KJ3001X1-BB1 12P0550X132 VE4001S2T2 supports configurable discrete-input and pulse-count channel types within the official limits.
System-Level Isolation
Emerson specifies optical isolation from the DeltaV system and factory testing to 1500 V DC for the 8-channel dry-contact card.
Carrier and Terminal Matching

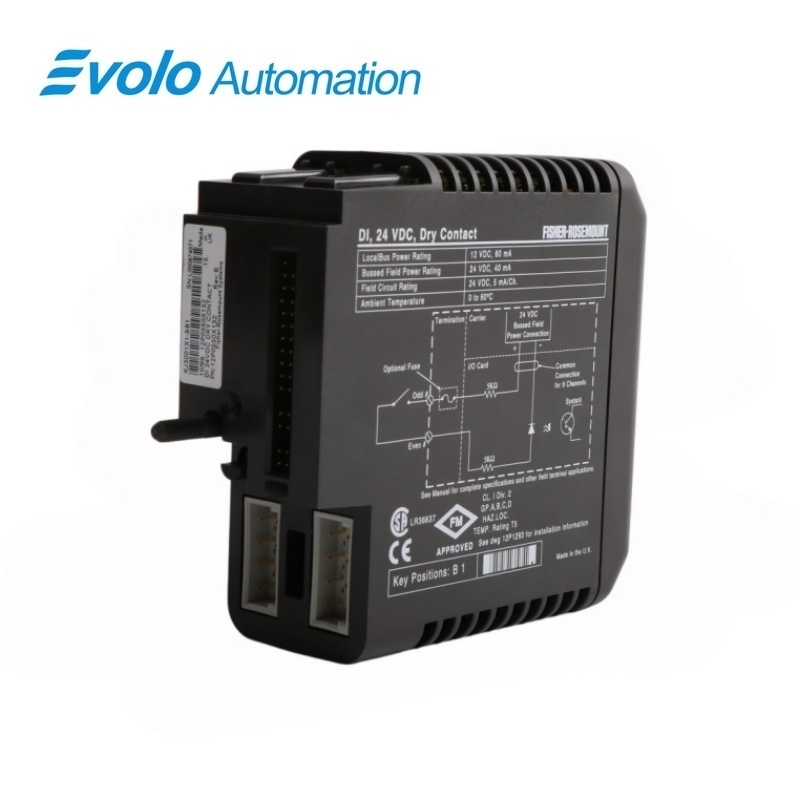

M-series traditional I/O requires an M-series horizontal or VerticalPlus carrier, with B1-keyed termination for this input type.
Official Specifications
| Channels | 8 digital inputs |
|---|---|
| Input type | 24 VDC dry contact |
| Official thresholds | ON >2.2 mA; OFF <1 mA |
| Discrete or Pulse-Count Channels | supports configurable discrete-input and pulse-count channel types within the official limits. |
| System-Level Isolation | Emerson specifies optical isolation from the DeltaV system and factory testing to 1500 V DC for the 8-channel dry-contact card. |
| Carrier and Terminal Matching | M-series traditional I/O requires an M-series horizontal or VerticalPlus carrier, with B1-keyed termination for this input type. |
| Contact Input Type | Dry contact |
| ON Threshold | > 2.2 mA |
| OFF Threshold | < 1 mA |
| Keying Code | B1 |
| Termination Options | Standard, fused, or 16-pin mass termination |
| Supported Carrier Orientation | Horizontal or VerticalPlus |
| Output Voltage | 24 V DC |
| Output Current Type | DC |
Source scope: Technical statements below are limited to Emerson DeltaV M-series Traditional I/O Product Data Sheet. Commercial availability, condition and warranty are seller terms.
Frequently Asked Questions
Which DeltaV DCS configuration should be confirmed for KJ3001X1-BB1 12P0550X132 VE4001S2T2?
It is intended for DeltaV DCS.
For which engineering duty is KJ3001X1-BB1 12P0550X132 VE4001S2T2 specified as an 8-Channel 24 VDC Dry-Contact Digital Input Card?
Reading dry-contact and discrete-state field signals.
Which mounting and connection details should be verified before fitting KJ3001X1-BB1 12P0550X132 VE4001S2T2?
Confirm all three identifiers on the installed hardware and documentation. Verify the required eight-channel 24 V DC dry-contact signal type.
What documented discrete or pulse-count channels limits apply to KJ3001X1-BB1 12P0550X132 VE4001S2T2?
The unit supports configurable discrete-input and pulse-count channel types within the official limits.
How should system-level isolation be checked during maintenance of KJ3001X1-BB1 12P0550X132 VE4001S2T2?
Emerson specifies optical isolation from the DeltaV system and factory testing to 1500 V DC for the 8-channel dry-contact card.
What design information about carrier and terminal matching is required for KJ3001X1-BB1 12P0550X132 VE4001S2T2?
M-series traditional I/O requires an M-series horizontal or VerticalPlus carrier, with B1-keyed termination for this input type.
What should maintenance teams compare before selecting KJ3001X1-BB1 12P0550X132 VE4001S2T2 as a replacement?
The unit should be matched by the full nameplate, hardware revision and installed configuration.
Compatibility & Ordering Notes
Compatibility checklist for KJ3001X1-BB1 12P0550X132 VE4001S2T2
- Confirm all three identifiers on the installed hardware and documentation.
- Verify the required eight-channel 24 V DC dry-contact signal type.
- Check B1 keying and choose the correct standard, fused or 16-pin mass termination.
- Confirm M-series carrier compatibility and the intended discrete or pulse-count channel configuration.
