330101-00-60-10-02-00 3300 XL 8 mm Proximity Probes

Overview

330101-00-60-10-02-00 3300 XL 8 mm Proximity Probes

Quick Detail

Description

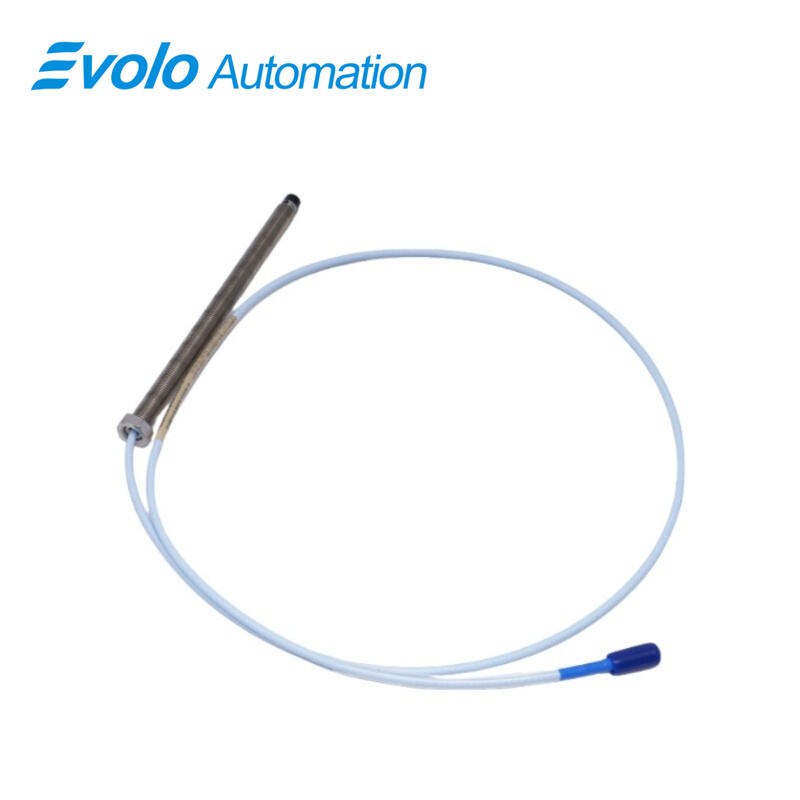

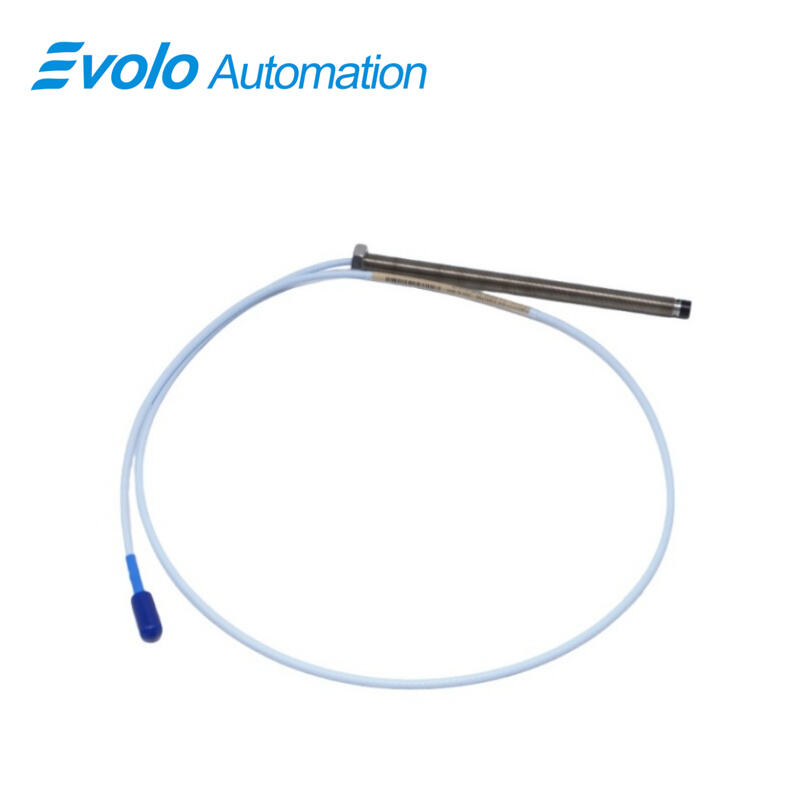

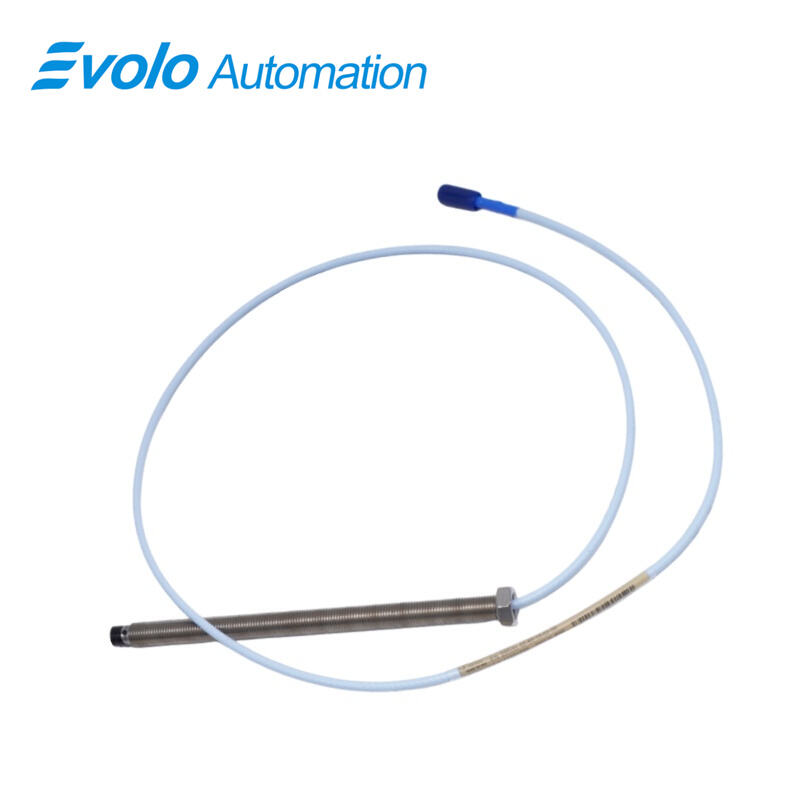

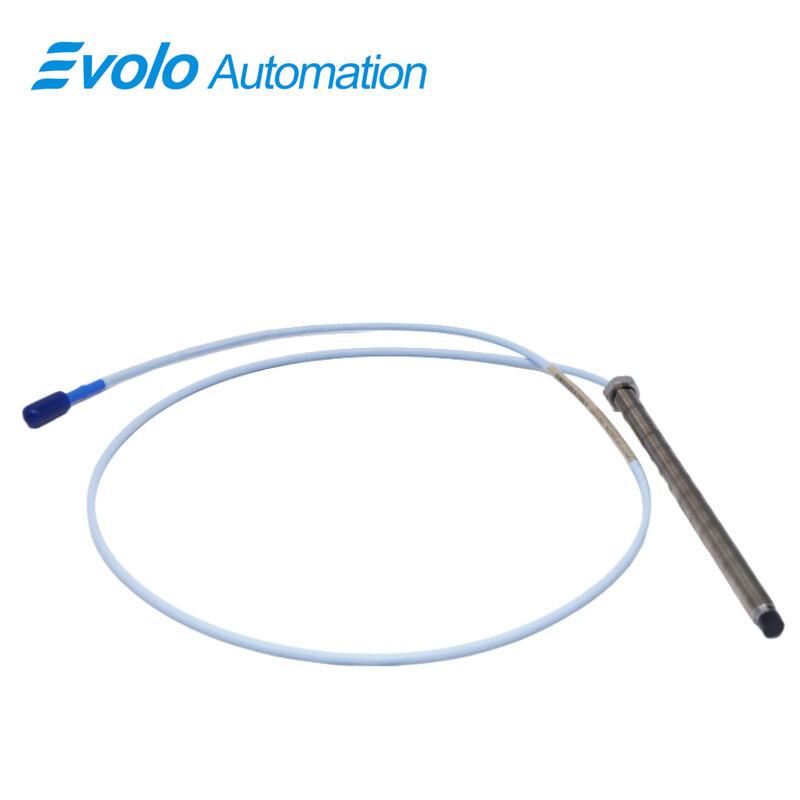

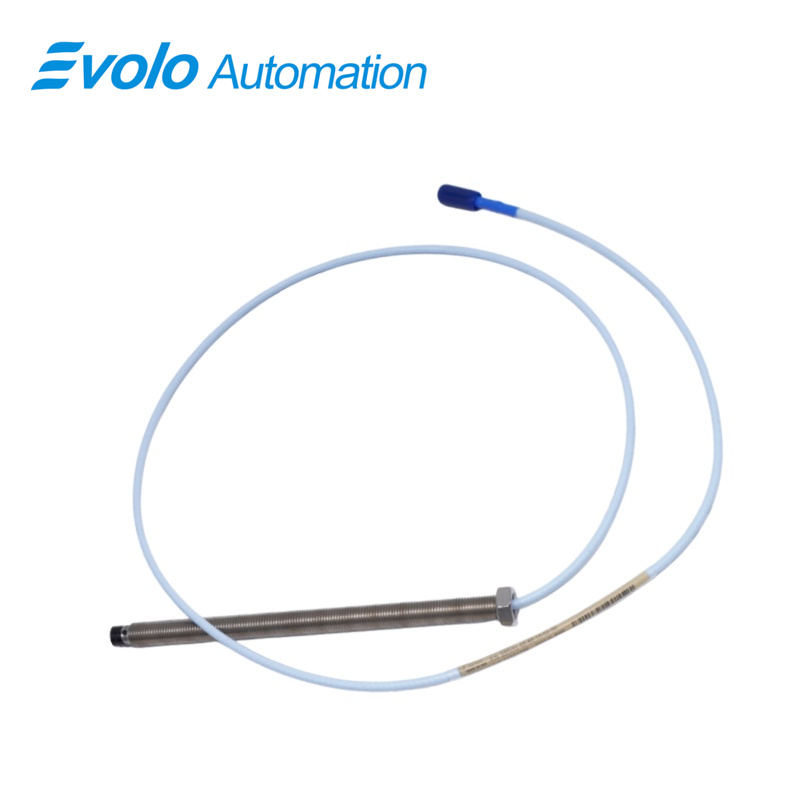

The 330101-00-60-10-02-00 3300 XL 8 mm Proximity Probe is a precision eddy-current transducer engineered for industrial automation and advanced machinery monitoring. Featuring an 8 mm probe tip and a 6.0 in overall case length, this probe delivers a voltage output directly proportional to the distance between the probe tip and the target conductive surface, enabling accurate measurement of both static (position) and dynamic (vibration) conditions. Its 3/8-24 UNF threaded case supports up to 0.563 in thread engagement, ensuring secure mounting in automated systems. Equipped with a 1.0-meter (3.3 feet) miniature coaxial ClickLoc cable with 69.9 pF/m (21.3 pF/ft) capacitance, the probe maintains signal integrity even in harsh industrial environments. Operating reliably from -52°C to +177°C (-62°F to +350°F) with output resistance of 50 Ω and supply sensitivity less than 2 mV per volt, this 3300 XL 8 mm Proximity Probe ensures precise, repeatable readings. Patented TipLoc and CableLoc designs provide robust mechanical and electrical connections with 330 N (75 lbf) pull strength, while the optional FluidLoc cable prevents oil or fluid leaks, making it ideal for critical automation applications where reliability and long-term performance are essential.

Applications

Vibration and Position Monitoring on Fluid-Film Bearings
The probe accurately measures shaft displacement and vibration, supporting predictive maintenance in turbines and compressors. The 2 mm linear range ensures precise automation system feedback.

Keyphasor Signal Generation for Phase Reference
Provides high-fidelity Keyphasor signals, enabling real-time phase analysis, automated fault detection, and integration with 3500 Monitoring Systems in industrial automation environments.

Rotational Speed and Zero-Speed Detection
Delivers precise output for tachometer and zero-speed applications, supporting automated control systems and ensuring safe operation of critical rotating equipment.

Compact Mounting for Limited Spaces
With a 6.0 in case and 0.0 in unthreaded length, the probe fits into tight mounting areas while maintaining full measurement capability, ideal for retrofitting or upgrading existing automation systems.

Leak Prevention and Industrial Safety
Optional FluidLoc cable prevents oil or hydraulic fluid from escaping through the cable interior, enhancing operational safety and minimizing maintenance in automated machinery.

Specifications

Competitive Advantage

Accurate Linear Measurement and Signal Stability
2 mm (80 mils) linear range with <2 mV per volt supply sensitivity provides reliable and precise readings for high-speed automation systems.

Extreme Temperature Resistance
Operates from -52°C to +177°C (-62°F to +350°F), ensuring dependable performance in harsh industrial environments without signal degradation.

Robust Mechanical and Electrical Integrity
3/8-24 UNF threaded case, TipLoc molded probe tip, and CableLoc cable attachment provide secure and vibration-resistant mechanical connections.

Fluid Containment with Optional FluidLoc Cable
Prevents oil or other liquids from leaking through the probe cable, maintaining cleanliness, safety, and reliability in automated operations.

Full System Compatibility and Interchangeability
Compatible with 3300 XL extension cables and Proximitor sensors, enabling easy integration, replacement, or system upgrades without recalibration, and ensuring API 670 compliance for automation performance.
