Overview
KJ2201X1-HA1 12P3322X022 SLS Terminal Block
Official-source product identification, application guidance and ordering checks for KJ2201X1-HA1 12P3322X022.
At a Glance
| Brand | Emerson |
|---|---|
| Model | KJ2201X1-HA1 12P3322X022 |
| Product Type | SLS Terminal Block |
| Core Function | Termination of SLS1508 safety-I/O field wiring. |
| Application / Compatible Series | DeltaV SIS |
Verified identification

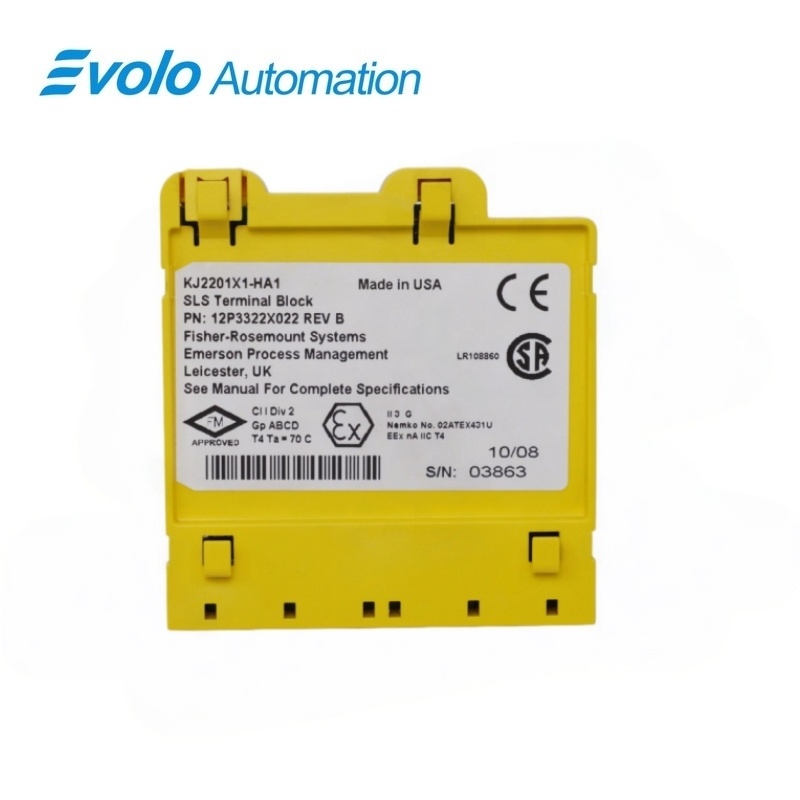

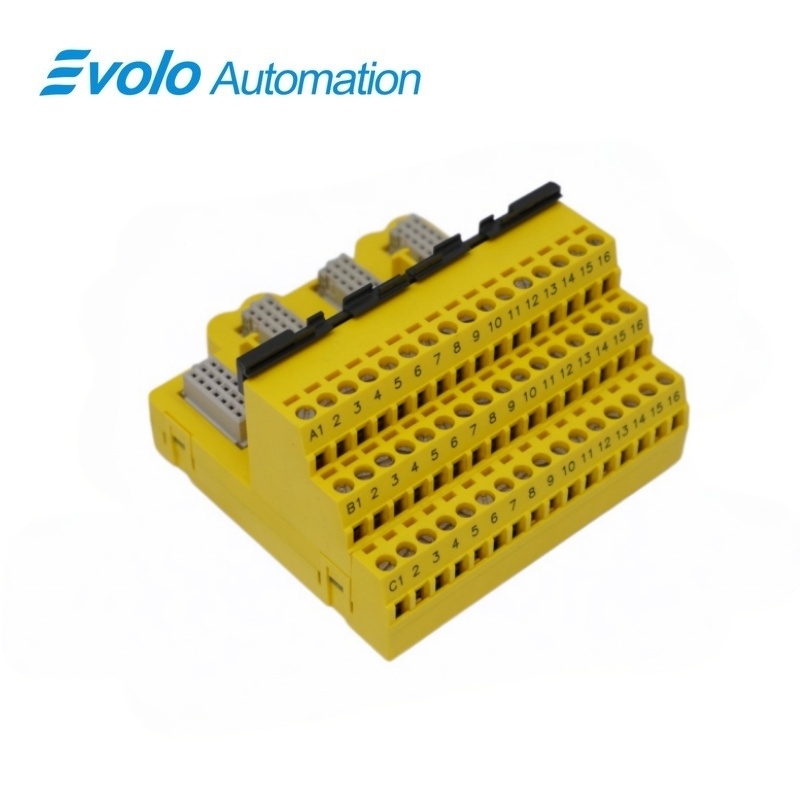

KJ2201X1-HA1 12P3322X022 is identified by the complete manufacturer model and the photographed unit.
Application focus
KJ2201X1-HA1 12P3322X022 is intended for termination of SLS1508 safety-I/O field wiring.
Ordering control
KJ2201X1-HA1 12P3322X022 should be matched by the full nameplate, hardware revision and installed configuration.
Product Overview

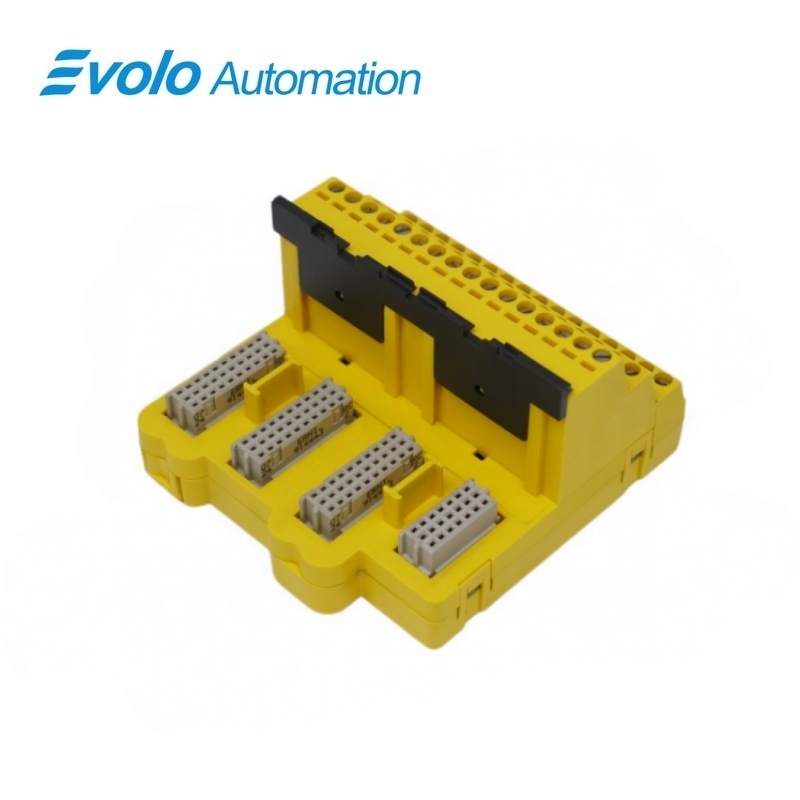

Emerson KJ2201X1-HA1 12P3322X022 is the simplex SLS terminal block for DeltaV SIS SLS 1508 installations. It provides the terminal interface for a single logic-solver arrangement.
Emerson’s terminal-block instructions specify a 30 VDC input limit, with maximum channel currents of 30 mA between A–B and 1 A between A–C. The exact KJ and 12P markings distinguish this simplex unit from the redundant terminal block.
Key Functions
Simplex terminal interface
The HA1 assembly is the SLS terminal block for a single logic-solver configuration.
Field-circuit connection
Its labeled terminals connect the documented field circuits while preserving the defined electrical limits.
Maintenance discipline
The unit is not intended for energized removal and contains no user-serviceable or calibration items.
Official Specifications
| Matching hardware | SLS1508 logic solver |
|---|---|
| Simplex terminal interface | The HA1 assembly is the SLS terminal block for a single logic-solver configuration. |
| Field-circuit connection | Its labeled terminals connect the documented field circuits while preserving the defined electrical limits. |
| Maintenance discipline | The unit is not intended for energized removal and contains no user-serviceable or calibration items. |
| Redundancy Mode | Redundant |
| Redundancy Mode 2 | Simplex |
| Compatible Logic Solver | SLS 1508 |
| Logic Solver Arrangement | Single |
| Energized Removal Support | Not supported |
| User-Serviceable Items | None |
Source scope: Technical statements below are limited to Emerson DeltaV SIS SLS1508 Product Data Sheet. Commercial availability, condition and warranty are seller terms.
Frequently Asked Questions
Which existing DeltaV SIS environment is intended for KJ2201X1-HA1 12P3322X022?
It is intended for DeltaV SIS.
In which plant application would an engineer use KJ2201X1-HA1 12P3322X022 as a SLS Terminal Block?
Termination of SLS1508 safety-I/O field wiring.
Which cabinet, carrier and wiring conditions must match before KJ2201X1-HA1 12P3322X022 is installed?
Verify the specified code rather than the JA1 redundant version. Match the the specified code hardware revision.
What design information about simplex terminal interface is required for KJ2201X1-HA1 12P3322X022?
The HA1 assembly is the SLS terminal block for a single logic-solver configuration.
Which field-circuit connection details should engineers confirm for KJ2201X1-HA1 12P3322X022?
Its labeled terminals connect the documented field circuits while preserving the defined electrical limits.
How does KJ2201X1-HA1 12P3322X022 handle maintenance discipline?
The unit is not intended for energized removal and contains no user-serviceable or calibration items.
How can buyers confirm the correct hardware version of KJ2201X1-HA1 12P3322X022?
The unit should be matched by the full nameplate, hardware revision and installed configuration.
Compatibility & Ordering Notes
Compatibility checklist for KJ2201X1-HA1 12P3322X022
- Verify KJ2201X1-HA1 rather than the JA1 redundant version.
- Match the 12P3322X022 hardware revision.
- Check terminal assignments against the installed SIS drawing.
- Remove system power and follow qualified-personnel procedures.
