Emerson KJ1501X1-BC3 12P3935X032 VE5009 DeltaV DC/DC System Power Supply
Manufacturer: Emerson
Condition: Brand New
Lead Time: In Stock
Origin: United States
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
KJ1501X1-BC3 12P3935X032 VE5009 DeltaV DC/DC System Power Supply
Official-source product identification, application guidance and ordering checks for KJ1501X1-BC3 12P3935X032 VE5009.
At a Glance
| Brand | Emerson |
|---|---|
| Model | KJ1501X1-BC3 12P3935X032 VE5009 |
| Product Type | DeltaV DC/DC System Power Supply |
| Core Function | Conversion of cabinet bulk DC power for DeltaV controller and I/O electronics. |
| Application / Compatible Series | DeltaV DCS M-series power |
Verified identification

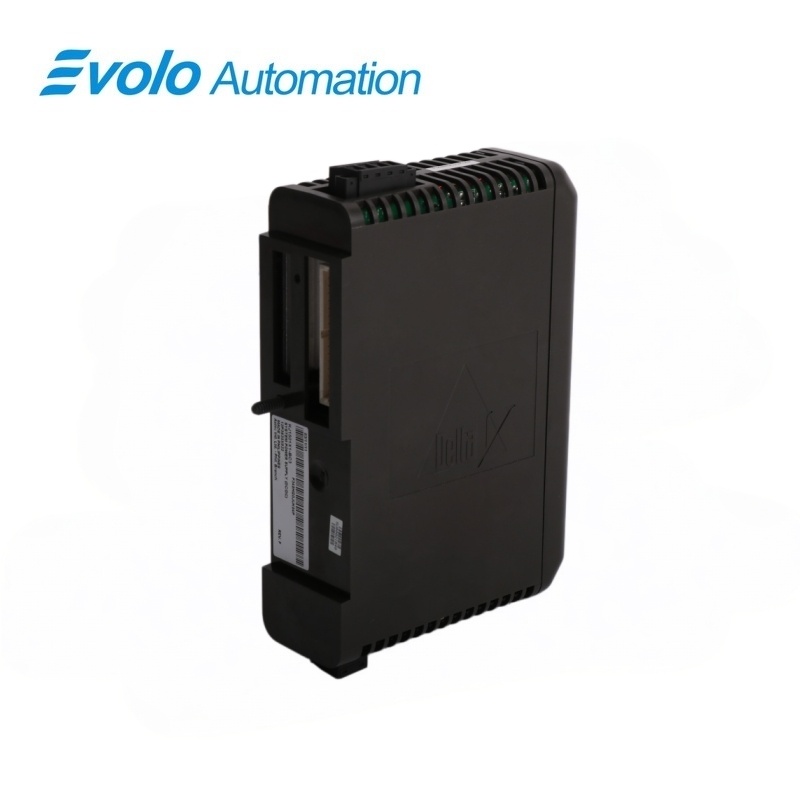

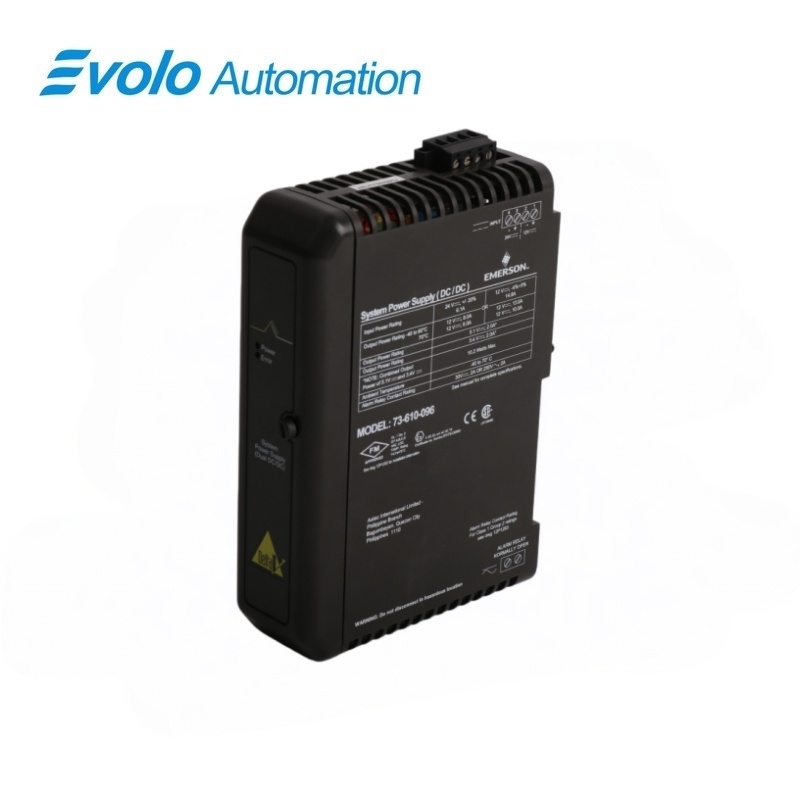

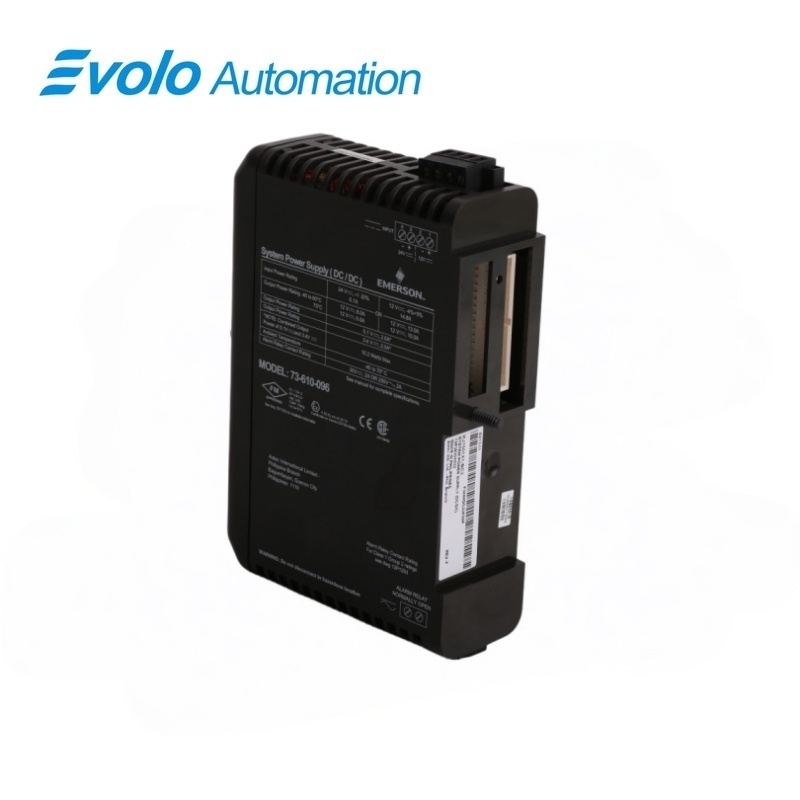

KJ1501X1-BC3 12P3935X032 VE5009 is identified by the complete manufacturer model and the photographed unit.
Application focus
KJ1501X1-BC3 12P3935X032 VE5009 is intended for conversion of cabinet bulk DC power for DeltaV controller and I/O electronics.
Ordering control
KJ1501X1-BC3 12P3935X032 VE5009 should be matched by the full nameplate, hardware revision and installed configuration.
Product Overview
Emerson KJ1501X1-BC3 12P3935X032 VE5009 is the DeltaV M-series enhanced DC/DC system power supply for 24 VDC or 12 VDC input. It develops the internal 12 V, 5 V and 3.3 V rails used by the supported M-series hardware.
For 24 VDC input Emerson specifies 24 VDC ±20% at 6.1 A; for 12 VDC input it specifies 12 VDC −4/+5% at 14.8 A. Output capability depends on input voltage and ambient temperature, so the X032 unit must be checked against the actual cabinet design.
Key Functions
Dual-input design
VE5009 accepts the documented 24 VDC or 12 VDC source when wired according to the M-series power-supply data sheet.
Multiple system rails
It supplies the internal 12 VDC rail together with 5 VDC and 3.3 VDC electronics rails.
Protected power conversion
The supply includes internal non-replaceable input protection and documented output overvoltage protection.
Official Specifications
| Identification | Complete KJ and 12P number required |
|---|---|
| Mounting | Applicable DeltaV M-series power/controller carrier |
| Dual-input design | VE5009 accepts the documented 24 VDC or 12 VDC source when wired according to the M-series power-supply data sheet. |
| Multiple system rails | It supplies the internal 12 VDC rail together with 5 VDC and 3.3 VDC electronics rails. |
| Protected power conversion | The supply includes internal non-replaceable input protection and documented output overvoltage protection. |
| Input Voltage Limit | 24 VDC |
| Control Strategy Scope | Assigned control modules |
| I/O Assignment Method | Defined by the DeltaV project |
| Control Network Role | DeltaV control-network node |
| Configuration Source | Downloaded DeltaV project |
| Software Compatibility | Supported DeltaV release required |
| Firmware Compatibility | Hardware-revision dependent |
| Carrier Compatibility | Matching controller carrier required |
| Power Interface | Carrier and system-power connection |
| Diagnostic Communication | Operational and diagnostic network data |
| Hardware Identifier Set | KJ, 12P, and VE/SE markings |
| 24 VDC Input Tolerance | ±20% |
| 24 VDC Input Current | 6.1 A |
| 12 VDC Input Tolerance | −4/+5% |
| 12 VDC Input Current | 14.8 A |
Source scope: Technical statements below are limited to Emerson DeltaV M-series DC/DC System Power Supply Product Data Sheet. Commercial availability, condition and warranty are seller terms.
Frequently Asked Questions
Which DeltaV DCS M-series power configuration should be confirmed for KJ1501X1-BC3 12P3935X032 VE5009?
It is intended for DeltaV DCS M-series power.
For which engineering duty is KJ1501X1-BC3 12P3935X032 VE5009 specified as a DeltaV DC/DC System Power Supply?
Conversion of cabinet bulk DC power for DeltaV controller and I/O electronics.
Which mounting and connection details should be verified before fitting KJ1501X1-BC3 12P3935X032 VE5009?
Match the specified code, X032 and the specified code. Verify whether the installation uses 12 VDC or 24 VDC input.
What documented dual-input design limits apply to KJ1501X1-BC3 12P3935X032 VE5009?
The specified code accepts the documented 24 VDC or 12 VDC source when wired according to the M-series power-supply data sheet.
How should multiple system rails be checked during maintenance of KJ1501X1-BC3 12P3935X032 VE5009?
It supplies the internal 12 VDC rail together with 5 VDC and 3.3 VDC electronics rails.
What design information about protected power conversion is required for KJ1501X1-BC3 12P3935X032 VE5009?
The supply includes internal non-replaceable input protection and documented output overvoltage protection.
What should maintenance teams compare before selecting KJ1501X1-BC3 12P3935X032 VE5009 as a replacement?
The unit should be matched by the full nameplate, hardware revision and installed configuration.
Compatibility & Ordering Notes
Compatibility checklist for KJ1501X1-BC3 12P3935X032 VE5009
- Match KJ1501X1-BC3, X032 and VE5009.
- Verify whether the installation uses 12 VDC or 24 VDC input.
- Check rail loads and temperature-dependent output capacity.
- Confirm carrier connections and power diagnostics after replacement.
