DELTAV DCS M-SERIES POWER
KJ1501X1-BC1 12P2186X032 VE5008 DeltaV DC/DC System Power Supply
Official-source product identification, application guidance and ordering checks for KJ1501X1-BC1 12P2186X032 VE5008.
At a Glance
| Brand | Emerson |
|---|---|
| Model | KJ1501X1-BC1 12P2186X032 VE5008 |
| Product Type | DeltaV DC/DC System Power Supply |
| Core Function | Conversion of cabinet bulk DC power for DeltaV controller and I/O electronics. |
| Application / Compatible Series | DeltaV DCS M-series power |
Verified identification

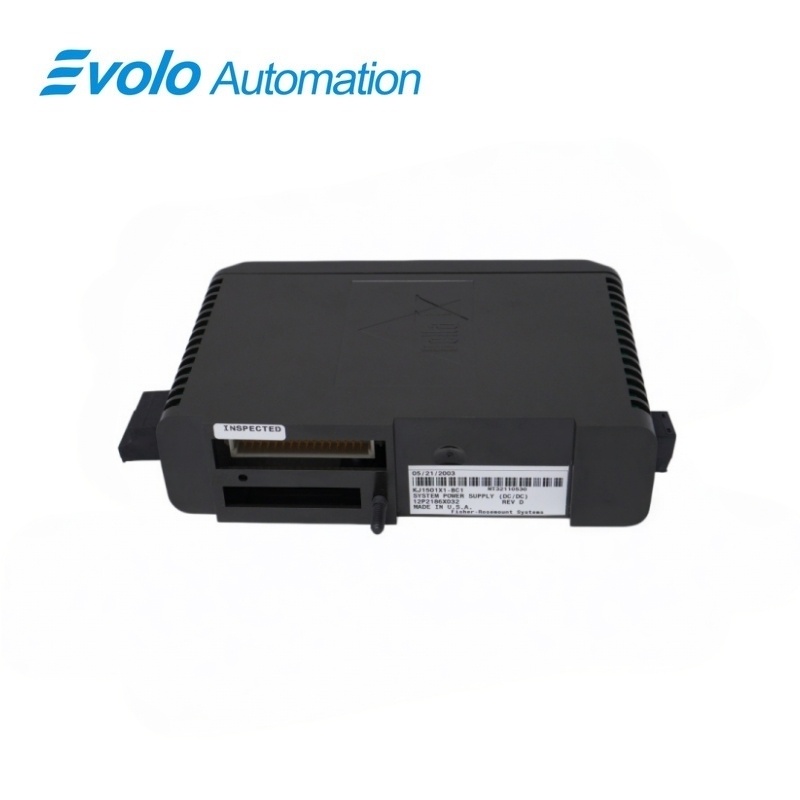

KJ1501X1-BC1 12P2186X032 VE5008 is identified by the complete manufacturer model and the photographed unit.
Application focus
KJ1501X1-BC1 12P2186X032 VE5008 is intended for conversion of cabinet bulk DC power for DeltaV controller and I/O electronics.
Ordering control
KJ1501X1-BC1 12P2186X032 VE5008 should be matched by the full nameplate, hardware revision and installed configuration.
Product Overview
KJ1501X1-BC1 12P2186X032 VE5008 supplies DeltaV M-series controller and I/O electronics from the cabinet bulk 24 VDC source.
Emerson specifies 24 VDC ±20% input, regulated 12 VDC and 5 VDC outputs, power-failure indication and load sharing. The BC1 revision and 12P2186X032 number must be compared directly with the installed unit.
Key Functions
System Rail Supply
Provides the 12 VDC and 5 VDC system rails used by DeltaV M-series controller and I/O electronics.
Capacity and Redundancy
Can share load with a supported companion supply to expand available power or build a redundant supply arrangement.
Environmental Operation
Official ratings cover −40 to +70 °C operation with reduced 12 V output capacity above +60 °C.
Official Specifications
| Input | 24 VDC ±20%, 6.1 A |
|---|---|
| Output, −40 to +60 °C | 12 VDC at 8.0 A; 5 VDC at 2.0 A (10 W combined 5 V load) |
| Hold-up | 5 ms at full load and minimum input |
| Operating environment | −40 to +70 °C; 5–95% RH, non-condensing |
| System Rail Supply | Provides the 12 VDC and 5 VDC system rails used by DeltaV M-series controller and I/O electronics. |
| Capacity and Redundancy | Can share load with a supported companion supply to expand available power or build a redundant supply arrangement. |
| Environmental Operation | Official ratings cover −40 to +70 °C operation with reduced 12 V output capacity above +60 °C. |
| Redundancy Mode | Redundant |
| Operating Temperature Range | 40 to +70 °C |
| Input Voltage Limit | 24 VDC |
| Control Strategy Scope | Assigned control modules |
| I/O Assignment Method | Defined by the DeltaV project |
| Control Network Role | DeltaV control-network node |
| Configuration Source | Downloaded DeltaV project |
| Software Compatibility | Supported DeltaV release required |
| Firmware Compatibility | Hardware-revision dependent |
| Carrier Compatibility | Matching controller carrier required |
| Power Interface | Carrier and system-power connection |
| Diagnostic Communication | Operational and diagnostic network data |
| Redundancy Support | Configuration dependent |
Official source: Emerson DeltaV M-series DC/DC System Power Supply Product Data Sheet. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
Which DeltaV DCS M-series power systems are compatible with KJ1501X1-BC1 12P2186X032 VE5008?
It is intended for DeltaV DCS M-series power.
What operating task is KJ1501X1-BC1 12P2186X032 VE5008 designed to perform as a DeltaV DC/DC System Power Supply?
Conversion of cabinet bulk DC power for DeltaV controller and I/O electronics.
What installation interfaces need confirmation before using KJ1501X1-BC1 12P2186X032 VE5008?
Read the complete the complete nameplate codes identification. Confirm the supported M-series carrier and physical connection.
Which system rail supply details should engineers confirm for KJ1501X1-BC1 12P2186X032 VE5008?
Provides the 12 VDC and 5 VDC system rails used by DeltaV M-series controller and I/O electronics.
How does KJ1501X1-BC1 12P2186X032 VE5008 handle capacity and redundancy?
Can share load with a supported companion supply to expand available power or build a redundant supply arrangement.
What should technicians verify about environmental operation when commissioning KJ1501X1-BC1 12P2186X032 VE5008?
Official ratings cover −40 to +70 °C operation with reduced 12 V output capacity above +60 °C.
Which nameplate and revision details should buyers verify before ordering KJ1501X1-BC1 12P2186X032 VE5008?
The unit should be matched by the full nameplate, hardware revision and installed configuration.
Compatibility & Ordering Notes
Compatibility checklist for KJ1501X1-BC1 12P2186X032 VE5008
- Read the complete KJ1501X1-BC1 12P2186X032 identification.
- Confirm the supported M-series carrier and physical connection.
- Calculate the controller and I/O load at both system voltages.
- Verify temperature derating and the installed redundancy design.
