IS200TAMBH1ACB Acoustic Monitoring Terminal Board

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	IS200TAMBH1ACB
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

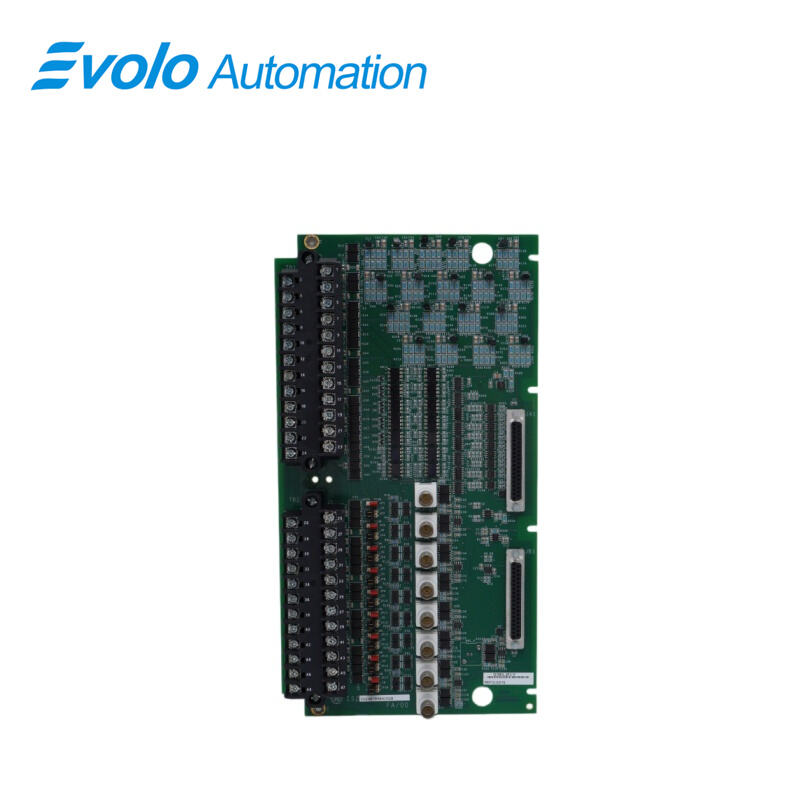

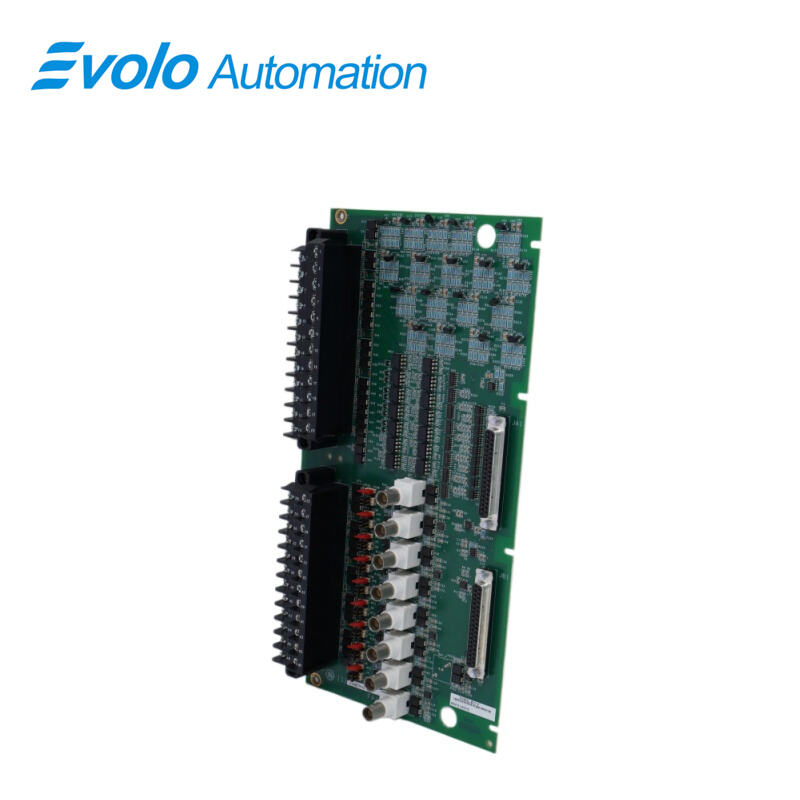

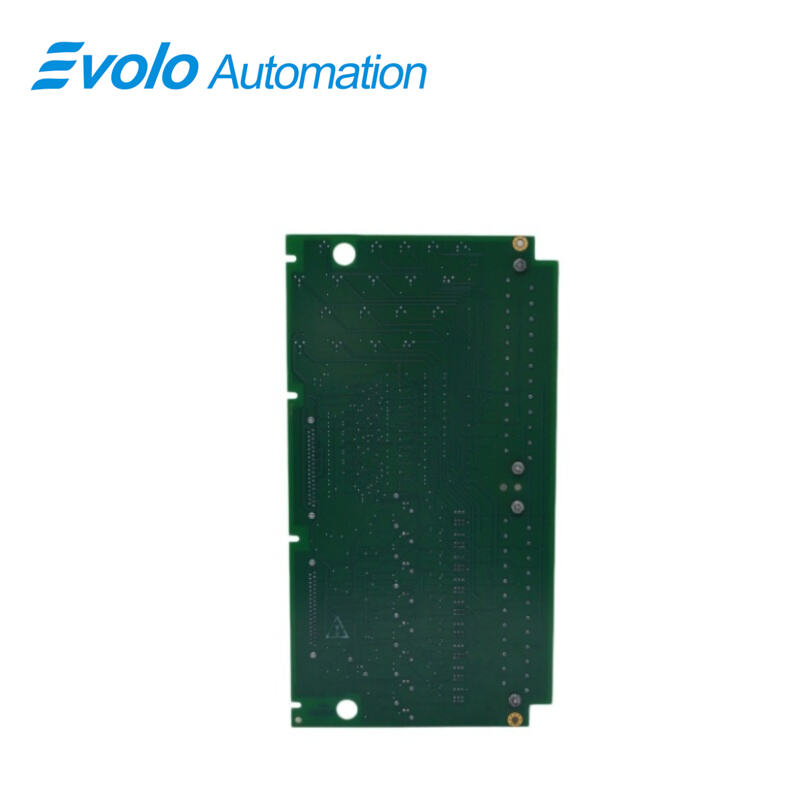

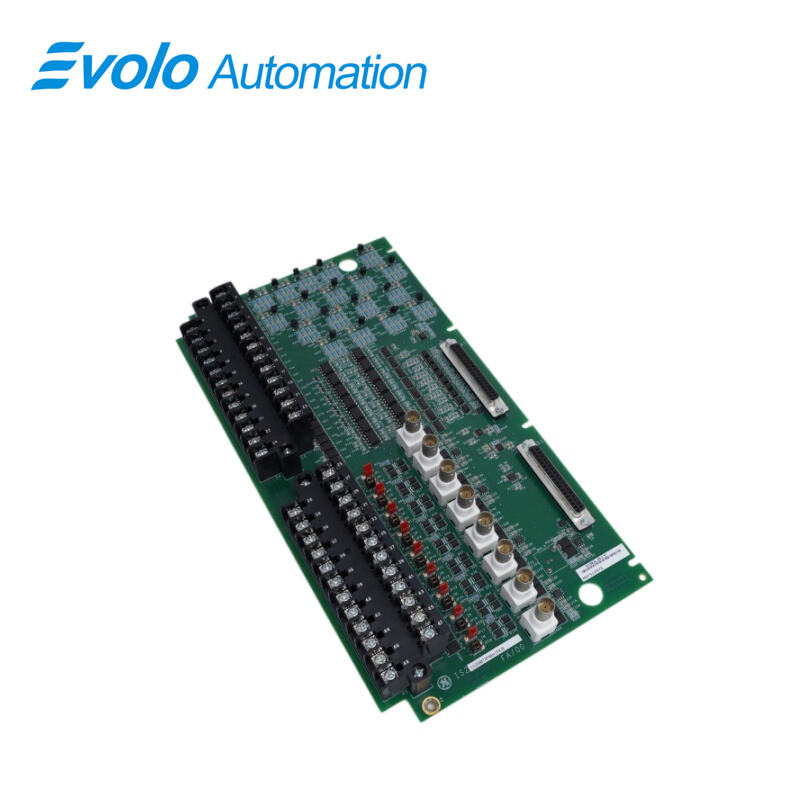

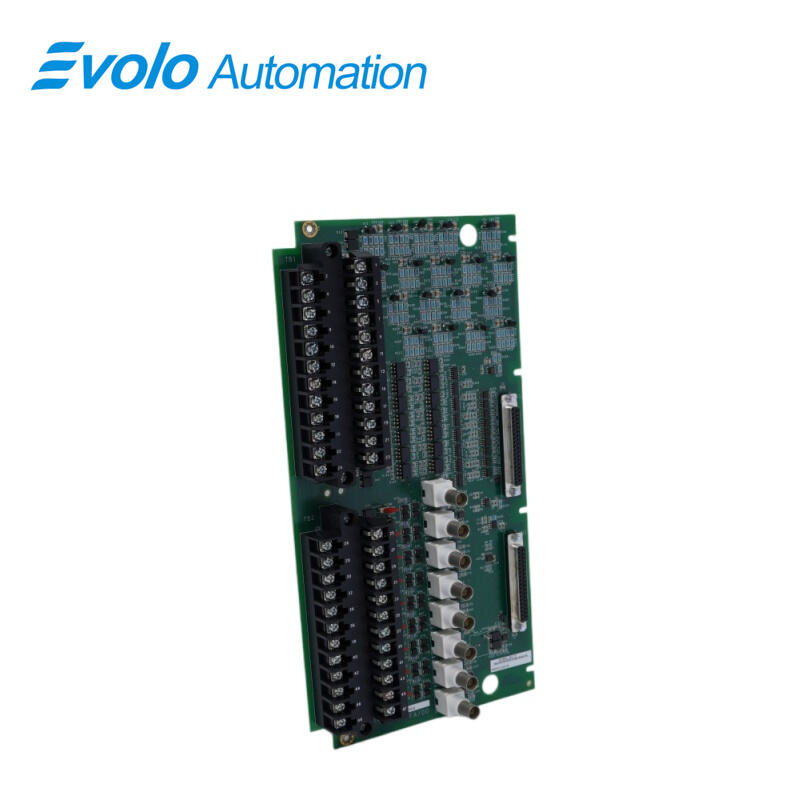

IS200TAMBH1ACB is an Acoustic Monitoring Terminal Board developed by GE. It is a part of Mark VI series. The Acoustic Monitoring Terminal Board (TAMB) is designed to support nine channels, each providing essential functionalities for signal processing within the acoustic monitoring system. The board's ability to manage power outputs, select input types, configure return lines, and detect open connections contributes significantly to the efficiency, accuracy, and diagnostic capabilities of the acoustic monitoring system, ensuring precise data acquisition and monitoring.

Applications

Combined Cycle Power Plant (CCGT) and Gas Turbine Power Plant

Aero-derivative Test Cells

Oil & Gas Compression Stations

Power Supply Outputs

1 The Power Supply Outputs of the Acoustic Monitoring Terminal Board (TAMB) play a crucial role in ensuring consistent power availability for associated components.

2 Each of the nine channels on the TAMB board is equipped with dual power supply outputs：

1 Current-Limited +24 V DC Output: This output provides a regulated +24 V DC power supply with current-limiting capabilities. It ensures that the connected components receive a stable voltage within the specified limits, preventing overloading or damage to the devices.

2 +24 V DC Power Supply Output: In addition to the current-limited output, each channel also delivers a standard +24 V DC power supply output. This output serves as an alternative power source and ensures redundancy in case of failure or overload in the current-limited supply.

Detection of Open Connections

1 High-Impedance DC Bias: Within the Vibration Analysis Monitoring Board system, a high-impedance direct current (DC) bias is established. This DC bias is characterized by its high resistance to electrical current flow, which allows it to maintain a stable voltage across the circuit components without significantly affecting their operation.

2 Open Circuit Detection: The high-impedance DC bias serves a critical function in detecting open circuits within the acoustic monitoring system. An open circuit refers to a condition where there is a break or discontinuity in the electrical path, preventing the flow of current. In such cases, the voltage across the open circuit tends to remain unchanged or at a high impedance level.

3 Identification by VAMB: The system, which interfaces with the TAMB and other components of the acoustic monitoring system, actively monitors the voltage levels and impedance characteristics of the signal paths. When an open circuit occurs between the charge amplifier or sensor and the TAMB, the VAMB detects the lack of continuity in the electrical path.

4 Enhanced Monitoring and Diagnostics: Upon detecting an open connection, the VAMB system can initiate diagnostic procedures to identify the precise location and nature of the fault. By alerting operators or triggering diagnostic routines, the system ensures prompt identification and resolution of open circuit issues.

Frequently Asked Questions

Q: What is IS200TAMBH1ACB?

A: It is an Acoustic Monitoring Terminal Board developed by GE under the Mark VI series.

Q: How does the IS200TAMBH1ACB manage power outputs?

A: Every channel on the board supplies both current-limited +24 V DC and +24 V DC power outputs, ensuring consistent power availability for associated system components.

Q: What is the role of the constant current source and input signals on the IS200TAMBH1ACB?

A: It includes a constant current source connected to the SIGx line for the PCB sensors. The input signal, CCSELx, remains False (logic-level low) during power-up to keep the constant current output deselected until configuration parameters are loaded.

Q: What capability does the VAMB system offer regarding open connections of IS200TAMBH1ACB?

A: The system is equipped with a high-impedance DC bias, enabling the detection of open connections between the charge amplifier or sensor and the TAMB board. This feature enhances monitoring and diagnostic capabilities by identifying open circuits within the system.
