Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
IS200SRTDH2ACB |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Dimensions: |
16.7×14.8×5.5 cm |
|
Weight: |
0.6 kg |
|
Series: |
Mark VI IS200 |
|
Type: |
DIN rail RTD terminal block |
|
Number of Channels: |
8 channels |
|
RTD Type: |
Supports multiple RTD types |
|
Wiring Method: |
Configurable |
|
Operating Temperature: |
-20°C to +70°C |
|
Storage Temperature Range: |
-55°C to +125°C |
|
Humidity: |
5% to 95% non-condensing |
|
Rated Voltage: |
24 V DC or 48 V DC |
|
Rated Power: |
2 HP (1.5 kW) |
|
Input Voltage: |
380–480 VAC |
|
Output Frequency: |
0–60 Hz |
|
Output Current: |
3.8 A |
|
Protection Class: |
IP20 |
Description

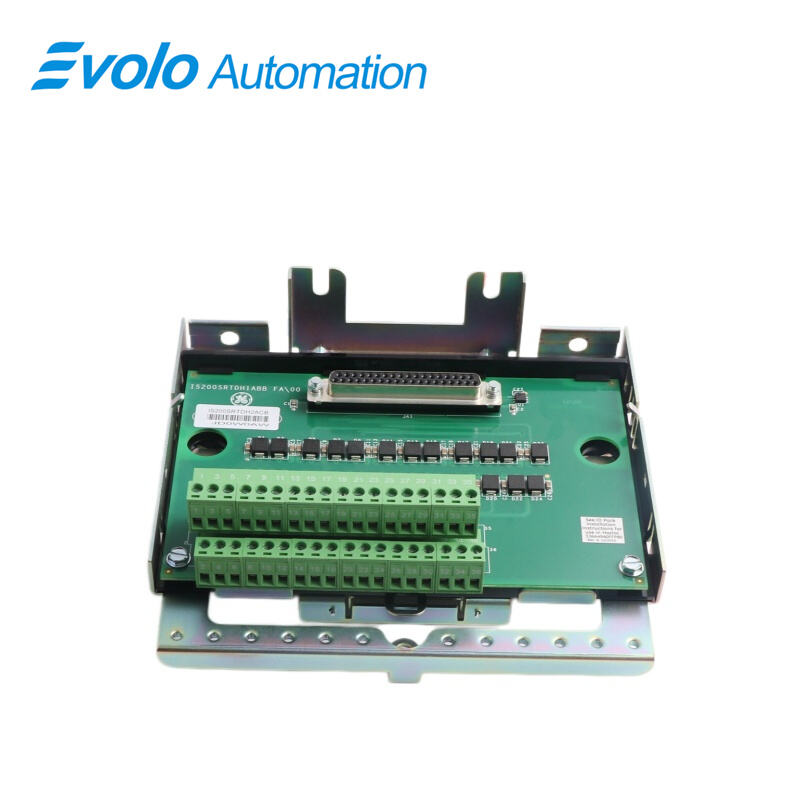

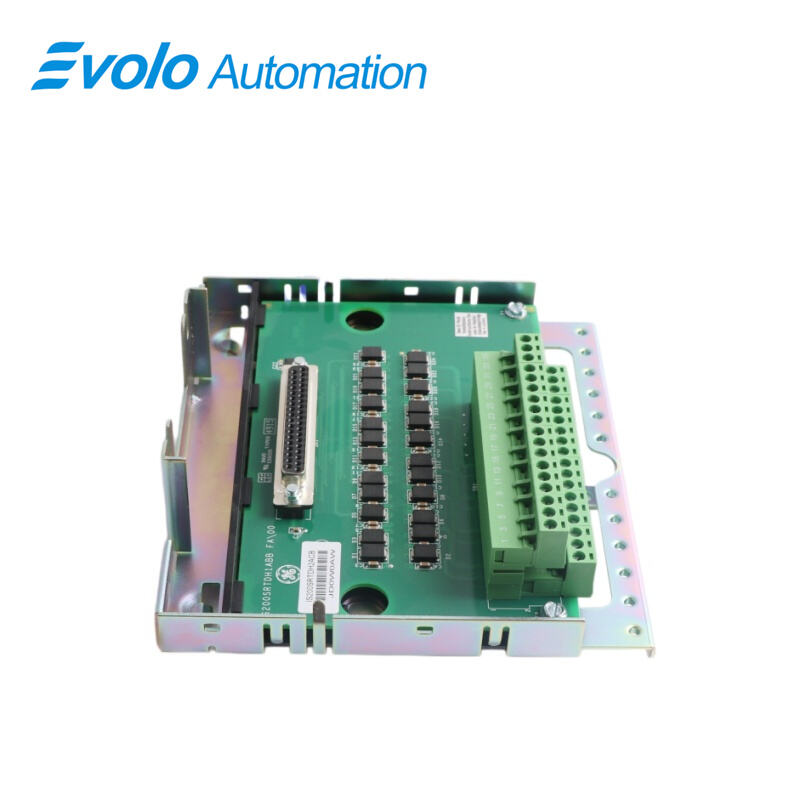

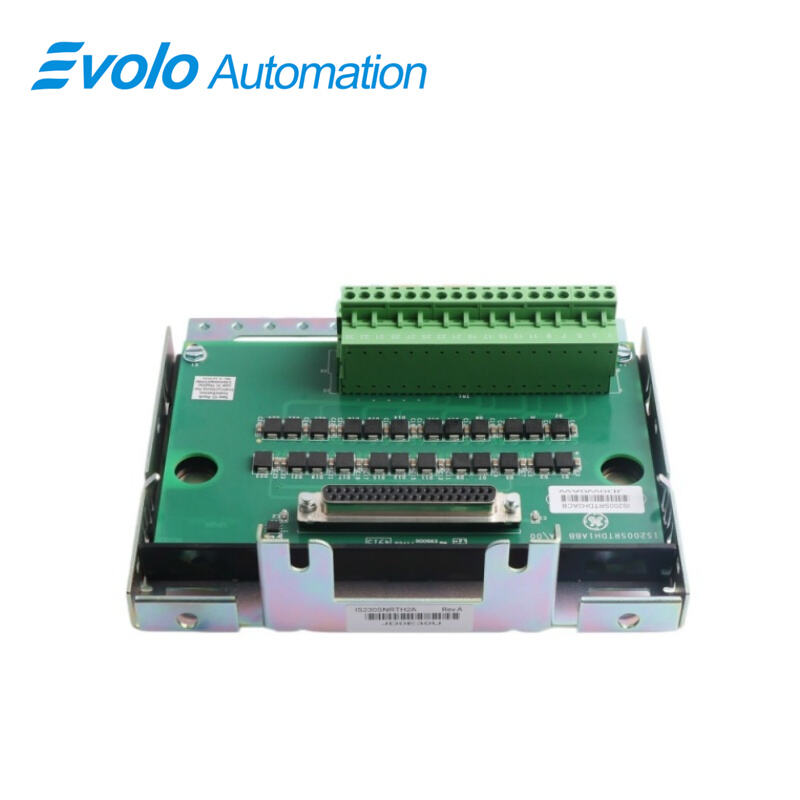

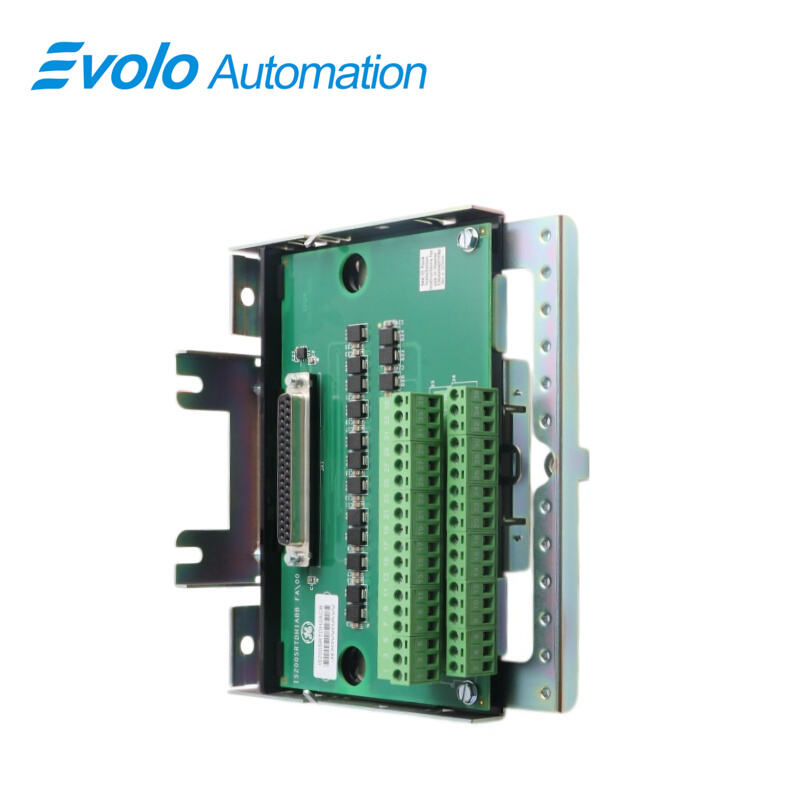

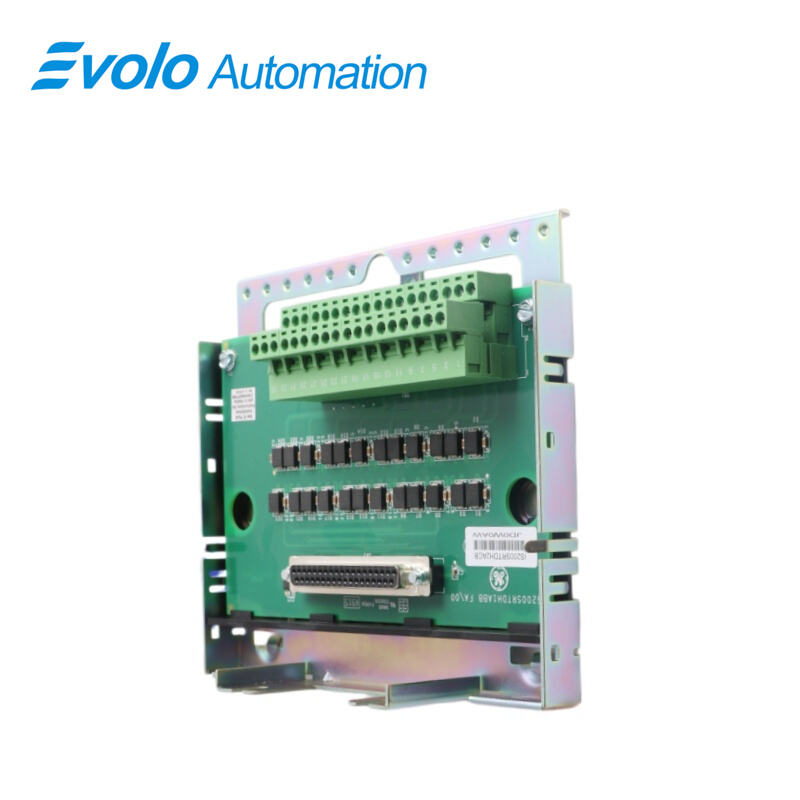

GE IS200SRTDH2ACB is a terminal board module designed for the Mark VI speedtronic control system. It functions as a critical interface component, facilitating the secure connection and signal routing between the control system's I/O modules and field wiring from sensors and devices in industrial turbine applications. It provides a reliable and efficient way to connect and process multiple RTD sensors, and is widely used in temperature measurement and control systems.
Product Features
Compact Design: Modular design, small footprint, suitable for control cabinets with limited space.
High Reliability: Utilizes high-quality materials and processes, possessing excellent electrical performance and mechanical strength.
Multi-Channel: Provides multiple RTD input channels, allowing simultaneous connection of multiple RTD sensors.
Easy Installation: DIN rail mounting for convenient installation.
Strong Compatibility: Compatible with various RTD types and wiring methods.
High Precision: High measurement accuracy to meet demanding measurement requirements.
Interference Resistance: Excellent resistance to electromagnetic interference, ensuring accurate measurement data.
Flexible Configuration: Can be configured to meet different application needs.
Functions
Signal Acquisition: Collects temperature signals output from RTD sensors.
Signal Conversion: Converts RTD resistance signals into standard voltage or current signals.
Signal Isolation: Achieves signal isolation to prevent interference.
Applications
Chemical Industry: Reactor temperature measurement
Metallurgy: Blast furnace temperature measurement
Power Industry: Generator temperature measurement
Food Industry: Cold storage temperature measurement
