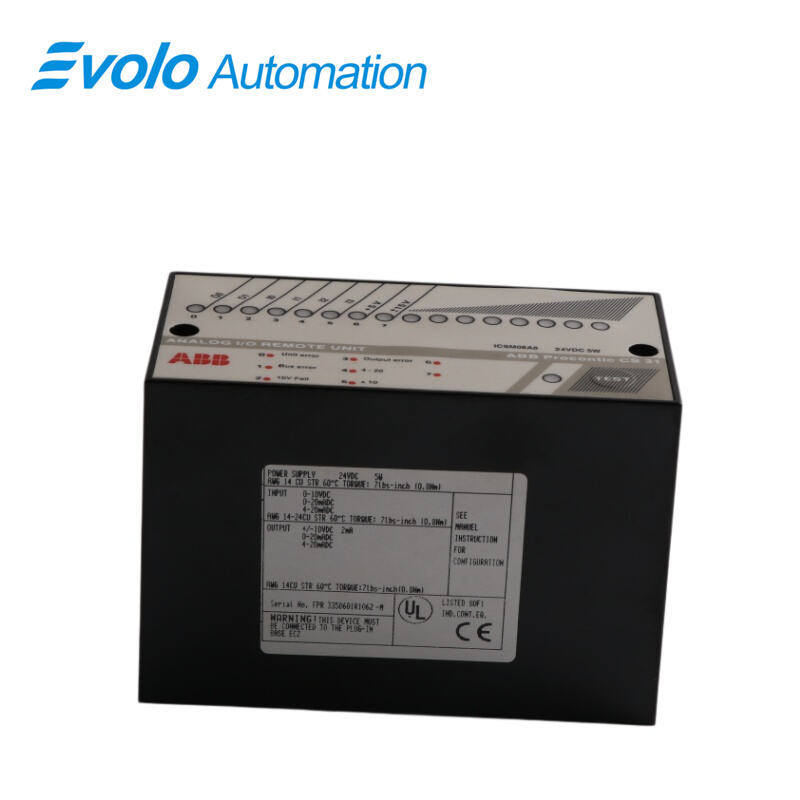

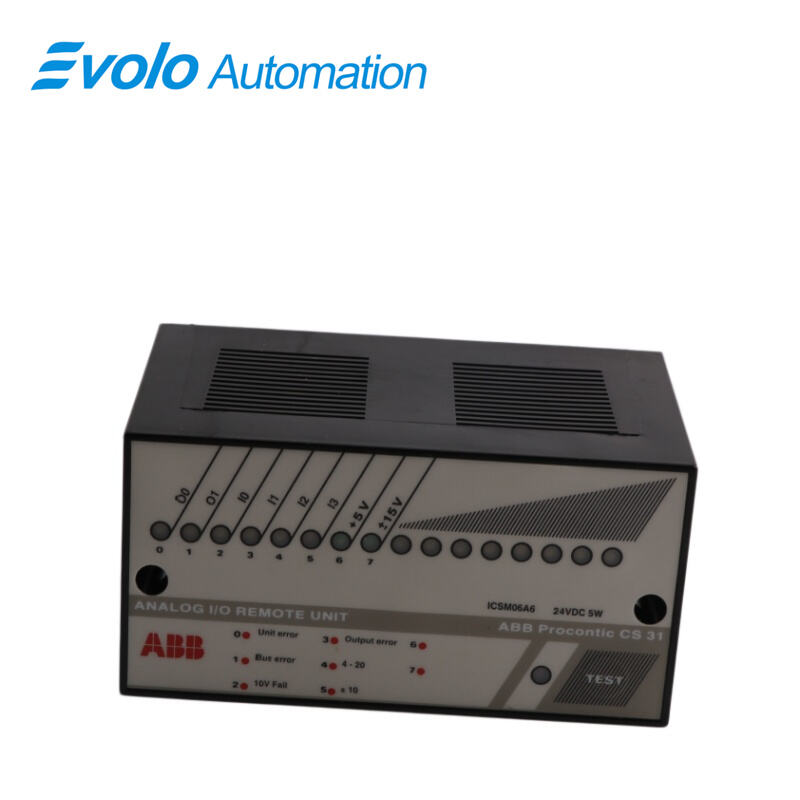

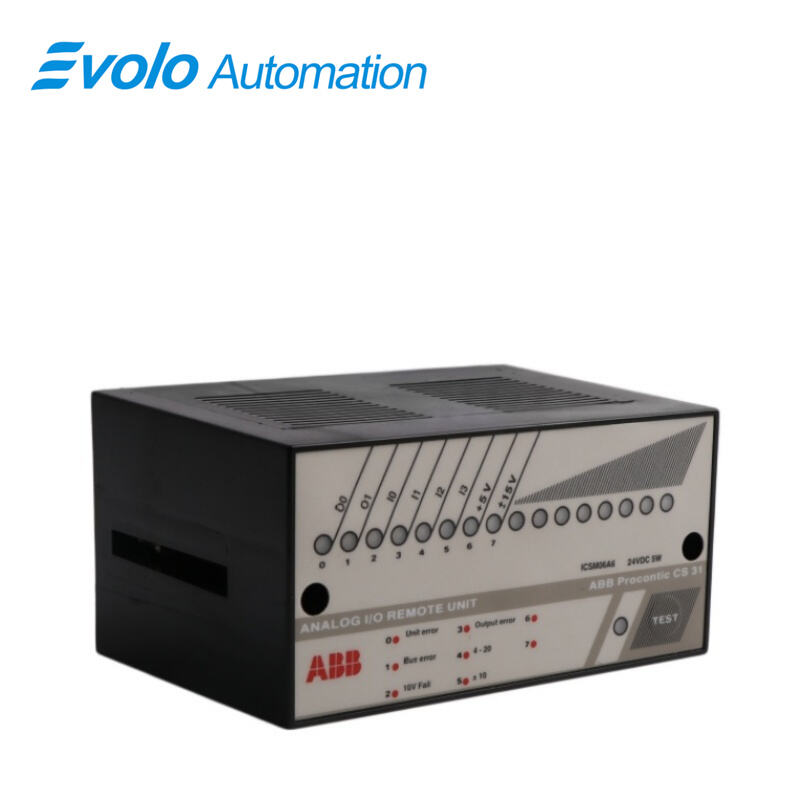

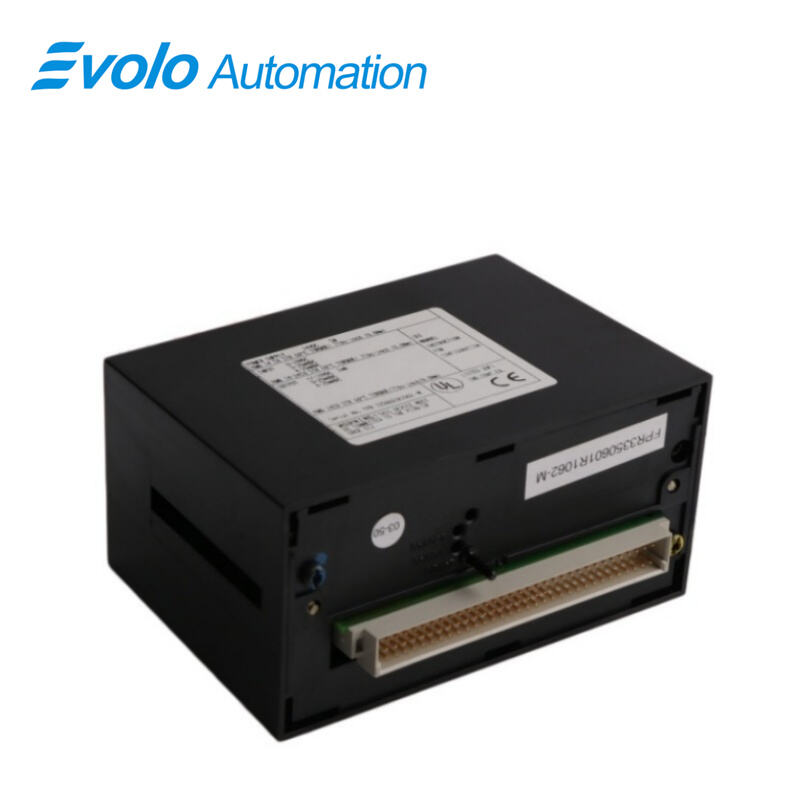

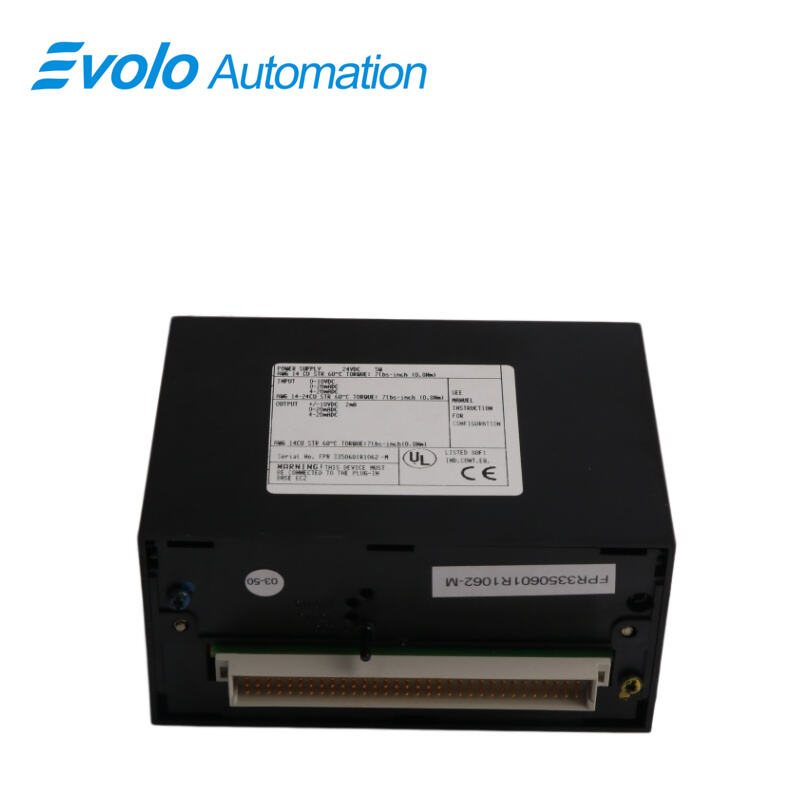

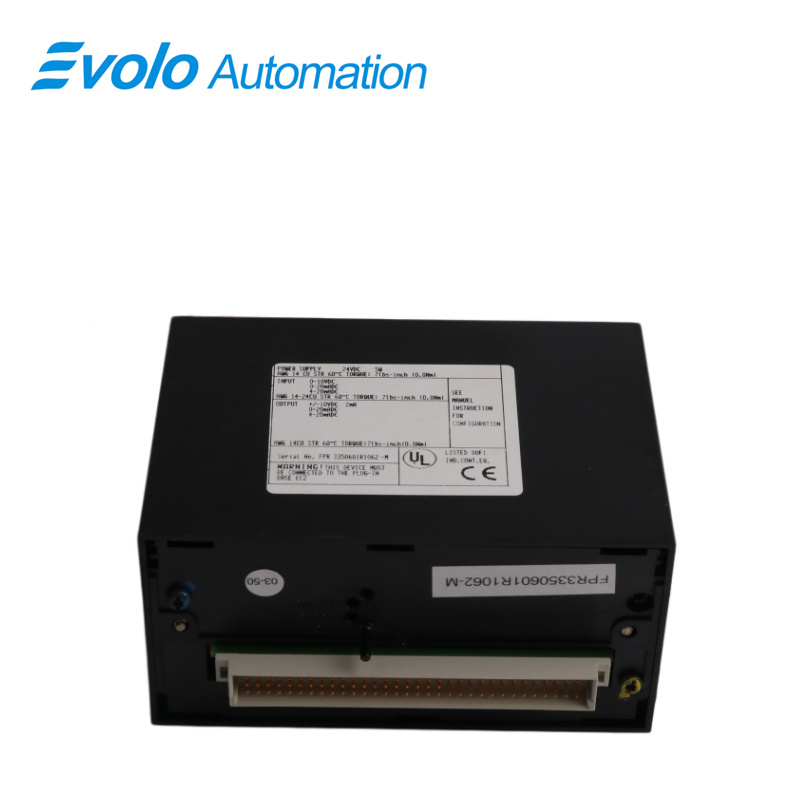

Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
ICSM06A6 FPR3350601R1062 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Part Number |
ICSM06A6 FPR3350601R1062 |
|
Product Type |
Procontic CS31 Analog I/O Remote Unit |
|
Dimensions |
12.2×9.2×6.3 cm |
|
Weight |
0.28 kg |
|
Inputs |
4 channels (0–10 V, 0–20 mA, 4–20 mA) |
|
Outputs |
2 channels (-10 V to +10 V, 0–20 mA, 4–20 mA) |
|
Resolution |
8-bit (non-isolated) |
|
Power Supply |
24 VDC |
|
Series |
Procontic CS31 |
Description
The ABB ICSM06A6 FPR3350601R1062 Analog I/O Remote Unit delivers high-precision control and data transmission in industrial automation systems, ensuring reliable operation across various applications. Designed for long-term reliability, the unit undergoes rigorous testing to ensure durability under extreme temperatures and varying loads.
Applications
Chemical Plants: Used for remote acquisition of 4-20mA analog signals from flow meters and pressure sensors to achieve real-time monitoring of process parameters.
Wastewater Treatment Plants: Integrates with level transmitter signals and outputs analog signals to control the speed of frequency converters to regulate pump flow.
Paper Mills: Monitors feedback from tension sensors and temperature transmitters in the drying and pressing processes.
Thermal Power Plants: Acquires pressure and valve position feedback from boiler systems to ensure precise control of the thermal circulation system.
Injection Molding Plants: Suitable for pressure regulation of injection molding machine hydraulic systems and analog power control of electric heaters.
Troubleshooting and Maintenance
Troubleshooting:
Signal noise: Non-isolated design requires shielded twisted-pair cables and shared ground between sensor and module.
Output error: Check 24 VDC ripple and confirm voltage/current jumper matches program settings.
Maintenance:
Calibration: Periodically verify I/O accuracy with a signal generator to prevent drift from aging.
Terminal check: Tighten terminals regularly to reduce contact resistance in vibration environments.
FAQ
Q: Can the ICSM06A6 FPR3350601R1062 8-bit resolution meet precise control needs?
A: Yes. 8-bit (256 levels) suits general industrial control like temperature and level monitoring.
Q: How to switch 0-10V and 4-20mA on ICSM06A6 FPR3350601R1062?
A: Set via jumpers or hardware switches plus PLC software configuration.
Q: Why does ICSM06A6 FPR3350601R1062 support -10V to +10V output?
A: To enable bidirectional control of servo systems and actuators requiring ± voltage signals.
Q: What wiring risks exist for ICSM06A6 FPR3350601R1062 non-isolated design?
A: Ground potential differences may cause loop noise; use isolators in high-interference environments.
Q: Does ICSM06A6 FPR3350601R1062 require CS31 address reset after replacement?
A: Yes. The DIP switch must match the original station address for recognition.
