Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
HITR301463R1 UA9810 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Part Number |
HITR301463R1 UA9810 |
|
Product Type |
Controller |
|
Dimensions |
1.5×20×30.2 cm |
|
Weight |
0.52 kg |
|
Operating Voltage |
24 VDC |
|
Processor Speed |
2.4 GHz |
|
Memory |
1 GB DDR3 |
|
Flash Memory |
512 MB |
|
Communication Protocols |
Modbus TCP/IP, Modbus RTU |
|
Communication Interfaces |
Ethernet, RS-485 |
|
Max Load Current |
10 A |
|
Response Time |
1 ms |
|
Power Consumption |
Max 15 W |
|
Operating Temperature Range |
-20°C to +60°C |
|
Storage Temperature Range |
-40°C to +70°C |
Description

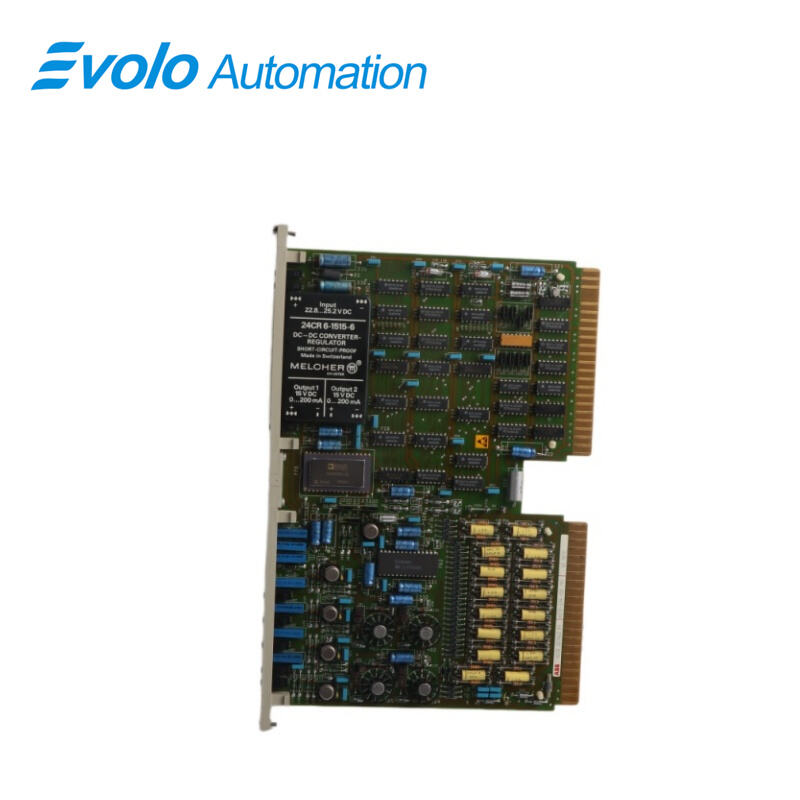

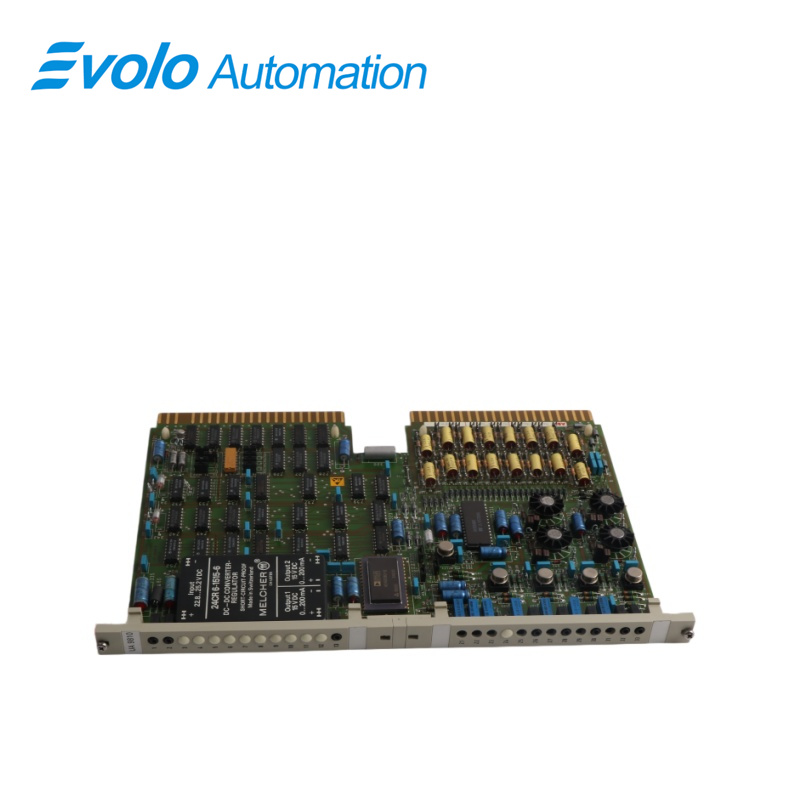

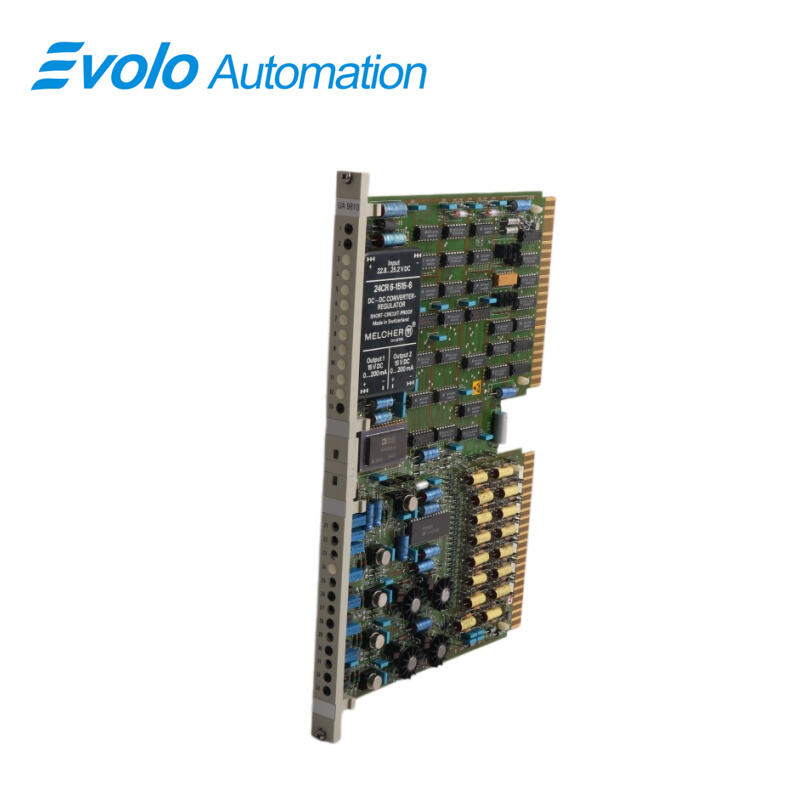

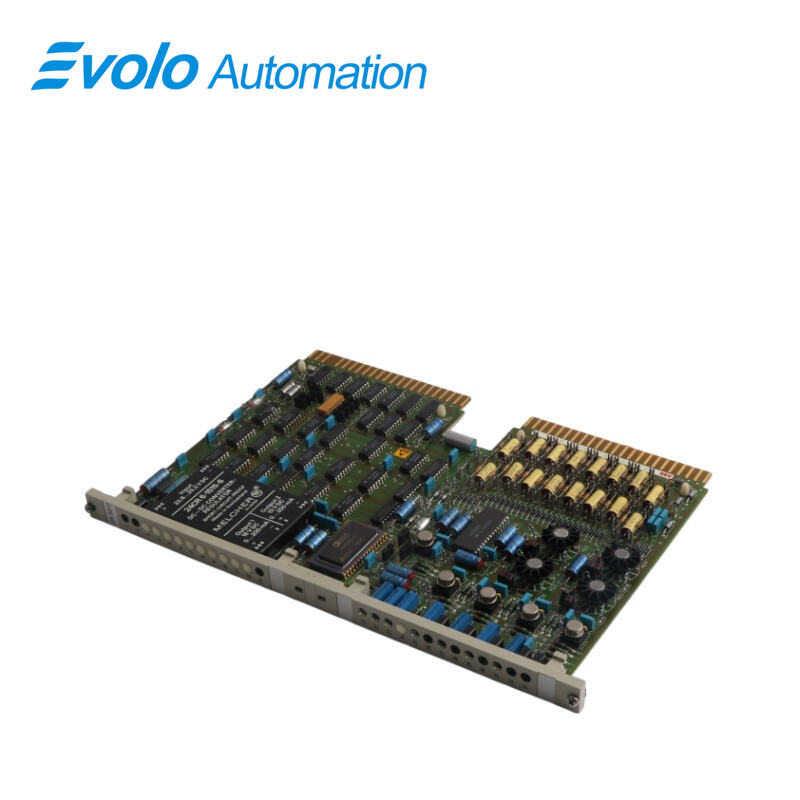

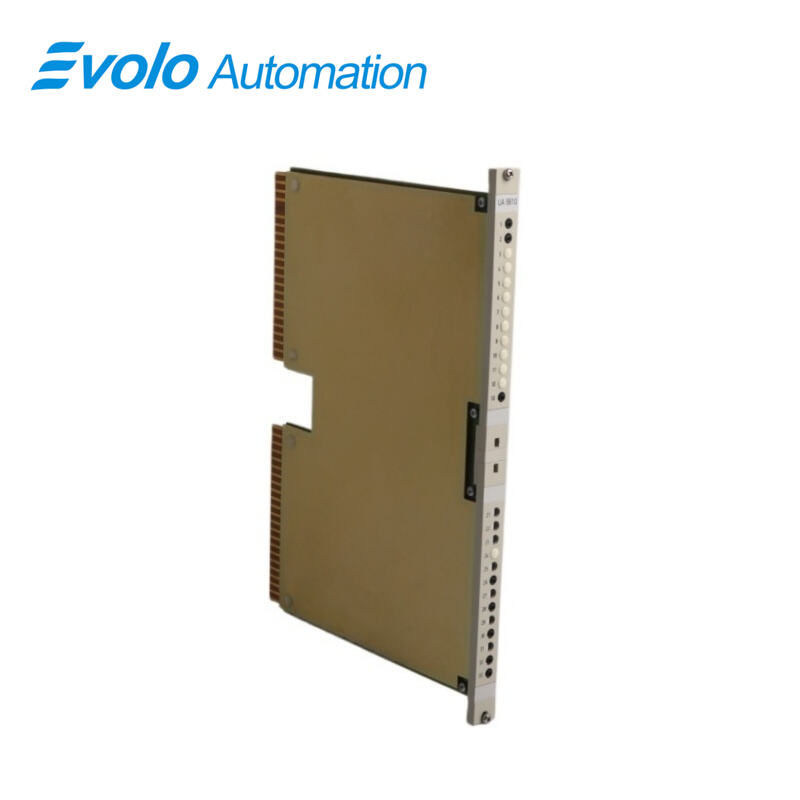

The ABB HITR301463R1 UA9810 is a high-performance controller board designed specifically for industrial automation control systems. It features high precision, stability, and reliability, making it suitable for industrial control scenarios in various complex environments and significantly improving overall system performance.
Applications
Semiconductor fabs: Controls cleanroom wafer transport and precision automation scheduling.
Mechanical manufacturing plants: Provides real-time feedback and compensation for multi-axis CNC machining.
Pharmaceutical plants: Acts as core controller for bioreactors and packaging line process coordination.
Logistics sorting centers: Drives high-speed sorting systems and package data processing.
Battery manufacturing plants: Synchronizes coating and assembly processes in continuous production lines.
Features
High-performance processing: Fast CPU and memory enable quick control execution and improved system response.
High reliability: Rugged design ensures stable operation in harsh industrial environments with minimal downtime.
Strong compatibility: Multiple interfaces and protocols support seamless device and network integration.
Modular design: Flexible expansion and configuration to meet different application needs.
Comprehensive protection: Built-in overvoltage and short-circuit protection improves operational safety and reduces maintenance.
FAQ
Q: How is the 2.4GHz processor of the HITR301463R1 UA9810 cooled under high load?
A: Low-power design (15W max) allows standard rack cooling up to +60°C.
Q: Does the 1ms response time of the HITR301463R1 UA9810 include network delay?
A: No. It refers only to internal logic and I/O cycle; network latency is separate.
Q: Is 512MB flash in the HITR301463R1 UA9810 sufficient for control logic?
A: Yes. 512MB is sufficient for control programs and alarm logs.
Q: Can the 10A output of the HITR301463R1 UA9810 drive solenoid valves directly?
A: Yes, but inductive surge at startup should be considered; relays are recommended.
Q: What platforms does the HITR301463R1 UA9810 support?
A: ABB engineering platform and Modbus-based third-party software integration.
