Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
HIES207036R3 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Part Number |
HIES207036R3 |
|
Product Type |
Converter Module |
|
Dimensions |
7.2×9×15.4 cm |
|
Weight |
0.75 kg |
|
Rated Voltage |
690V |
|
Rated Current |
36A |
|
Rated Power |
22 kW |
|
Operating Frequency |
50/60 Hz |
|
Input Voltage Range |
200V–1000V DC |
|
Max Input Current |
36A |
|
Rated Output Power |
20 kW |
|
Max Efficiency |
98.6% |
|
Operating Temperature Range |
-25°C to +60°C |
|
Housing Material |
Plastic |
|
Protection Rating |
IP20 |
Description

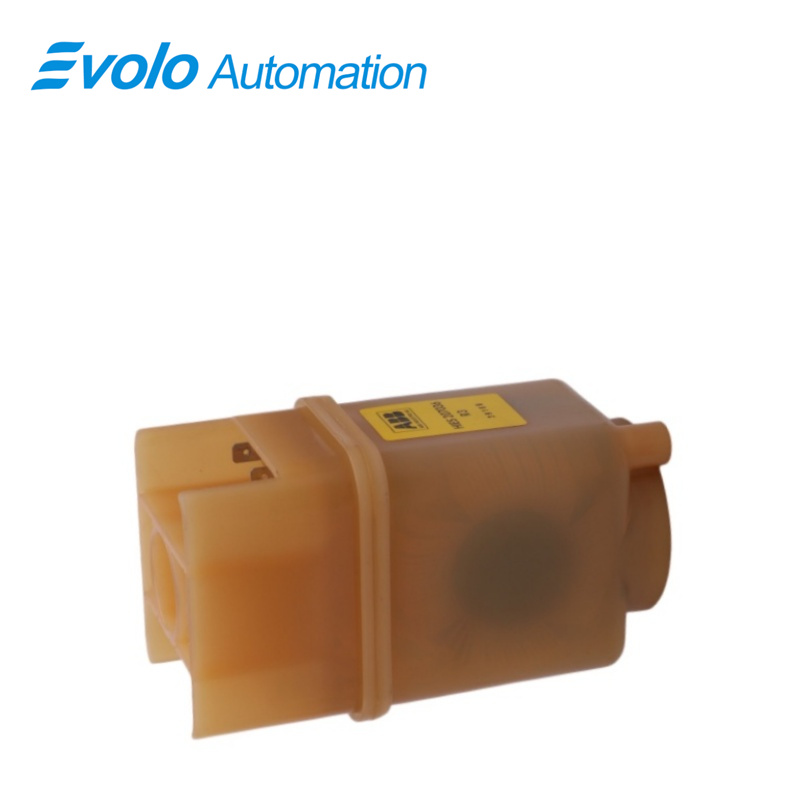

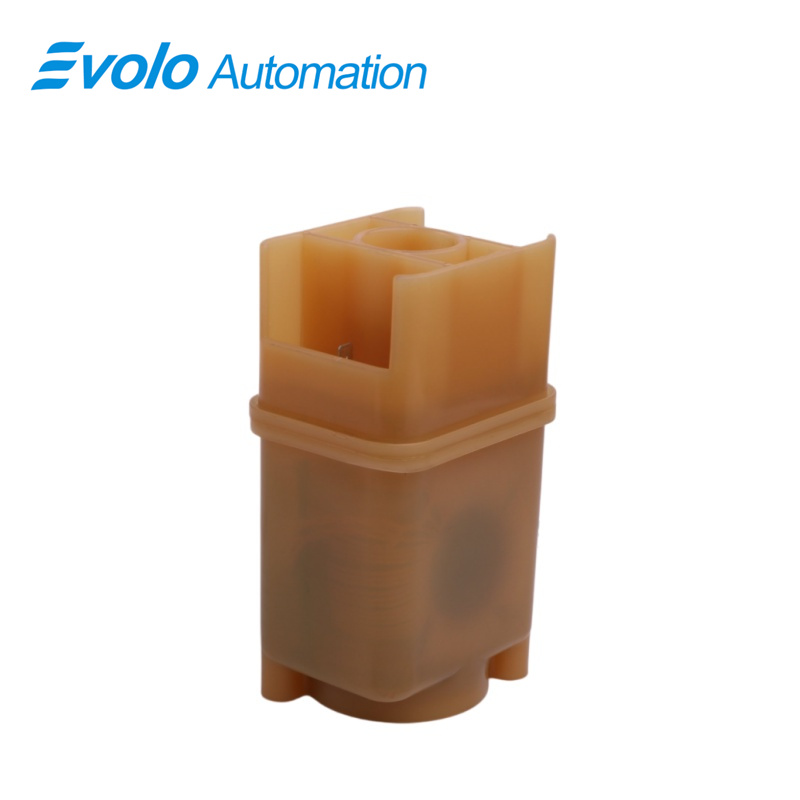

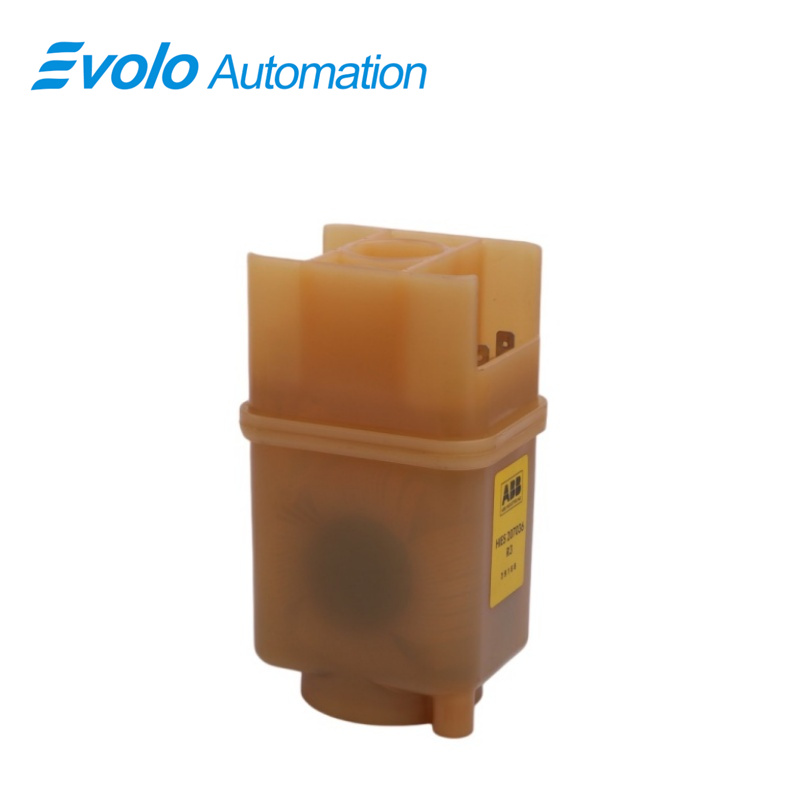

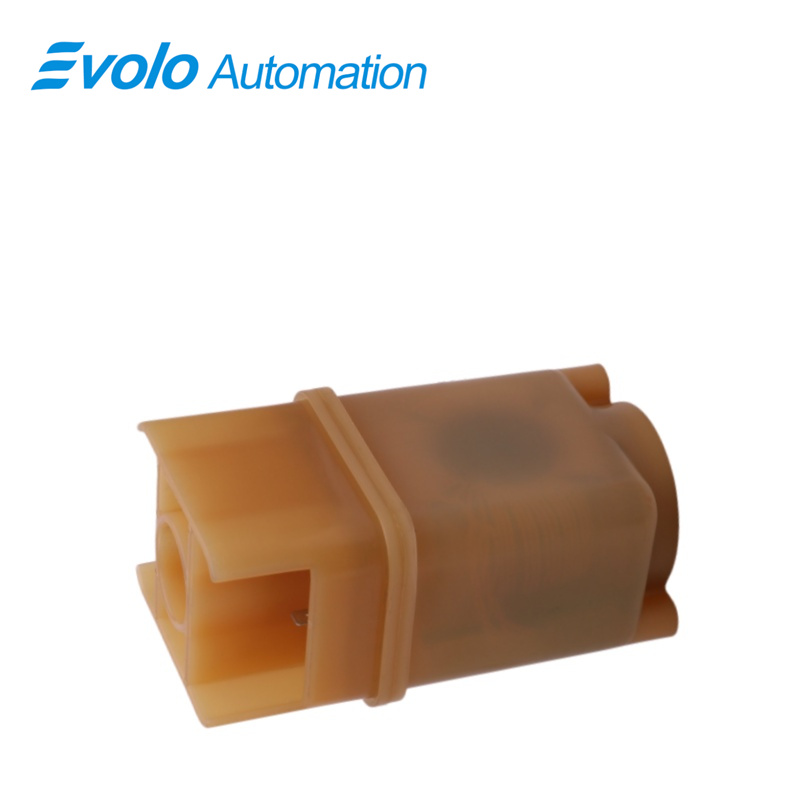

The HIES207036R3 is a high-performance isolated DC-DC converter module from ABB, designed for industrial and rail applications. It belongs to the ABB Ability™ Control Systems family of products and is used for control and logic processing in industrial control systems.
Applications
Oil refineries: Used to control the variable frequency drives of large crude oil pumps and compressors, achieving precise flow regulation.
Steel smelters: Deployed in the high-power drive systems of steel rolling production lines, managing the start-up, shutdown, and synchronization of heavy-duty motors.
Power plants/wind farms: Responsible for the power conversion interface of generator sets, improving energy conversion efficiency and grid connection stability.
Paper and packaging plants: Serves as the signal core of the tension control system on continuous paper conveyor lines, reducing paper breakage rates.
Large chemical plants: Protective coatings against corrosive gases; ensures the power drive of automated reactor agitators.
Features
High Efficiency: Up to 95% efficiency, reducing power consumption and heat generation.
Flexible I/O: Supports a variety of sensors and actuators, featuring 16 analog inputs, 8 digital inputs, 16 analog outputs, and 8 digital outputs.
Powerful Processing Capabilities: Based on a 32-bit microcontroller, enabling complex control and logic processing.
Versatility: Suitable for industrial automation control; a device specifically developed for industrial automatic control.
FAQ
Q: How tolerant is HIES207036R3 to DC input voltage fluctuations?
A: It supports a wide 200V–1000V DC input range for stable operation across different DC bus systems.
Q: Will HIES207036R3 operate at 60°C in high-temperature factories?
A: Yes. It supports up to +60°C, but proper ventilation is recommended.
Q: Can the 0.75kg HIES207036R3 be mounted on DIN rail?
A: Yes. Its compact and lightweight design is suitable for standard DIN rail installation.
Q: How to extend the lifespan of HIES207036R3?
A: Keep it clean and dry, and avoid long-term near-1000V full-load operation.
Q: Does HIES207036R3 support overload above 36A?
A: No. Rated current is 36A; sustained overload may damage internal power components.
