Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
FC-TSGASH-1624 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
FC-TSGASH-1624 |
|
Product Type: |
Field Termination Assembly Module |
|
Dimensions: |
22.5 × 10.8 × 8.5 cm |
|
Weight: |
0.52 kg |
|
Approvals: |
CE; TUV; UL; CSA; FM |
|
Input Channels: |
16 (with common 0 V) |
|
Power Requirements: |
24 VDC external, 3 mA (without field loads) |
|
Input Current Range: |
0–25 mA |
|
Input Resistance: |
500 Ω (±5%) |
|
Output to SAI-1620M Module: |
0–4 VDC; accuracy 0.1% |
|
Fuse Rating: |
500 mA |
|
Fuse Dimensions: |
5 × 20 mm |
|
Fuse Voltage Rating: |
250 VAC / 300 VDC |
|
Fuse Manufacturer: |
Schurter |
|
Fuse Part Number: |
0001.2501 |
|
Fuse Derating: |
0.5 A at 25°C to 0.35 A at 70°C ambient |
|

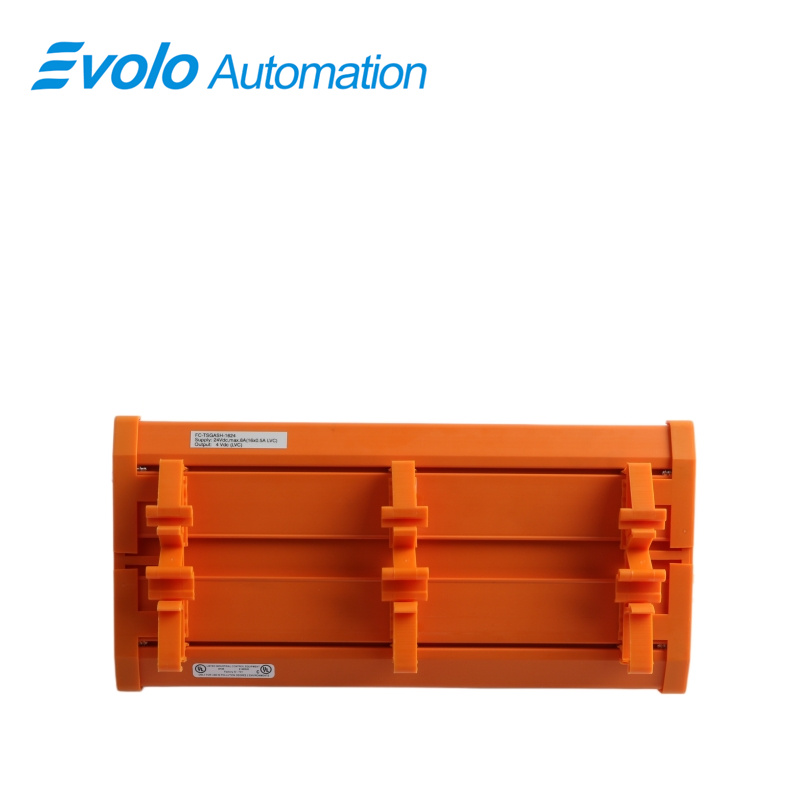

DIN Rail Type: |
TS32 / TS35 × 7.5 |
|
Used Rail Length: |
226 mm (8.90 in) |
|

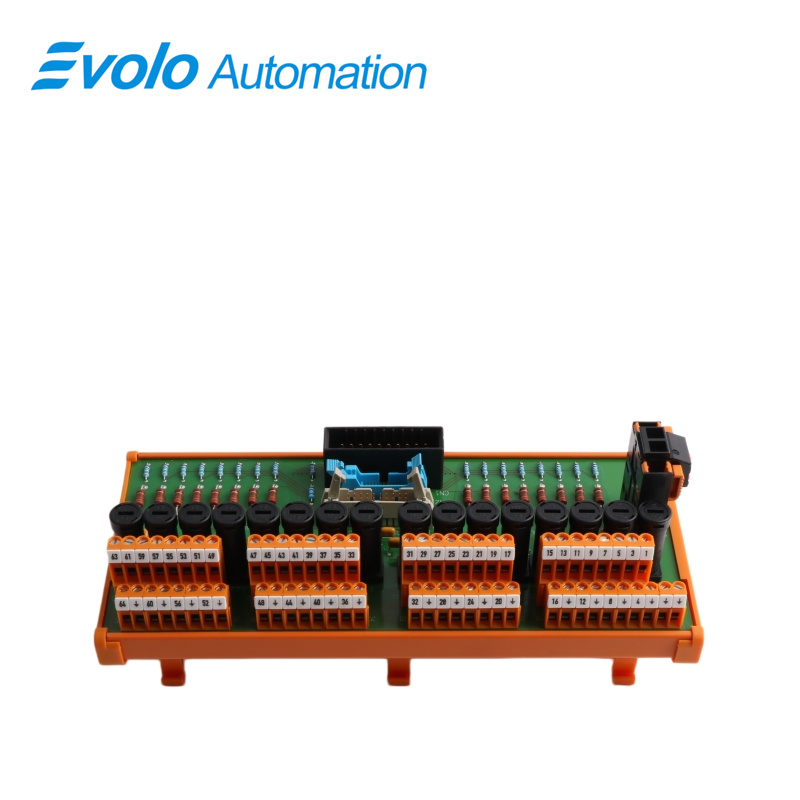

Standard Terminals: |
Max 2.5 mm² (AWG 14); strip length 7 mm; torque 0.5 Nm |
|
Power Terminals (A/B): |
Max 16 mm² (AWG 8); strip length 7 mm; torque 1.2 Nm |
Description

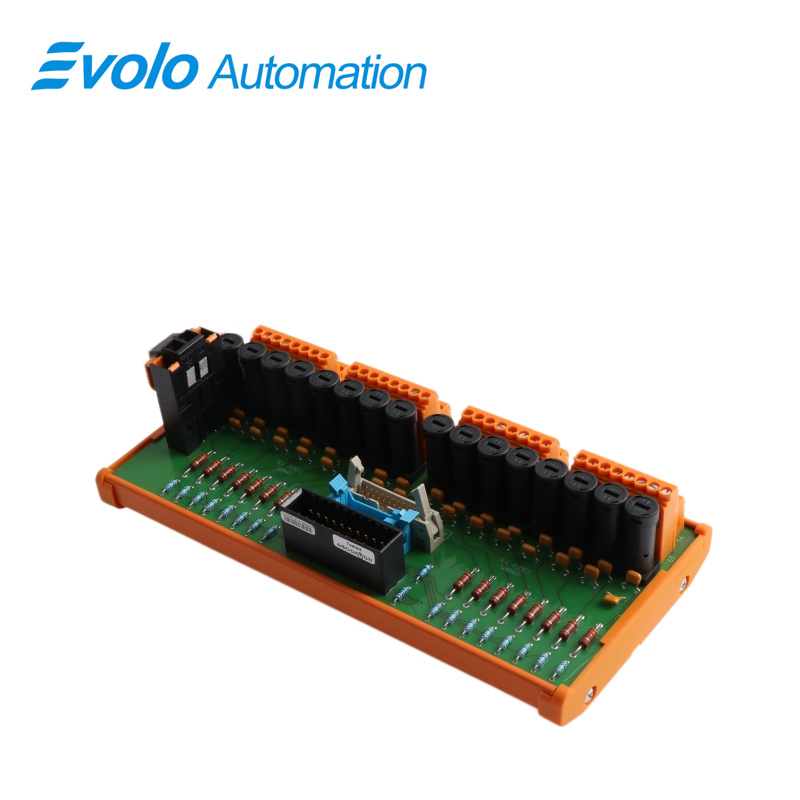

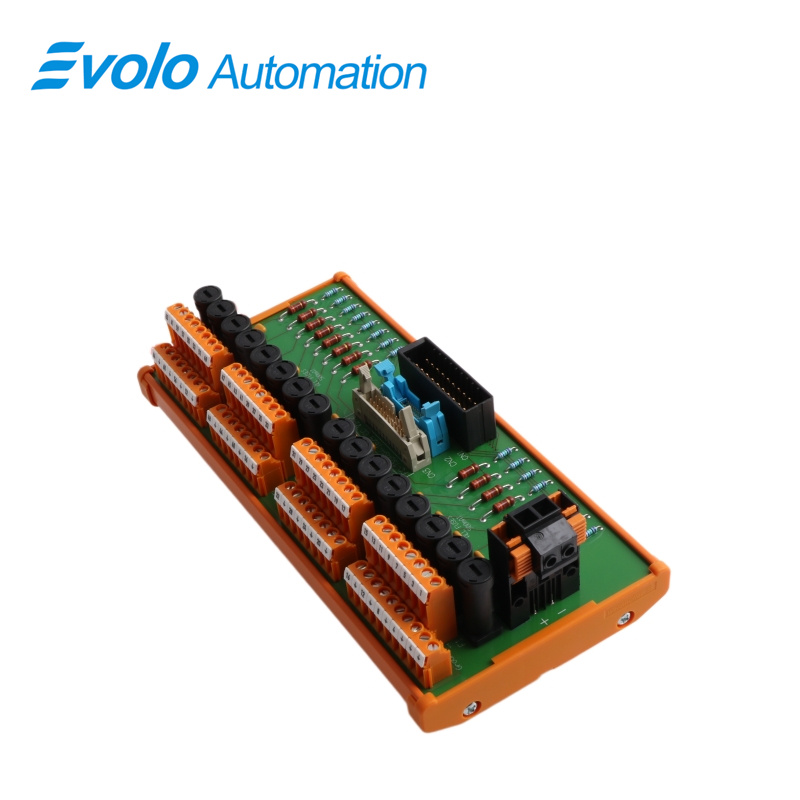

The field termination assembly module FC-TSGASH-1624 is the interface between gas/flame detectors in the field and the safe high-density analog input module SAl-1620m in Safety Manager. The FC-TSGASH-1624 module has sixteen analog input channels which may be used for both safety-related and non-safety- related applications.The FC-TSGASH-1624 module uses a SICC-O001/Lx system interconnection cable to transfer the 16 input signals to a (redundant pair of) SAl-1620m module(s). The FTA module has a universal snap-in provision for standard DIN EN rails, and screw terminals for connection of power supply, ground and field wiring.
Applications
Oil & gas plant: connects gas detectors and 4–20 mA transmitters for safe, accurate analog signal transfer.
Refined oil storage facility: collects tank level and temperature signals to prevent overflow and overpressure.
Fine chemical plant: isolates flowmeter current loops in hazardous reactor process areas.
Metallurgical refinery: safely transmits gas monitoring and cooling water flow signals in high-temperature zones.
Industrial wastewater plant: gathers pH and dissolved oxygen sensor signals with hardware-level isolation.
Main functions
Linear direct conversion of 0(4)-20 mA DC field signals to the signal levels of the safe high-density
analog input module SAI-1620m
Power supply distribution to each transmitter (500 mAT fused)
Enable monitoring of the external power connected to the TSGAS-1624 module
FAQ
Q: What are the channel count and current range of FC-TSGASH-1624?
A: 16 channels (common ground), 0–25 mA.
Q: What are the power supply and input resistance of FC-TSGASH-1624?
A: 24 VDC (3 mA), resistance 500 Ω.
Q: What are the output parameters from FC-TSGASH-1624 to the SAI-1620M module?
A: 0–4 VDC, accuracy 0.1%.
Q: What are the fuse model and rating of FC-TSGASH-1624?
A: Schurter 0001.2501 (0.5 A, 250 VAC/300 VDC).
Q: What are the DIN rail length and maximum terminal specifications of FC-TSGASH-1624?
A: Length 226 mm. Standard terminals 2.5 mm², power terminals 16 mm².
