1X00691H01 PMOD Cavity Insert
A cautious, model-specific listing based on the Emerson/Ovation markings and 1X00691H01 identification visible on the warehouse unit. Final PMOD fit and revision must be matched to the installed assembly.
At a Glance
| Brand | Emerson Ovation |
|---|---|
| Model | 1X00691H01 |
| Product Type | PMOD cavity insert |
| Core Function | Provides the model-specific PMOD cavity and terminal reference |
| Application / Compatible Series | Compatible Ovation PMOD assemblies with matched revision and interface |
Model-Led Matching
Use the full 1X00691H01 marking rather than selecting by housing shape alone.
Terminal Orientation

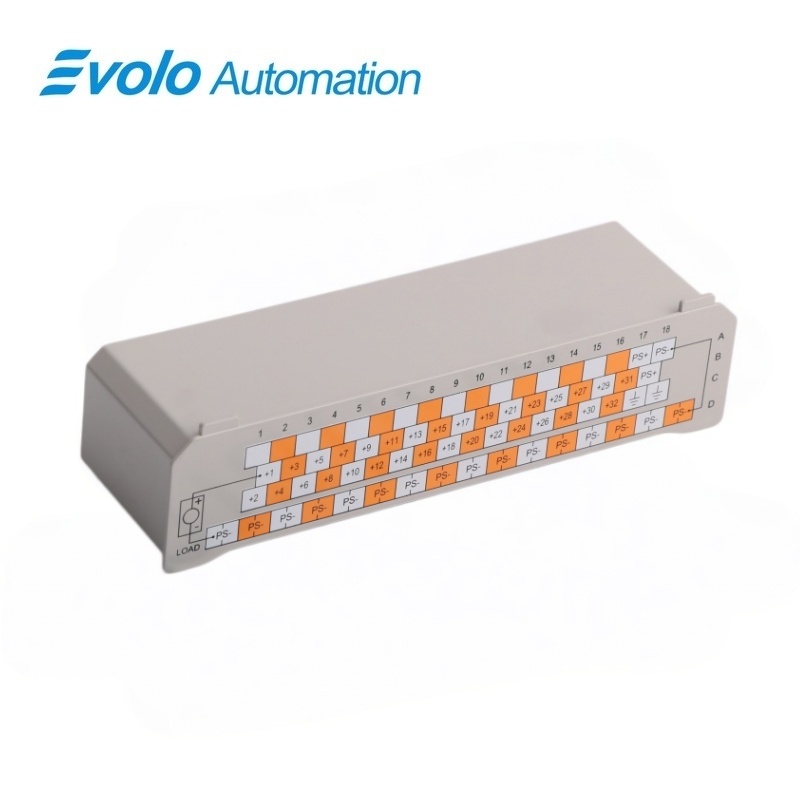

Compare the visible terminal-position diagram and connector orientation with the installed PMOD hardware.
Documented Uncertainty
Unverified electrical ratings and country of origin are not inferred from appearance.
Product Overview

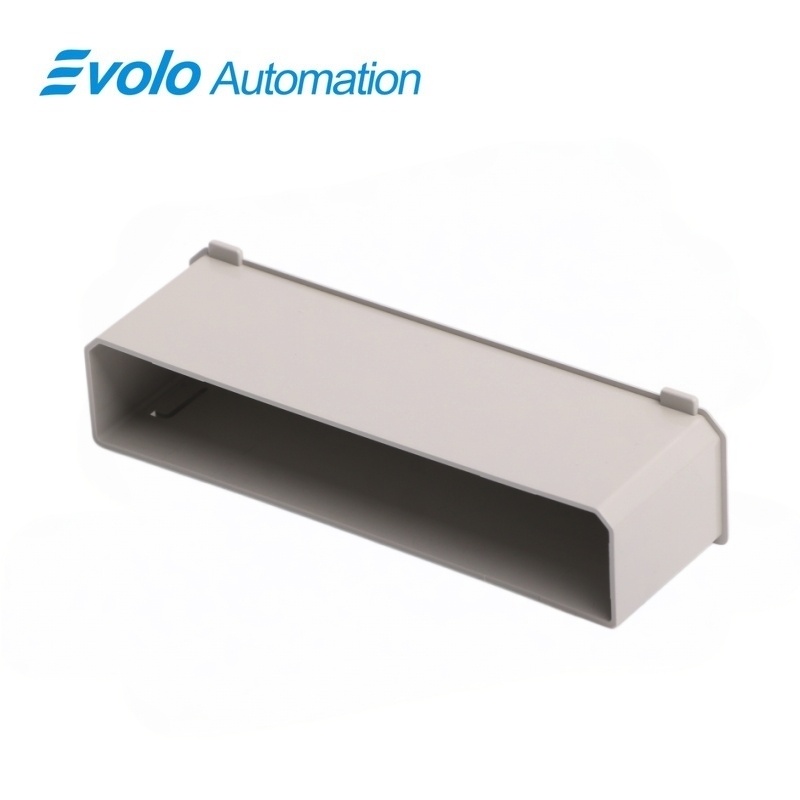

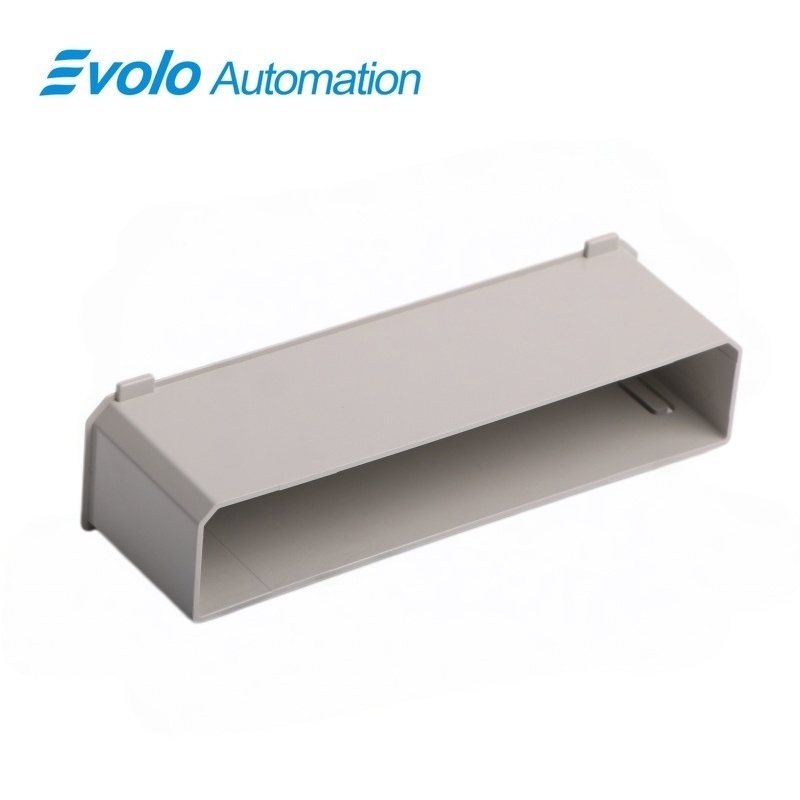

1X00691H01 is presented as an Emerson Ovation PMOD cavity insert, based on the model and manufacturer markings visible on the photographed warehouse unit. The molded housing and terminal-position guide are useful identification features, but they do not replace part-number verification.
For a reliable replacement decision, compare the complete number, hardware revision, mating PMOD assembly and terminal orientation. Detailed electrical performance is not stated because it is not verified by the available label evidence.
Key Functions
PMOD Cavity Fit
Provides the model-specific insert form used with a verified compatible Ovation PMOD assembly.
Terminal Reference
Visible position markings help technicians compare the replacement orientation with the existing hardware.
Controlled Replacement
Supports maintenance only after the part number, PMOD type and mechanical interface have been matched.
Official Specifications
| Identified Hardware | PMOD cavity insert |
|---|---|
| Visible Features | Molded cavity, connector opening and terminal-position diagram |
| Electrical Ratings | Not stated on the available product marking |
| Country of Origin | Confirm from the supplied unit's label |
| Signal Category | Events input |
| Input Contact Type | Contact input |
| Included Hardware Scope | Cavity insert |
| Complete Electronics Module | Not identified as included |
| Electrical Rating Source | Not stated on verified product marking |
| Molded Cavity | Present |
| Mechanical Interface | PMOD cavity interface |
Source basis: the actual warehouse product images and visible Emerson/Ovation markings. No unpublished ratings are added.
Frequently Asked Questions
What mechanical features must match for 1X00691H01 compatibility?
Compare the cavity geometry, keyed surfaces, connector opening and terminal-position diagram with the installed insert.
Which assembly information is required before ordering 1X00691H01?
Provide the surrounding PMOD assembly number, hardware revision and clear installed-context photographs.
Can 1X00691H01 be selected by housing appearance alone?
No. The complete part marking and mating mechanical interface must be verified because similar housings may not be interchangeable.
How should 1X00691H01 be removed from an installed PMOD assembly?
De-energize the equipment, document the orientation and terminal positions, release the insert correctly and avoid twisting the connector surfaces.
Does 1X00691H01 represent a complete electronics module?
The verified identification is for a cavity insert, so electronics or mating hardware should not be assumed to be included.
What should be inspected before fitting 1X00691H01?
Check the keyed features, connector opening, cavity surfaces and surrounding hardware for damage or mismatch before insertion.
How can technicians prevent wiring errors when using 1X00691H01?
Photograph and label the existing terminal positions, compare the molded diagram and complete an approved point-to-point check before service.
Compatibility & Ordering Notes
Compatibility Checklist
- Verify the complete number 1X00691H01 on the existing insert.
- Compare the PMOD assembly number and hardware revision.
- Match cavity geometry, keyed surfaces, connector opening and terminal-position diagram.
- Confirm that the quotation covers the insert itself and not an assumed complete PMOD module.
