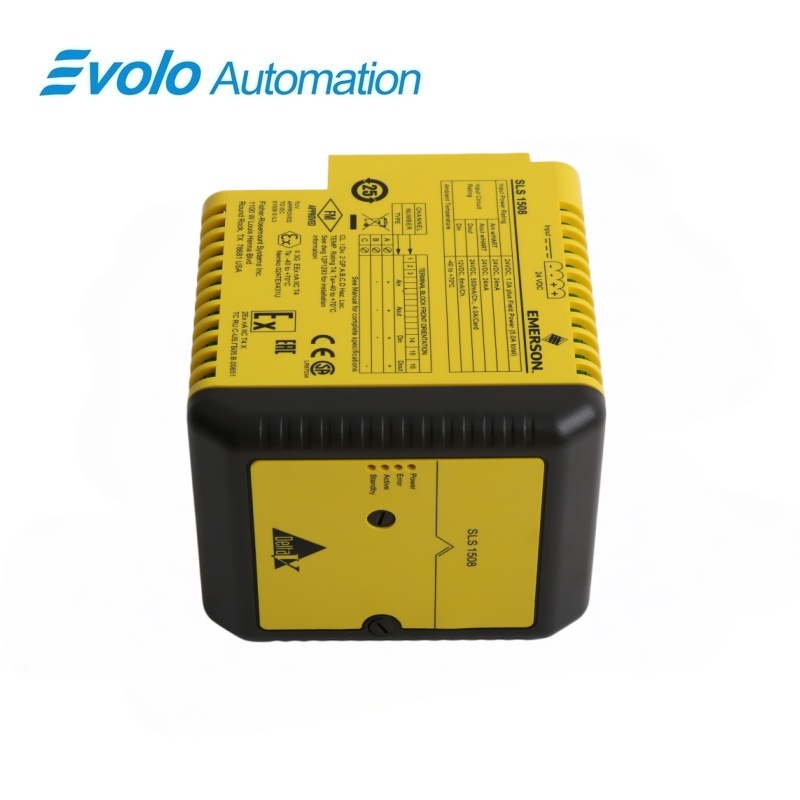

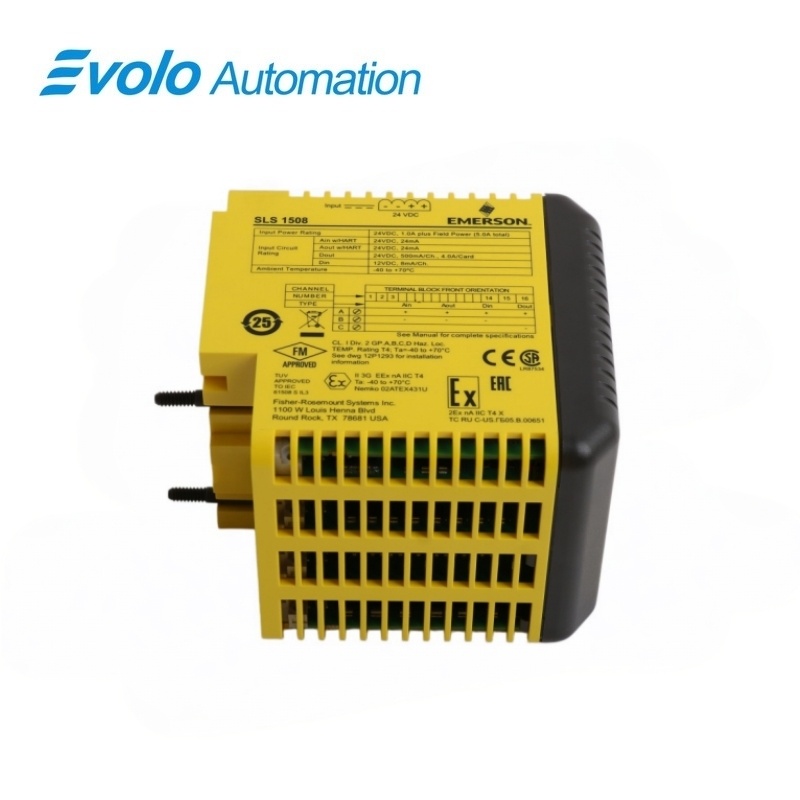

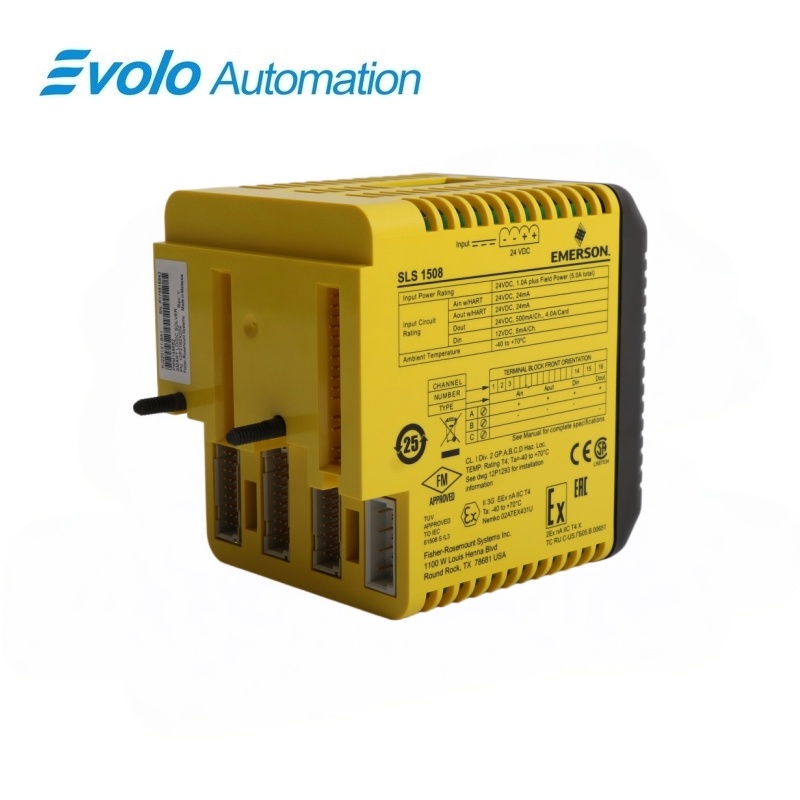

Emerson KJ2201X1-BA1 12P3162X202 SLS1508 SIS Logic Solver
Manufacturer: Emerson
Condition: Brand New
Lead Time: In Stock
Origin: United States
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
KJ2201X1-BA1 12P3162X202 SLS1508 SIS Logic Solver
Official-source product identification, application guidance and ordering checks for KJ2201X1-BA1 12P3162X202 SLS1508.
At a Glance
| Brand | Emerson |
|---|---|
| Model | KJ2201X1-BA1 12P3162X202 SLS1508 |
| Product Type | SIS Logic Solver |
| Core Function | Safety instrumented functions using configurable safety I/O. |
| Application / Compatible Series | DeltaV SIS |
Verified identification
KJ2201X1-BA1 12P3162X202 SLS1508 is identified by the complete manufacturer model and the photographed unit.
Application focus
KJ2201X1-BA1 12P3162X202 SLS1508 is intended for safety instrumented functions using configurable safety I/O.
Ordering control
KJ2201X1-BA1 12P3162X202 SLS1508 should be matched by the full nameplate, hardware revision and installed configuration.
Product Overview
Emerson KJ2201X1-BA1 12P3162X202 SLS1508 is a DeltaV SIS logic solver that executes safety logic, performs diagnostics and provides configurable safety I/O. The exact 12P3162X202 revision should be preserved during replacement.
Emerson specifies 24 VDC ±20% input, 1 A for the logic solver plus field power, with up to 4 A of field power. Each channel is optically isolated from the system, although channels are not isolated from one another.
Key Functions
Safety-logic execution
The SLS 1508 runs the configured safety strategy and continuously reports diagnostic status.
Configurable channel operation
Its channels are configured by the DeltaV SIS project for the required safety inputs and outputs.
System isolation boundary
Optical isolation separates each channel from the system electronics; channel-to-channel isolation is not provided.
Official Specifications
| Safety I/O | 16 configurable channels |
|---|---|
| Supported modes | DI, DO, HART analog input or HART two-state output |
| Architecture | Redundant deployment for SIL 3 functions |
| Safety-logic execution | The SLS 1508 runs the configured safety strategy and continuously reports diagnostic status. |
| Configurable channel operation | Its channels are configured by the DeltaV SIS project for the required safety inputs and outputs. |
| System isolation boundary | Optical isolation separates each channel from the system electronics; channel-to-channel isolation is not provided. |
| Safety Integrity Level | SIL 3 |
| Redundancy Mode | Redundant |
| Supported Mode 1 | DI |
| Supported Mode 2 | DO |
| Supported Mode 3 | HART analog input |
| Supported Mode 4 | HART two-state output |
| HART Support | Supported |
| Input Voltage Limit | 24 VDC |
| Compatible Logic Solver | SLS 1508 |
| Output Voltage | 24 V DC |
| Output Current Type | DC |
Source scope: Technical statements below are limited to Emerson DeltaV SIS SLS1508 Product Data Sheet. Commercial availability, condition and warranty are seller terms.
Frequently Asked Questions
Which DeltaV SIS systems are compatible with KJ2201X1-BA1 12P3162X202 SLS1508?
It is intended for DeltaV SIS.
What operating task is KJ2201X1-BA1 12P3162X202 SLS1508 designed to perform as a SIS Logic Solver?
Safety instrumented functions using configurable safety I/O.
What installation interfaces need confirmation before using KJ2201X1-BA1 12P3162X202 SLS1508?
Match the complete nameplate codes on the nameplate. Confirm 24 VDC input and the total field-power budget.
Which safety-logic execution details should engineers confirm for KJ2201X1-BA1 12P3162X202 SLS1508?
The SLS 1508 runs the configured safety strategy and continuously reports diagnostic status.
How does KJ2201X1-BA1 12P3162X202 SLS1508 handle configurable channel operation?
Its channels are configured by the DeltaV SIS project for the required safety inputs and outputs.
What should technicians verify about system isolation boundary when commissioning KJ2201X1-BA1 12P3162X202 SLS1508?
Optical isolation separates each channel from the system electronics; channel-to-channel isolation is not provided.
Which nameplate and revision details should buyers verify before ordering KJ2201X1-BA1 12P3162X202 SLS1508?
The unit should be matched by the full nameplate, hardware revision and installed configuration.
Compatibility & Ordering Notes
Compatibility checklist for KJ2201X1-BA1 12P3162X202 SLS1508
- Match KJ2201X1-BA1 and 12P3162X202 on the nameplate.
- Confirm 24 VDC input and the total field-power budget.
- Verify the configured channel functions in the SIS project.
- Apply the Emerson Safety Manual and site change-control process.
