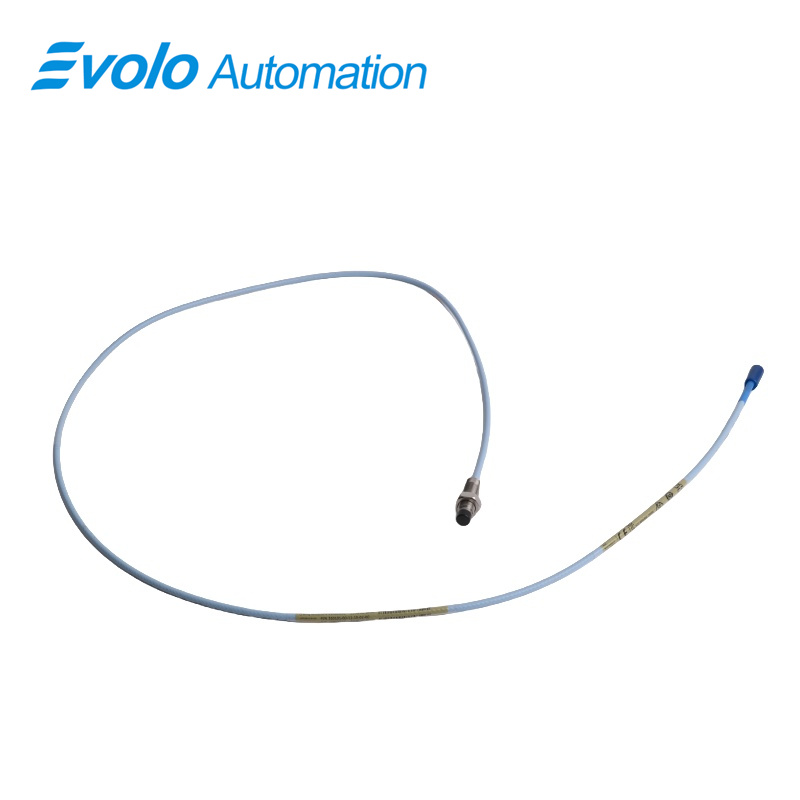

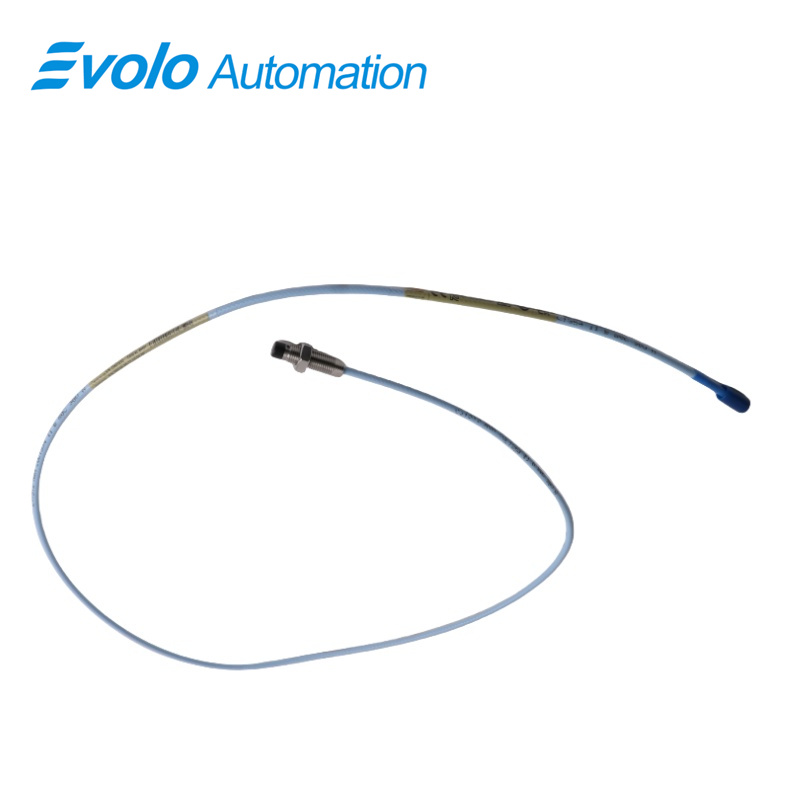

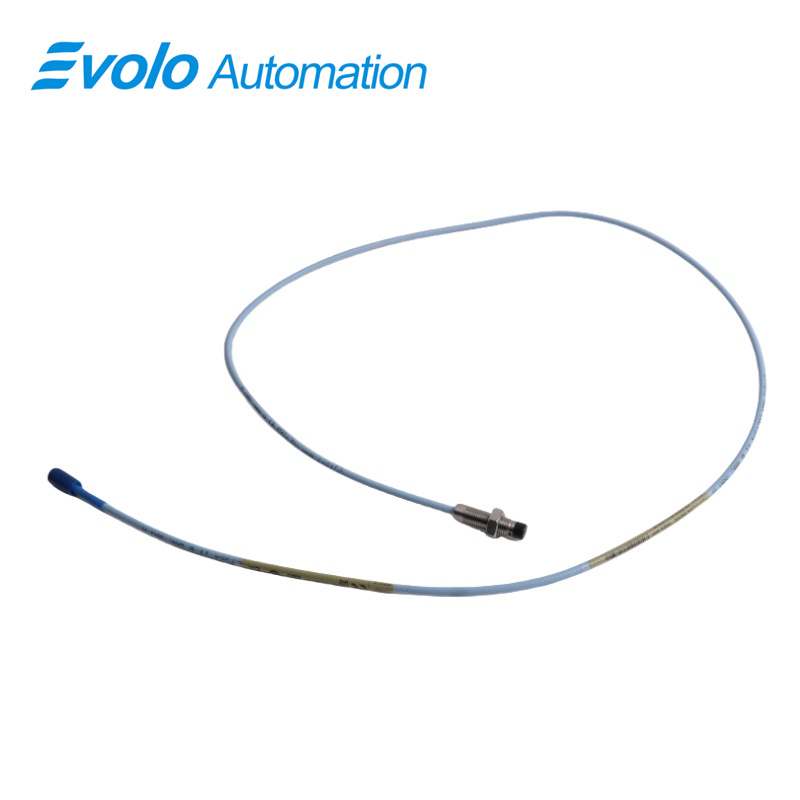

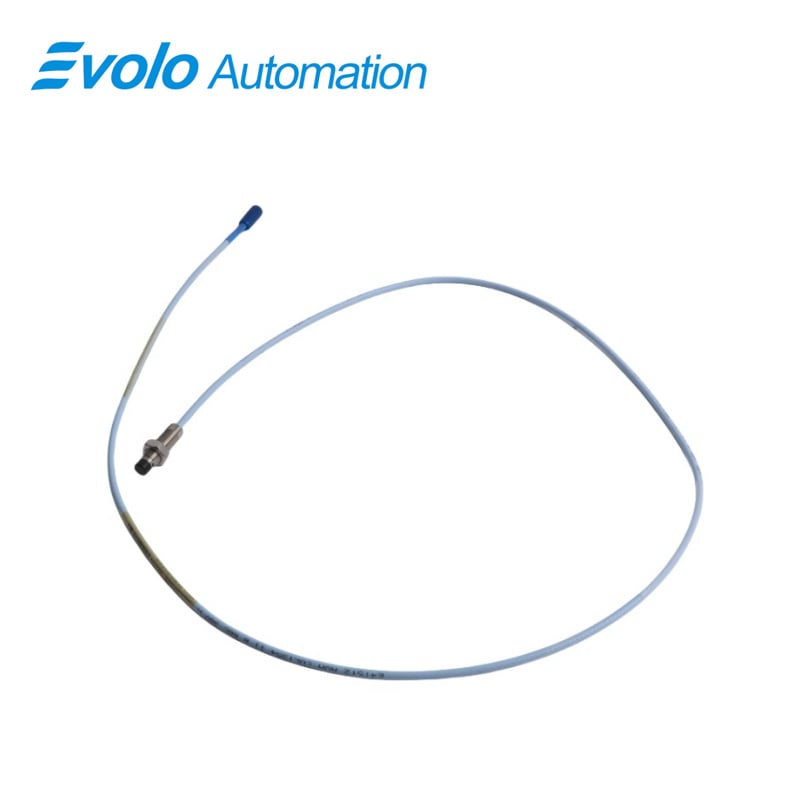

330101-00-11-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-11-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-11-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for industrial automation and machinery monitoring. Delivering an output voltage directly proportional to the distance between the probe tip and conductive surfaces, it measures both static positions and dynamic vibrations with exceptional accuracy. The compact 8 mm probe tip is ideal for tight mounting spaces while maintaining a linear range of 2 mm (80 mils), making it suitable for fluid-film bearing machines, Keyphasor reference signals, and speed monitoring. Featuring a 3/8-24 UNF threaded probe case, 0.563 in maximum thread engagement, miniature coaxial ClickLoc connectors, and patented TipLoc and CableLoc designs, this probe ensures secure installation and 330 N (75 lbf) cable pull strength. Operating in extreme temperatures from -52°C to +177°C, and with CSA, ATEX, and IECEx approvals, the 3300 XL 8 mm probe provides reliable, maintenance-free performance for critical automation systems. Optional FluidLoc cables prevent oil leakage, enhancing machine safety and longevity, while full API 670 compliance ensures consistent linearity, accuracy, and interchangeability with other 3300 series components.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 3300 XL 8 mm probe accurately measures dynamic vibrations with 50 Ω output resistance, enabling early detection of imbalance or bearing wear in pumps, compressors, and turbines.

Static Position Measurement
Capable of detecting small displacements, this probe provides high-resolution position feedback, essential for precise axial alignment and shaft positioning in automated machinery.

Keyphasor Signal Generation
Delivers stable phase reference signals for synchronization and rotor speed measurements in generators and motors, enhancing predictive maintenance and operational efficiency.

Speed and Zero-Speed Detection
Supports industrial tachometer applications by reliably measuring rotational speed, even under fluctuating loads or extreme temperatures, with less than 2 mV output change per volt of supply variation.

Compact Space Installation
With its 8 mm probe tip and 3/8-24 UNF thread, this transducer can be deployed in limited spaces where larger probes are not feasible, without sacrificing measurement linearity or accuracy.

Specifications

Competitive Advantage

Compact and Precise Design
The 8 mm probe tip provides reliable measurements in tight installation areas while maintaining a 2 mm linear range, making it ideal for complex machinery layouts.

Robust Mechanical Integrity
Patented TipLoc and CableLoc designs ensure strong probe-to-cable bonding and 330 N (75 lbf) pull resistance, minimizing downtime from accidental disconnections.

Extreme Temperature Operation
Operating from -52°C to +177°C, this probe is suitable for harsh industrial environments, ensuring reliable data collection in high-heat or sub-zero conditions.

Full Component Interchangeability
Compatible with 3300 series 5 mm and 8 mm probes, extension cables, and Proximitor sensors, eliminating the need for component-specific calibration or bench matching.

Enhanced Leakage Protection
Optional FluidLoc cables prevent oil or fluid leaks through the probe cable, maintaining system cleanliness and improving long-term safety in automation environments.
