Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
EASYGEN-2500-5 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
EASYGEN-2500-5 |
|
Product Type |
Genset Controller |
|
Dimensions |
22 × 10 × 17.2 cm |
|
Weight |
1.2 kg |
|
Power Supply |
12/24 VDC |
|
Power Consumption |
12 W |
|
Non-Isolated Interfaces |
Service Port |
|
Isolated Interfaces |
RS-485, CAN bus |
|
Communication Protocols |
CANopen, Modbus |
|
Battery Life Span |
≥5 years |
|
Delta Generator Range |
0 to 650 kV |
|
Ground Current Range |
0 to 32,000 A |
|
Housing |
Plastic |
|
Shock Resistance |
11 ms |
|
Operating Temperature |
-20°C to +70°C/ -4 to 158 °F |
|
Storage Temperature |
-30°C to +80°C/ -22 to 176 °F |
|
Humidity |
95% non-condensing |
|
Languages Supported |
Multi-language support (not fully specified) |
|
Analog inputs (none isolated) |
0 to 500 Ohms / 0 to 20 mA |
|
Analog Inputs Resolution |
11 Bit |
Description

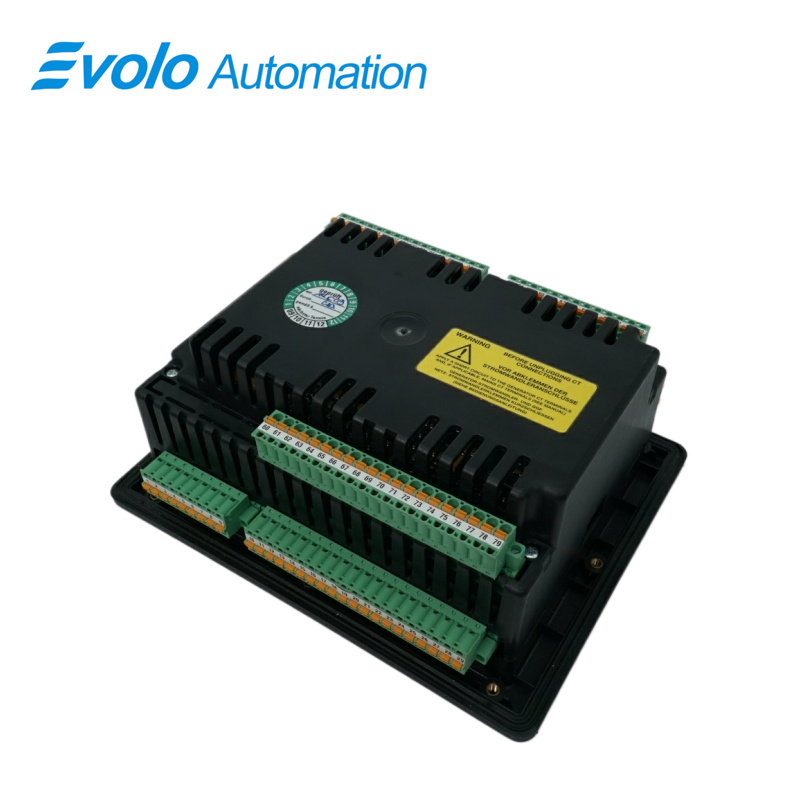

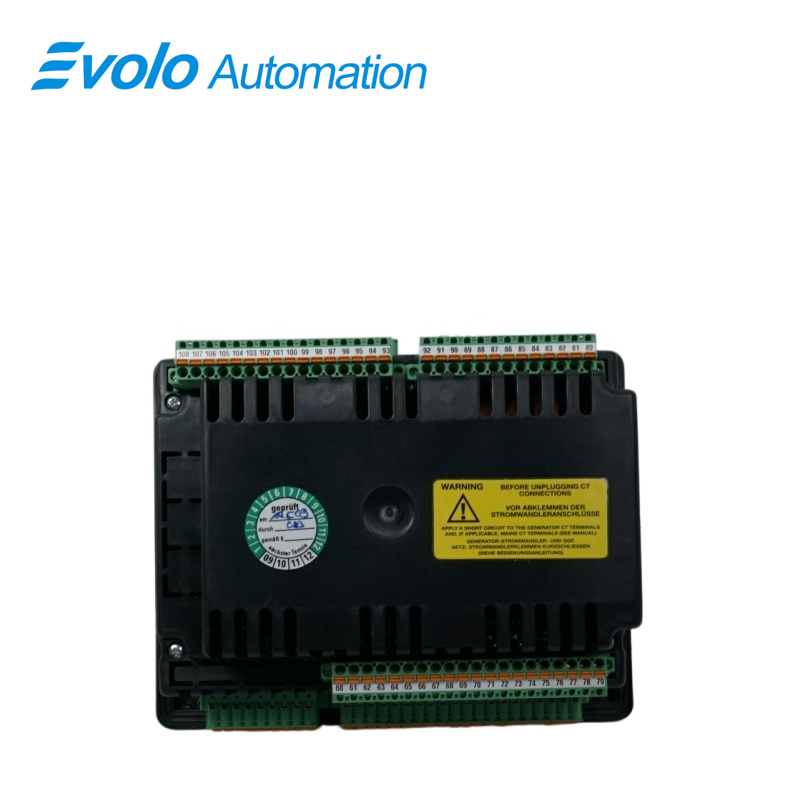

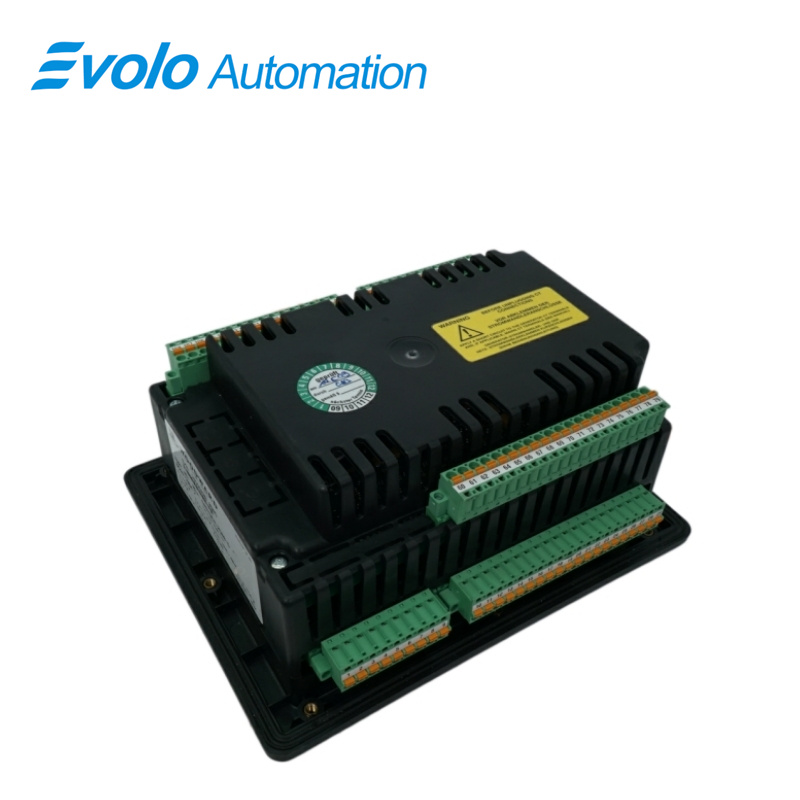

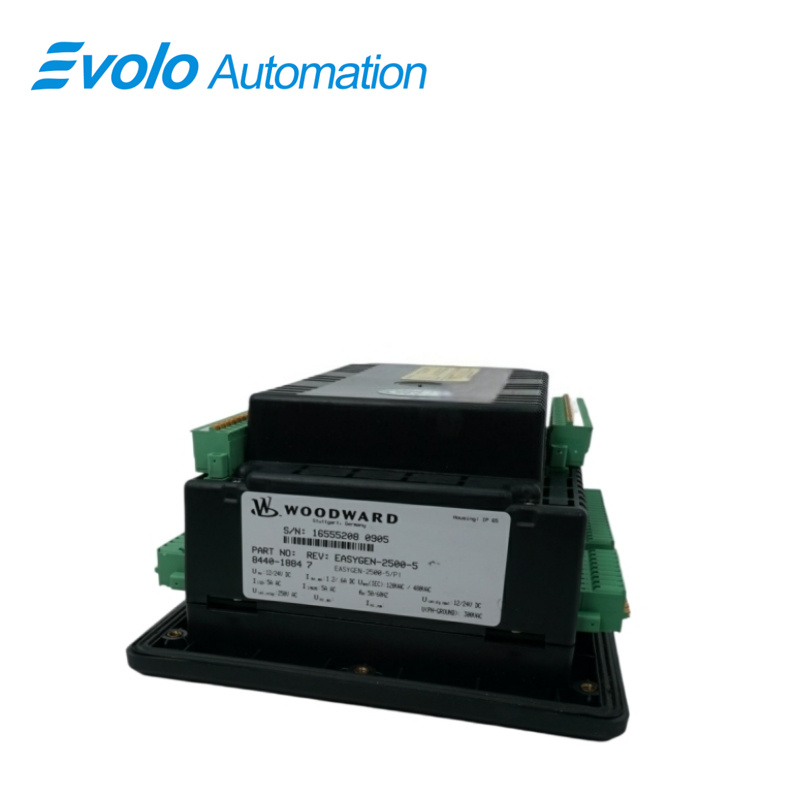

The EASYGEN-2500-5 is a compact genset controller from Woodward's easYgen-2000 series. This controller can synchronize and load share up to 16 gensets in either island operation or parallel operation. This unit has integrated, load-dependent start/stop programming to help with defining how the gensets are activated or deactivated as the load changes.
Applications
Thermal Power Plants: Measures high-voltage outputs across turbine-generator networks.
Petrochemical Plants: Transfers safety telemetry to SCADA via isolated communication links.
Emergency Power Plants: Monitors grid fault conditions for critical facilities.
Shipbuilding Plants: Withstands strong engine vibration and mechanical shock.
Industrial Power Plants: Maintains continuous power with long-life backup battery systems.
Feature
The synchronoscope is not displayed in the asynchronous mode.
Operation modes: Auto, Stop, Manual, and Load/No Load test.
Breaker control: Slip frequency synchronization, open-close control, and breaker monitoring.
Load transfer features: Open / closed transition, interchange, soft loading / soft unloading.
Multi-level password protection.
Troubleshooting
Network Communication Inoperable: Inspect the isolated RS-485 or CAN bus shielding, and verify that the line parameters match the master protocol.
Ground Current Alarms: Check the ground CT wiring connection and verify if external grid leakage exceeds the 32,000 A limit.
Configuration Port Error: Ensure the PC connection line is running into the dedicated non-isolated Service Port rather than the network terminals.
FAQ
Q: What is the power supply of EASYGEN-2500-5?
A: The power supply is 12/24 VDC.
Q: What is the operating power consumption of EASYGEN-2500-5?
A: The operating power consumption is 12 W.
Q: What material is the enclosure of EASYGEN-2500-5 made of?
A: The enclosure material is plastic.
Q: What is the operating temperature range of EASYGEN-2500-5?
A: The operating temperature range is -20°C to +70°C (-4 to 158°F).
Q: What is the storage temperature range of EASYGEN-2500-5?
A: The storage temperature range is -30°C to +80°C (-22 to 176°F).
