Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
DSDO131 57160001-KX |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
DSDO131 57160001-KX |
|
Type: |
Digital Output Board |
|
Dimensions: |
2 x 25.5 x 24.3 cm |
|
Weight: |
0.58 kg |
|
Number of Output Channels: |
16 |
|
Output Voltage: |
0–240 V AC/DC, relay |
|
Maximum Load: |
DC 48 W, AC 720 VA |
|
Material: |
Metal housing for electromagnetic shielding and mechanical protection |
|
Mounting: |
Standard DIN rail installation |
|
Protection Rating: |
IP20 (industrial-grade) |
|
Operating Temperature: |
-20°C to +60°C |
|
WEEE Category: |
5. Small Equipment (No External Dimension More Than 50 cm) |
|
Number of Batteries: |
0 |
Description

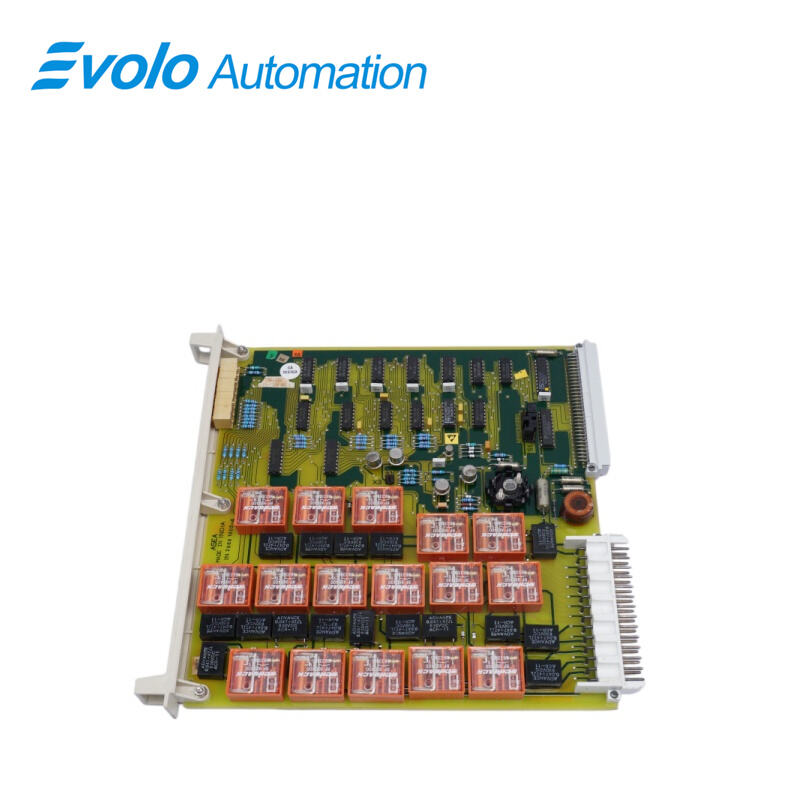

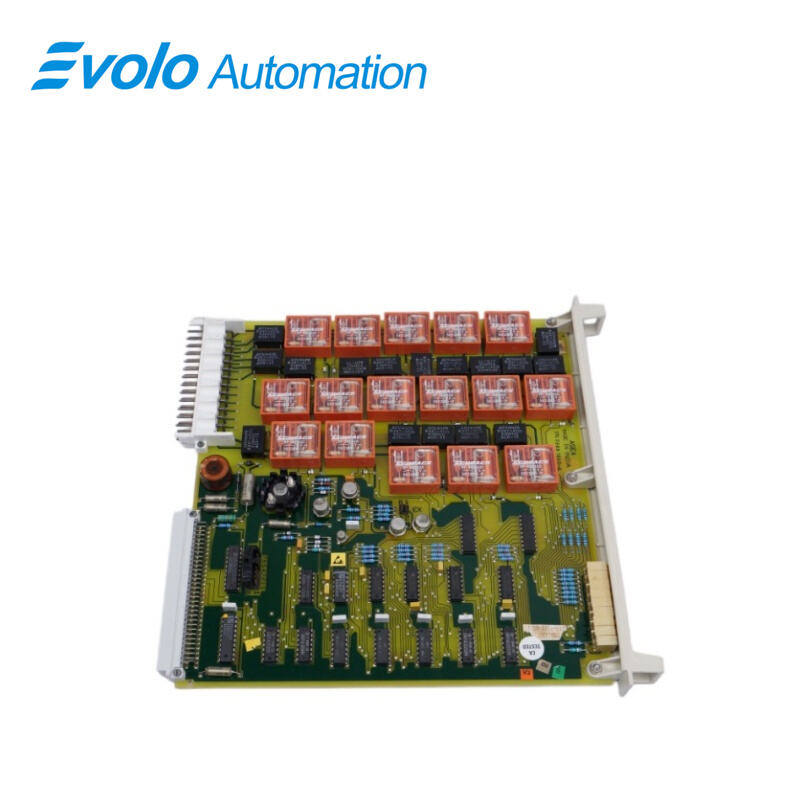

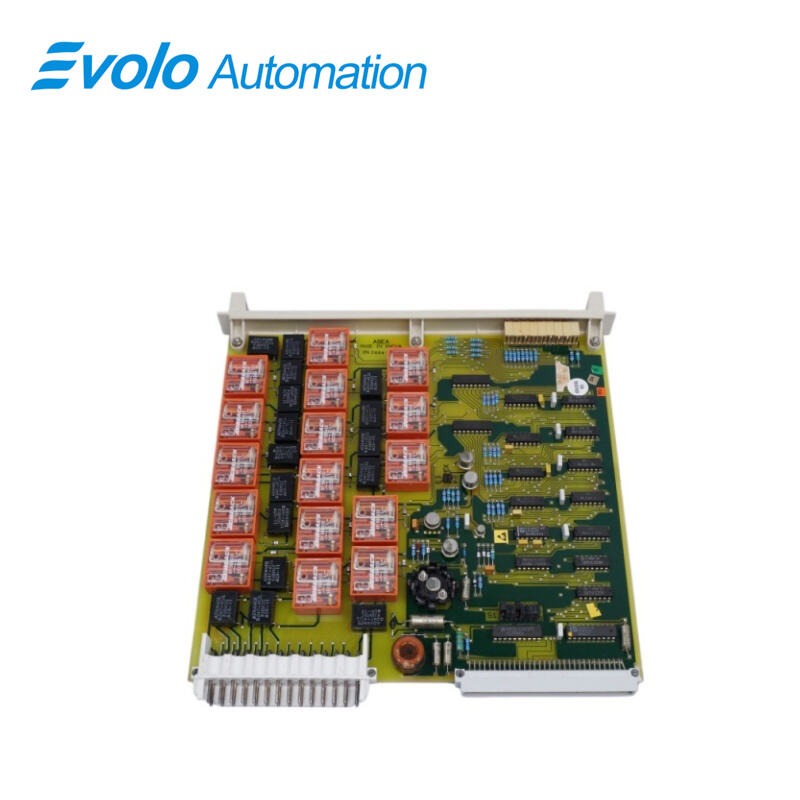

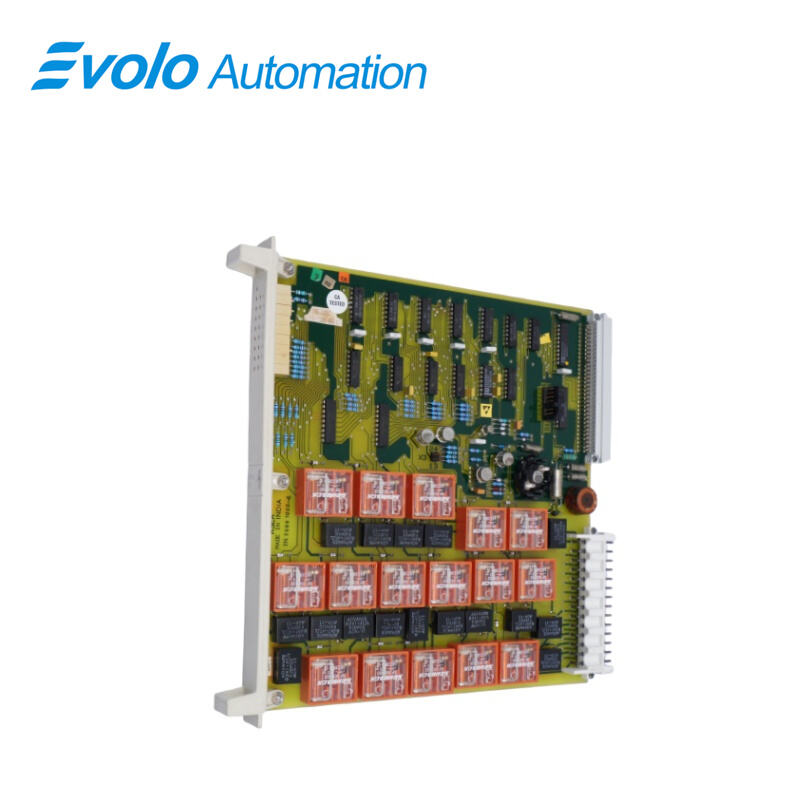

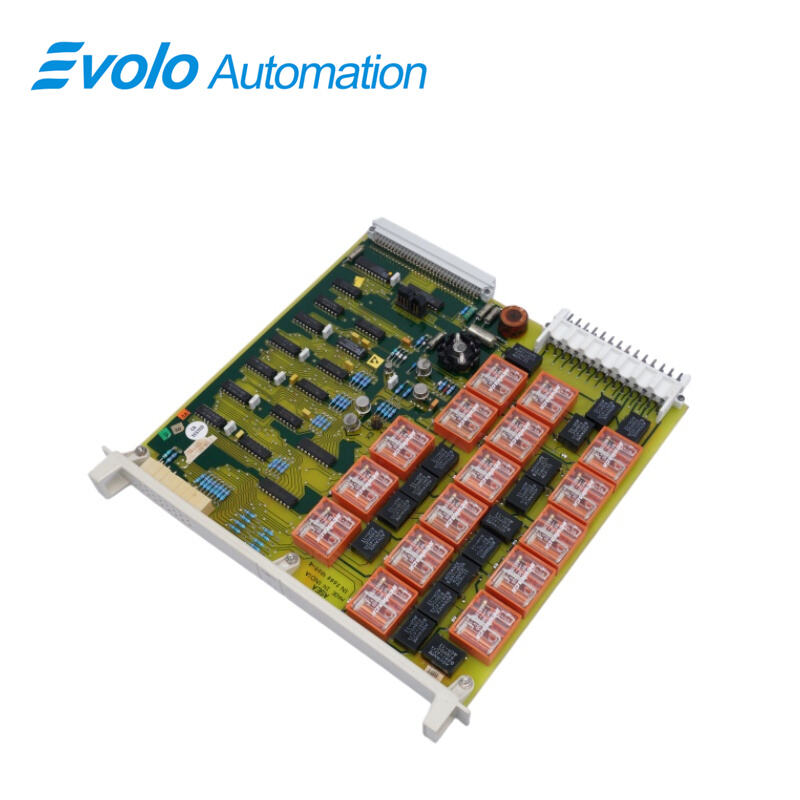

The ABB DSDO131 57160001-KX Digital Output Board is designed for seamless integration into industrial automation systems. This module provides high-speed digital output capabilities, ensuring precise control and efficient operation across various applications such as manufacturing and process automation.
Applications
Oil and gas plants: Interlock control for emergency shutdown systems (ESD) or critical valves.
Semiconductor manufacturing plants: Real-time confirmation of solenoid valve engagement in high-value production lines.
Automotive assembly plants: Safety logic outputs for critical fixtures and welding robots.
Pharmaceutical plants: Monitoring pump and mixer start/stop in stringent formulation control processes.
Competitive Advantage
High Reliability: Its robust design enables reliable operation in harsh industrial environments.
Precise Control: High precision and control capabilities allow for accurate management of output signals.
Easy Integration: Seamlessly integrates with ABB's 800xA control system and other ABB automation products, facilitating easy installation and configuration.
High-Speed Response: Provides rapid response to control commands, enabling real-time control.
Diagnostic Functions: Offers real-time status and fault information, facilitating timely maintenance and reducing system downtime.
FAQ
Q: What is the biggest advantage of the DSDO131 57160001-KX compared to DSDO110?
A: The DSDO131 57160001-KX features a supervision function, detecting open or short circuits in external lines, whereas DSDO110 only handles blind signal transmission.
Q: Why does the DSDO131 57160001-KX only have 16 channels, while DSDO110 has 32?
A: The DSDO131 57160001-KX integrates more complex monitoring and feedback circuitry, requiring extra space to ensure high-precision diagnostics per channel.
Q: What load can the DSDO131 57160001-KX drive?
A: It is mainly used to drive 24V DC solenoid valves or small to medium relays, typically around 0.5A per channel.
Q: Will the DSDO131 57160001-KX burn out if an external short circuit occurs?
A: No. It has built-in electronic protection that automatically cuts off power and reports a fault when abnormal current is detected.
Q: Can the DSDO131 57160001-KX directly replace other modules in the S100 I/O rack?
A: Although physically compatible, the DSDO131 57160001-KX is a 16-channel module with monitoring. Its software configuration and address allocation must be set differently from 32-channel modules.
