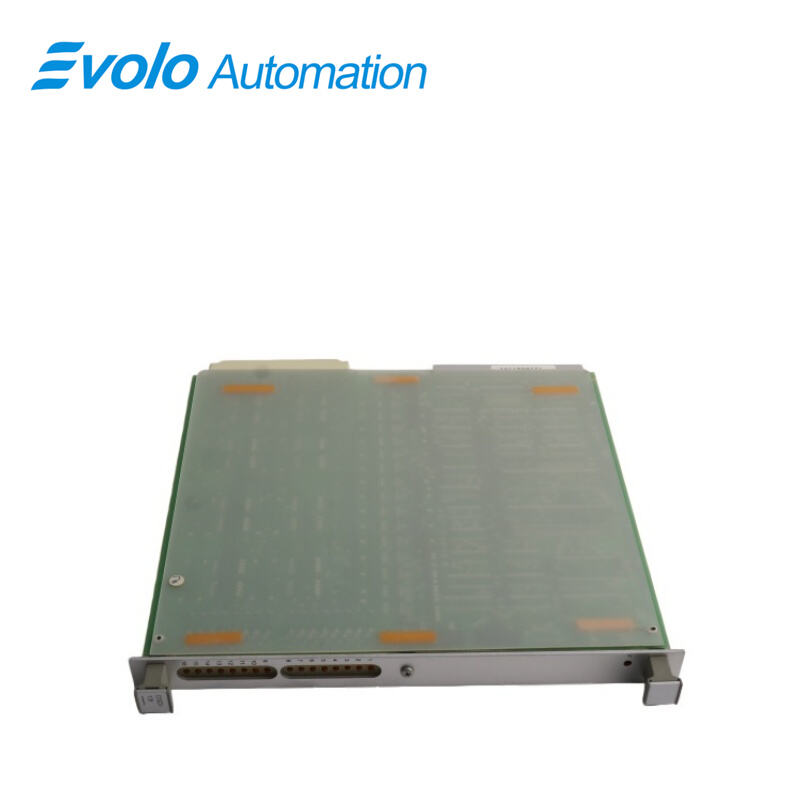

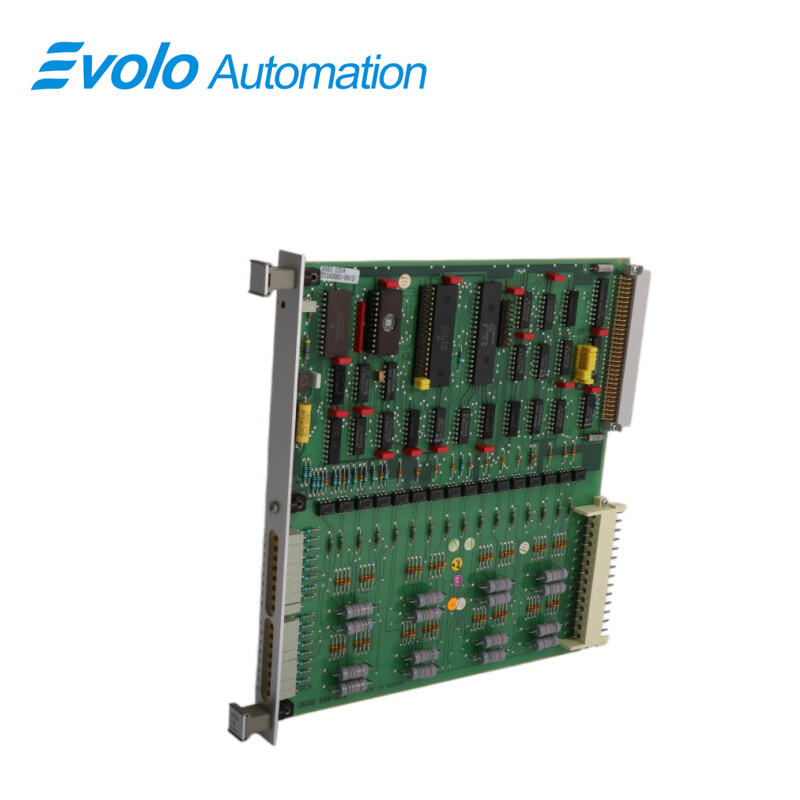

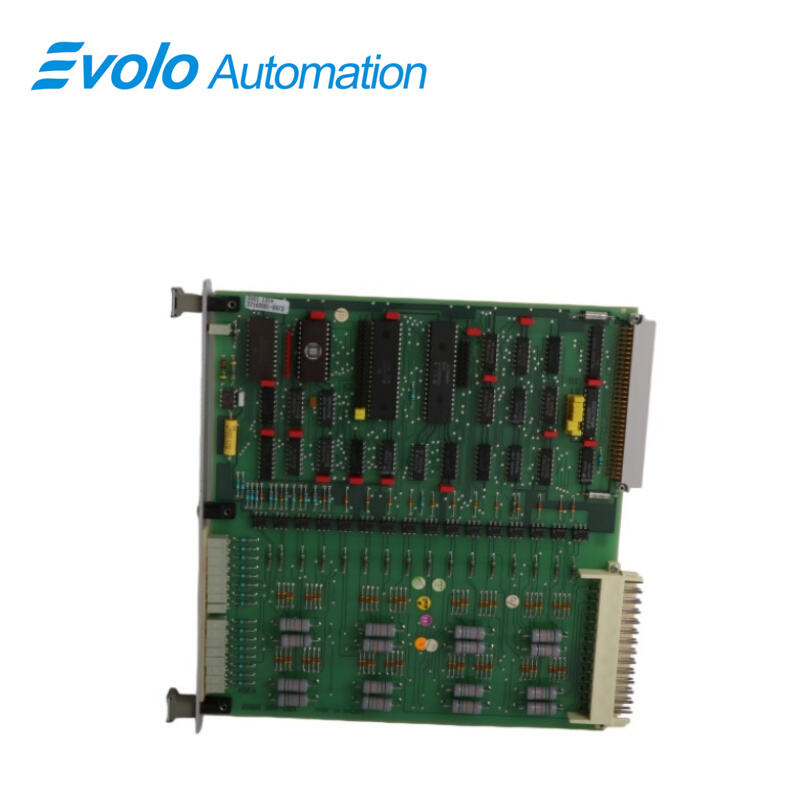

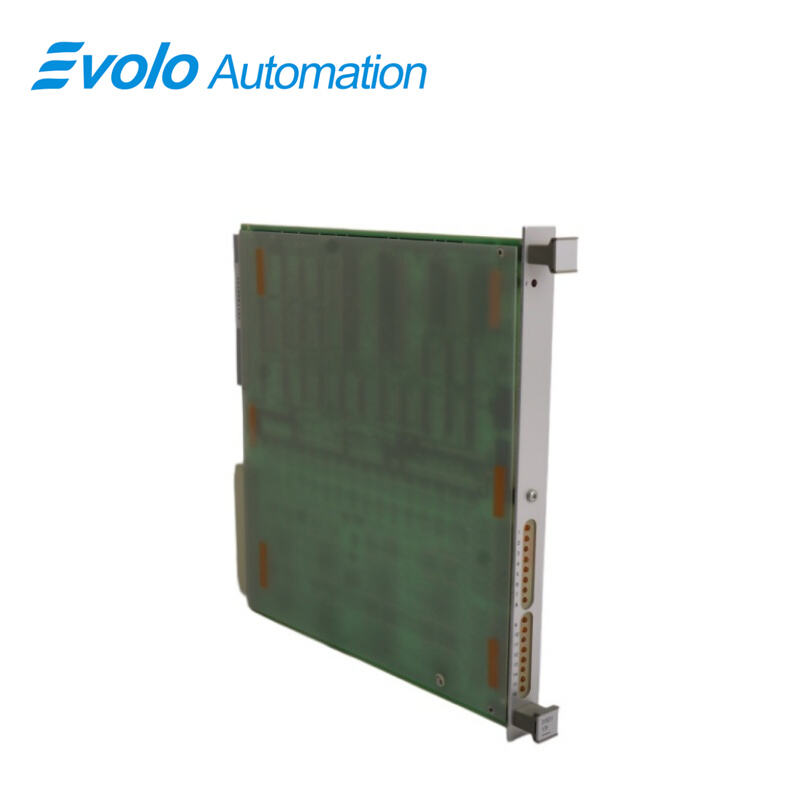

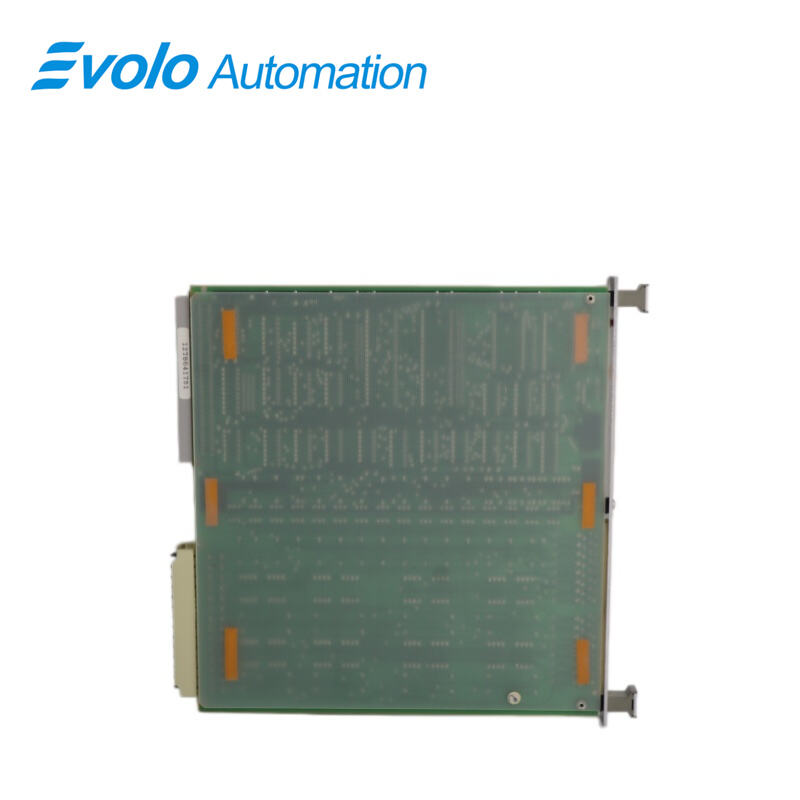

DSDI131 57160001-GV Digital Input Module

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	DSDI131 57160001-GV
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

As a core component of ABB's industrial automation solutions, the DSDI131 57160001-GV digital input module is specifically designed for 800xA systems. Equipped with 16 input channels, the module accurately processes 24Vdc digital signals, providing an efficient and reliable data acquisition solution for industrial field devices. Its compact, modular design not only saves control cabinet space but also passes rigorous EMC electromagnetic compatibility testing, ensuring stable operation in environments with strong electromagnetic interference. Whether for continuous production lines or critical control systems requiring redundant configurations, this module achieves millisecond-level signal response, helping companies improve production efficiency and system reliability.

Applications

Oil and gas refineries: Used in fire and gas monitoring systems (F&G) and emergency shutdown systems (ESD).

Large power plants: Steam turbine control and interlock protection for critical auxiliary equipment.

Precision chemical plants: Acquisition of over-limit alarm signals for reactor temperature/pressure.

Metal smelting plants: Blast furnace safety monitoring and emergency status input for hydraulic systems.

Competitive Advantage

High reliability: Designed for long-term, uninterrupted industrial operation, with an extremely low failure rate.

Fast response: An interrupt-triggered mechanism ensures the system detects critical shutdown signals within milliseconds.

Environmental adaptability: Features a more robust and corrosion-resistant coating than the standard DSDI110.

FAQ

Q: What is the brand and model number of the DSDI131 57160001-GV?
A: It's a Digital Input Module.

Q: Can the DSDI131 57160001-GV directly replace the DSDI110?
A: No. The DSDI131 has 16 channels, while the DSDI110 has 32 channels; the wiring definitions and system software configurations are different.

Q: Why is the input signal valid on the DSDI131 57160001-GV but the system doesn't toggle?
A: Check if the external 24V common terminal voltage is stable, or check if the corresponding fuse on the board is blown.

Q: Does the DSDI131 57160001-GV module support hot-swapping?
A: Hot-swapping is supported within the S100 I/O framework, but ensure the process logic is in a safe state before replacement.

Q: What is the signal filtering time of the DSDI131 57160001-GV?
A: The hardware has a built-in fixed dejitter filter of approximately 5 ms.
