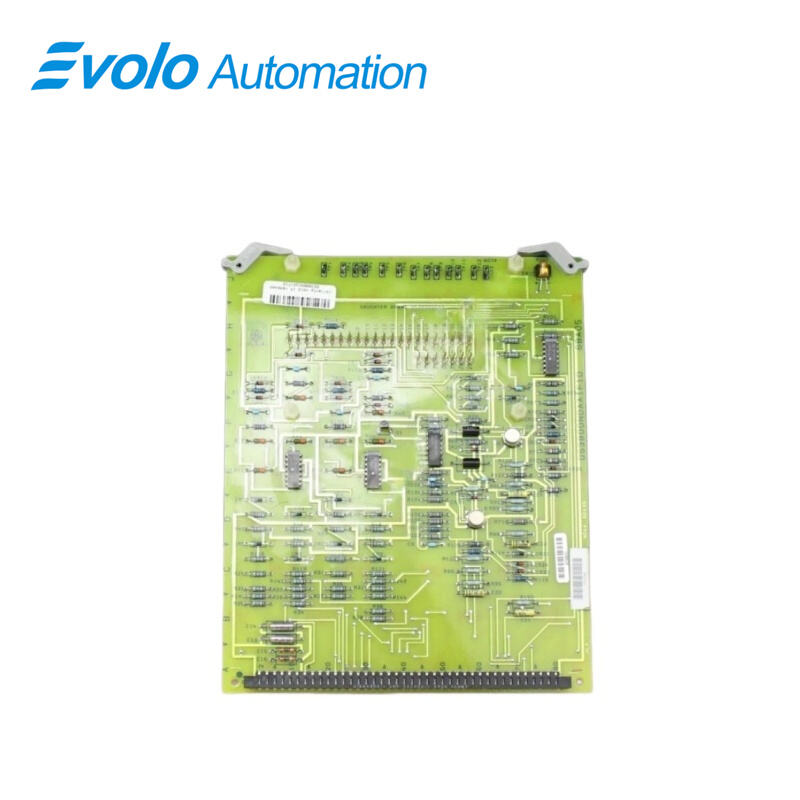

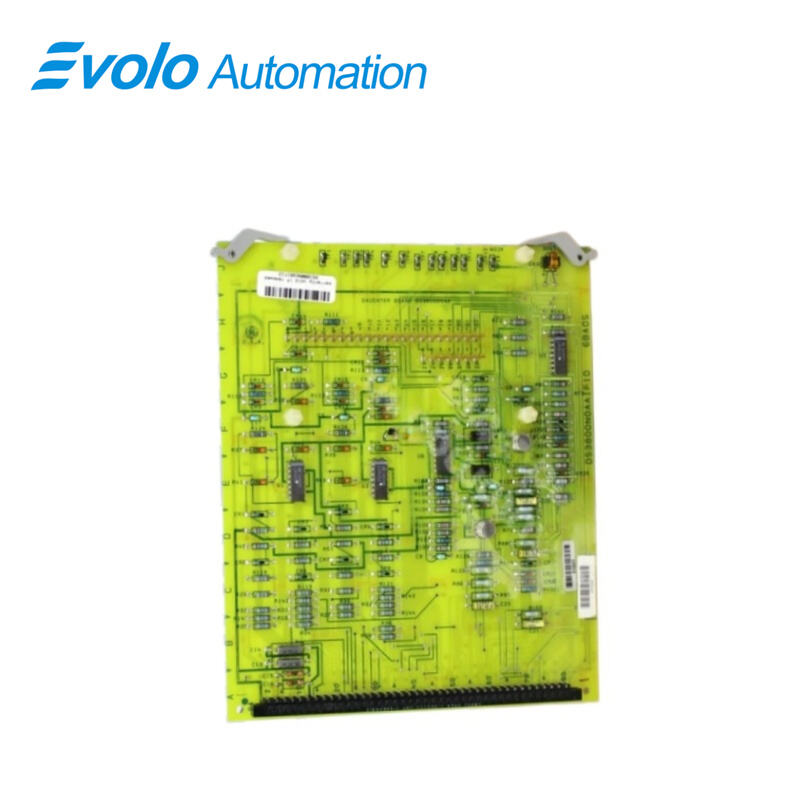

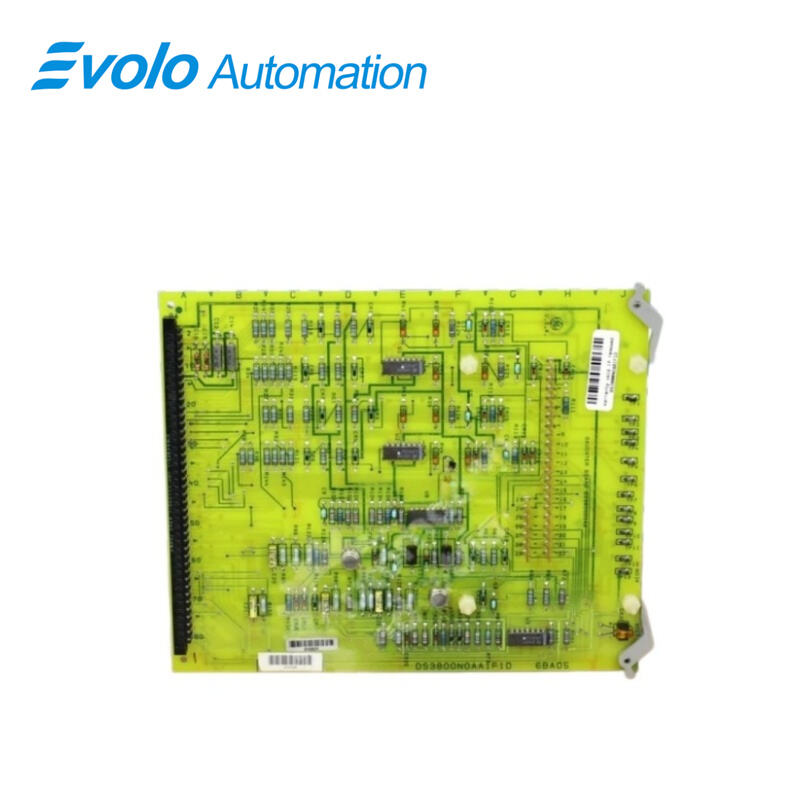

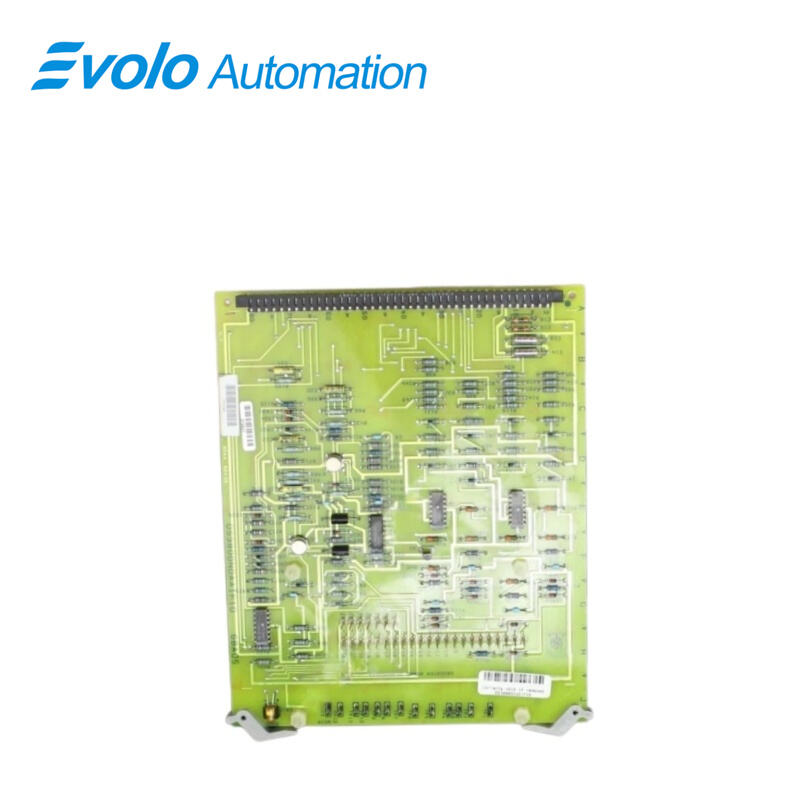

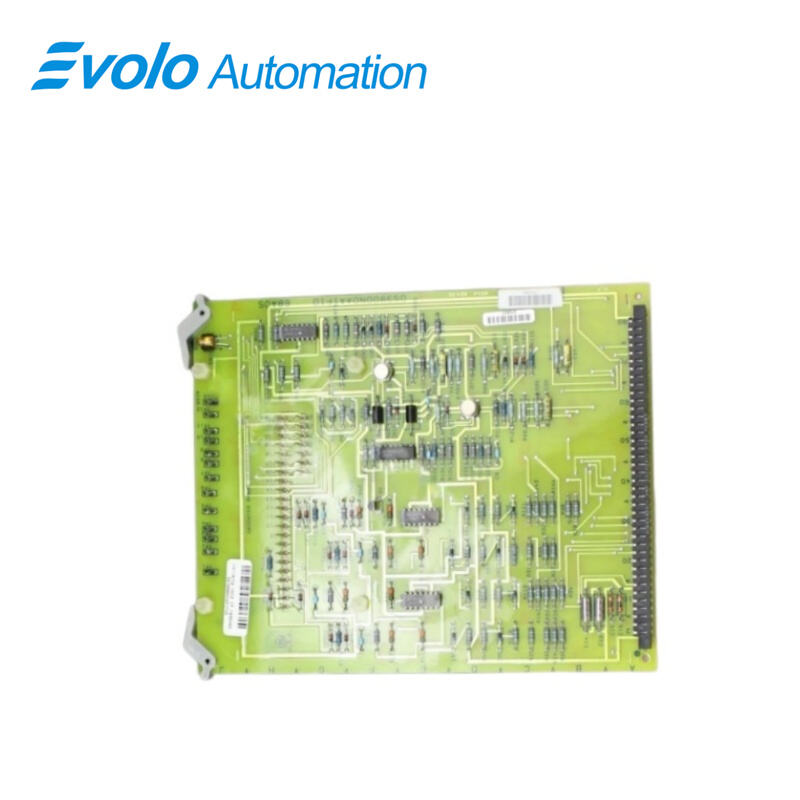

DS3800NOAA1F1D Operational Amplifier

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	DS3800NOAA1F1D
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

DS3800NOAA1F1D Operational Amplifier is part of GE' s Mark IV Series. This series was created for gas/steam turbine management, and it has increased efficiency by automating some procedures (starting, cooling down, and shutdown). The Mark IV may also be used to track emissions from air, fuel, and water.

Applications

Energy and Power Industry: Installed in the control systems of heavy-duty gas turbines such as Frame 5, Frame 6, and Frame 9, responsible for load regulation, temperature monitoring, and managing automatic start-up and shutdown procedures.

Oil and Gas Facilities: Used in oilfield booster stations or liquefied natural gas (LNG) processing plants to drive and protect large industrial turbine machinery.

Industrial Automation Plants: As part of a PLC control system, performing complex digital signal exchange and logic control tasks in the power management units of large manufacturing plants.

Feature

1 One extractor clip is provided in each right corner of the board. Extractors help with PCB insertion and extraction, especially in narrow spaces; the clips provide technicians with a lever point or a handle to grab onto instead of the board itself. Each corner of the board has been factory-drilled, and the upper edge has been marked for alignment.

2 The DS3800NOAA1F1D serves as the motherboard for the DS3800DOAA. Multiple potentiometers and quick-connect screw mounts are added to the board with this optional auxiliary board. It is attached to the board by twenty-nine board-to-board connector pins and secured in place.

3 One PCB mating connector is found along the left edge of the board. The markings on this connector are 218A4553-AMP 102041.

4 One LED (amber), thirteen test points, a single transistor, and many resistors, capacitors, and diodes make up the board. It contains six integrated circuits, including low-power quad comparators with low offset voltage and twin operational amplifiers.

Frequently Asked Questions

Q: What is DS3800NOAA1F1D?
A: DS3800NOAA1F1D is an Operational Amplifier that is part of GE’s Mark IV Series.

Q: How do I contact you?
A: Please contact John for sales at +86-18150117685 or submit a request for a quote.

Q: Does the DS3800NOAA1F1D have a warranty?
A: Yes, we can supply a 1-year warranty for this product.

Q: Is this product brand new?
A: Yes, the DS3800NOAA1F1D is brand new, original, unused, and factory sealed.
