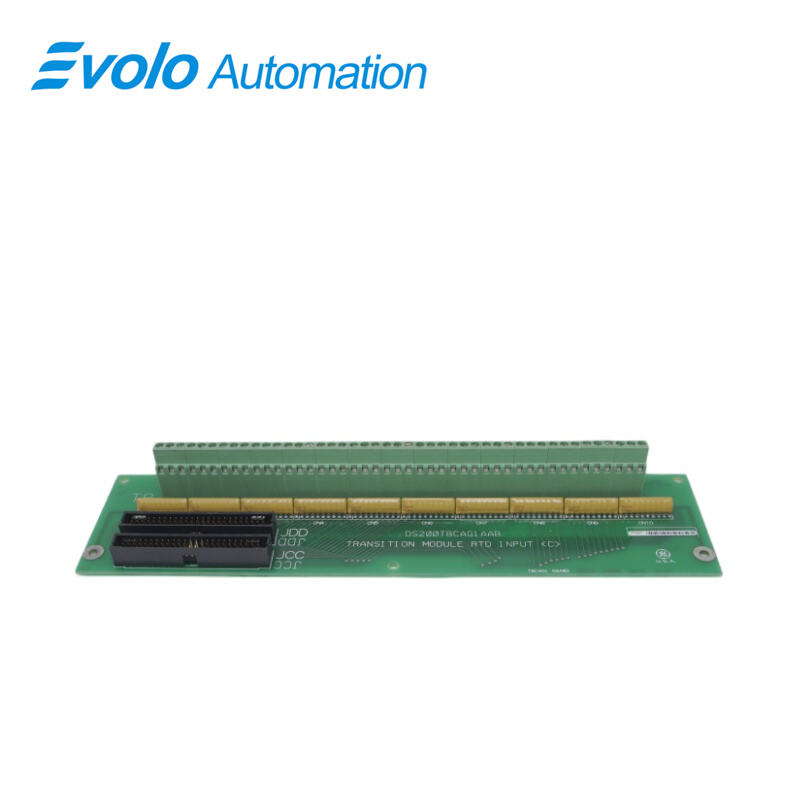

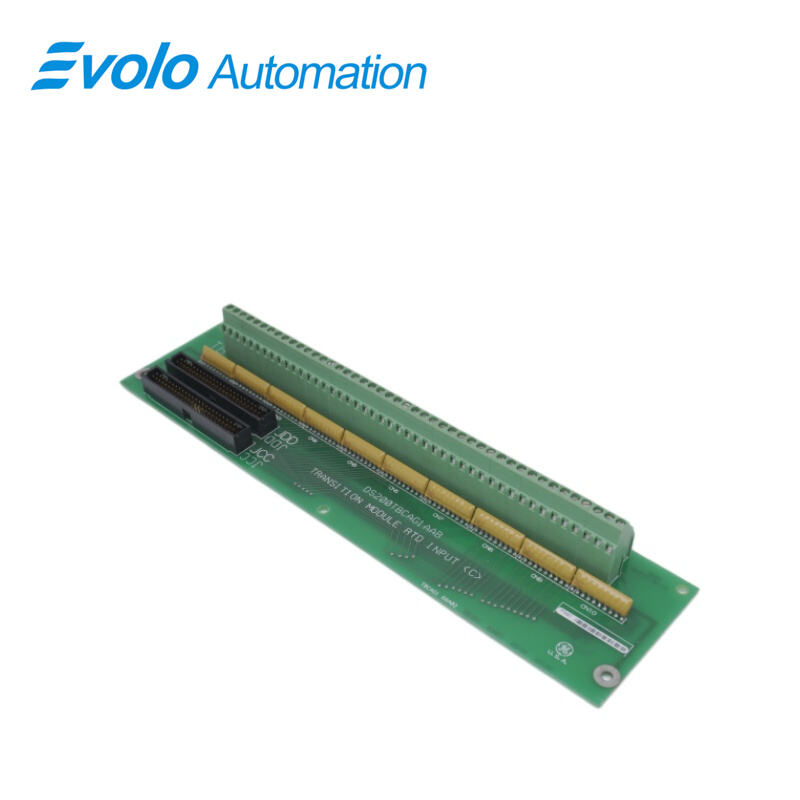

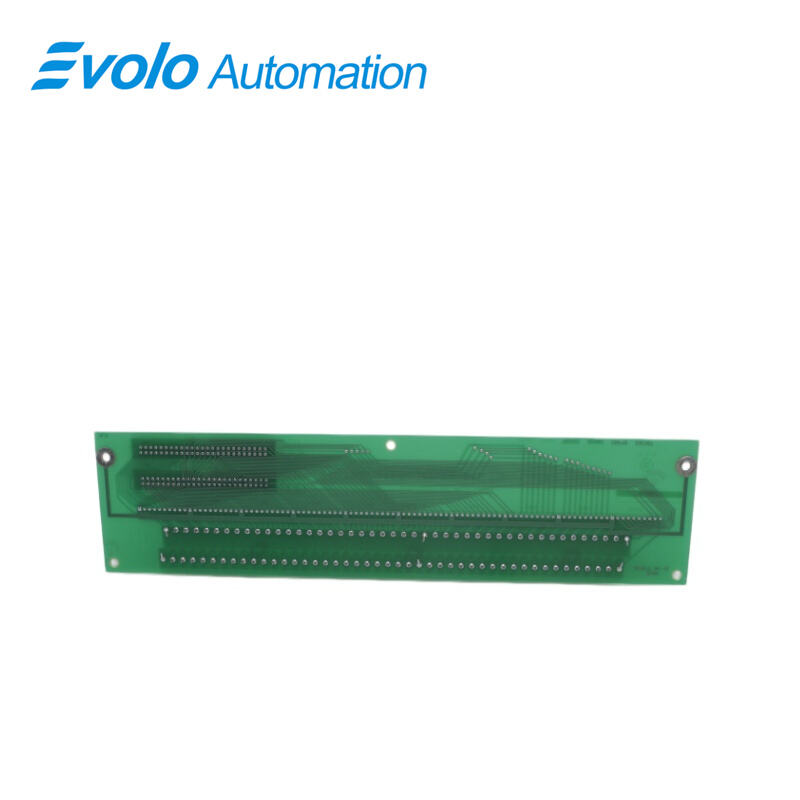

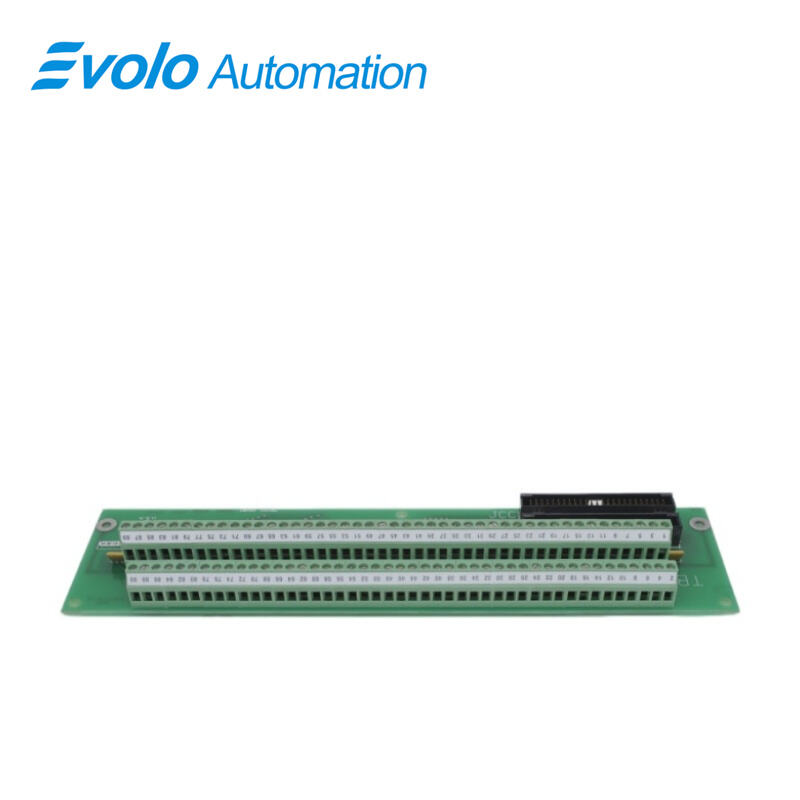

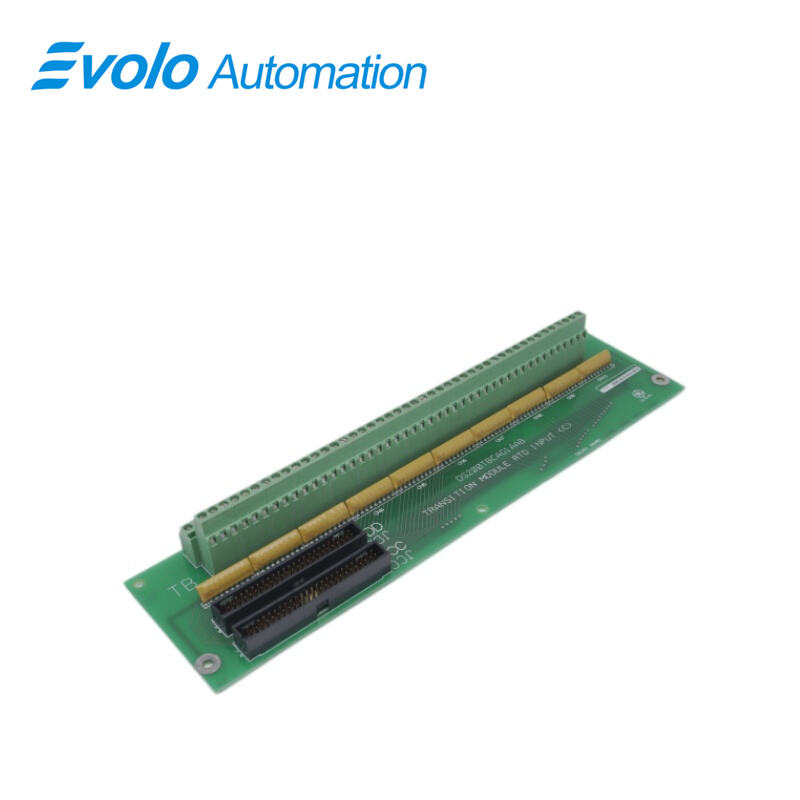

DS200TBCAG1AAB Analog I/O terminal Board

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	DS200TBCAG1AAB
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

Two blocks of 90 signal wire terminals and two 50-pin connections make up the GE Analog I/O Terminal Board DS200TBCAG1AAB. If you can shift the signal wires from the old board's terminal blocks to the replacement board's terminal blocks, replacing the GE Analog l/O Terminal Board DS200TBCAG1AAB is a simple task. Due to the enormous energy held in the drive when linked to an electrical current, this procedure can only be performed by a qualified servicer. Disconnect the drive from the power source that was installed to meet local and national electrical requirements.The drive is powered by a power supply that converts AC power to DC power for operation It's also a good idea to look for the driver's emergency power shut-off devices. It is critical to have at least two people working on the replacement in the event of an emergency.

Applications

Power Industry (Power Plants): Used in the control cabinets of GE's classic Frame 5, 6, 7, and 9 series heavy-duty gas turbines and large steam turbines.

Responsible for monitoring key operating parameters, such as bearing temperature (RTD signal), gas turbine speed, and combustion conditions.

Oil & Gas and Chemical Industry: Used for the automated management of power drive units, compressor units, and pumping stations in refineries or oil extraction facilities.

Marine Automation and Marine Power: Acts as a signal conversion module in the control systems of engines, generator sets, and heat exchangers on offshore platforms and large ships.

Feature

1.If an emergency arises, assistance is available to call for help or turn off the electricity using the emergency shutoff device. Remove the damaged board with the signal wires still attached if feasible, and place it on a clean, solid surface with an EDS protecting surface underneath it.

2.A flat static protective bag, for example. Place the replacement board next to the old board while wearing a wrist strap. And then relocate the signal wires from the old board to the new board one by one

3.separate controller that houses the main processor.

4.A local processor board that runs a real-time operating system and a data acquisition board that is specialized to the I/O application are included in I/O packs.

5.Local processors execute alaorithms at a auicker rate than the overall control system.such as servo valve reaulation within a seryo module.Each /O processoin features a temperature sensor that is accurate to 2 degrees Celsius (3.6 degrees Fahrenheit)

6.A diagnostic alarm is generated when an excessive temperature is detected, and the logic is stored in the database (signal space) to assist control action or uniqueprocess alert messages.The temperature is stored in the database in real-time

7.The GE SPEEDTRONIC Mark V Turbine Control System is offered in two versions: triple-redundant Mark V"TMR" and single-channel Mark V Simplex, with the TMR variant having two additional controllers.

8.The Mark V control system is a well-built control system that is still in use in tens of thousands of installations all over the world. The Mark VI and Mark Vie, which are newer systems with better processing capabilities, have replaced this system.

FREQUENTLY ASKED QUESTIONS

Q: What are input and output terminals of DS200TBCAG1AAB?
A: The input and output terminals of the DS200TBCAG1AAB are the physical connection points used to interface field signals with the control system. Input terminals receive signals from external devices such as sensors, switches, or transmitters (typically 24 VDC control signals). Output terminals send control signals from the system to external equipment like relays, actuators, or indicators. These terminals ensure reliable signal transmission between the control module and field devices in industrial environments.

Q: What are I/O cards of DS200TBCAG1AAB?
A: I/O cards (Input/Output cards) associated with the DS200TBCAG1AAB are industrial interface modules that enable communication between the control system and external equipment. They can handle digital or analog signals and are designed for high reliability in industrial applications. Unlike standard computer expansion cards, these I/O cards are more robust, support multiple channels, and are engineered for real-time control, monitoring, and automation tasks.

Q: How do I/O cards work of DS200TBCAG1AAB?
A: I/O cards in the DS200TBCAG1AAB system function as intermediaries between the control processor and external devices. They receive input signals from field devices (such as sensors), convert them into a format the control system can process, and then execute logic-based actions. After processing, the card sends output signals to external devices (such as motors or alarms). This enables real-time monitoring and control, ensuring efficient and accurate operation of industrial systems.
