DS200DDTBG2ABB LCI Auxiliary I/O Terminal Board

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	DS200DDTBG2ABB
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

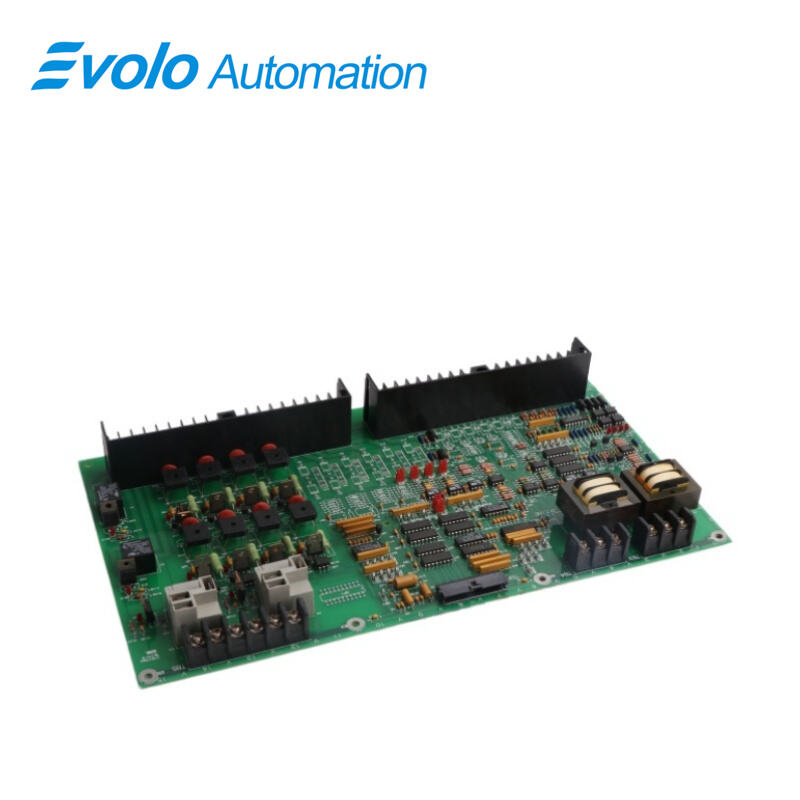

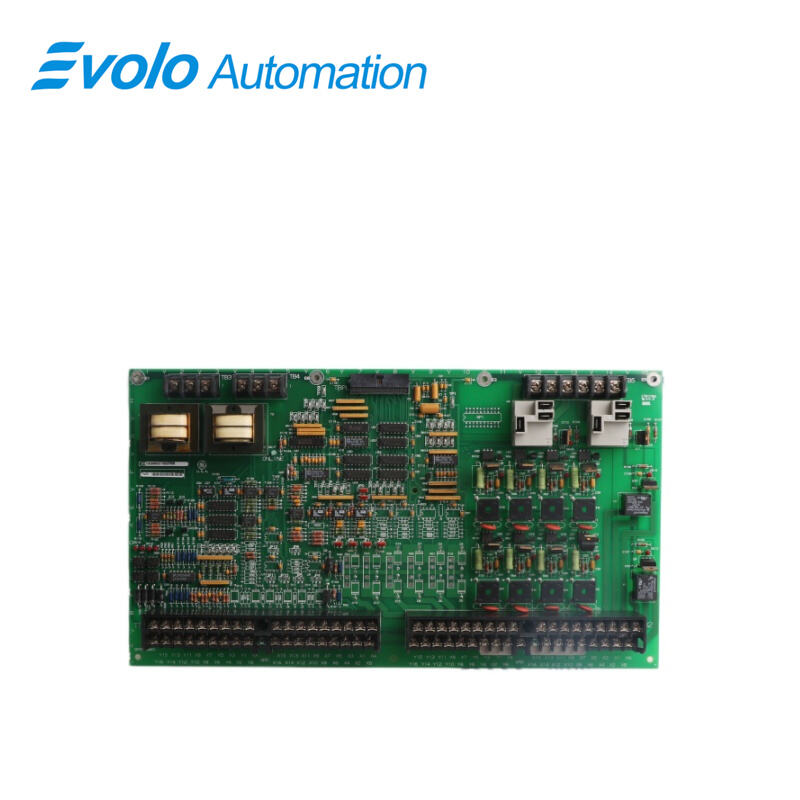

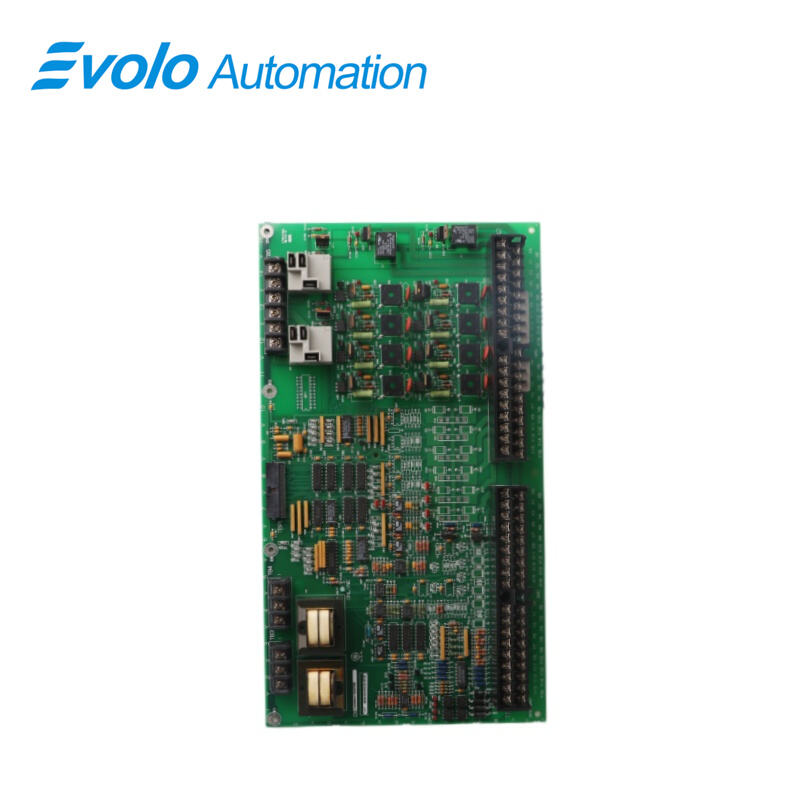

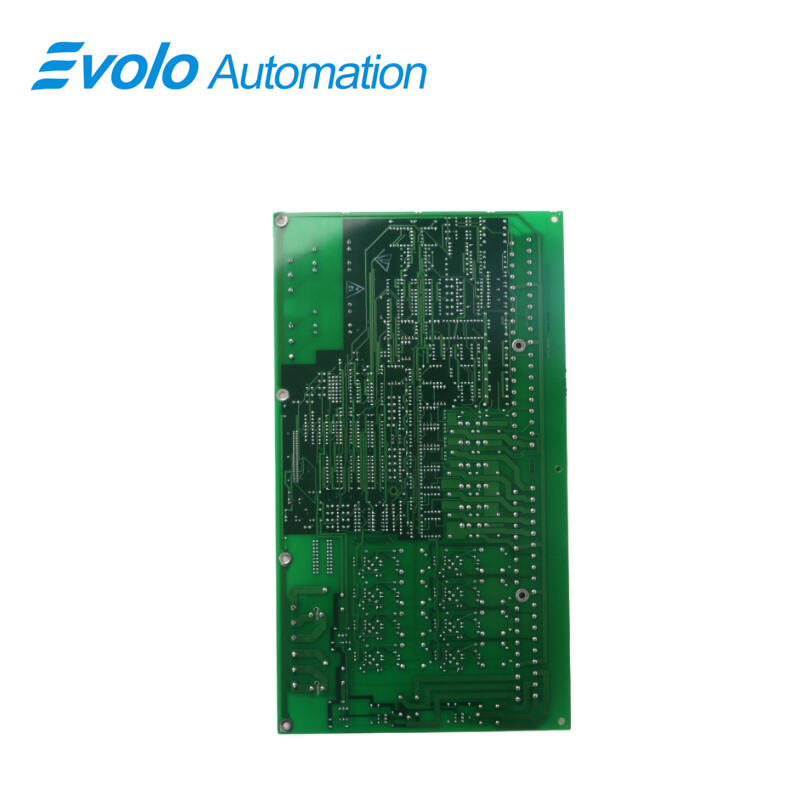

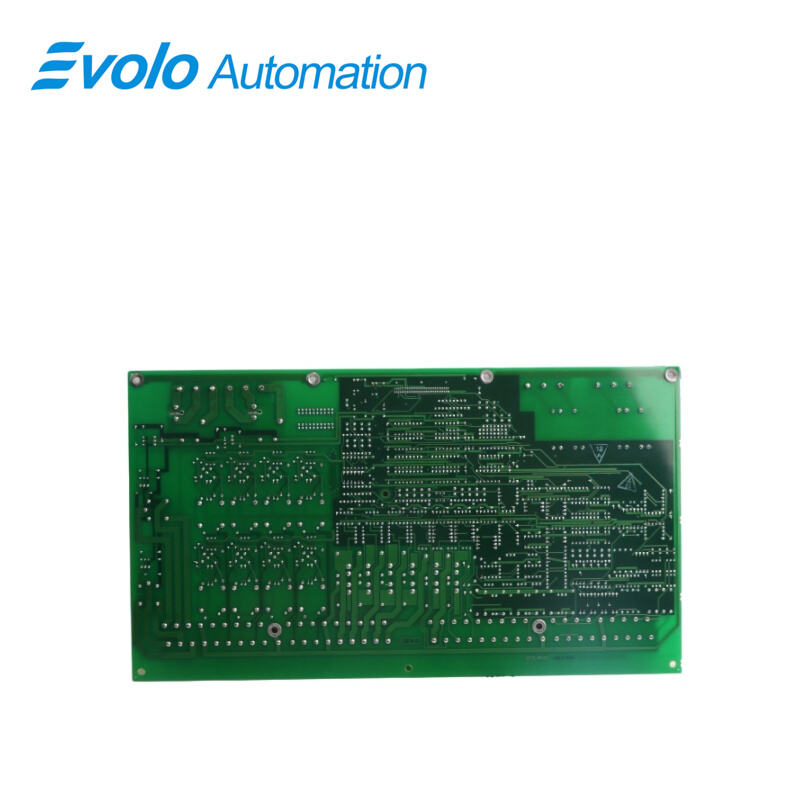

DS200DDTBG2ABB is an LCI Auxiliary I/O Terminal Board manufactured and designed by General Electric as part of the Mark V LM Series used in GE Speedtronic Gas Turbine Control Systems. The DS200DDTBG2ABB board (DDTB) is a high-voltage terminal board for system connections of auxiliary I/O signals. The board connects to a DS200ADMA (ADMA) analog-to-digital module daughterboard mounted on a DS200DSPC (DSPC) digital signal processor control board. High-density connectors and a ribbon cable connect the DDTB to the ADMA board. The ADMA board provides power for the DDTB. The DDTB provides signal conditioning, scaling, buffering, and isolation to make the harsh environment system-level signals accessible to the DSPC board's digital signal processor (DSP). External wiring connections from high voltage signals, contact I/O, current measurement (via low-level Hall-effect devices), or high-current CTs can be connected to the DDTB terminals. There are G1 and G2 versions of the DDTB board. The G2 lacks some of the functionality of the G1 and is noted where applicable.

Applications

Large thermal/gas power plants: Widely used in digital monitoring cabinets for GE Frame 6, 7, and 9 series gas turbines, handling hundreds or thousands of valve limit and pump status signals.

Oil and gas refineries: Used for start/stop interlock control of critical compressor units, ensuring millisecond-level accuracy of logic switching in hazardous environments.

Metallurgy and mining: Deployed in large belt conveyor monitoring systems or blast furnace blower rooms, handling digital signal interactions under high vibration and electromagnetic interference.

Discrete manufacturing: Responsible for distributed I/O aggregation on large automated production lines, managing complex sequential control logic.

ANALOG INPUTS

HIGH-VOLTAGE Ac INPuTS: There are two isolated inputs for connection to high-voltage ac signals. These use a step-down transformer, passive filtering, and a buffer to provide a ±5 V peak-to-peak signal to the ADMA board's VCO inputs (at 693 V rms applied). These inputs have a separate screw terminal block rated and isolated for 1000 V peak transients

HIGH-CURRENT sIGNAL INPUTS: Six inputs with current sensing resistors are suitable for ±5 amp continuous current signals (intended for CT inputs). These are buffered differentially and can tolerate ±12 V of common mode voltage. Each input is filtered and scaled. These inputs have a screw-type terminal block and are protected from voltage surges.

LOW CURRENT SIGNAL INPUTs: There are three inputs with current sensing resistors suitable for ±0.224 amp continuous current signals (intended for LEM current transducer signals). These are buffered differentially and can tolerate ±12 V of common mode voltage. Each input is filtered and scaled. These inputs have a screw-type terminal block and are protected from voltage surges.

ANALOG OUTPUTS

VOLTAGE OUTPUTS: There are four buffered analog outputs available at screw terminals. These include a gain of two to provide a ±10 V output range from the ±5 V range output signal from the ADMA board. Each output has a 200-ohm series resistor to isolate the amplifier from the customer connection.

4-20 mA CURRENT OUTPUTS: Two of the analog outputs also drive current source output buffers to provide support for the 4-20 mA current loop output signals. Both the voltage and current outputs are active at all times and can be used individually or together by wiring to their respective output terminals. There is an inversion and gain stage in the 4-20 mA driver such that a +5 V input from the ADMA board causes the output to produce 4 mA and a -5 V input causes the output to produce 20 mA.

FREQUENTLY ASKED QUESTIONS

Q: What are the main functions of a DS200DDTBG2ABB LCI Auxiliary I/O Terminal Board?

A: The primary function is to expand the capacity for connecting low-current devices such as sensors, switches, indicators, or other control components to a central control system. It acts as an interface between these devices and the main control unit.

Q: How does a DS200DDTBG2ABB LCI Auxiliary I/O Terminal Board differ from other interface boards?

A: Unlike traditional interface boards, the LCI Auxiliary I/O Terminal Board is specifically designed for low-current applications. It typically features specialized circuitry and components optimized for handling signals with lower power requirements.

Q: What types of devices can be connected to a DS200DDTBG2ABB LCI Auxiliary I/O Terminal Board?

A: Various types of low-current devices can be connected, including proximity sensors, limit switches, push buttons, indicator lights, and similar components commonly found in industrial automation and control systems.
