Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
CC-TAON01 51306519-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
CC-TAON01 51306519-175 |
|
Product Type: |
Analog Output Module |
|
Dimensions: |
18.5 × 15 × 7.5 cm |
|
Weight: |
0.3 kg |
|
Redundancy: |
Non-Redundant |
|
Output Type: |
4–20 mA |
|
Output Channels: |
16 |
|
Output Ripple: |
<100 mV peak-to-peak (at power line frequency, across 250 Ω load) |
|
Output Temperature Drift: |
0.005% of Full Scale / °C |
|
Output Readback Accuracy: |
±4% of Full Scale |
|
Output Current Linearity: |
±0.05% of Full Scale (nominal) |
|
Resolution: |
±0.05% of Full Scale |
|
Calibrated Accuracy: |
±0.35% of Full Scale (25°C, incl. linearity) |
|
Output Current Range: |
0 mA, 2.9 mA to 21.1 mA (directly settable) |
|
Maximum Resistive Load: |
800 Ω (24 V supply: 22–28 VDC) |
|
Maximum Output Compliant Voltage: |
16 V (24 V supply: 22–28 VDC) |
|
Maximum Open Circuit Voltage: |
22 V |
|
Response Time: |
Settles within 1% of final value in 80 ms |
|
Switchover Gap: |
10 ms max (0 mA output to field, redundancy only) |
Description

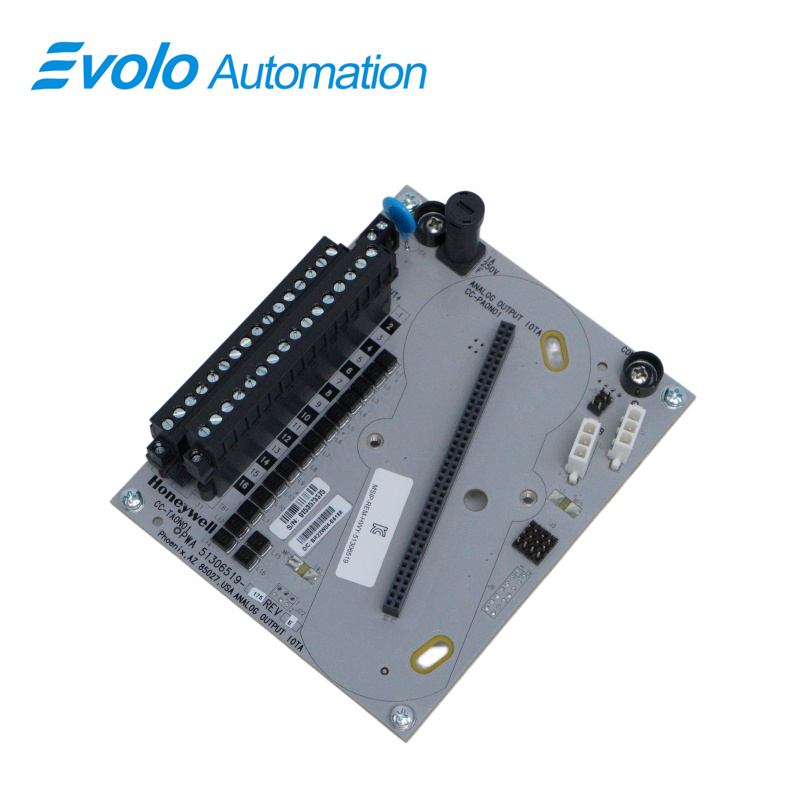

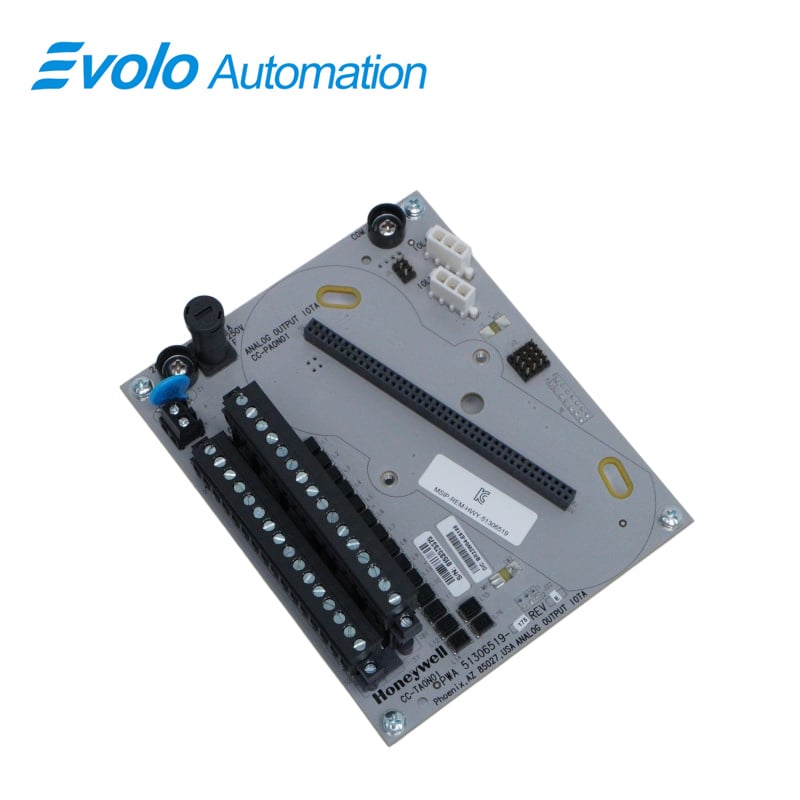

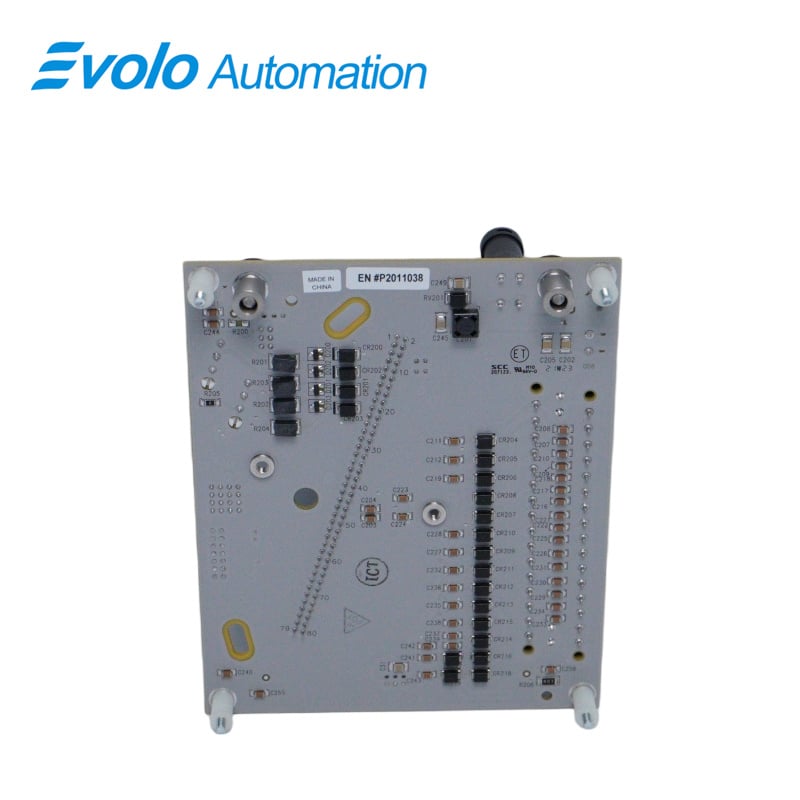

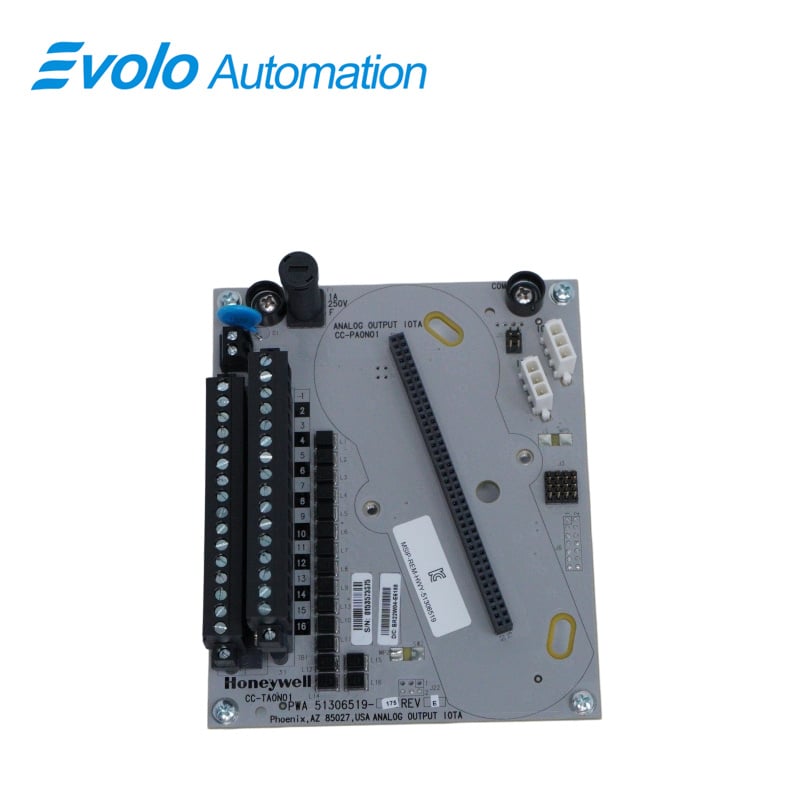

The Honeywell CC-TAON01 51306519-175 Analog Output Module is a specialized module used in Honeywell's automation systems, specifically in the Experion Process Knowledge System (PKS) or similar platforms. It serves as an interface for managing and distributing analog output signals in a control system.
Applications
Oil and gas chemical plants: Precise control of valve positioners for large pneumatic control and regulating valves enabling accurate flow adjustment.
Thermal power plants: Speed and airflow control of pumps and dampers ensuring fast response to load fluctuations.
Municipal water plants: Output control signals for dosing pumps and actuators supporting stable long-distance control loops.
Steel and metallurgy plants: Analog control of blast furnace gas valves and fan actuators ensuring stable operation in harsh environments.
Detection
Notable Features
FAQ
Q: What are the redundancy type and outputs of the CC-TAON01 51306519-175?
A: Non-redundant design with 16-channel 4–20 mA analog outputs.
Q: What are the accuracy and current ranges of the CC-TAON01 51306519-175?
A: Calibration accuracy ±0.35%, adjustable range from 0 mA to 2.9–21.1 mA.
Q: What are the load capacity and open-circuit voltage of the CC-TAON01 51306519-175?
A: Supports up to 800 Ω resistive load with a maximum open-circuit voltage of 22 V.
Q: What are the response and switching times of the CC-TAON01 51306519-175?
A: Output stabilization time is 80 ms, with maximum switching interruption of 10 ms.
Q: What are the ripple, linearity, and temperature drift of the CC-TAON01 51306519-175?
A: Ripple is less than 100 mV peak-to-peak, linearity ±0.05%, temperature drift 0.005%/°C.
