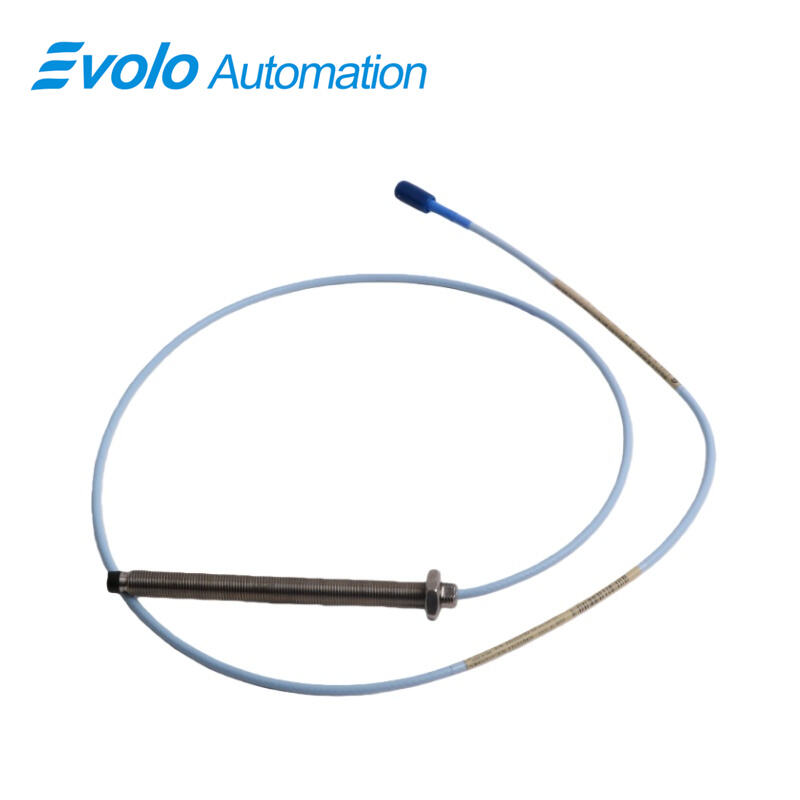

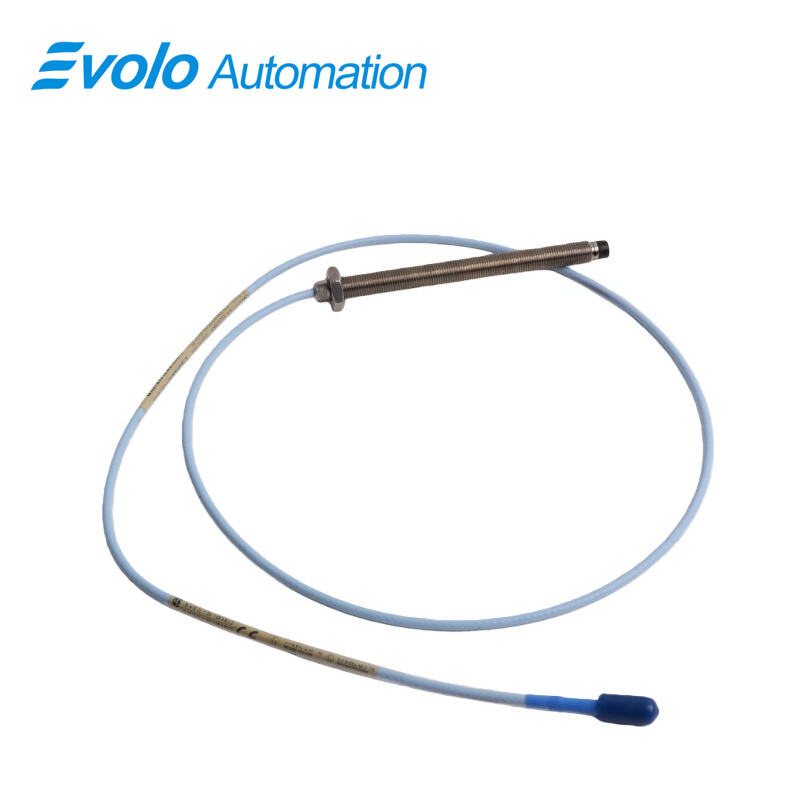

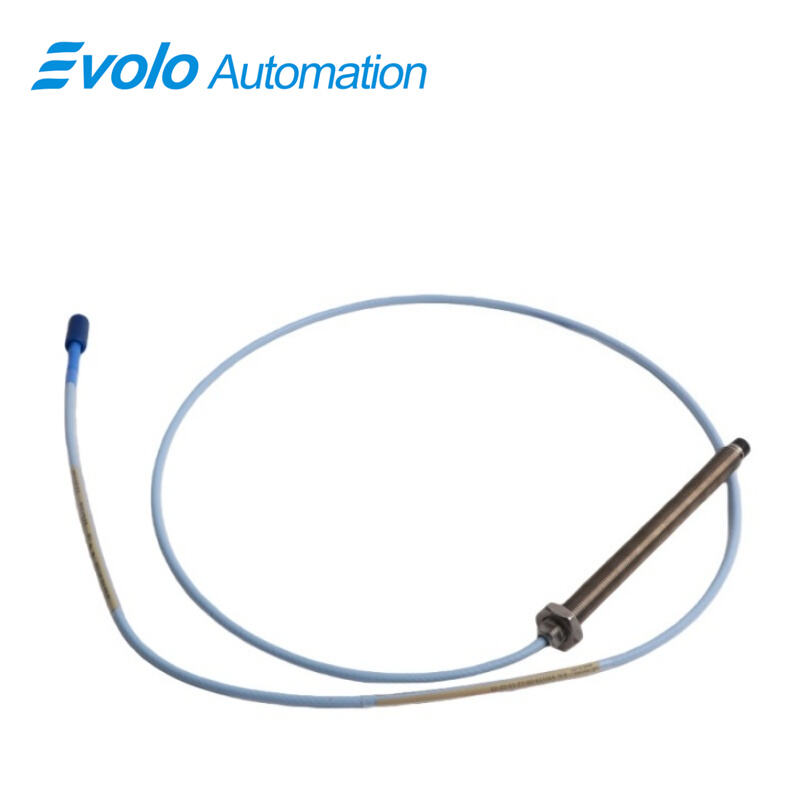

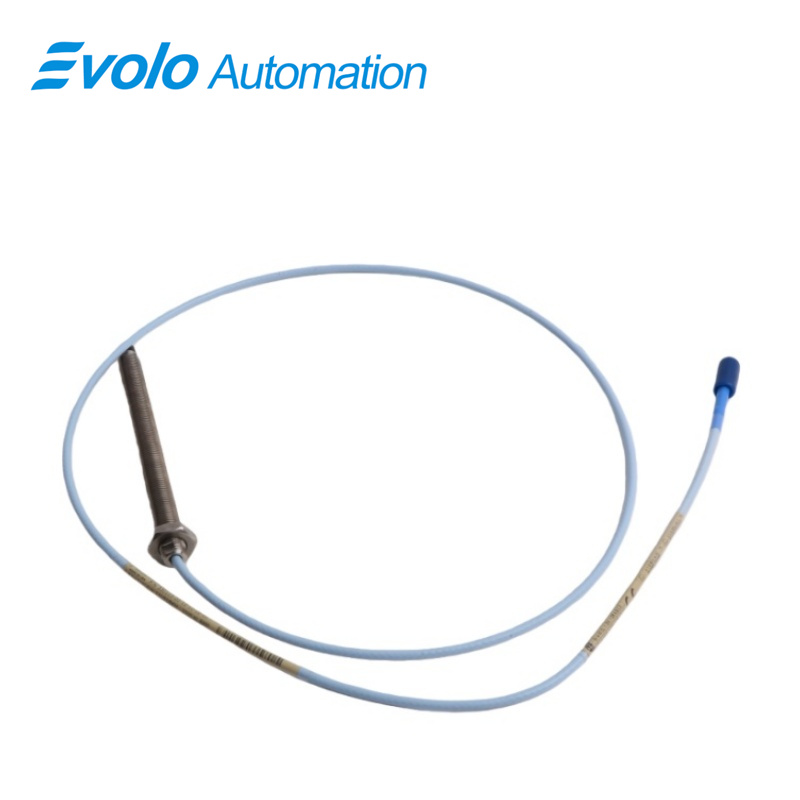

330103-00-12-15-01-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-12-15-01-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-12-15-01-05 3300 XL 8 mm Proximity Probe is a high-precision, non-contact sensor specifically engineered for industrial automation, machinery protection, and condition monitoring applications. Designed as part of the 3300 XL 8 mm Proximity Transducer System, this probe converts displacement between the probe tip and conductive surfaces into a proportional voltage output, enabling accurate static position and dynamic vibration measurements.

Featuring an M10x1 threaded probe case, a minimum 120 mm overall case length, and a 1.5-meter standard cable, this probe supports installations requiring longer probe reach while maintaining high measurement accuracy. Its 2 mm linear range and typical extension cable capacitance of 69.9 pF/m ensure consistent output signals, while supply sensitivity below 2 mV/V and 50 Ω output resistance provide stable performance even under variable power conditions.

Certified with CSA, ATEX, and IECEx approvals, the 330103-00-12-15-01-05 probe is suitable for hazardous environments and extreme industrial conditions, operating reliably from -52°C to +177°C. Advanced mechanical design enhancements, including TipLoc molded probe tips and CableLoc reinforced cable attachment, improve durability, vibration resistance, and pull strength of 330 N (75 lbf). The optional FluidLoc cable design prevents oil and other fluids from leaking through the cable core, ensuring safe and long-term operation in automated machinery monitoring systems. Full interchangeability within the 3300 XL 8 mm system simplifies maintenance and system upgrades, eliminating the need for bench calibration.

Applications

Application 1: High-Precision Shaft Vibration Monitoring

The 330103-00-12-15-01-05 probe delivers accurate vibration signals in fluid-film bearing machines, supporting automated monitoring and early fault detection with a 2 mm linear range for precise displacement measurement.

Application 2: Extended Axial Position Measurement

The 120 mm overall case length enables monitoring of axial displacement in compressors, pumps, and turbines where longer probe reach is required, ensuring reliable automation feedback for thrust and alignment control.

Application 3: Keyphasor and Speed Reference Systems

With miniature coaxial ClickLoc connectors, this probe maintains stable electrical connections for Keyphasor signals and rotational speed measurement, supporting synchronized automation and predictive maintenance systems.

Application 4: Hazardous Area Industrial Automation

Certified with CSA, ATEX, and IECEx, the probe can safely operate in explosive atmospheres, allowing integration into automated machinery protection systems in petrochemical plants and refineries.

Application 5: High-Temperature Rotating Equipment Monitoring

Operating from -52°C to +177°C, the probe is suitable for turbines, motors, and boilers where temperature extremes are common, providing consistent signal accuracy for automated control and monitoring systems.

Specifications

Competitive Advantage

Competitive Advantage 1: Stable Electrical Performance

The probe maintains output consistency under supply voltage variations below 2 mV/V, ensuring accurate measurements even in fluctuating industrial power environments.

Competitive Advantage 2: Long-Range Mechanical Compatibility

With a 120 mm overall case length, this probe accommodates deep or recessed installations while remaining fully compatible with the 3300 XL 8 mm transducer system, reducing custom fitting requirements.

Competitive Advantage 3: Robust Environmental Protection

The optional FluidLoc cable prevents oil and liquid ingress, while the connector protector ensures stable connections in humid, oil-rich, or high-contamination environments.

Competitive Advantage 4: Extreme Temperature Operation

Operating reliably between -52°C and +177°C, the probe outperforms standard proximity sensors in high-temperature and cold-start automation applications.

Competitive Advantage 5: Enhanced Mechanical Durability

Patented TipLoc probe tip molding and CableLoc reinforced attachment provide a 330 N (75 lbf) pull strength, improving resistance to vibration and mechanical stress in high-speed rotating equipment.
