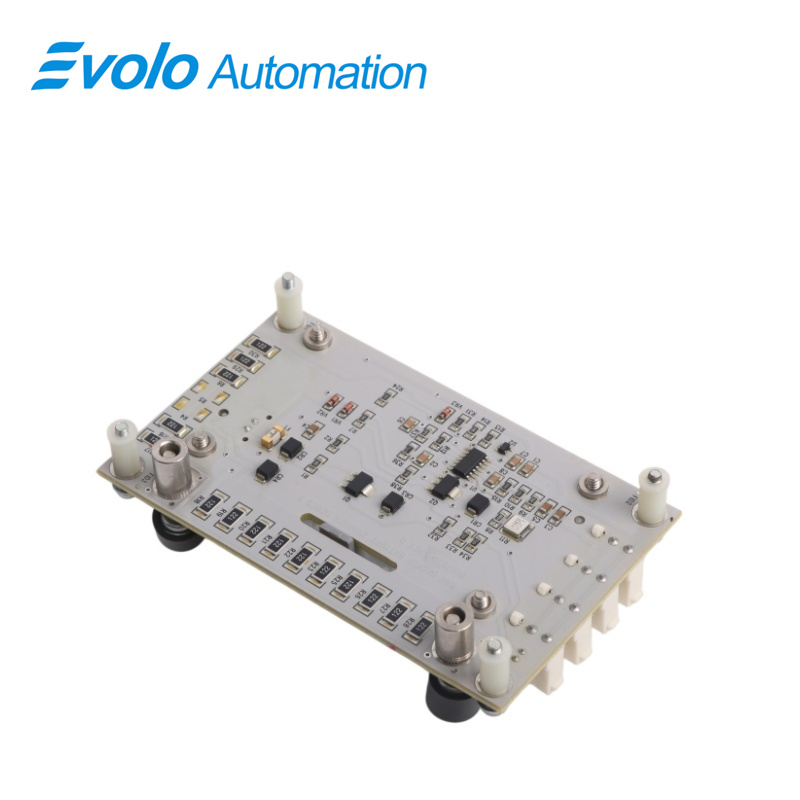

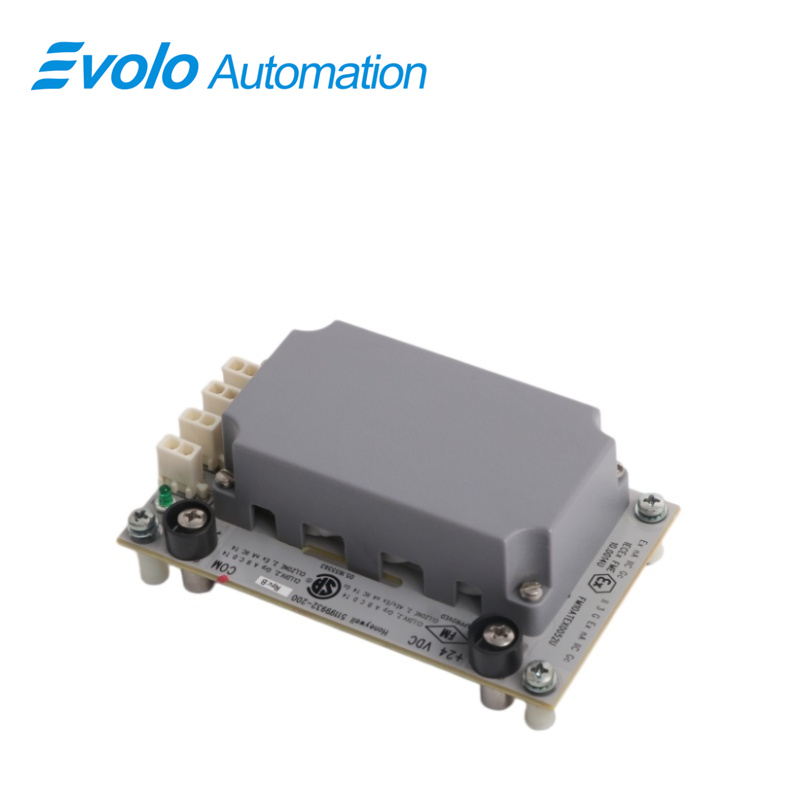

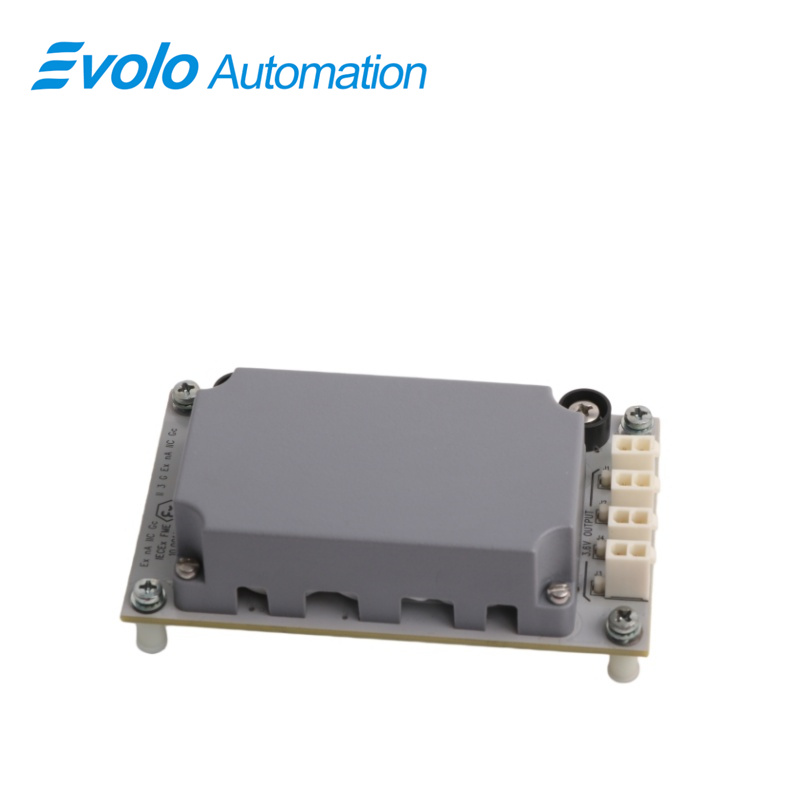

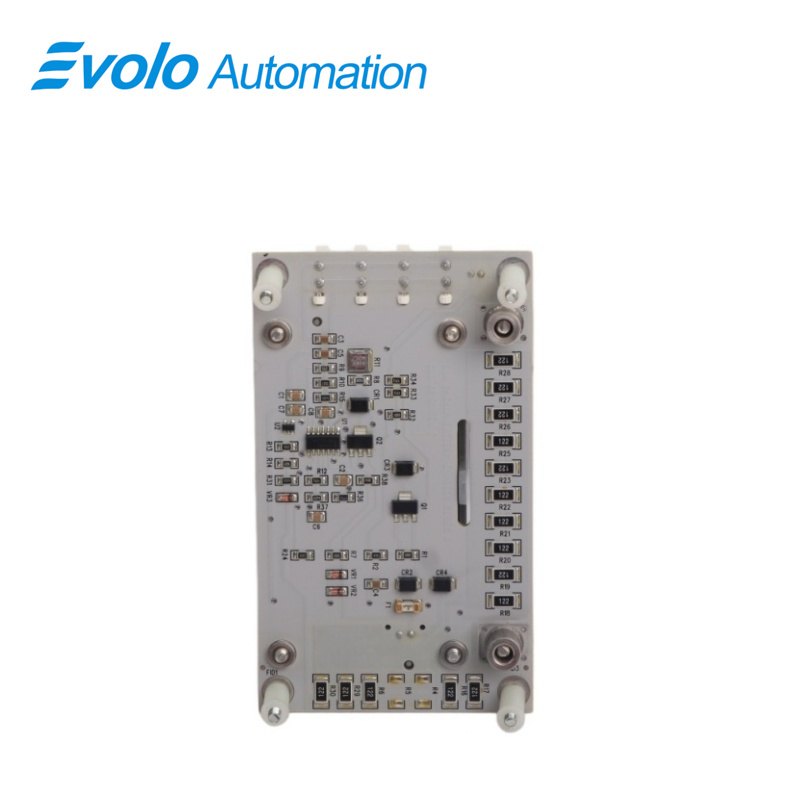

CC-SCMB02 51199932-200 C300 Memory Backup Assembly, China CC-SCMB02 51199932-200 C300 Memory Backup Assembly Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	HONEYWELL
Model Number:	CC-SCMB02 51199932-200
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Parameter	Value
Part Number	CC-SCMB02 51199932-200
Part Type	C300 Memory Backup Assembly
Dimensions	12.1 x 7.1 x 5.1 cm
Weight	0.26 kg
Supported Controllers	Up to 4 C300 units per module
Input Voltage	100–120 / 220–240 VAC
Power Supply	Redundant inputs via combo cable
Operating Temperature	-20°C to +60°C (typical; may vary by configuration)
Power (DC)	24 VDC
Mounting	Control panel installation
Terminals	Compression type

Description

The Honeywell CC-SCMB02 51199932-200 is a C300 Memory Backup Assembly. This assembly is primarily responsible for continuously providing temporary power to the controller's random access memory (RAM) through its internal energy storage elements during sudden power outages, trips, or power module switching in the plant's main power grid. Specifically, it locks active process configuration data, field production control strategies, and real-time event logs in the controller, preventing the clearing of control parameters due to momentary power outages.

Applications

Gasification plant: ensures controller logic integrity during unstable power conditions to prevent unexpected process shutdowns.

Steel continuous production plant: provides backup power support for multiple redundant control nodes in steelmaking scheduling systems.

Sugar production plant: maintains data reliability in hot and humid control room environments during seasonal peak production periods.

Fine chemical plant: protects critical recipe data through redundant power input design to avoid loss from single-point failure.

Features

Memory protection for controller RAM during primary power failure

Redundant power inputs for improved reliability in critical systems

Compact design for efficient control cabinet space utilization

Plug-and-play integration within Experion LX architecture

High availability for continuous industrial operation

FAQ

Q: How many controllers are supported by the CC-SCMB02 51199932-200?
A: Up to 4 C300 controllers per module.

Q: What are the input voltage and DC power specifications of the CC-SCMB02 51199932-200?
A: AC 100–120 / 220–240 VAC and 24 VDC.

Q: What are the power supply and terminal types of the CC-SCMB02 51199932-200?
A: Redundant input via composite cable, with compression-type terminals.

Q: What are the operating temperature and installation method of the CC-SCMB02 51199932-200?
A: -20°C to +60°C operating temperature, panel-mounted installation.

Q: What are the input power configurations for multi-controller support in the CC-SCMB02 51199932-200?
A: Uses redundant AC power via composite cable and 24 VDC supply.
