Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
CC-PDOB01 51405043-176 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
CC-PDOB01 51405043-176 |
|
Part Type |
Digital Output Module |
|
Dimensions |
5.5 x 16 x 14.5 cm |
|
Weight |
0.38kg |
|
Output Channels |
32 |
|
Output Type |
Source |
|
Load Voltage |
15–30 VDC (maximum) |
|
Galvanic Isolation |
1500 VAC RMS or ±1500 VDC |
|
On-State Voltage |
24 V (typical, at load current 0.5 A) |
|
Off-State Voltage |
0 VDC (max) / 3.3 VDC (max no-load condition) |
|
Off-State Leakage Current |
5 µA (max) |
|
Turn-On/Turn-Off Time |
10 ms (max) |
|
Switchover Gap |
0 ms (no gap, redundancy mode) |
|
Output Voltage Drop |
Source voltage − 150 mV (max) |
|
Load Current (per channel) |
0.5 A |
|
Load Current (per 8-channel group) |
Up to 4 A (no short condition) |
|
Load Current (per module) |
Up to 6 A |
|
Short Condition (one channel short) |
0.5 A/channel, 3 A per 8 channels, 6 A per module |
|
Short Condition (two channels short) |
0.5 A/channel, 1.5 A per 8 channels, 6 A per module |
|
Channel Grouping |
1–8, 9–16, 17–24, 25–32 |
Description

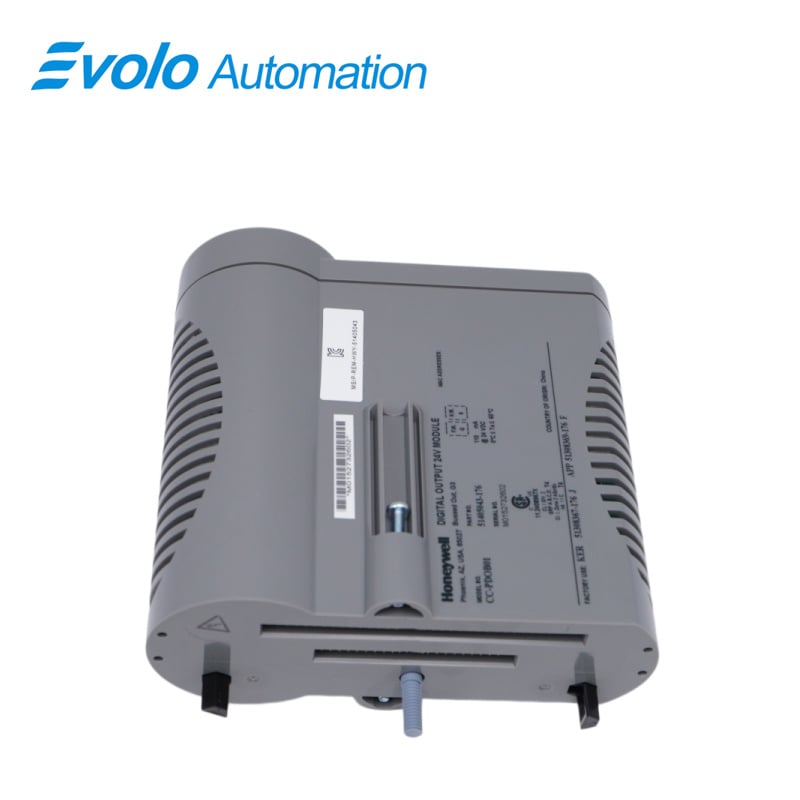

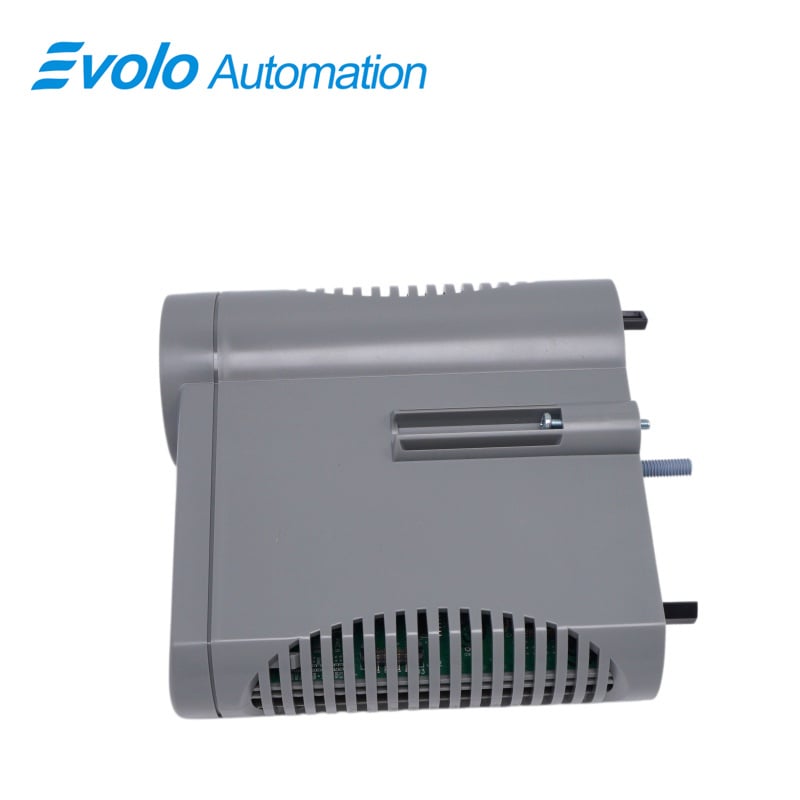

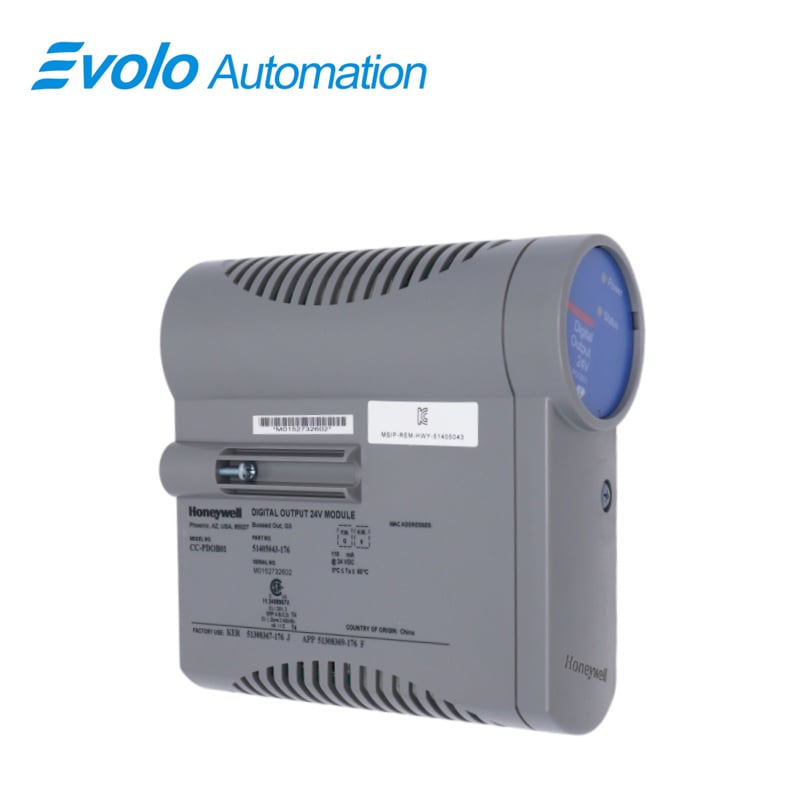

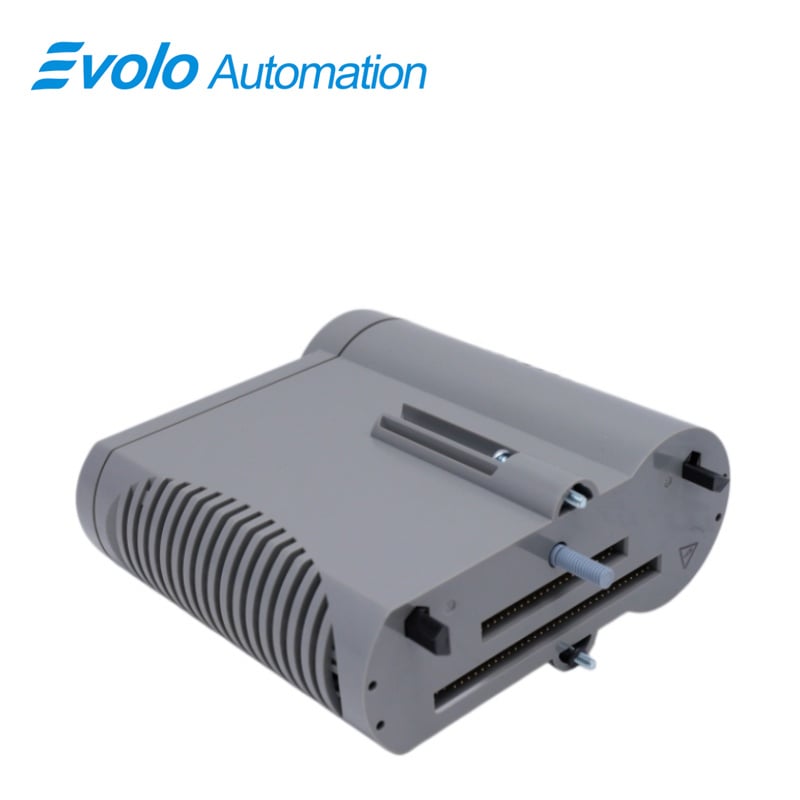

The Honeywell CC-PDOB01 51405043-176 is a digital output module. This module primarily receives digital logic instructions from the main controller and internally converts them into switching electrical signals for output to field devices. The unit features internal channel status diagnostics; when a short-circuit fault is detected in the field output line, it automatically cuts off the current supply to the affected channel to prevent damage to electronic components, and automatically restores normal data output control after the fault is repaired.
Applications
Fine chemical plant: ensures safety interlock systems maintain continuous operation during maintenance switching without interruption.
Automotive paint plant: coordinates high-density outputs to precisely control multiple robotic spray valves in synchronized timing.
District heating plant: maintains stable remote I/O communication in high electromagnetic interference environments through strong isolation design.
Dairy processing plant: prevents unintended actuator triggering in clean filling lines by minimizing leakage current effects.
Notable Features
Extensive internal diagnostics for data integrity
Optional redundancy
Direct/reverse output support
Configurable safe-state (FAILOPT) behavior
Fuse-less short-circuit protection
Latched, pulsed, or PWM output per channel
Galvanic isolation
Protection
Fuse-less Short Circuit Protection:
This unique feature allows a short circuit to exist without blowing any fuses. When a particular channel is shorted, internal circuits detect this and remove power to the field connection. The channel remains de-energized until the short circuit is repaired.
FAILOPT
Series C DO module will support FAILOPT parameter on a per channel basis. The output can be directed by configuration to either HOLD THE LAST VALUE, or SHED to a SAFE VALUE. The safe value can be configured by the user.
FAQ
Q: What are the channel and output types of the CC-PDOB01 51405043-176?
A: 32-channel sourcing digital output.
Q: What are the load voltage and current of the CC-PDOB01 51405043-176?
A: Voltage 15–30 VDC, 0.5 A per channel, 6 A per module maximum.
Q: What are the isolation withstand voltage and switching time of the CC-PDOB01 51405043-176?
A: Electrical isolation 1500 VAC, redundant mode switching gap 0 ms.
Q: How are the channel groups of the CC-PDOB01 51405043-176 arranged?
A: Each 8 channels form one group (1–8, 9–16, 17–24, 25–32).
Q: What are the switching time and voltage drop of the CC-PDOB01 51405043-176?
A: Response time up to 10 ms, maximum output voltage drop of 150 mV.
