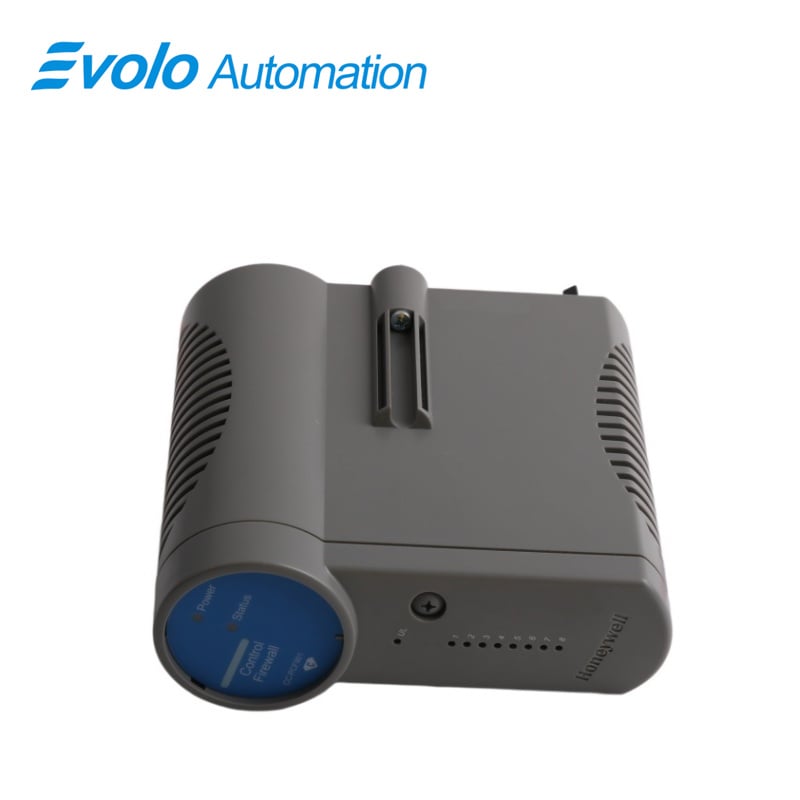

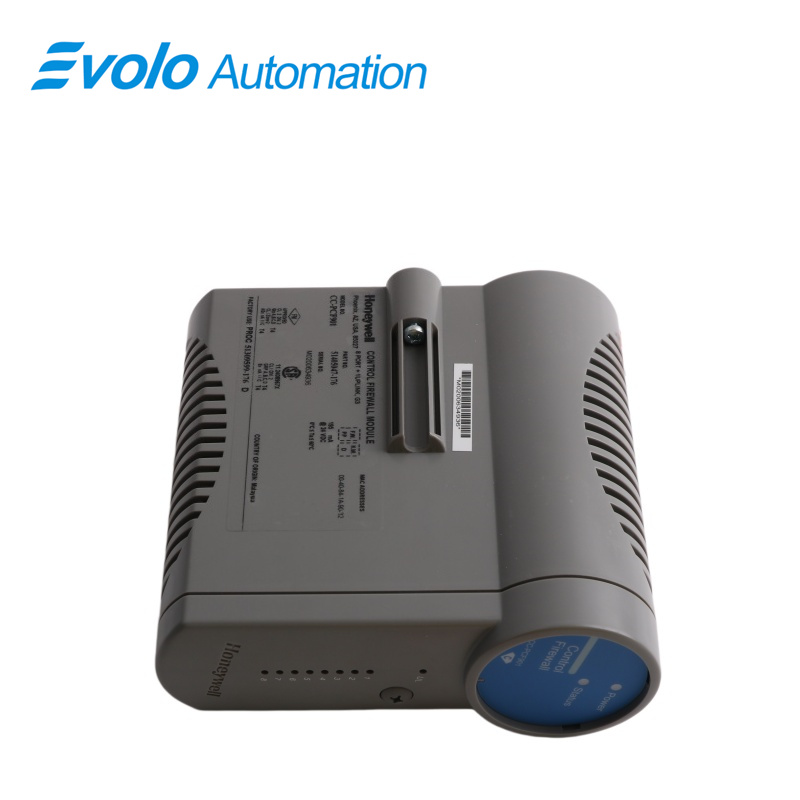

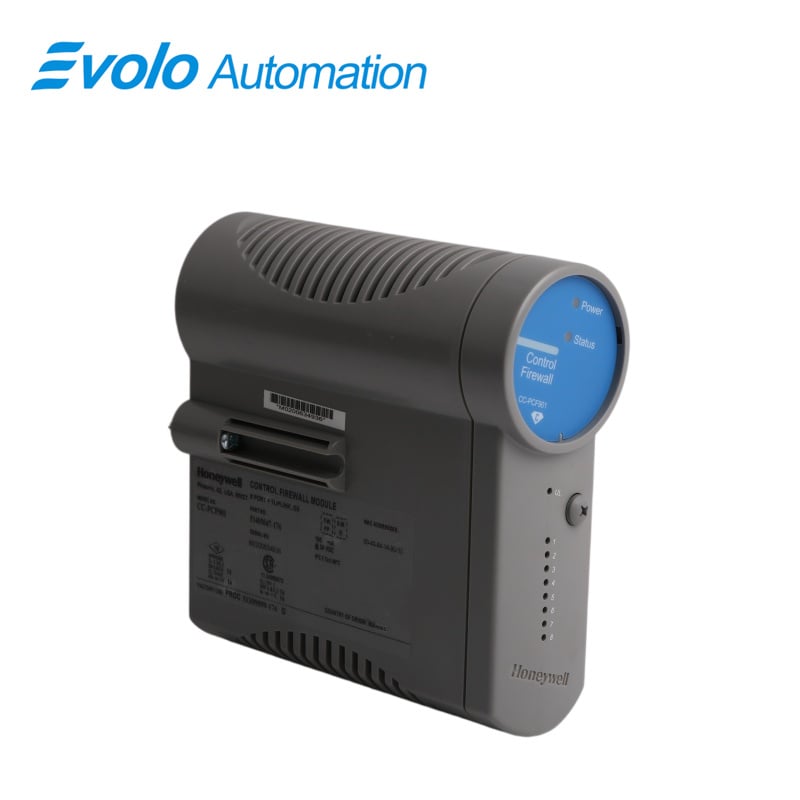

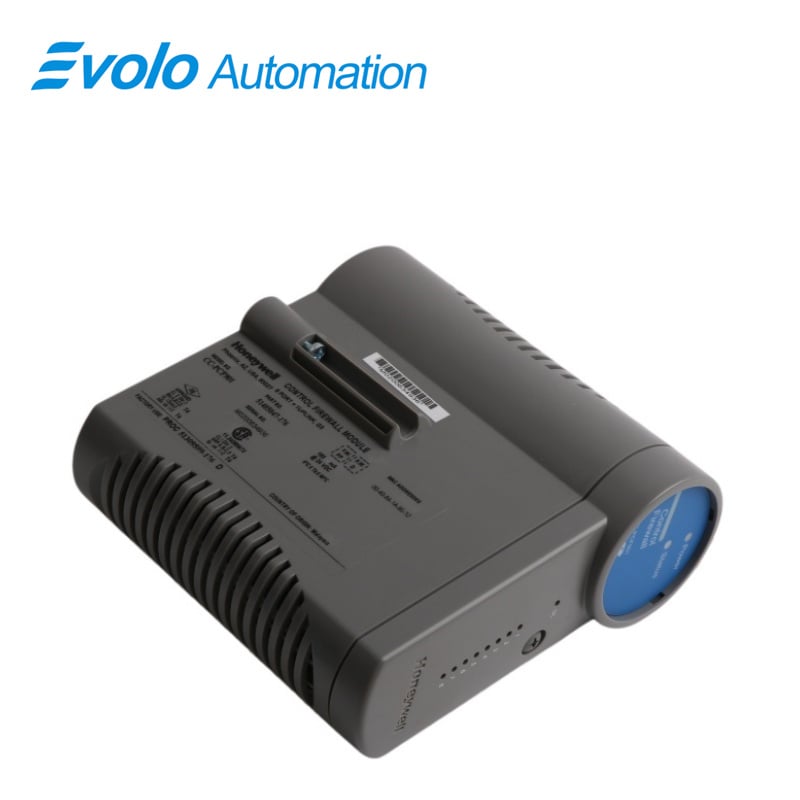

CC-PCF901 51405047-176 Control Firewall Module

Overview

Place of Origin:	USA
Brand Name:	HONEYWELL
Model Number:	CC-PCF901 51405047-176
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The Honeywell CC-PCF901 51405047-176 is a Control Firewall Module for safeguarding your control systems. The CC-PCF901 51405047-176 offers firewall protection, intrusion detection, data encryption, and user-friendly installation and configuration.

Applications

Oil refining plant: ensures secure data exchange between DCN networks and field controllers through isolated communication ports.

LNG receiving terminal: maintains continuous pipeline monitoring communication in extreme low-temperature environments.

Wafer fabrication plant: filters network traffic in cleanroom environments to prevent unauthorized control commands.

Large thermal power plant: enables stable and safe power distribution in I/O cabinets through low-power operation design.

Paper and packaging plant: connects multiple drive systems in high-speed production lines while reducing network noise interference.

Features

FTE optimization: Efficiently distributes FTE cables across multiple C-series FIMs to improve network performance

Modular Design: Supports flexible configuration and customization for diverse industrial applications

Programmable Logic: Engineers can configure control logic, monitoring tasks, and data processing functions

Real-Time control: Enables real-time monitoring and decision-making for process variables

Traffic Filtering: Applies predefined rules to block unauthorized access and malicious traffic

Access Management: Restricts network access based on user identity and permissions

Installing

1.Align CF9 connector pins over the connector/slot on the IOTA labeled as Control Firewall 9

Module.

2. Carefully press down on the CF9 module until it is fully seated in the connector.

3. Use the screws provided to secure the CF9 module to the IOTA. The screws must be tightened to 1.3 Newton-meters.

4. Repeat Steps 1 to 3 to install other CF9s on their IOTAs, as required.

5. This completes the procedure. Go to the next Section.

FAQ

Q: What network ports are included in the CC-PCF901 51405047-176?
A: 8 × 10/100 Mbps Ethernet ports and 1 uplink port.

Q: What are the power supply and current consumption of the CC-PCF901 51405047-176?
A: 24 VDC power supply with a running current consumption of 195 mA.

Q: What network protocols are supported by the CC-PCF901 51405047-176?
A: Supports 10/100Base-TX interfaces and TCP/IP, UDP, IPv4, IPv6 protocols.

Q: What is the operating temperature range of the CC-PCF901 51405047-176?
A: Wide temperature operation and storage range from -40°C to +85°C.

Q: What are the installation method and humidity requirements of the CC-PCF901 51405047-176?
A: Must be installed on a CF9 IOTA base and supports 5% to 95% non-condensing humidity.
