Overview

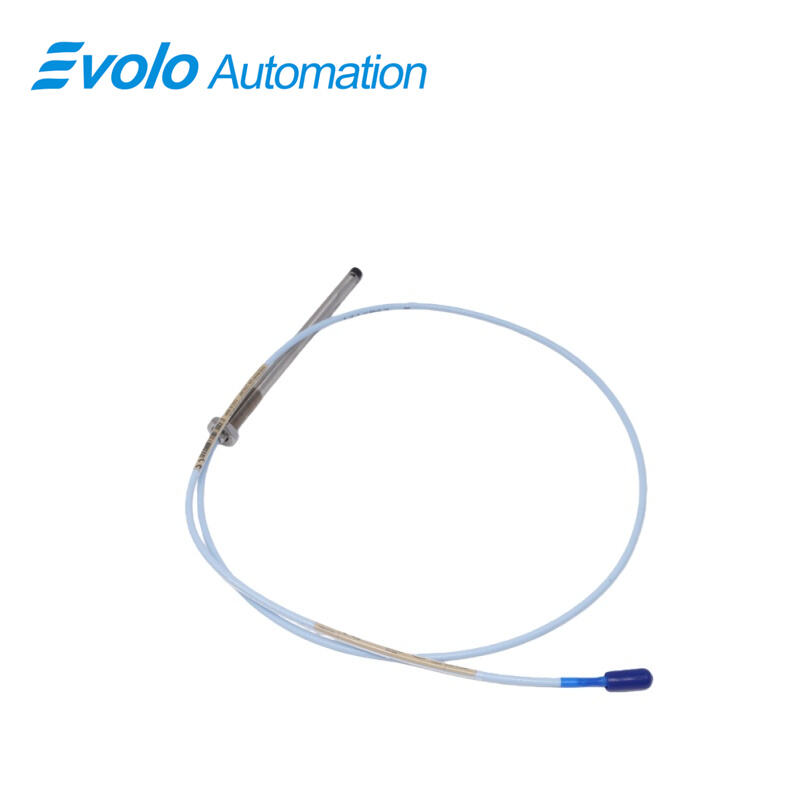

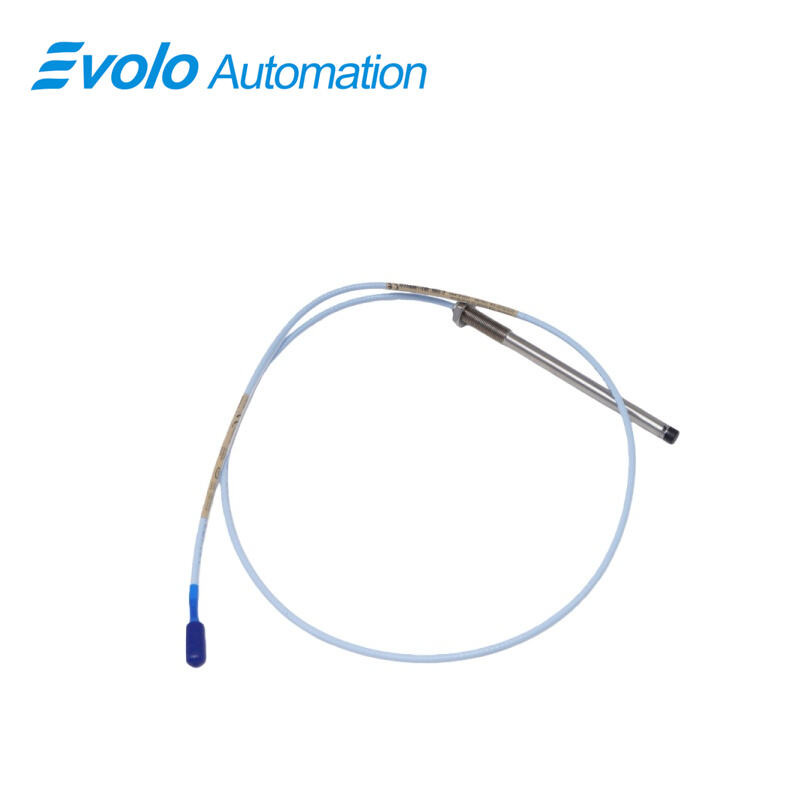

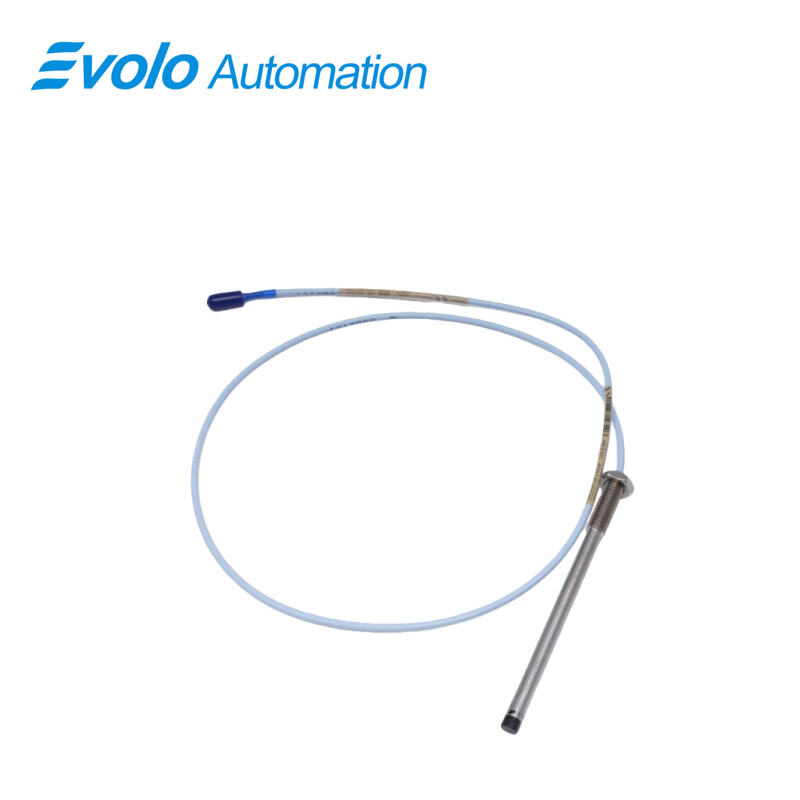

330103-10-15-10-02-05 3300 XL 8 mm Proximity Probes
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-10-15-10-02-05 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330103-10-15-10-02-05 3300 XL 8 mm Proximity Probes are precision-engineered non-contact sensors developed for high-reliability vibration and position monitoring of critical rotating machinery. As a dedicated configuration within the 3300 XL platform, these 3300 XL 8 mm Proximity Probes are designed to deliver stable, linear displacement signals while meeting stringent safety and performance requirements in hazardous and high-demand industrial environments. Manufactured in the USA, this model reflects the mature engineering standards and long-term reliability associated with the 3300 XL 8 mm Proximity Probes family.
The operating principle of the 3300 XL 8 mm Proximity Probes is based on eddy-current technology, converting microscopic changes in the distance between the probe tip and a conductive target into a proportional voltage output. With a defined linear range of 2 mm (80 mils), the 330103-10-15-10-02-05 3300 XL 8 mm Proximity Probes provide accurate measurement of shaft vibration, radial displacement, and axial movement. This accuracy is critical for detecting early-stage mechanical issues such as imbalance, misalignment, rotor rub, and bearing degradation in turbines, compressors, and pumps.
Mechanically, the probe is constructed with a corrosion-resistant AISI 303/304 stainless steel case and a Polyphenylene Sulfide (PPS) probe tip. This material combination allows the 3300 XL 8 mm Proximity Probes to operate reliably in environments exposed to oil mist, moisture, and industrial contaminants. The 10 mm unthreaded length and 150 mm overall case length support stable mounting and precise probe positioning, even in machinery with limited installation tolerances.
Key Functions
Applications
The 330103-10-15-10-02-05 3300 XL 8 mm Proximity Probes are widely used for continuous vibration and displacement monitoring of rotating machinery such as steam turbines, gas turbines, centrifugal compressors, and large industrial pumps. Their 2 mm linear range enables precise detection of shaft vibration and radial movement, supporting early fault identification and condition-based maintenance strategies.
In hazardous and regulated industrial environments, the CSA, ATEX, and IECEx certified 3300 XL 8 mm Proximity Probes are suitable for deployment in refineries, petrochemical plants, offshore platforms, and gas processing facilities. The stainless steel probe case and PPS probe tip provide resistance to corrosion and chemical exposure, allowing stable operation in oil-laden, humid, or contaminated conditions.
The compact mechanical design and standard 1.0 meter cable length make the 330103-10-15-10-02-05 3300 XL 8 mm Proximity Probes easy to integrate into existing monitoring systems. When paired with compatible Proximitor sensors, the probe supports long-term predictive maintenance programs by delivering consistent, repeatable displacement data with minimal maintenance requirements.
Official Specifications
Quick Detail
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Unthreaded Length Option : |
10 mm |
|
Overall Case Length Option : |
150 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Dimension: |
1.6x1.4x110cm |
|
Weight: |
0.08kg |
Specifications
|
Operating Temperature Range: |
-55°C to +115°C (-60°F to+210°F) |
|
Linear Range: |
2 mm (80 mils) |
|
Output Resistance: |
45 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage. |
|
Power: |
Requires -17.5 Vdc to -256 Vdc |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 303 or 304 stainless steel(SST) |
Frequently Asked Questions
What is the model number?
The listed model number is 330103-10-15-10-02-05.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1.Certified for Hazardous Area Operation
The 3300 XL 8 mm Proximity Probes are supplied with CSA, ATEX, and IECEx approvals, enabling direct installation in hazardous locations without additional certification steps. This simplifies compliance with international safety standards and reduces project lead time in regulated industrial environments.
2.Stable Measurement Performance with Proven Eddy-Current Technology
With a 2 mm linear range, low supply sensitivity, and controlled output resistance, the 3300 XL 8 mm Proximity Probes provide accurate and repeatable displacement measurements. This stability supports reliable vibration analysis and early fault detection in critical rotating machinery.
3.Durable Construction for Long-Term Industrial Use
The combination of an AISI 303/304 stainless steel probe case, PPS probe tip, and secure ClickLoc connector ensures mechanical robustness and resistance to corrosion, vibration, and contamination. This durability extends service life and reduces maintenance frequency in demanding operating conditions.
