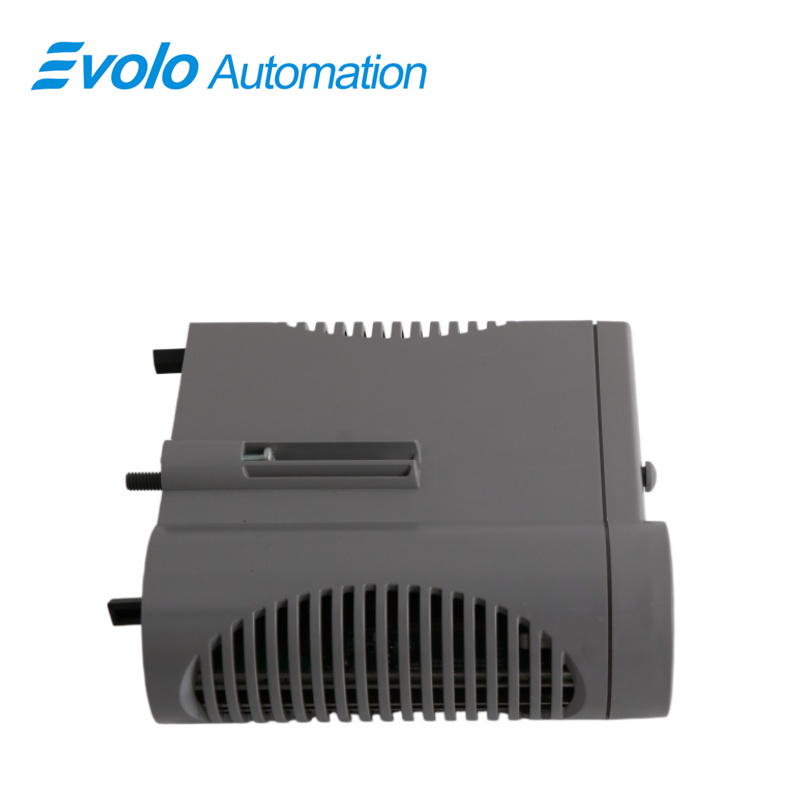

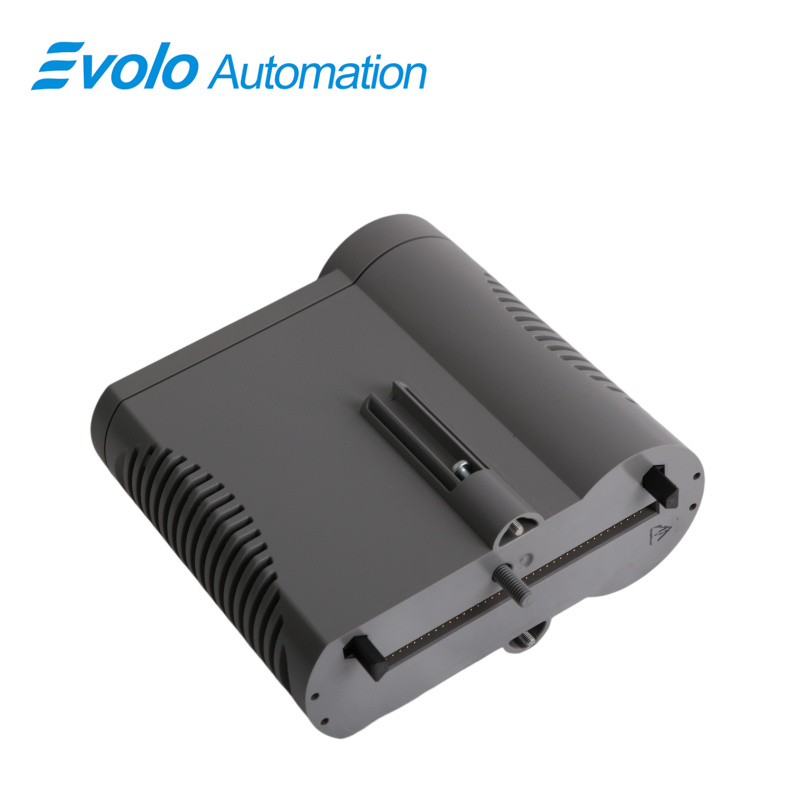

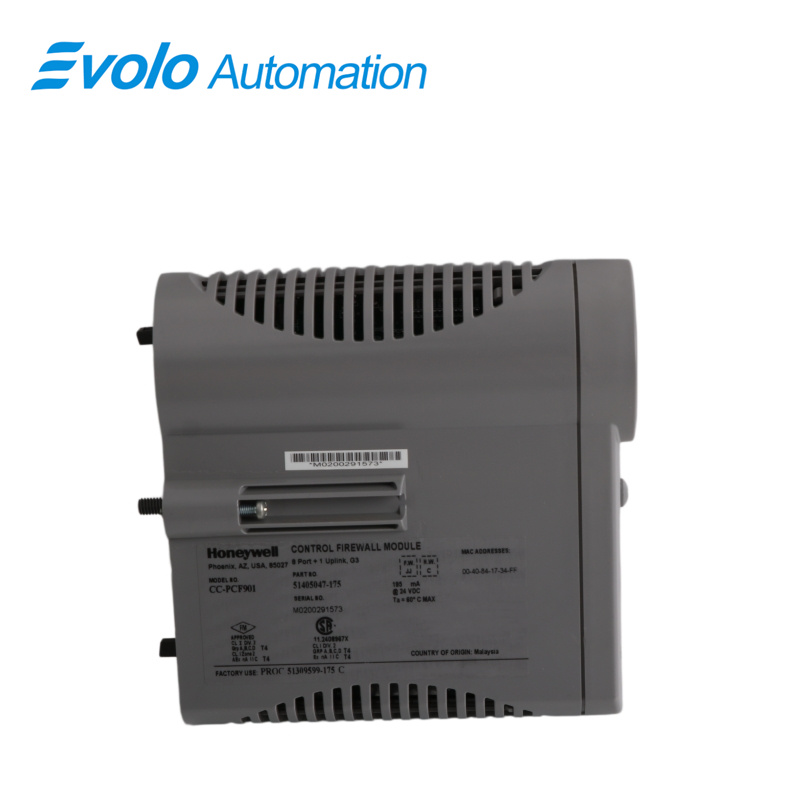

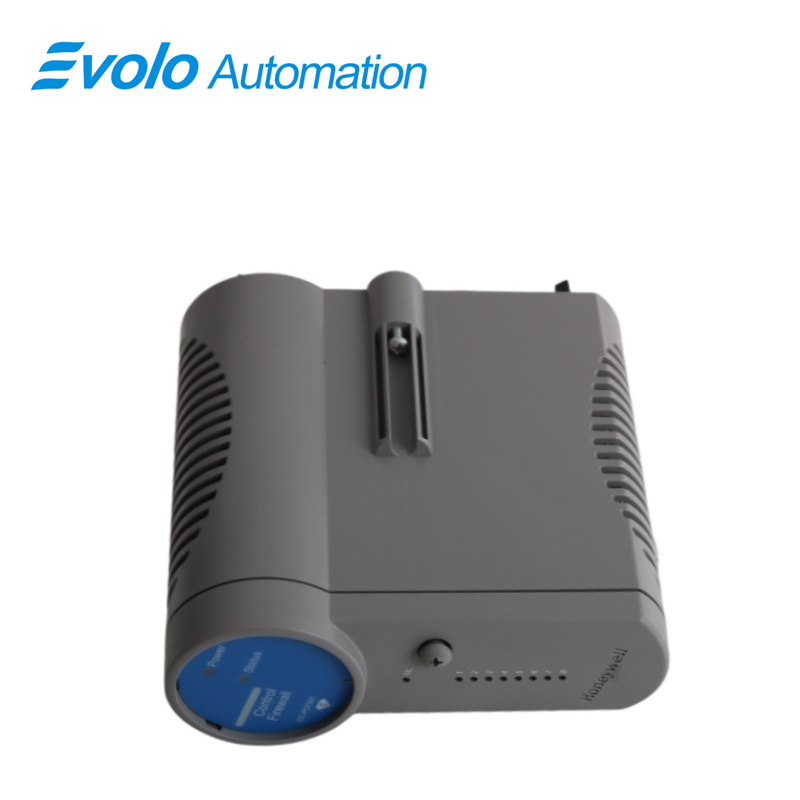

CC-PCF901 51405047-175 Control Firewall Module

Overview

Place of Origin:	USA
Brand Name:	HONEYWELL
Model Number:	CC-PCF901 51405047-175
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The Honeywell CC-PCF901 51405047-175 is a control firewall module designed to enhance network security and segmentation within Experion Series C distributed control systems. The module offers firewall protection, intrusion detection, data encryption, and user-friendly installation and configuration.

Applications

Fine chemical plants: isolate production and office networks to prevent IT virus interference with reactor control systems.

Offshore drilling platforms: ensure reliable communication between satellite links and local control networks in harsh marine environments.

Smart manufacturing plants: connect multiple PLCs on production lines while enabling logical network segmentation in automation systems.

Natural gas pressure stations: ensure secure data storage and forwarding in remote pipeline monitoring stations with reliable low-power operation.

Features

FTE optimization: Efficiently distributes FTE cables across multiple C-series FIMs to improve network performance

Modular Design: Supports flexible configuration and customization for diverse industrial applications

Programmable Logic: Engineers can configure control logic, monitoring tasks, and data processing functions

Real-Time control: Enables real-time monitoring and decision-making for process variables

Traffic Filtering: Applies predefined rules to block unauthorized access and malicious traffic

Access Management: Restricts network access based on user identity and permissions

Installing

1.Align CF9 connector pins over the connector/slot on the IOTA labeled as Control Firewall 9

Module.

2. Carefully press down on the CF9 module until it is fully seated in the connector.

3. Use the screws provided to secure the CF9 module to the IOTA. The screws must be tightened to 1.3 Newton-meters.

4. Repeat Steps 1 to 3 to install other CF9s on their IOTAs, as required.

5. This completes the procedure. Go to the next Section.

FAQ

Q: What network ports are included in the CC-PCF901 51405047-175?
A: 8 × 10/100 Mbps Ethernet ports and 1 uplink port.

Q: What are the power supply and installation requirements of the CC-PCF901 51405047-175?
A: 24 VDC power supply, installed on a CF9 IOTA base.

Q: What network protocols are supported by the CC-PCF901 51405047-175?
A: Supports TCP/IP, UDP, IPv4, and IPv6 protocols.

Q: What is the operating temperature range of the CC-PCF901 51405047-175?
A: -40°C to +85°C industrial-grade wide temperature operation.

Q: What is the humidity tolerance of the CC-PCF901 51405047-175?
A: Supports 5% to 95% non-condensing humidity environment.
