CC-PAIH02 51405038-376 High-Level HART Analog Input Module
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Specifications
- Description
- Applications
- Notable Features
- FAQ
- Recommended Products
Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
CC-PAIH02 51405038-376 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
CC-PAIH02 51405038-376 |
|
Part Type |
High-Level HART Analog Input Module |
|
Dimensions |
5.5x16.5x14.5cm |
|
Weight |
0.4 kg |
|
Input Type |
Voltage; current (2-wire or self-powered transmitters) |
|
Input Channels |
16 (12 single-ended / 4 differential) |
|
A/D Converter Resolution |
16-bit |
|
Input Range |
0–5 V; 1–5 V; 0.4–2 V; 4–20 mA (through 250 Ω) |
|
Common Mode Rejection Ratio (DC to 60 Hz, 500 Ω imbalance) |
70 dB |
|
Common Mode Voltage (DC to 60 Hz) |
-6 to +5 V peak |
|
Normal Mode Rejection Ratio (60 Hz) |
19 dB |
|
Normal Mode Filter Response |
Single-pole RC, -3 dB @ 6.5 Hz |
|
Maximum Normal Mode Input |
±30 V (differential inputs, no damage) |
|
Crosstalk (DC to 60 Hz, channel-to-channel) |
-60 dB |
|
Input Impedance (Voltage inputs) |
>10 MΩ (powered) |
|
Input Scan Rate |
50 ms |
|
Hardware Accuracy (23.5°C ±2°C) |
±0.075% of full scale |
|
Hardware Accuracy (0 to 60°C) |
±0.15% of full scale |
|
Transmitter Field Power Conditioning |
Individually protected current limiting circuits (Class 1 Div 2, non-incendive; no fusing required) |
Description

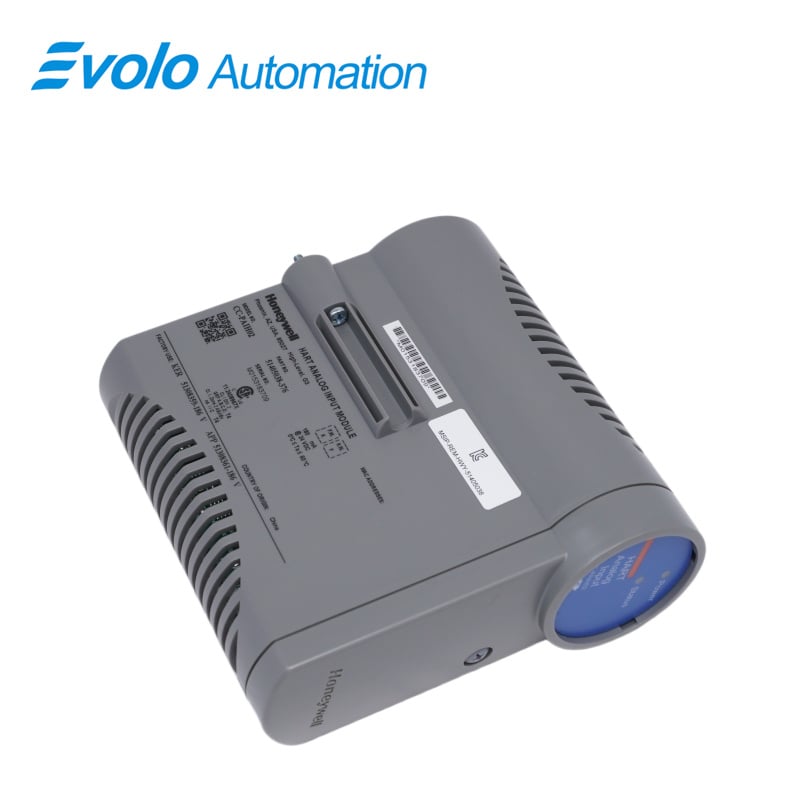

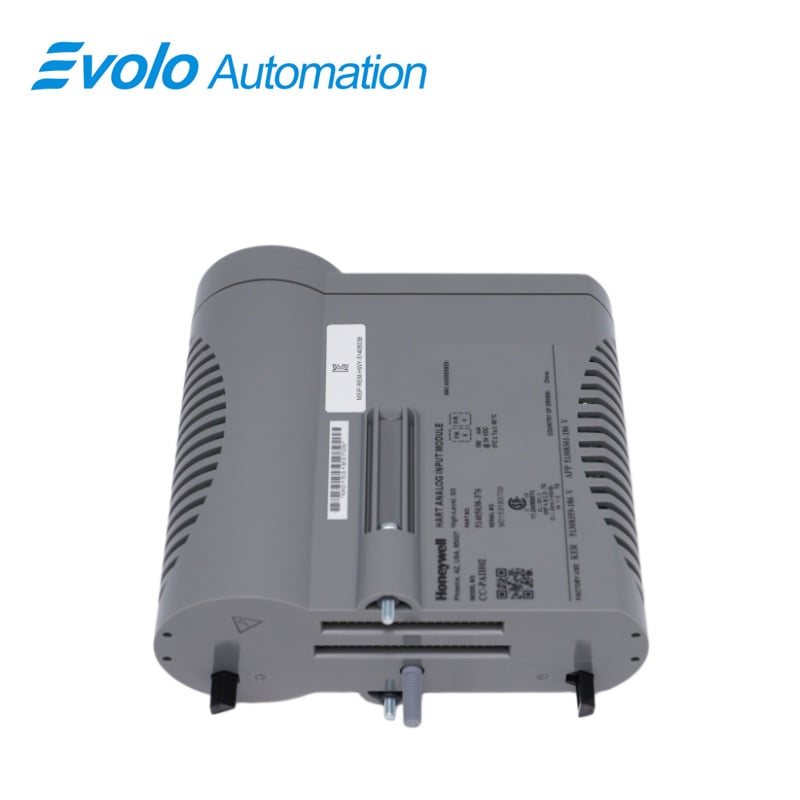

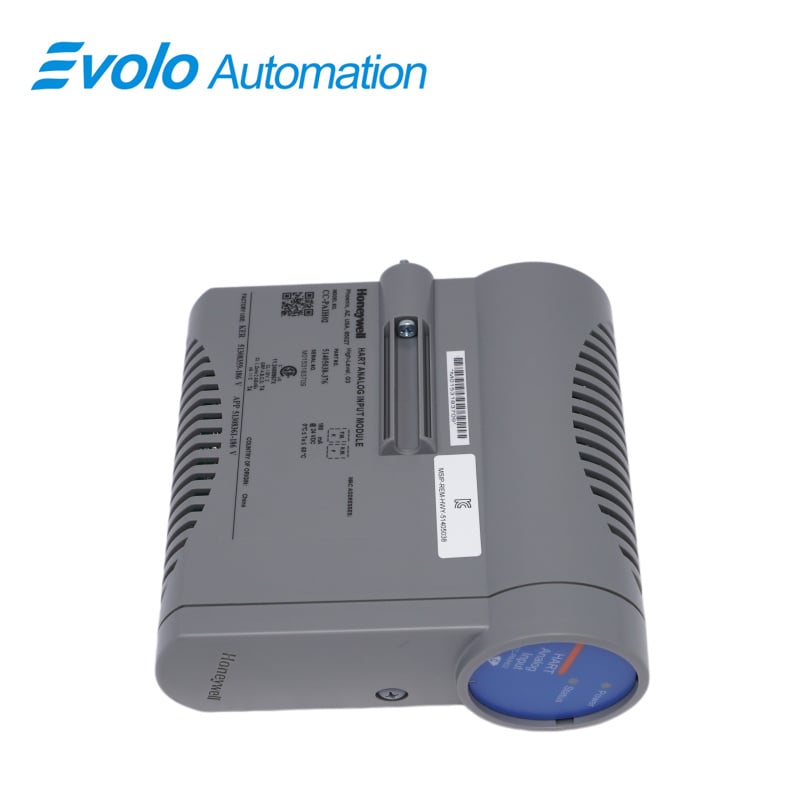

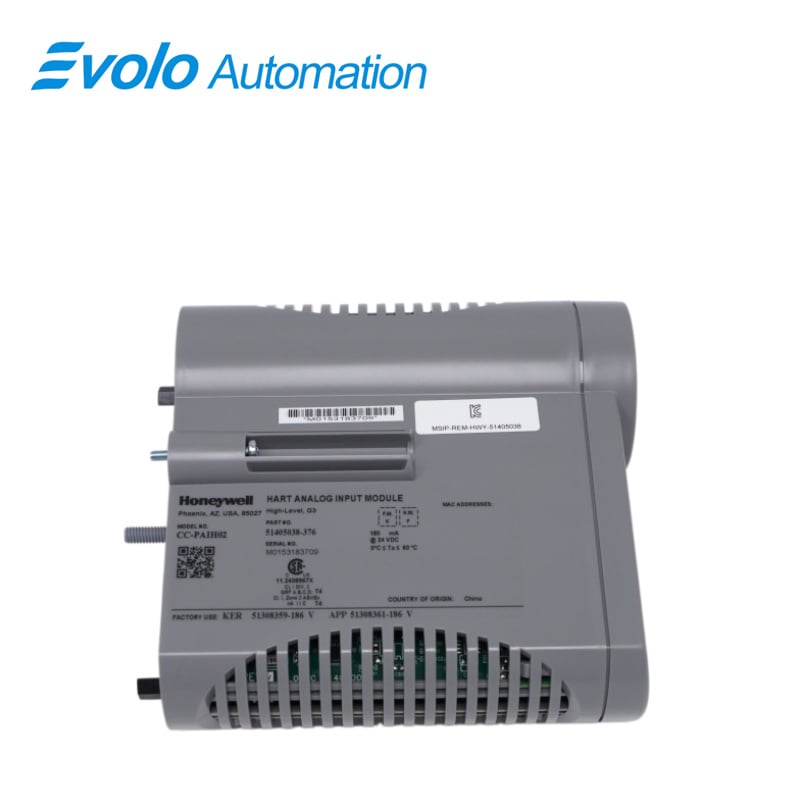

Honeywell CC-PAIH02 51405038-376 is a high-performance analog input module within the Experion PKS C300 system, used for precise process data acquisition and intelligent field device communication. It supports multiple input channels, combining single-ended and differential configurations to handle a wide range of industrial signal types.
Applications
Oil refining plant: uses HART diagnostics for real-time pressure and flow transmitter monitoring to enable predictive maintenance.
Fine chemical plant: high-resolution acquisition ensures precise monitoring of small temperature and pressure fluctuations in chemical reactions.
Biopharmaceutical plant: integrates HART instruments with asset management software for remote calibration and compliant electronic batch record monitoring.
Notable Features
Extensive self-diagnostics
Optional redundancy
Open Wire Detection
Supplies non-incendive field power
Non-incendive Power
HART-capable, multivariable instruments and multiple modems for fast collection of control variables
Fast loop scan
PV protection through an open wire detection diagnostic
Open-wire Bad PV Detection
FAQ
Q: What signals and channels are supported by the CC-PAIH02 51405038-376?
A: Supports voltage and current inputs with 16 channels (12 single-ended / 4 differential).
Q: What are the accuracy and resolution of the CC-PAIH02 51405038-376?
A: Uses 16-bit resolution with ±0.075% full-scale hardware accuracy at room temperature.
Q: What are the input ranges and impedance of the CC-PAIH02 51405038-376?
A: Supports ranges such as 0–5 V and 4–20 mA, with powered voltage input impedance >10 MΩ.
Q: How fast is the sampling scan speed of the CC-PAIH02 51405038-376?
A: Full-channel input scan sampling cycle is only 50 ms.
Q: How strong is the noise immunity of the CC-PAIH02 51405038-376?
A: Common-mode rejection ratio is 70 dB, normal-mode rejection ratio is 19 dB, and crosstalk is as low as -60 dB.
