Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
9907-018 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
9907-018 |
|
Product Type |
Load Sharing and Speed Control |
|
Dimensions |
38.5 × 18 × 6 cm |
|
Weight |
2.72 kg |
|
Operating Voltage |
20–40 VDC |
|
Current Signal |
0–200 mA |
|
Power Consumption |
≤15W |
|
Storage Temperature Range |
-40°C to +85°C |
|
Certifications |
CE-marked; CSA certified |
|
Chassis |
Metal |
|
Cables |
Shielded Twisted Pairings |
|
Engine Operation |
Gasoline / Diesel |
|
Turbine Operation |
Steam / Gas |
|
Optional Deceleration Ramp |
No |
|
Series |
2301A Series |

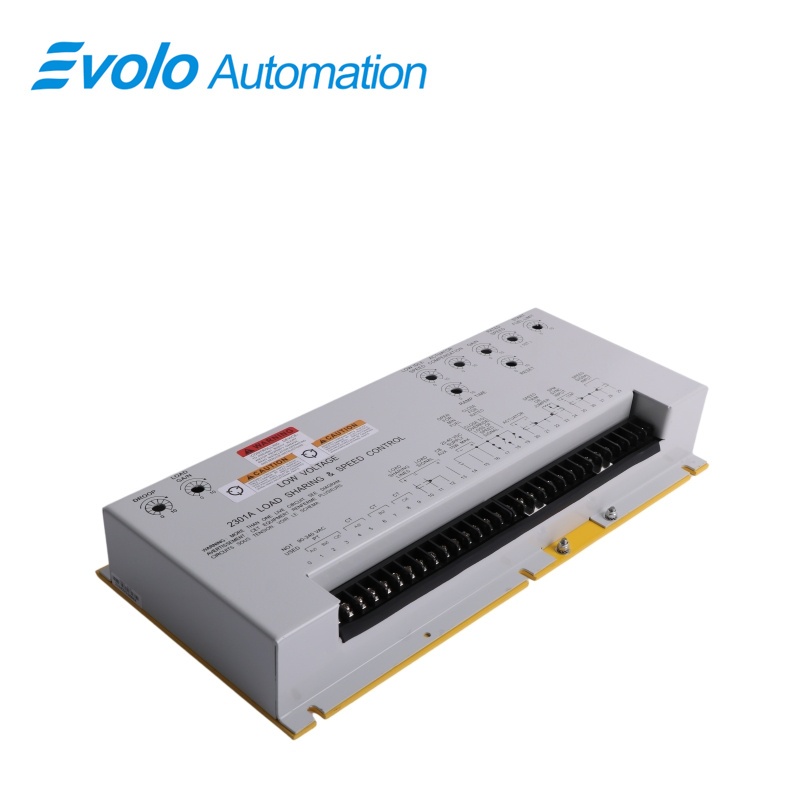

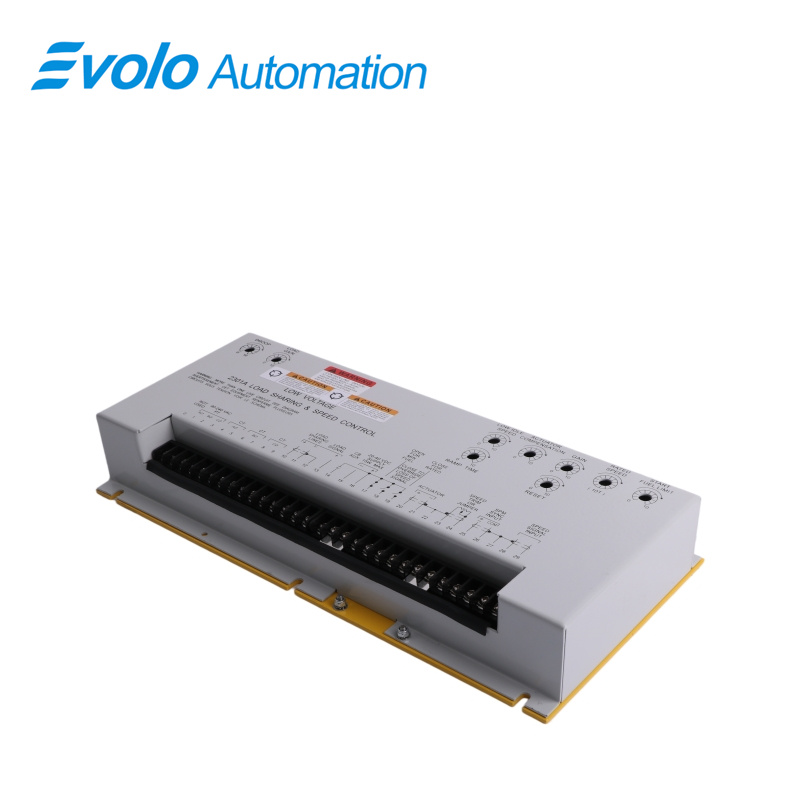

Description
The 9907-018 is part of the Woodward 2301A series, used to deliver precise speed and load-sharing control for diesel engines, gasoline engines, gas turbines, steam turbines, and similar applications.
Applications
Power Plants: Distribute active load among parallel generators.
Diesel Power Plants: Regulate engine speed and stabilize grid output.
Thermal Power Plants: Control steam turbine constant speed or droop operation.
Petrochemical Plants: Balance gas turbine loads for process compressors.
Shipbuilding Industry: Core speed control for marine engines and generators.
Operational Features
Load Sensor: Uses a self-contained load sensor for optimized functions.
Controlled Equipment: Can control load sharing and speed of:
Diesel engines.
Gasoline engines.
Gas engines.
Steam turbines.
Gas turbines.
Actuator Compatibility: The 0-200mA signal is designed for use with Woodward EG, PB, EGB, 2301, and TM actuators.

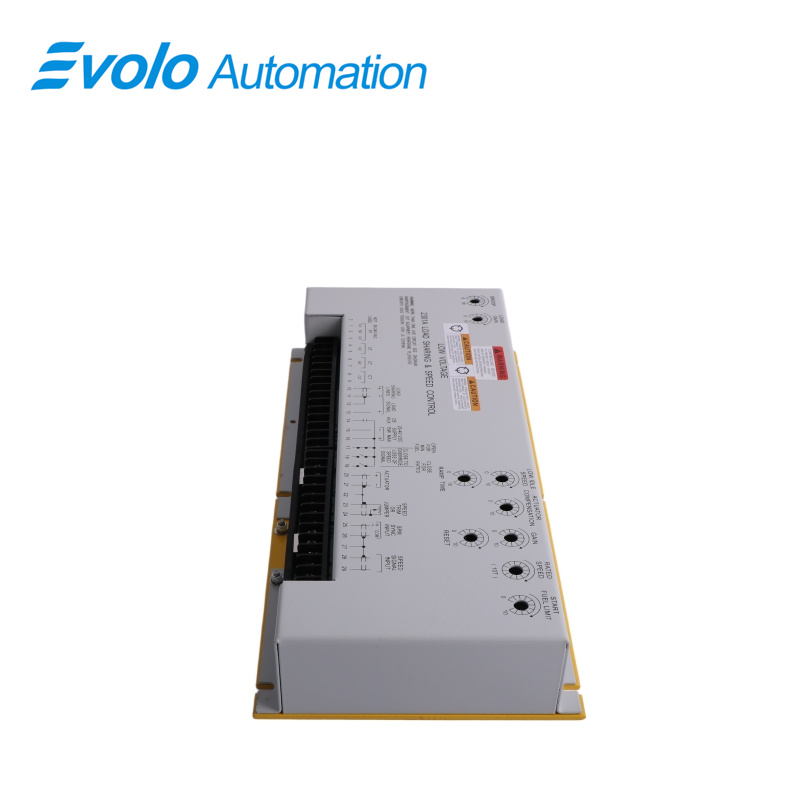

Accessibility: All potentiometers are easily accessible from the front of the unit housing.
FAQ
Q: Which CE Directives does the 9907-018 comply with?
A: Complies with 89/336/EEC (May 3, 1989) and 73/23/EEC (Feb 19, 1973).
Q: What is the low idle speed rating for this model?
A: Rated for 55% low idle speed.
Q: What is the operating voltage range of the 9907-018 module?
A: Operates at 20–40 VDC input.
Q: Can the 9907-018 control diesel engines and gas turbines?
A: Yes, supports gasoline, diesel, steam, and gas turbine control.
Q: What is the output current and power consumption of the 9907-018?
A: Outputs 0–200mA with ≤15W power consumption.
