Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
9905-969 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
9905-969 |
|
Product Type |
Linknet 6 Channel Analog Input Module |
|
Dimensions |
22 × 11.5 × 7 cm |
|
Weight |
0.54 kg |
|
Display Type |
2 Line × 24 Characters |
|
Accuracy |
1% at 25°C |
|
Power Supply Input |
18 to 32 VDC |
|
Network to I/O Channel |
277VAC |
|
Power Supply Input to Network |
277VAC |
|
Power Supply Input to I/O Channel |
500V |
|
Humidity Standards |
20°C and 55°C at 95% RH for 48 Hours |
|
Input Voltage |
+24VDC at 1A |
|
Keypad/Display |
30 Multi-function Keypad |
|
Temperature Range |
-40°C to +55°C |
|
Power Consumption |
3.1W |
Description

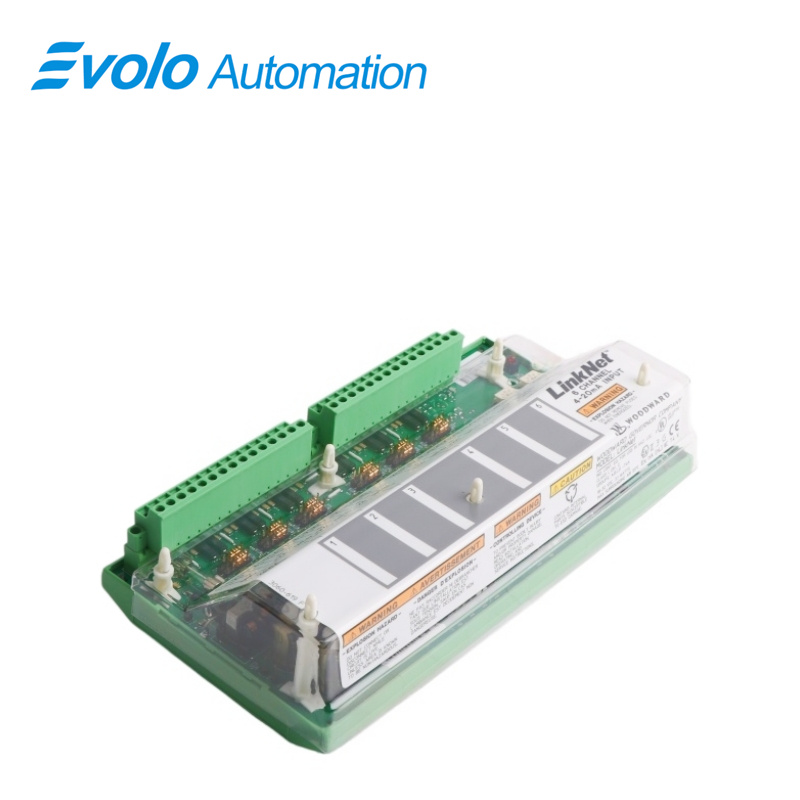

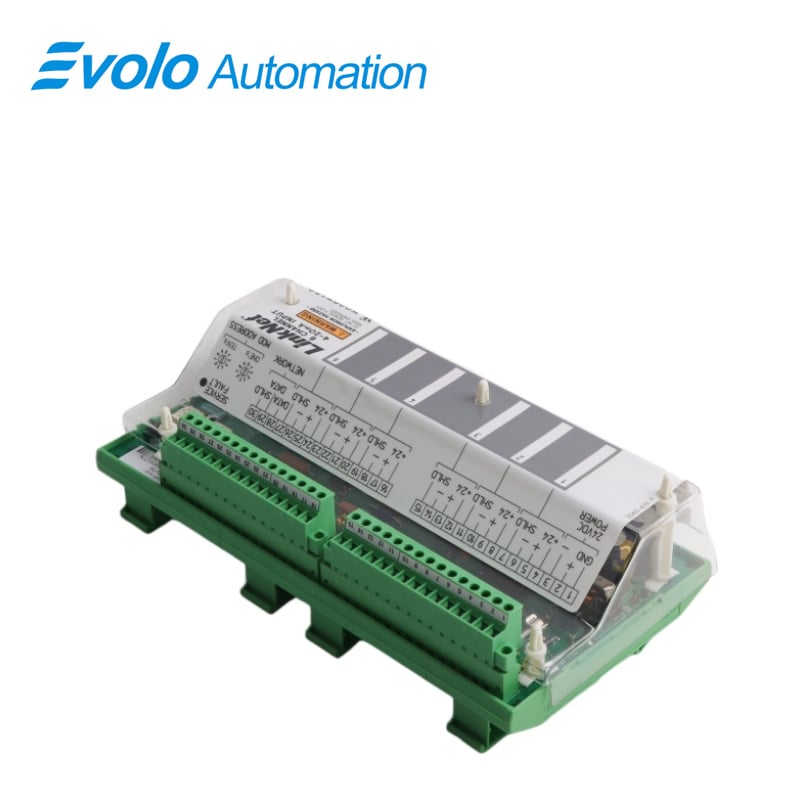

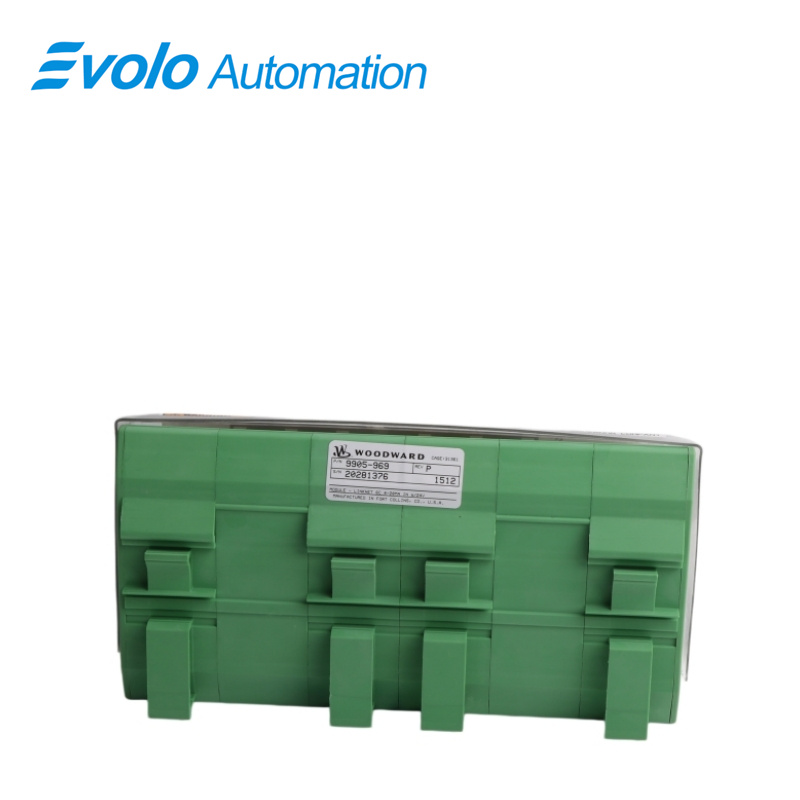

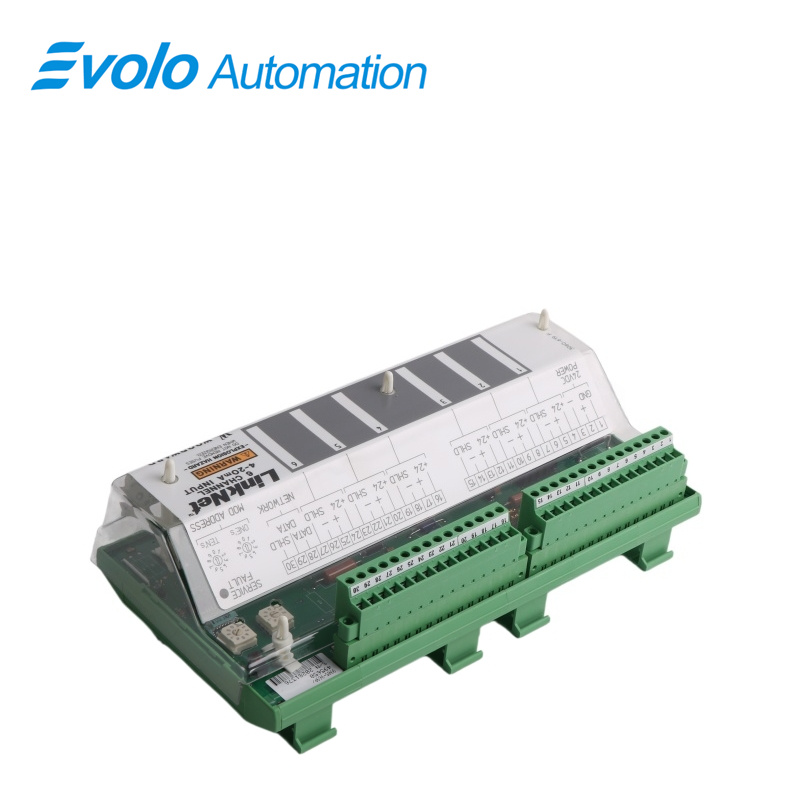

9905-969 is a Linknet 6 Channel Analog Input Module manufactured and designed by Woodward.The NetCon control system can use low-cost, simple-to- implement distributed I/O capabilities thanks to the LINKnet distributed I/O network. LINKnet I/O modules are ideally suited for non-turbine control tasks like sequencing and monitoring even though they are slower and less potent than NetCon I/O modules.
Applications
Petrochemical Plants: Uses high isolation to safely process transmitter signals in refinery areas.
Thermal Power Plants: Uses onboard display and keypad for quick calibration of turbine loops.
Water Treatment Plants: Operates in high humidity while monitoring flow and level via networks.
Natural Gas Plants: Performs reliably in outdoor control cabinets across wide temperature ranges.
Metallurgy Plants: Protects control systems from high-voltage electrical interference.
Network architecture
One NetCon module powers four independent network trunks, supporting up to 60 I/O modules per trunk. Each LINKnet module connects to the NetCon controller through a single twisted-pair wire, allowing one controller to manage up to 240 LINKnet modules.
The NetCon controller features four channels, each operating in a separate rate group defined by the MOE coder program. All nodes within the same network run at the same speed.
Each LINKnet module uses two rotary switches for network address setup. The switch setting must match the module number (1–60) configured in the MOE coder.
Hardware
There is a single, plug-in NetCon module and numerous I/O modules in every network. Thermocouple, RTD, discrete, (4 to 20 mA), and other I/O modules are included, as are relay output and (4 to 20 mA) I/O modules. Six channels are present on each of the analog modules. Eight channels make up the relay output module, whereas 16 channels make up the discrete input module.
FAQ
Q: What is the display specification of 9905-969?
A: The display type is 2 lines × 24 characters.
Q: What is the measurement accuracy of 9905-969 at 25°C?
A: Its accuracy at 25°C is 1%.
Q: How many keys does the keypad of 9905-969 have?
A: The device is equipped with a 30-key multifunction keypad.
Q: What is the allowable operating temperature range of 9905-969?
A: The allowable operating temperature range is -40°C to +55°C.
Q: What is the rated operating power consumption of 9905-969?
A: Its operating power consumption is 3.1 W.
