Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
9905-968 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
9905-968 |
|
Product Type |
6 Channel Analog Input Module |
|
Dimensions |
22.5 × 11.5 × 7.2 cm |
|
Weight |
0.54 kg |
|
Channels |
6-Channel |
|
Signal Type |
4-20mA |
|
Loop Power |
WITHOUT 24 V LOOP |
|
Operating Voltage |
24VDC |
|
Input Voltage Range |
18-32VDC |
|
Power Consumption |
7.9W |
|
Maximum Ambient Temperature |
55°C |
|
Certification Standard |
Class I Div 2 Groups A, B, C, D |
|
Temperature Code |
T4A |
|
Communication Interface |
Linknet Network |
Description

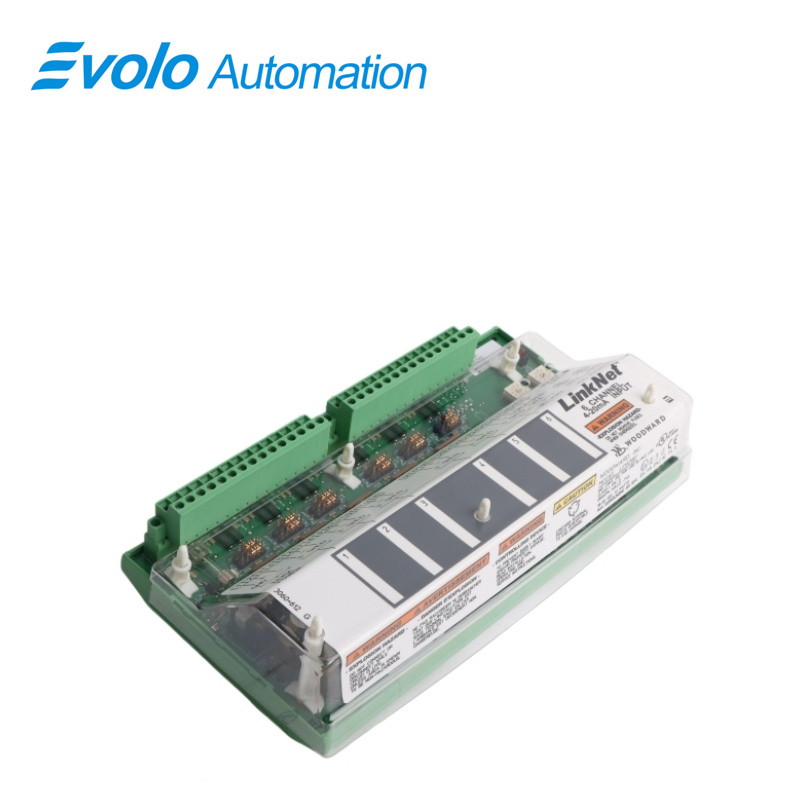

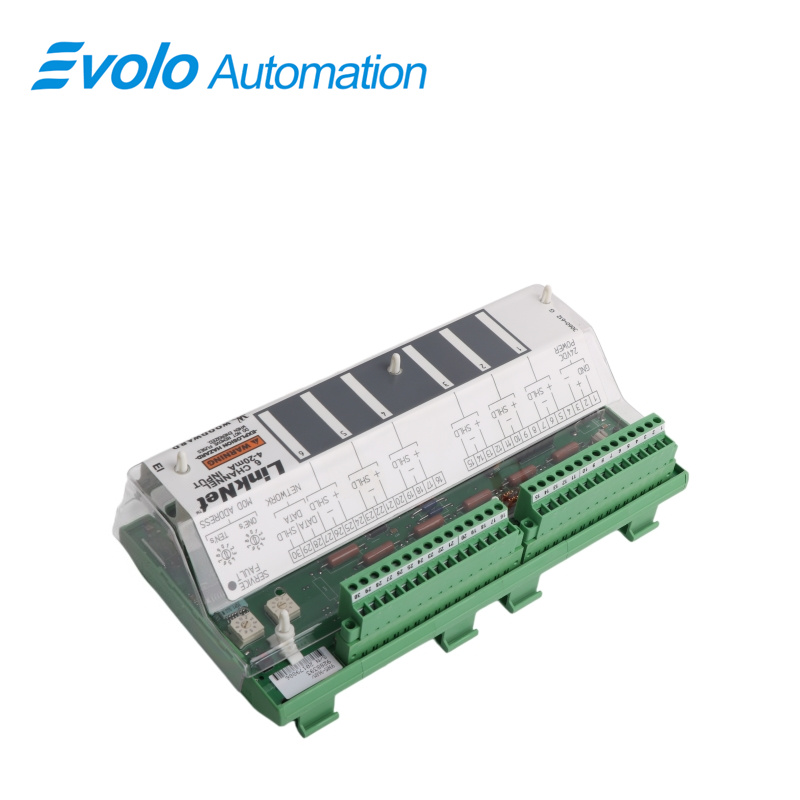

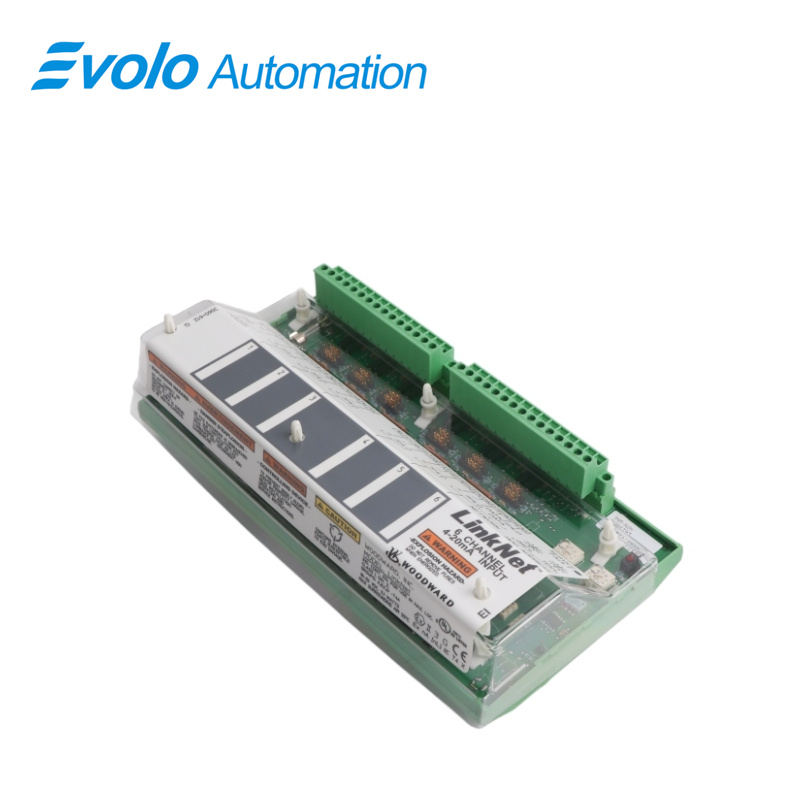

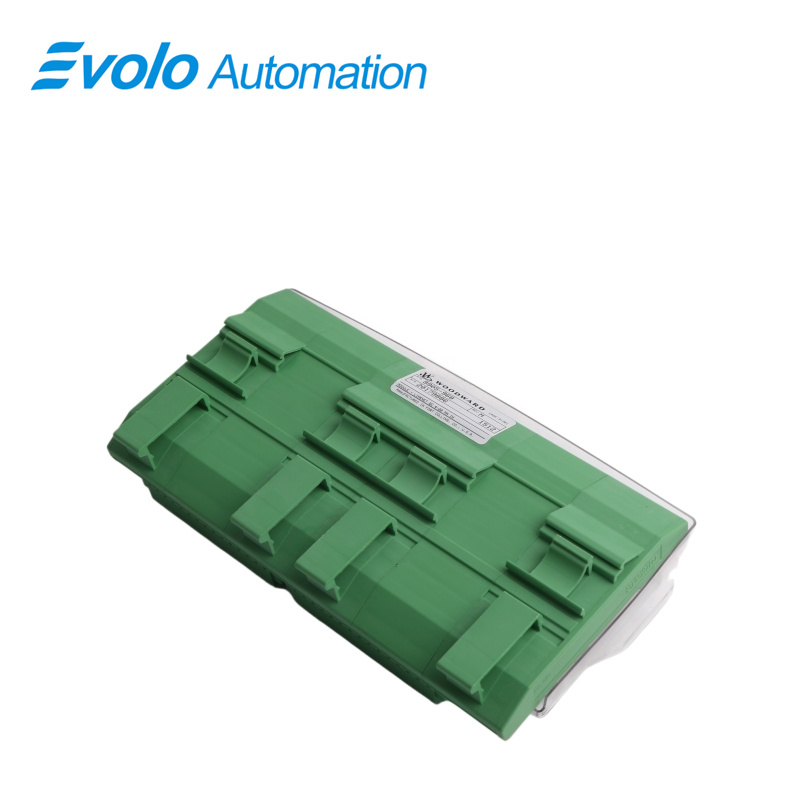

9905-968 is a 6-Channel Analog Input Module manufactured by Woodward and used in Gas Turbine Control Systems. A channel analog input module is an important component in turbine control systems. It is used to measure and process analog signals from various sensors and transducers, such as temperature sensors, pressure sensors, and position sensors, which are installed on the turbine or its associated equipment.
Applications
Petrochemical Plants: Safely monitors transmitter data in hazardous environments.
Thermal Power Plants: Tracks boiler and steam pressure conditions.
Water Treatment Plants: Collects flow and chemical level signals.
Natural Gas Plants: Transmits critical sensor data through network systems.
Pharmaceutical Plants: Maintains stable environmental monitoring in cleanrooms.
Feature
Multiple Channels: The module typically has multiple channels to support the measurement of signals from various sensors and transducers.
Signal conditioning: The module includes signal conditioning circuitry to filter, amplify, and scale the signals from the sensors, ensuring accurate and reliable measurements.
High Accuracy: The module is designed to provide high-accuracy measurements, even in harsh environments with high levels of electrical noise and interference.
FAQ
Q: How many channels does 9905-968 have?
A: The device provides 6 channels.
Q: What type of signal does 9905-968 receive?
A: It supports 4–20 mA signal input.
Q: What is the input voltage range of 9905-968?
A: The allowable input voltage range is 18–32 VDC.
Q: What is the maximum allowable ambient temperature for 9905-968?
A: The maximum operating ambient temperature is 55°C.
Q: What explosion-proof certification does 9905-968 comply with?
A: It complies with Class I Division 2 Groups A, B, C, and D standards.
