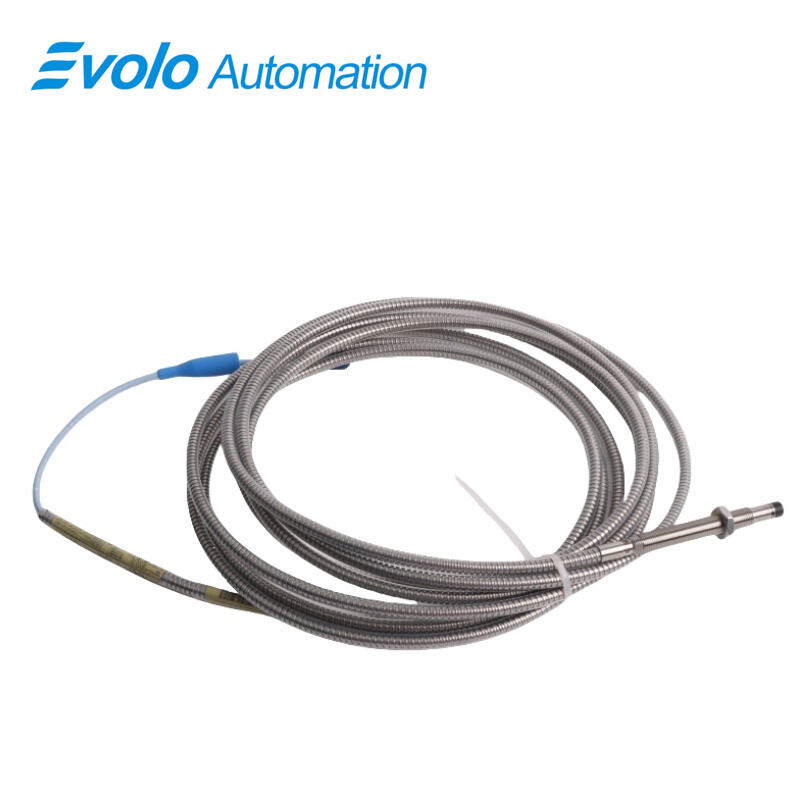

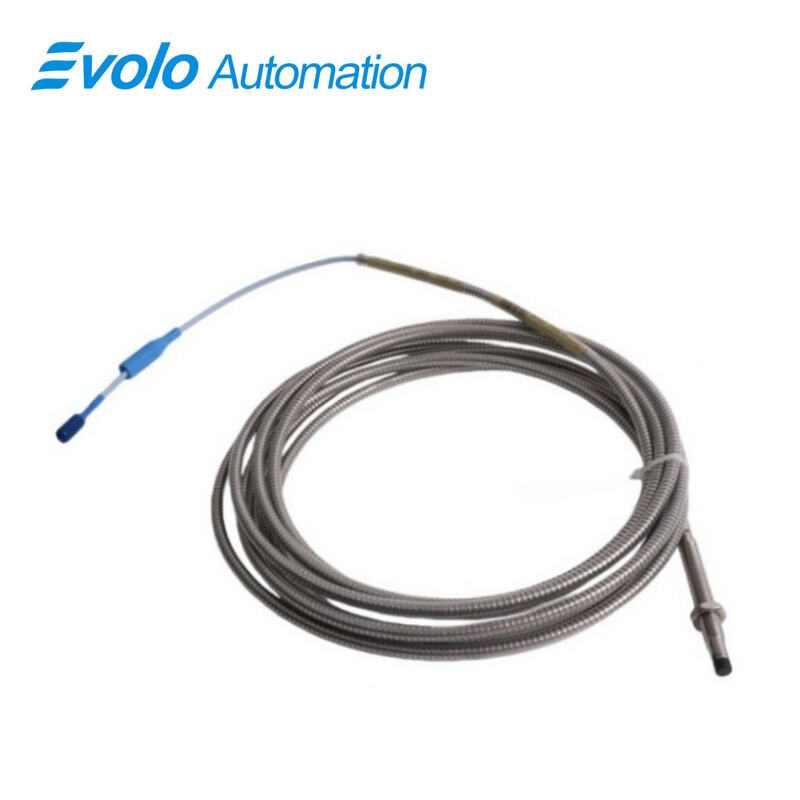

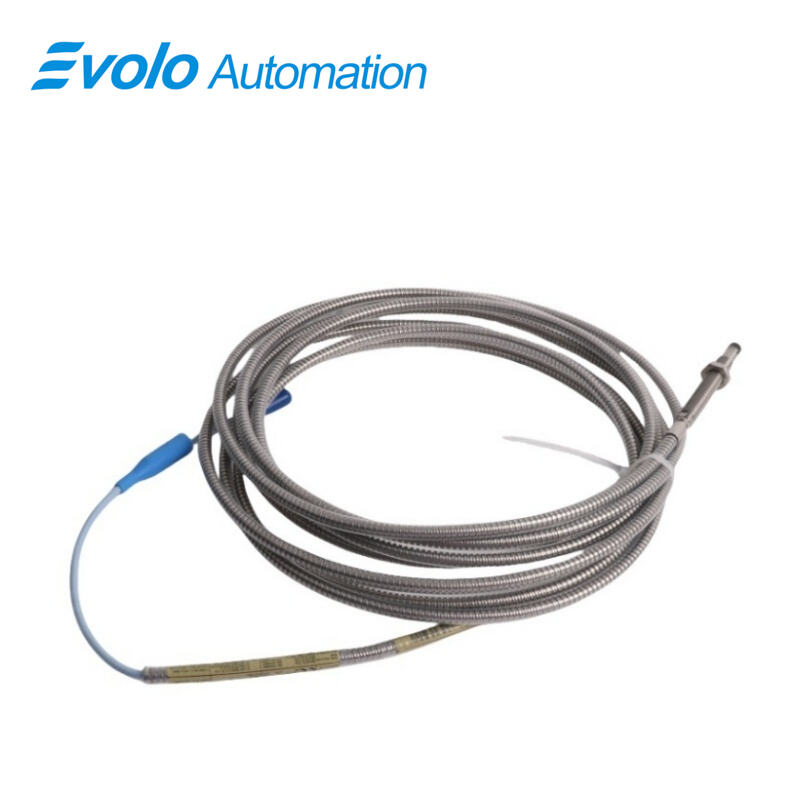

330104-01-14-05-01-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-01-14-05-01-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-01-14-05-01-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current sensor designed for industrial automation and condition monitoring applications. With a 140 mm overall case length and 10 mm unthreaded length, this probe provides accurate position and vibration measurements with a 2 mm linear range (80 mils). The output voltage is directly proportional to the distance between the probe tip and the conductive surface, making it ideal for real-time monitoring of rotating machinery such as turbines, pumps, compressors, and motors.

Equipped with a Miniature coaxial ClickLoc connector with protector and a 0.5-meter standard cable, the probe ensures robust signal transmission with minimal noise, even in high-vibration environments. It operates reliably in extreme temperatures from -52°C to +177°C (-62°F to +350°F) while maintaining supply sensitivity below 2 mV per volt of input voltage. The probe’s M10x1 threaded case and 15 mm maximum thread engagement provide secure mounting. Patented TipLoc molding strengthens the bond between the probe tip and body, and the CableLoc design offers 330 N (75 lbf) pull strength, ensuring secure cable attachment. Fully CSA, ATEX, and IECEx certified, the probe is API 670 compliant, and it is fully interchangeable with other 3300 XL and standard series components, reducing installation and calibration time. Optional FluidLoc cabling prevents oil or fluid ingress, extending the operational life of both probe and machinery.

Applications

Application 1: Turbine Shaft Vibration Monitoring

Provides real-time vibration analysis for turbine shafts, detecting misalignment, imbalance, and early-stage faults. Can reduce unscheduled downtime by up to 15% in critical power generation equipment.

Application 2: Rotor Position Measurement

Measures axial and radial shaft displacement with high precision, ensuring optimal rotor alignment in pumps, compressors, and motors, critical for automated control systems.

Application 3: Keyphasor Reference Generation

Generates accurate Keyphasor pulses for speed and phase measurement, supporting predictive maintenance and automation diagnostics, enhancing machinery reliability.

Application 4: Bearing Condition Monitoring

Monitors fluid-film and hydrodynamic bearings for wear or lubrication issues, allowing preventive maintenance and extending bearing operational life by up to 15%.

Application 5: Hazardous Area Operation

With CSA, ATEX, and IECEx approvals, this probe can safely operate in flammable or explosive environments, delivering accurate vibration and position readings without safety compromise.

Specifications

Competitive Advantage

Competitive Advantage 1: Extreme Temperature Performance

Operates effectively from -52°C to +177°C, ensuring stable and accurate measurements in high-temperature turbines and compressors.

Competitive Advantage 2: Robust Mechanical Design

Patented TipLoc and CableLoc technologies ensure 330 N pull strength, providing secure cable and probe attachment in high-vibration and high-speed industrial machinery.

Competitive Advantage 3: Full Interchangeability

Compatible with all 3300 XL and standard series probes, extension cables, and Proximitor sensors, eliminating the need for component-specific calibration.

Competitive Advantage 4: High Signal Accuracy

Low output resistance (50 Ω) and extension cable capacitance (69.9 pF/m) deliver low-noise, precise voltage signals, critical for automation systems.

Competitive Advantage 5: Optional Fluid Protection

The FluidLoc option prevents oil and fluid ingress, reducing maintenance cycles and protecting sensitive components, extending service life in lubricated machinery.
