9200-01-01-10-00 Two-wire Transducer , China 9200-01-01-10-00 Two-wire Transducer Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	9200-01-01-10-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Transducer Mounting Angle/Minimum Operating Frequency Option	0 ±2.5, 4.5 Hz (270 cpm)
Connector/Cable Option	Top Mount (no cable)
Mounting Base Option	Circular; M10X1 stud
Agency Approval Option	Without fittings
Dimension:	4.2x4.2x11.5cm
Weight:	0.46kg

Description

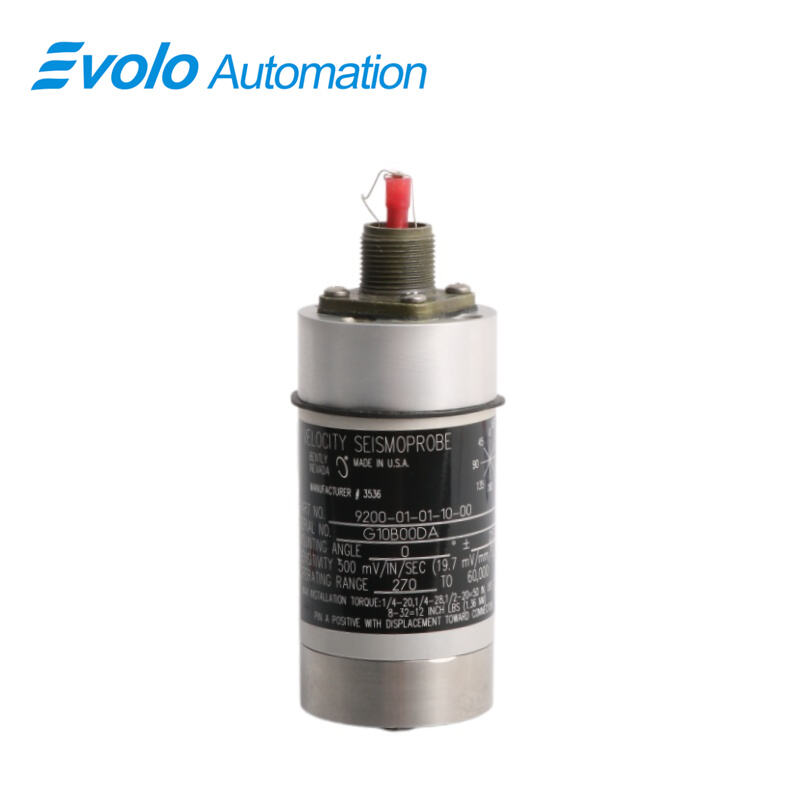

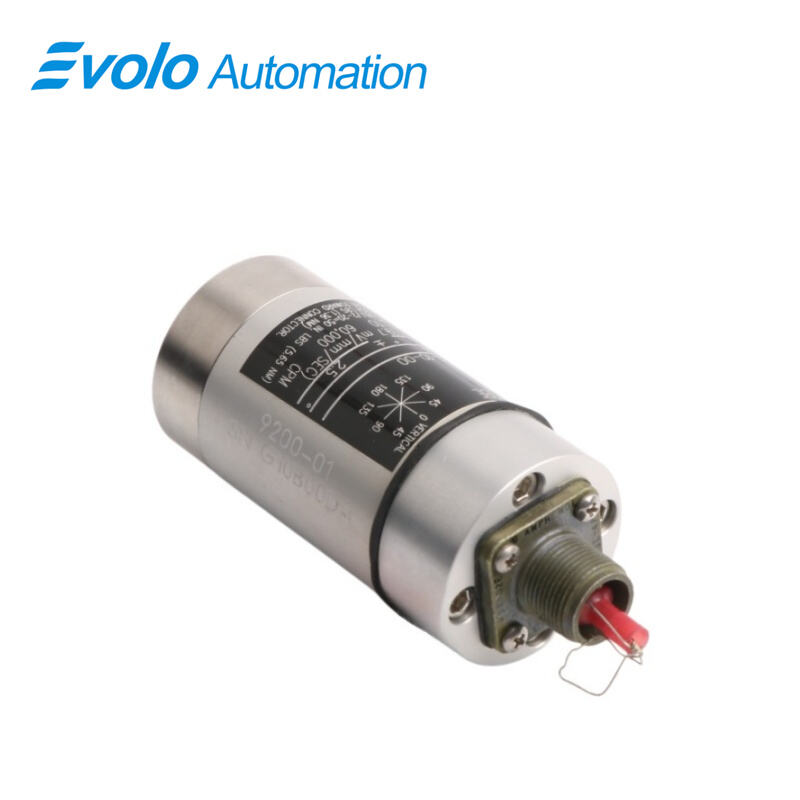

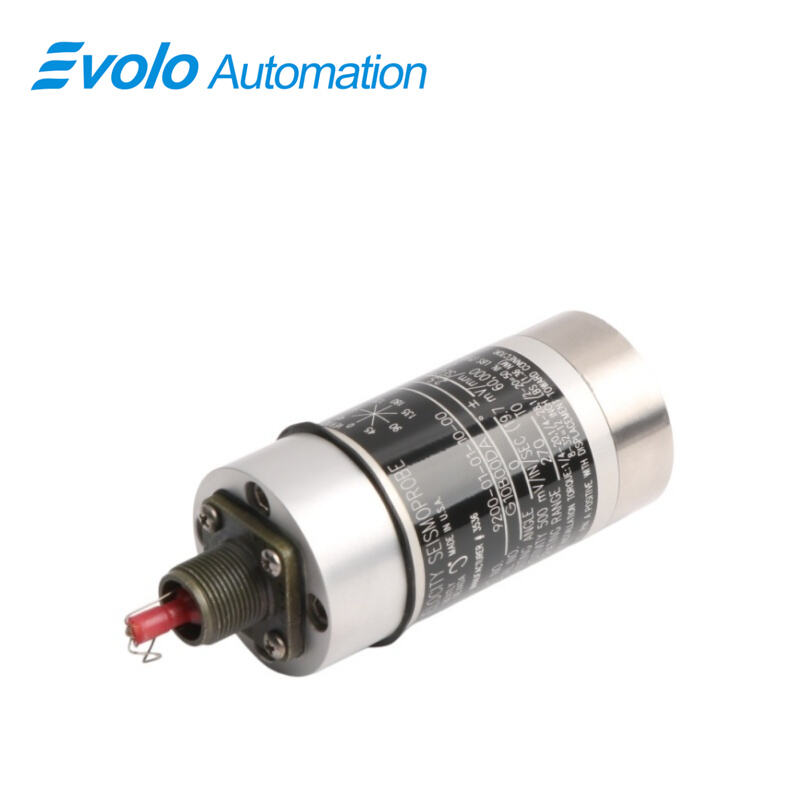

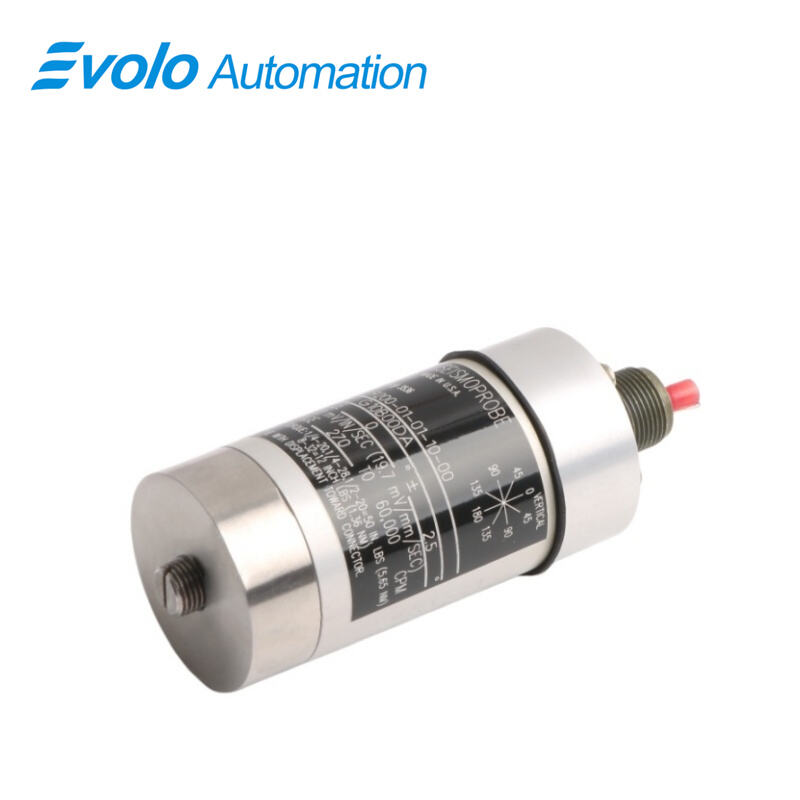

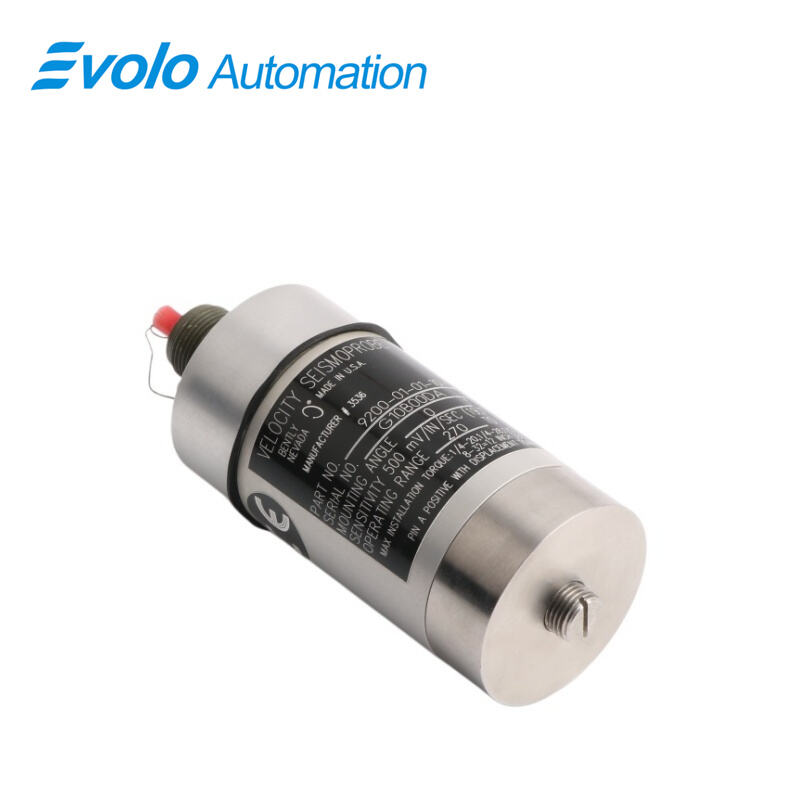

The 9200-01-01-10-00 Two-wire Transducer is a moving-coil Seismoprobe velocity transducer designed for measuring absolute bearing housing, casing, or structural vibration in automated systems. This two-wire design provides a voltage output directly proportional to vibration velocity, with a sensitivity of 20 mV/mm/s (±5%) and frequency response from 4.5 Hz to 1 kHz. The 9200-01-01-10-00 withstands shocks up to 50 g along non-sensitive axes and maintains transverse sensitivity within ±10%. Its anodized aluminum case, neoprene gasket, and cadmium-plated top mount connector support dust and moisture-resistant installations. Operating temperatures range from -29°C to +121°C, with relative humidity up to 95% non-condensing. The transducer mounts on a circular M10X1 stud base and requires no external power, making the 9200-01-01-10-00 ideal for continuous automated monitoring or portable measurement applications. Integral cables and optional connectors enhance adaptability for automated systems. Coil resistance is 1.25 kΩ ±5%, with amplitude linearity ±5% over 0.254–127 mm/s. The 9200-01-01-10-00 Two-wire Transducer integrates easily with data acquisition and diagnostic instruments, providing precise vibration feedback for process control and machinery protection in industrial automation environments.

Applications

Monitor Bearing Vibration in Rotating Machinery
The 9200-01-01-10-00 measures absolute bearing vibration on motors, pumps, and compressors. Its 20 mV/mm/s sensitivity and frequency response from 4.5 Hz to 1 kHz enable precise detection of shaft motion and early mechanical wear.

Structural Vibration Analysis in Automation Systems
Install the 9200-01-01-10-00 on frames, housing, or casings to track vibration patterns in automated manufacturing equipment. The two-wire design allows direct voltage output to data acquisition systems for real-time monitoring.

Portable Vibration Measurement for Maintenance Diagnostics
The 9200-01-01-10-00 does not require external power, making it ideal for handheld measurement tools or temporary monitoring setups. Integral cable and connector options enhance flexibility in automation maintenance routines.

Environmental and Process Monitoring
The 9200-01-01-10-00 withstands -29°C to +121°C and relative humidity up to 95%, allowing it to operate reliably in automated plants exposed to temperature variations and moisture.

Specifications

Sensitivity	20 mV/mm/s (500 mV/in/s), ±5% when properly terminated and oriented at the angle of calibration.
Calibration Load	10 kΩ Terminal "A" to "B" Output taken across pins "A" and "B
Sensitivity Temperature Coefficient	0.2%/°C
Frequency response	From minimum operating frequency (see Ordering Information) to 1 kHz (60,000 cpm); +0, -3dB typical.
Velocity Range	25 mm/s (1 in/s) (at +22 °C of casing vibration at 100 Hz with a 10 kΩ load.
Coil Resistance	1.25 kΩ ±5%
Amplitude Linearity	±5% from 0.01 to 5.0 in/s (0.254 to 127 mm/s) at 100Hz (6000CPM)
Shock resistance	Withstands 50 g peak maximum acceleration along non-sensitive axis.
Transverse sensitivity	±10% maximum of the sensitive axis sensitivity at 100 Hz and 1.0 in/s (2.54 cm/s)
Operating and Storage Temperature	-29°C to +121°C (-20°F to +250°F).
Environment	Dust and moisture resistant.
Relative Humidity	To 95%, noncondensing. 100%, non-submerged, when ordered with integral cable.
Maximum Use Altitude	2000 m (6,561 ft) above sea level.
Case and Adapter Material	Anodized aluminum A204
Gasket Material	Neoprene
Connector Material（Top and Side Mount Options）	Cadmium-plated aluminum, neoprene, and silver-plated copper
Connector Material（Terminal Block Option）	Polyphenylene Sulfide with nickel-plated copper contacts.

Competitive Advantage

Direct Voltage Output for Automation Systems
The 9200-01-01-10-00 produces voltage proportional to vibration velocity, compatible with PLCs, DAQs, and automated control systems for precise feedback.

Durable Design for Harsh Environments
Anodized aluminum case, neoprene gasket, and cadmium-plated connector protect the 9200-01-01-10-00 from dust, moisture, and corrosive conditions without extra enclosures.

High Shock Resistance
Withstands 50 g peak acceleration along non-sensitive axes, making the 9200-01-01-10-00 suitable for automated machines with dynamic or impulsive loads.

Easy Integration with Test Instruments
Mounts on a circular M10X1 stud base; compatible with integral cables and connectors for rapid connection to vibration monitoring devices.

Accurate Linear Response
Amplitude linearity ±5% across 0.254–127 mm/s and transverse sensitivity ±10% ensures the 9200-01-01-10-00 provides repeatable vibration data for automated diagnostics.
