Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
8271-467 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
8271-467 |
|
Product Name |
Load Sharing Speed Control Module |
|
Dimensions |
38.7 × 17.8 × 4.5 cm |
|
Weight |
1.88 kg |
|
Operating Voltage |
115–230 VAC |
|
Power Consumption |
10–25 W |
|
Operating Temperature |
-40°C to +70°C |
|
Humidity |
0–95% RH (non-condensing) |
Description

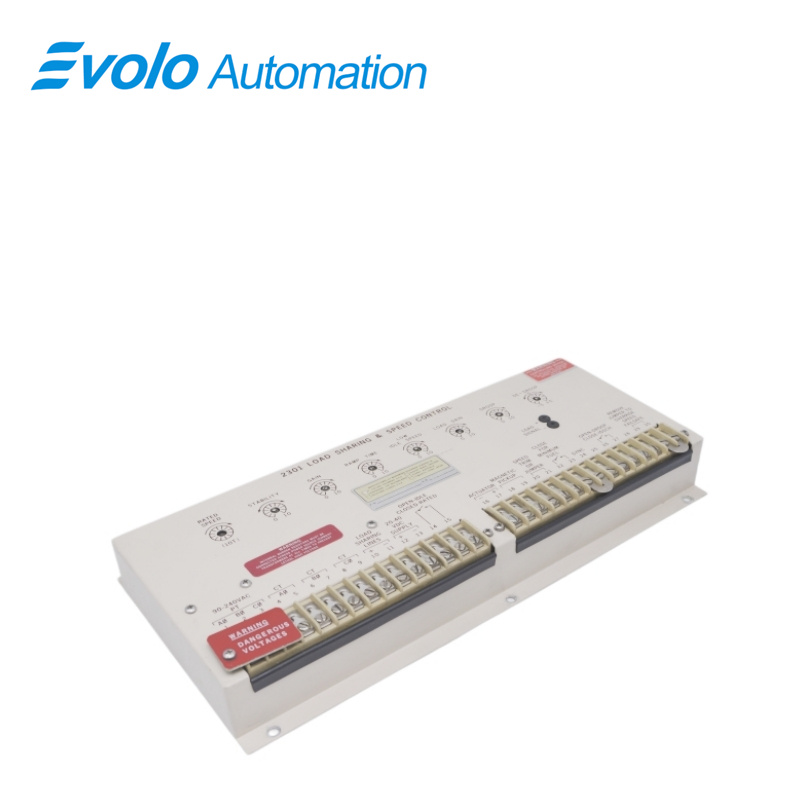

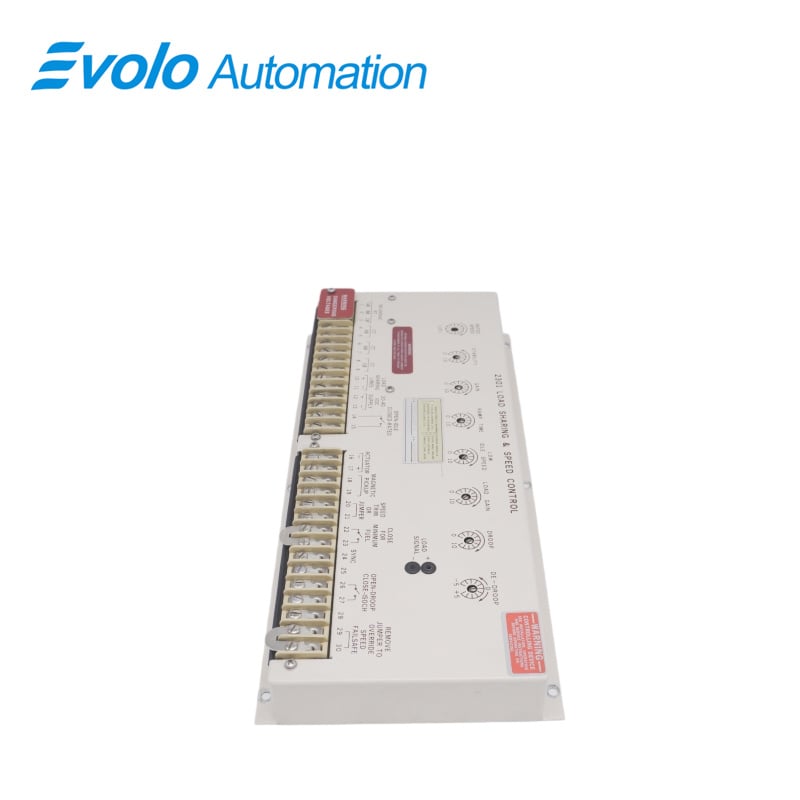

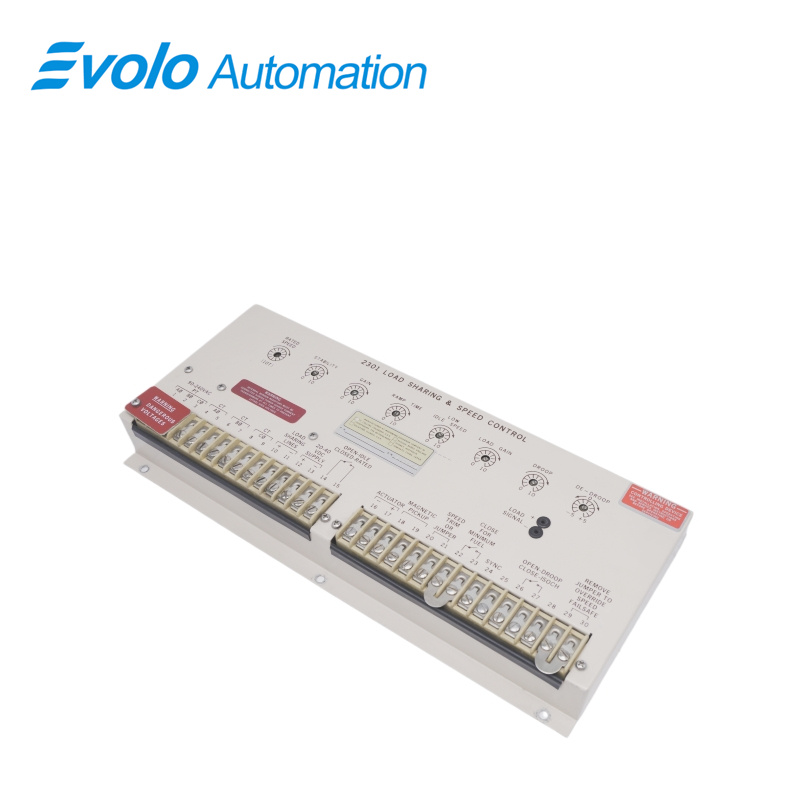

The 8271-467 is a Load Sharing Speed Control Module used for synchronizing and balancing load distribution across multiple generator sets or prime movers. It ensures stable frequency regulation and coordinated speed control, preventing instability issues such as load imbalance, cross-current conditions, and system dropouts.
Applications
Thermal power plants: stabilize turbine speed control.
Hydropower plants: regulate generator load output.
Diesel power plants: balance multi-unit power generation.
Chemical plants: ensure power for pumps and private grids.
Pulp and paper plants: maintain constant-speed continuous production.
Feature
Speed Control: Precisely maintains the set speed of the engine or turbine by receiving frequency signals from the magnetic speed unit (MPU).
Load Sharing: In systems with multiple generators operating in parallel, this module communicates with the control modules of other units via "shared load sharing lines" to ensure that the total grid load is proportionally and evenly distributed among the units, preventing single-unit overload or reverse power operation.
FAQ
Q: What is the operating AC voltage of the 8271-467?
A: Operating voltage is 115–230 VAC.
Q: What is the power consumption range of the 8271-467 during normal operation?
A: Power consumption is 10–25 W.
Q: What is the operating temperature range of the 8271-467?
A: Operating temperature range is -40°C to +70°C.
Q: What humidity range does the 8271-467 support?
A: Relative humidity range is 0–95% RH (non-condensing).
Q: How does the 8271-467 achieve load sharing between multiple generator sets?
A: It balances load by precisely adjusting fuel input and engine speed across units.
