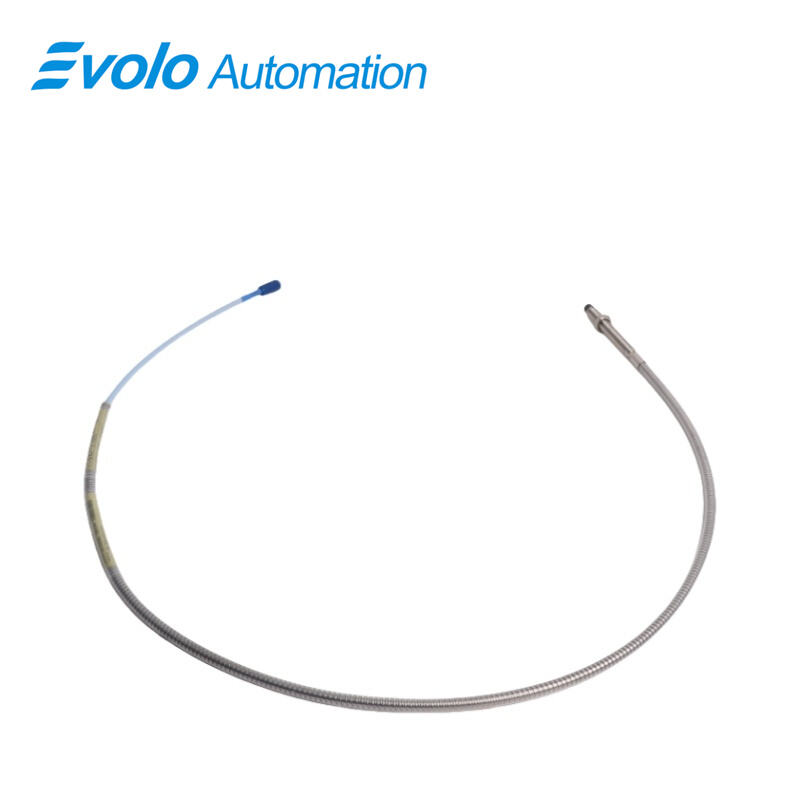

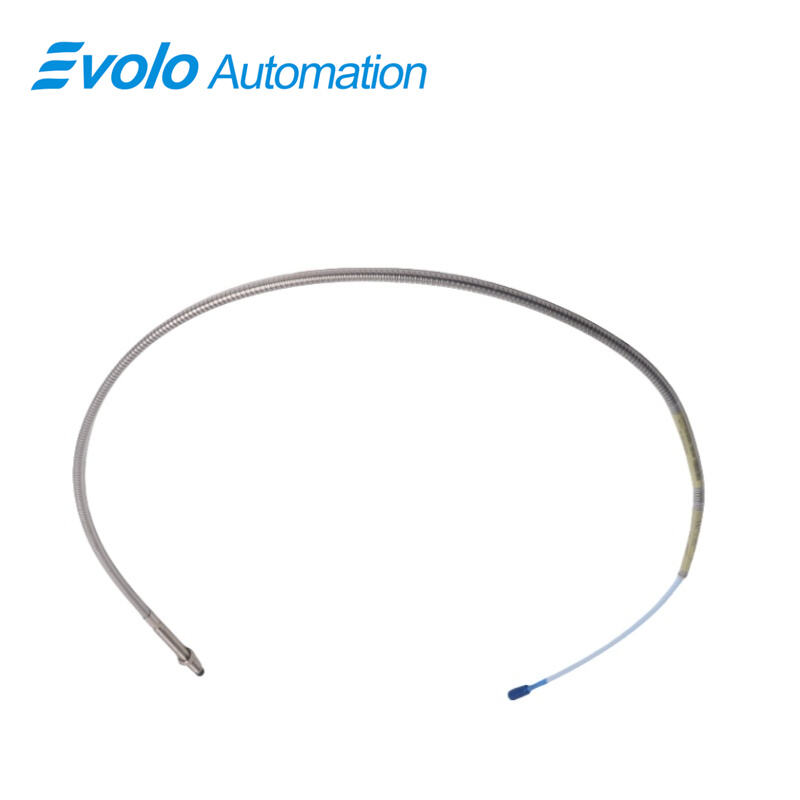

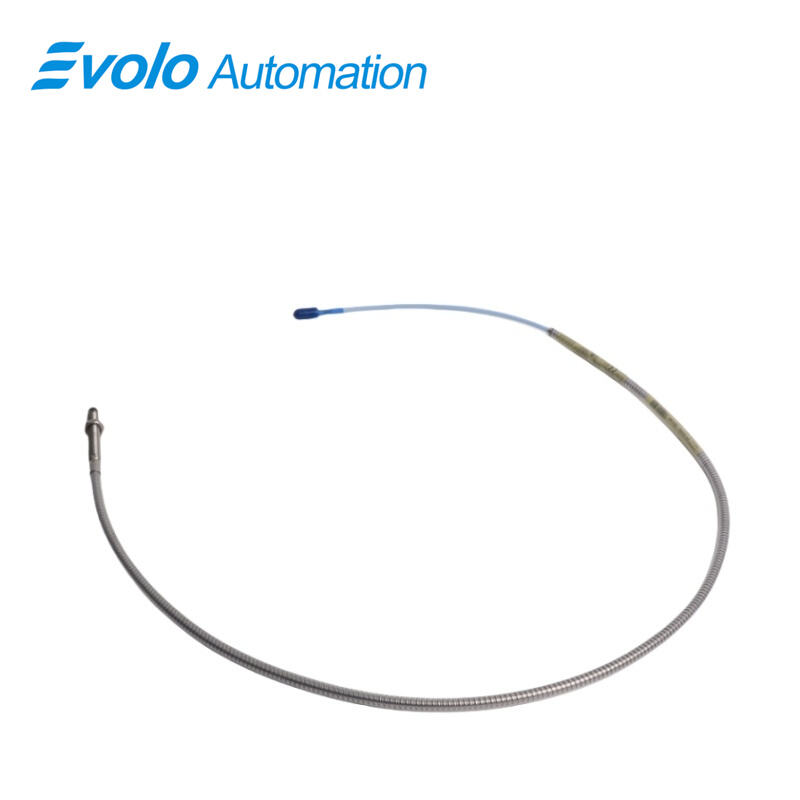

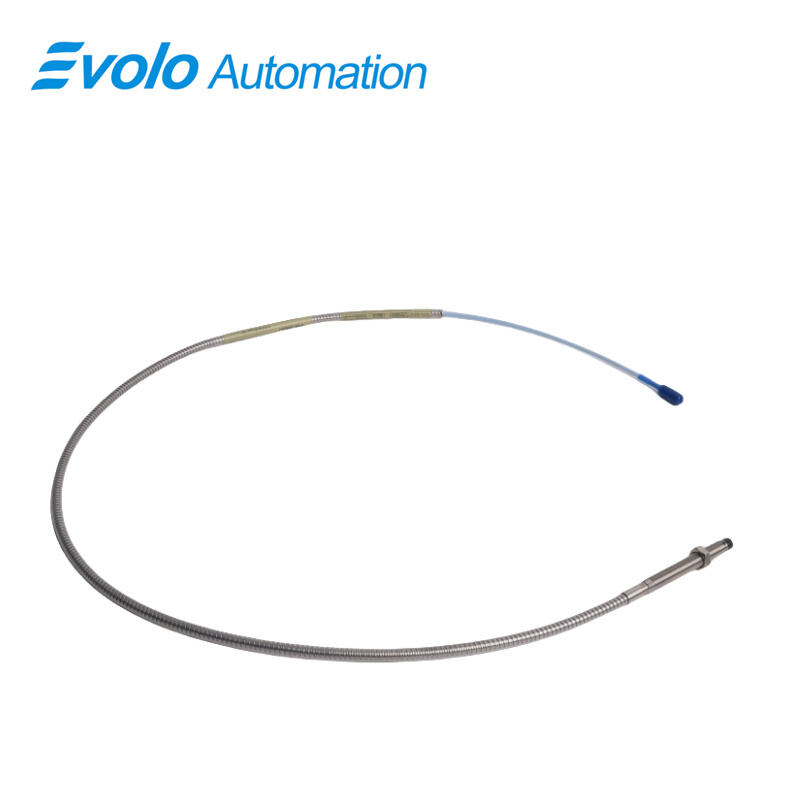

330102-00-28-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-28-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-28-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current proximity transducer designed for advanced automation systems requiring accurate vibration and position measurement. This probe generates an output voltage directly proportional to the distance between the probe tip and the target conductive surface, enabling precise monitoring of both static positions and dynamic vibrations in critical rotating machinery. Its robust design makes it ideal for fluid-film bearing machines, offering reliable performance under demanding industrial conditions.

In automation applications, the 3300 XL 8 mm Proximity Probe is widely used for Keyphasor reference and rotational speed detection, providing essential data for predictive maintenance and condition monitoring. The 3300 XL series delivers superior accuracy, temperature stability, and linearity, fully complying with API 670 standards, ensuring consistent performance across all industrial automation environments. Each probe integrates seamlessly with extension cables and Proximitor sensors, eliminating the need for individual component calibration and ensuring plug-and-play interchangeability in complex monitoring systems.

The probe design incorporates several patented features to enhance reliability. A TipLoc molding ensures a secure bond between the probe tip and body, while the CableLoc design delivers 330 N (75 lbf) pull strength, securing the probe cable against mechanical stress. Optional FluidLoc cabling provides enhanced protection against oil or liquid ingress, maintaining signal integrity even in harsh operational environments.

For automation engineers and maintenance teams, the 330102-00-28-10-02-05 3300 XL 8 mm Proximity Probe ensures precise, repeatable position and vibration measurements, supporting improved machinery uptime, predictive maintenance, and safer operation. Its backward compatibility with older 5 mm and 8 mm 3300 series components allows flexibility in system upgrades without the need for complete replacements.

Overall, the 3300 XL 8 mm Proximity Probe combines cutting-edge eddy current technology, robust industrial design, and full automation system compatibility, making it an essential sensor for modern rotating machinery monitoring and advanced industrial automation solutions.

Applications

The 330102-00-28-10-02-05 3300 XL 8 mm Proximity Probe is engineered for high-precision vibration and position monitoring in industrial automation and rotating machinery applications. Its eddy current technology provides an output voltage directly proportional to the distance between the probe tip and the monitored conductive surface, allowing accurate measurement of both static positions and dynamic vibrations.

Key Applications:

Rotating Machinery Monitoring: Ideal for fluid-film bearing machines, turbo machinery, and generators, the probe supports continuous condition monitoring to detect early signs of mechanical wear or imbalance.

Vibration Analysis: The probe’s linear range of 2 mm (80 mils) and recommended gap setting for radial vibration enable precise detection of shaft oscillations, supporting predictive maintenance programs and minimizing unplanned downtime.

Position Measurement: By accurately capturing static positional changes, the probe facilitates alignment verification and operational diagnostics in automation systems.

Keyphasor and Speed Reference: Compatible with Keyphasor applications, the 3300 XL probe can provide precise rotational speed reference signals for process control, synchronization, and diagnostic systems.

Harsh Industrial Environments: With operating temperatures from -52°C to +177°C (-62°F to +350°F) and durable probe materials (PPS tip and AISI 303/304 stainless steel case), the probe performs reliably under extreme conditions. Optional FluidLoc cables prevent oil or liquid ingress, ensuring consistent signal integrity.

The 3300 XL 8 mm Proximity Probe is fully compliant with API 670 standards, supporting mechanical configuration, accuracy, linearity, and temperature stability. Its design allows full interchangeability with extension cables and Proximitor sensors, eliminating the need for bench calibration and providing flexible integration into existing monitoring systems. Backward compatibility with other 3300 series probes ensures that both new and legacy automation setups can benefit from its enhanced performance.

In summary, the 330102-00-28-10-02-05 3300 XL 8 mm Proximity Probe is a versatile sensor for modern industrial automation, offering reliable vibration and position measurement, robust design for harsh environments, and seamless integration into predictive maintenance and condition monitoring programs.

Specifications

Competitive Advantage

High-Precision Measurement

The 3300 XL 8 mm Proximity Probe provides highly accurate vibration and position measurements. Its output voltage is directly proportional to the distance between the probe tip and the target conductive surface, ensuring precise monitoring of both static positions and dynamic vibrations in rotating machinery. This high linearity and minimal supply sensitivity (<2 mV per volt) make it ideal for critical automation and condition monitoring applications.

Robust Industrial Design

Built with a PPS probe tip and AISI 303/304 stainless steel case, the 3300 XL 8 mm probe withstands harsh industrial environments with operating temperatures ranging from -52°C to +177°C (-62°F to +350°F). The optional FluidLoc cable prevents oil or other liquids from entering the machine through the cable, ensuring reliable long-term operation.

Enhanced Mechanical Reliability

The probe incorporates a patented TipLoc molding for a stronger bond between the tip and body, along with a CableLoc design that provides 330 N (75 lbf) pull strength, securing the probe cable and preventing mechanical failure under stress. Its 3/8-24 UNF thread and controlled engagement length allow stable and precise mounting.

Full System Compatibility

The 3300 XL 8 mm probe is fully interchangeable with other 3300 series components, including 5 mm and 8 mm probes, extension cables, and Proximitor sensors. This backward compatibility eliminates the need for bench calibration or component matching, simplifying installation and reducing maintenance downtime.

Compliance with Industry Standards

Designed to meet API 670 standards, the probe ensures consistent mechanical configuration, linear range, accuracy, and temperature stability. It also carries CSA, ATEX, and IECEx approvals, making it suitable for use in explosive and high-risk environments.

Optimized for Automation and Predictive Maintenance

With its precise measurement capability, robust construction, and easy integration, the 3300 XL 8 mm Proximity Probe supports modern industrial automation, predictive maintenance programs, and real-time condition monitoring, enhancing machinery reliability and operational efficiency.
