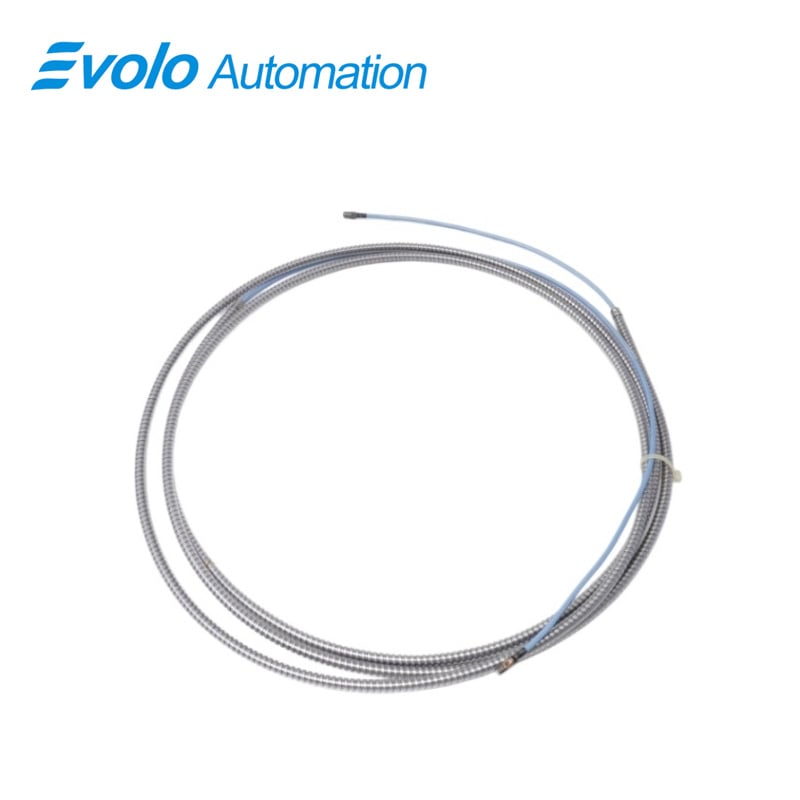

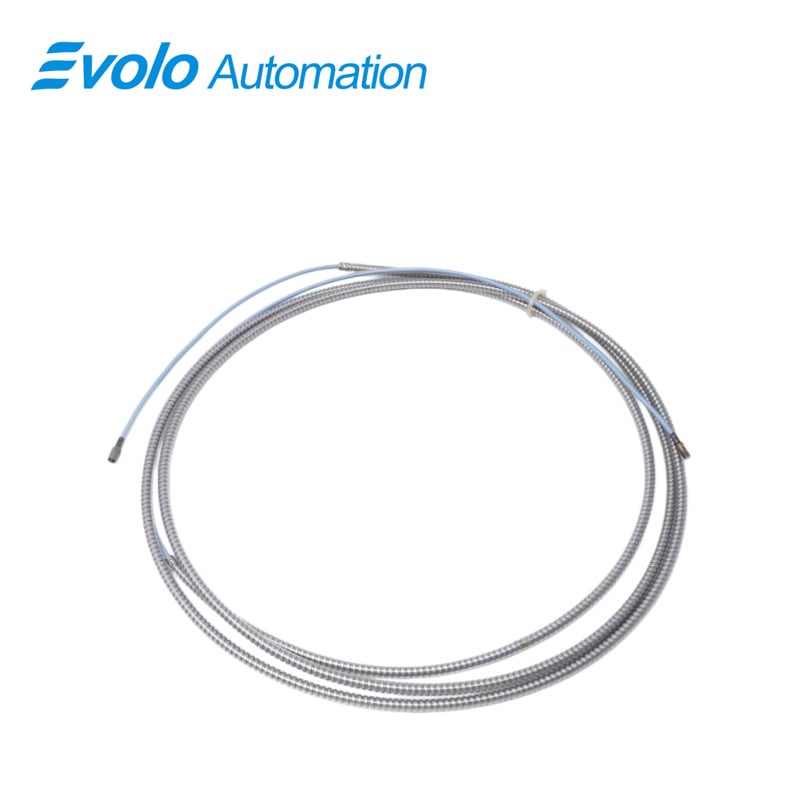

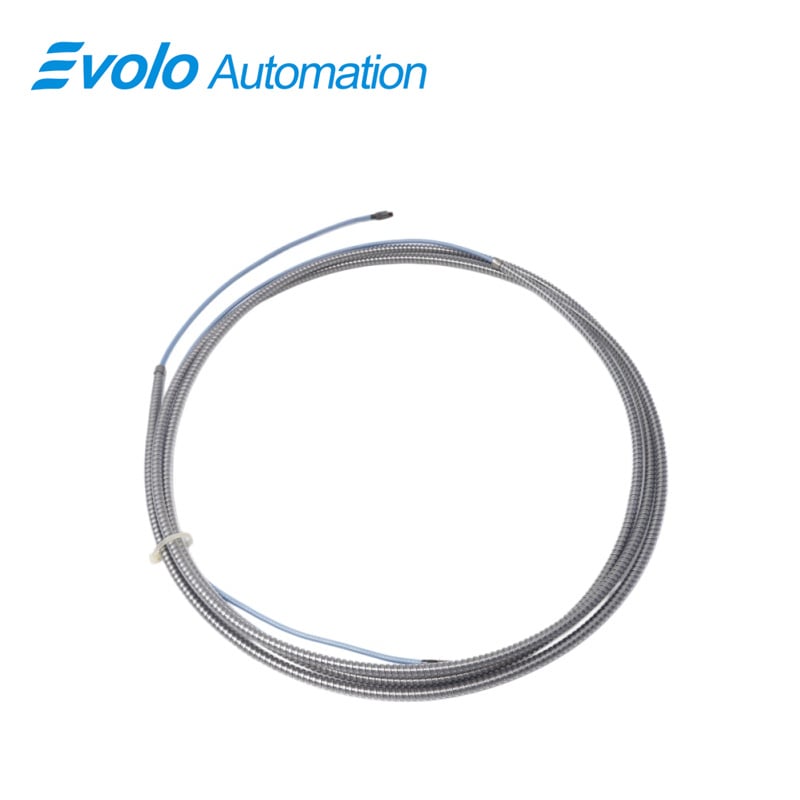

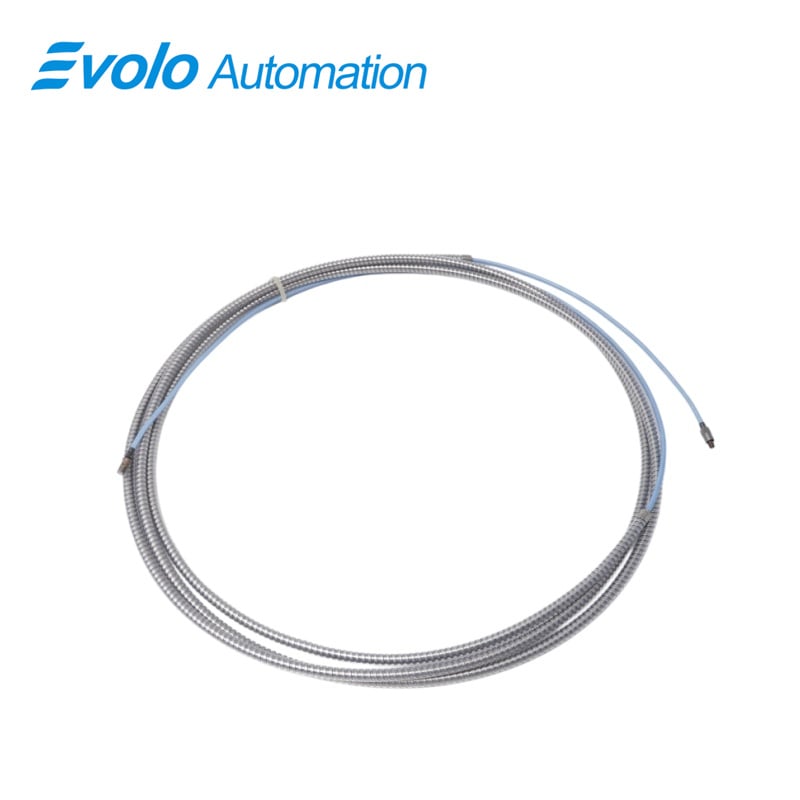

76686-040-01 Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	76686-040-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 76686-040-01 Extension Cable enables reliable signal and power transmission for industrial automation systems. With power consumption of 3.5 W typical and 5 W max, the 76686-040-01 supports cable lengths of 1 m, 5 m, 10 m, or 20 m using twisted-pair, shielded conductors. It provides RJ45 connectors for Ethernet (up to 100 Mbps) and screw terminals for RS-485 (up to 1.2 kbps). Cable diameter is 7 mm with ≥50 mm bending radius, insulation resistance >100 MΩ at 500 VDC, and dielectric strength 1500 V RMS. The 76686-040-01 operates from -40°C to +85°C, stores from -55°C to +100°C, and handles 0–95% RH non-condensing. IP67 ingress protection, EMI shielded braid, and optional ATEX/IECEx approval allow deployment in harsh industrial environments. Measuring 26.5 × 25 × 2.5 cm and weighing 0.32 kg, the 76686-040-01 integrates easily into automated sensor and control systems, ensuring accurate data transmission, efficient connectivity, and extended reach for real-time process monitoring.

Applications

Application Extend Industrial Sensor Networks
Use the 76686-040-01 to extend Ethernet and RS-485 connections up to 20 m, enabling automated machinery monitoring and real-time data collection across multiple sensors.

Application Remote Control System Integration
The 76686-040-01 delivers accurate 100 Mbps Ethernet signals and RS-485 data, allowing SCADA or PLC controllers to process automation signals over extended distances.

Application Harsh Environment Deployment
With IP67 protection, EMI shielding, and operation from -40°C to +85°C, the 76686-040-01 enables automated systems to function reliably in high-humidity, dusty, or industrial outdoor environments.

Specifications

Competitive Advantage

Competitive Advantage High-Fidelity Signal Transmission
The 76686-040-01 maintains precise signal integrity with 50 Ω output resistance, 100 MΩ insulation, and 1500 V RMS dielectric strength for automated control systems.

Competitive Advantage Flexible Length Options
Available in 1 m, 5 m, 10 m, and 20 m, the 76686-040-01 supports scalable automation layouts and simplifies system wiring without performance loss.

Competitive Advantage Easy Integration and Lightweight Design
With compact dimensions (26.5 × 25 × 2.5 cm), 0.32 kg weight, and standard RJ45 and screw terminals, the 76686-040-01 integrates quickly into existing industrial automation networks.
