Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
5437-672 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
5437-672 |
|
Product Type |
NetCon Field Terminal Module |
|
Dimensions |
15.8 × 8.8 × 6.9 cm |
|
Weight |
0.25 kg |
|
Input Voltage |
24 VDC |
|
Frequency |
3 kHz |
|
Display |
24-character LED display |
|
Button |
Emergency Stop |
Description

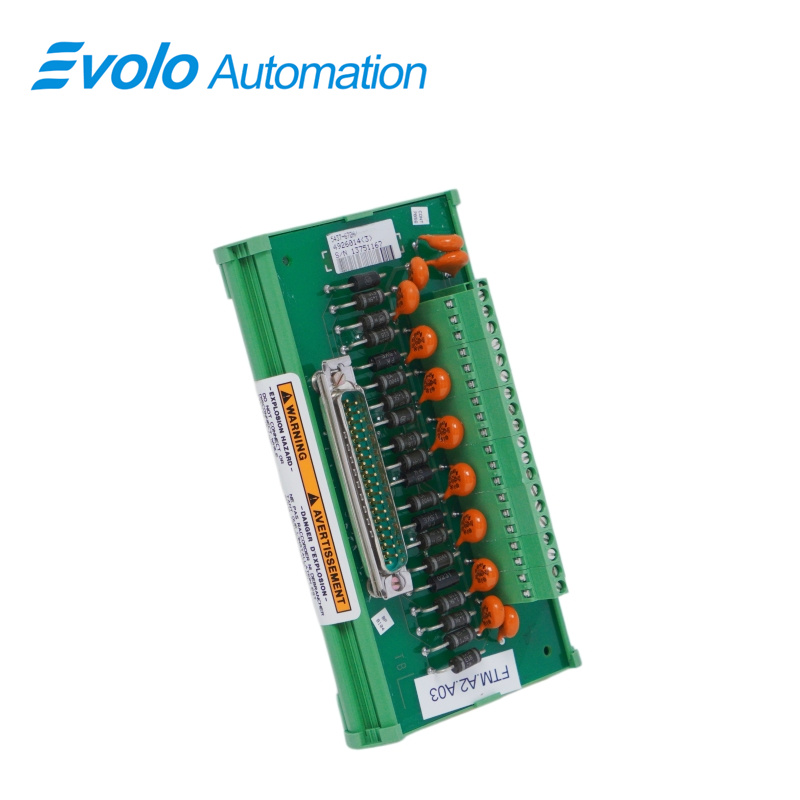

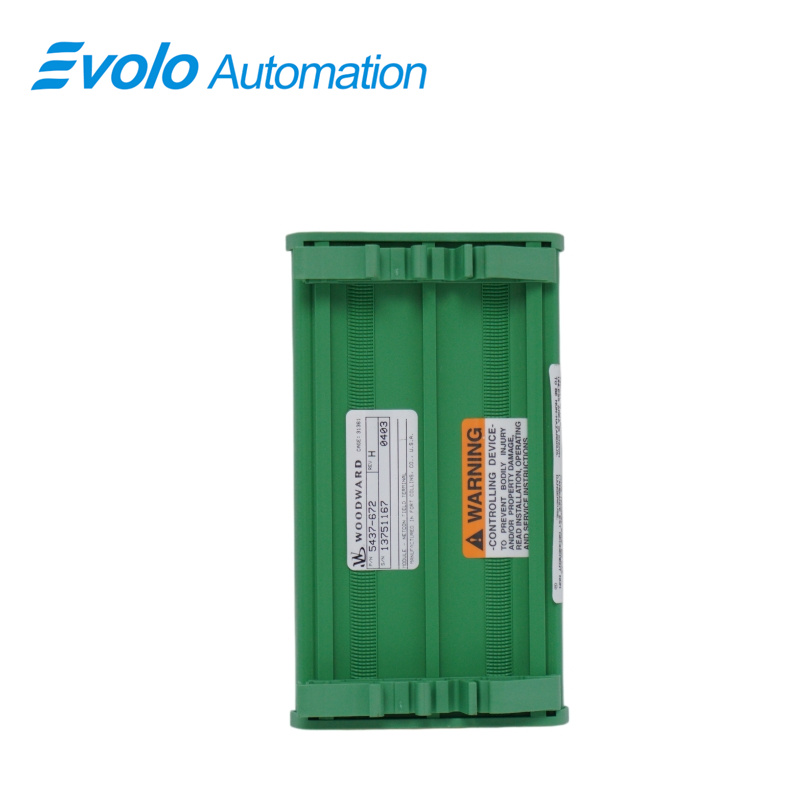

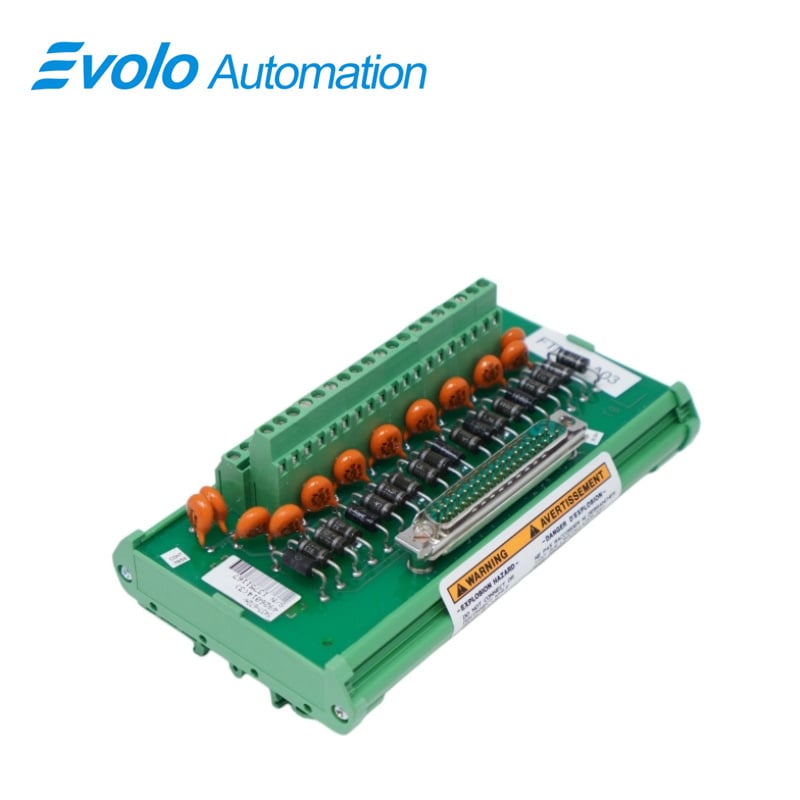

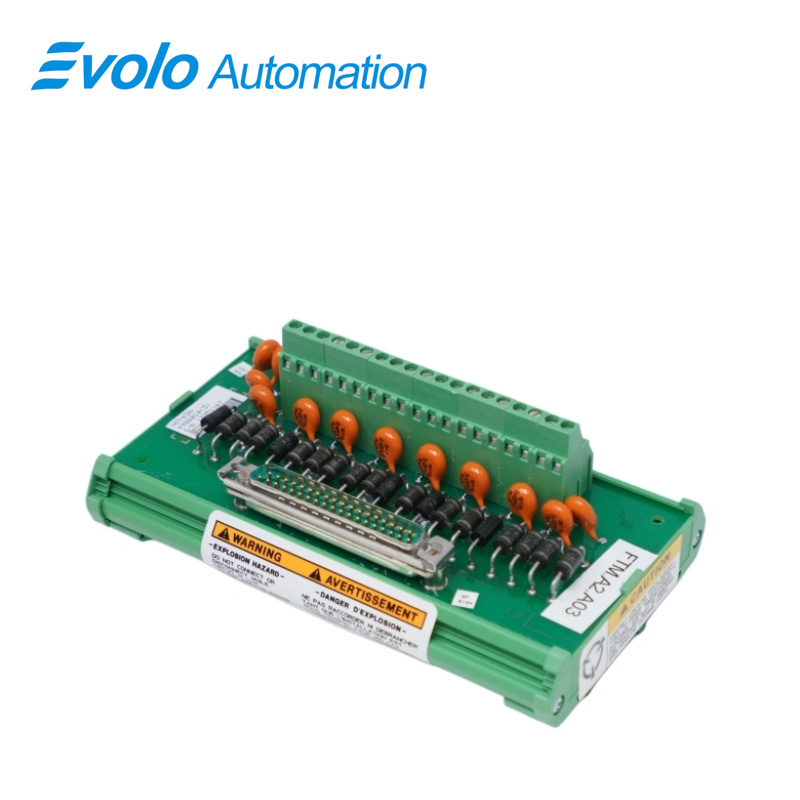

5437-672 is a NetCon Field Terminal Module manufactured and designed by Woodward as part of the 5400 Series used in Turbine Control Systems. A Field Terminal Module provides a connection point for field devices, such as sensors and actuators, in a distributed control system (DCS) or a programmable logic controller (PLC system.It is also known as a Fieldbus Terminal or Remote lI/O Module. The FTM serves as an interface between the field devices and the control system, allowing signals to be transmitted back and forth.
Applications
Gas Turbine Plants: Mounted on local panels to monitor turbine speed and provide emergency stop control.
Heavy Oil Hydrogenation Plants: Displays valve position and diagnostics with local emergency shutdown capability in low-light outdoor cabinets.
Natural Gas Compression Stations: Used for high-speed pulse signal acquisition and cabinet door interlock safety control.
District Heating Plants: Provides local monitoring of fan speed and airflow with fault reset and safety shutdown functions.
Rail Transit Test Facilities: Acts as a primary hardwired safety interface and status display for high-speed drivetrain systems.
FEATURES
Streamlined Wiring: Fieldbus reduces long cable runs by using local connections, simplifying installation and maintenance.
High Reliability: Shorter distances reduce signal loss and interference, improving communication stability and system performance.
Cost Efficiency: Less cabling lowers material and installation costs while simplifying wiring management.
Safety Note: A short circuit may trigger system shutdown for protection. Follow safety procedures to prevent damage and ensure safe operation.
FAQ
Q: What DC input voltage is required for 5437-672?
A: The input voltage is 24 VDC.
Q: What is the operating frequency of 5437-672?
A: The frequency is 3 kHz.
Q: How many characters does the LED display of 5437-672 support?
A: It has a 24-character LED display.
Q: What function button is equipped on 5437-672?
A: It is equipped with an Emergency Stop button.
Q: What type of device is the Emergency Stop button on 5437-672?
A: It is a button-type device.
