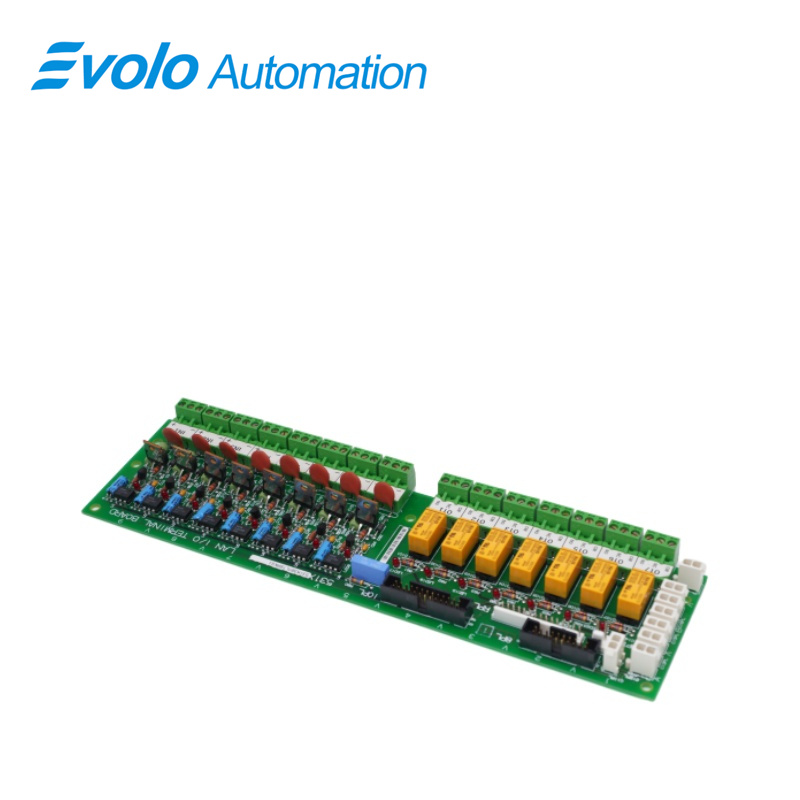

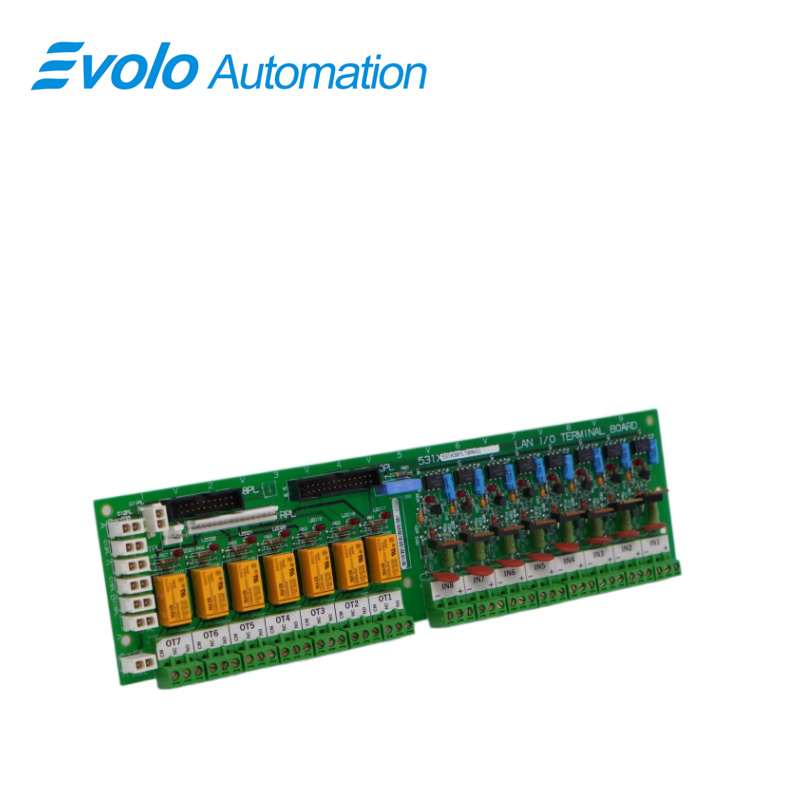

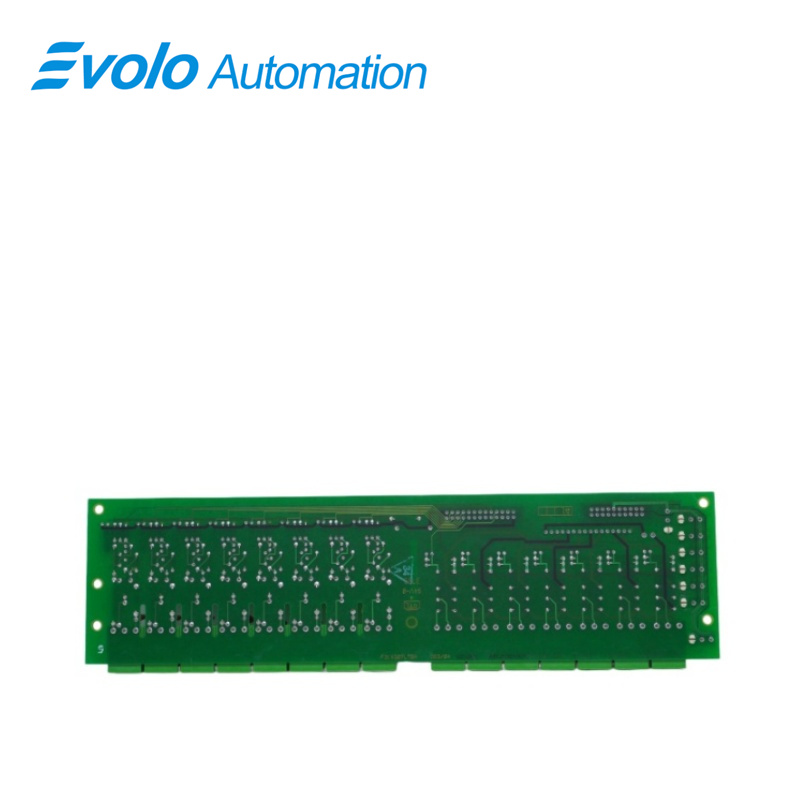

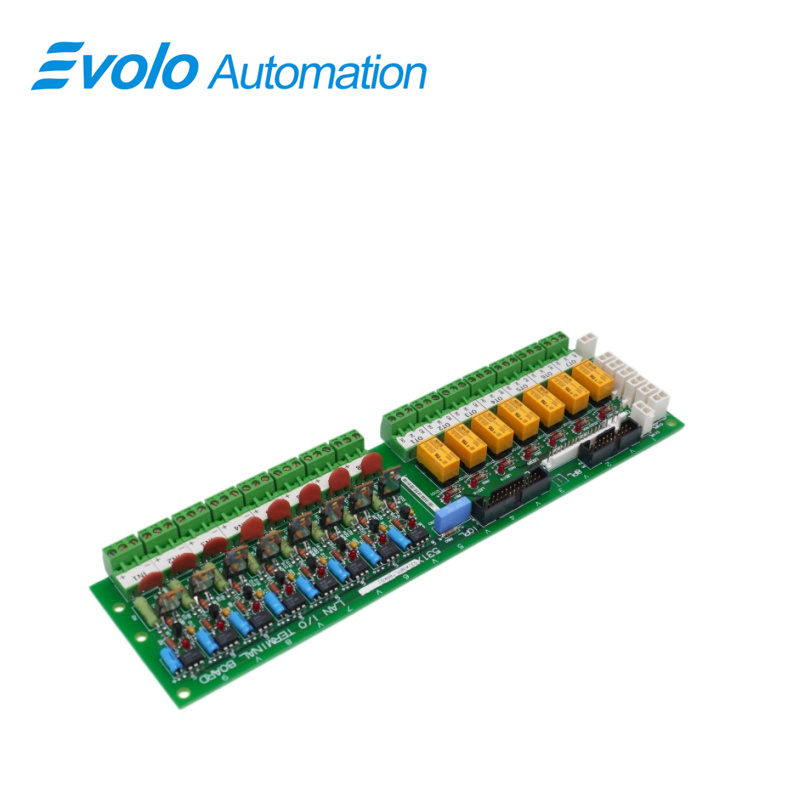

531X307LTBAKG1 Input/Output Terminal Board

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	531X307LTBAKG1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The GE 531X307LTBAKG1 is a local area network (LAN) input/output terminal board manufactured by General Electric (GE) for drive systems. It is primarily used to connect various control devices, sensors, and actuators to achieve data acquisition, transmission, and control. This product is an important component of the GE 531X series drive system, featuring high reliability, flexibility, and scalability.

Applications

Heavy machinery manufacturing plants: Used in the frequency converter systems of large hoisting or excavating equipment, responsible for the logic input of multiple control signals.

Aluminum electrolysis plants: Used in high-precision excitation control cabinets, handling complex AC/DC switching feedback signals.

Rubber tire manufacturing plants: Used for segmented control of internal mixer drive systems, connecting button and sensor signals.

Textile printing and dyeing plants: Serves as an I/O extension terminal to optimize local area network interlocking in multi-machine synchronous control networks.

Cement processing plants: Installed within large rotary kiln drives, providing a physical terminal for remote control room signal access.

Features

High Reliability: Adopts industrial-grade components and is suitable for harsh industrial environments.

Modular Design: Convenient installation and maintenance.

Strong Compatibility: Compatible with GE 531X series drives.

Powerful functions: Provides multiple functions to meet different application requirements.

Main Functions

LAN Interface: Provides Ethernet interface for connecting to industrial networks for remote monitoring and control.

Digital Input/Output: Provides multiple digital input/output channels for connecting switches, buttons, indicator lights and other devices.

Control Output: Provides relay output for controlling external devices.

Flexible Configuration: Supports multiple configuration options and can be customized according to application requirements.

FAQ

Q: Does the 531X307LTBAKG1 have any diagnostic features?
A: Yes, the 531X307LTBAKG1 has LEDs for each of its relay outputs and input circuits.

Q: How does the 531X307LTBAKG1 connect to the SLCC/LDCC control boards?
A: This is done via the 10PL connector.

Q: What is the relay output form of the 531X307LTBAKG1?
A: It integrates 7 Form C relay contacts, providing flexible normally open/normally closed logic outputs.

Q: Does the 531X307LTBAKG1 have built-in circuit fuses?
A: This board is designed as non-fused (No Fused), so appropriate overcurrent protection must be ensured on the system side during installation.

Q: Can the 531X307LTBAKG1 handle AC voltage signals?
A: Yes, it is compatible with both AC and DC voltages and supports a wide voltage range up to 240 V.
